/Products/Electric Motors/Single Phase/Baldor/Jet Pump/JL1323A Baldor 3HP Jet Pump Electric Motor, 3450RPM

Product ID: JL1323A

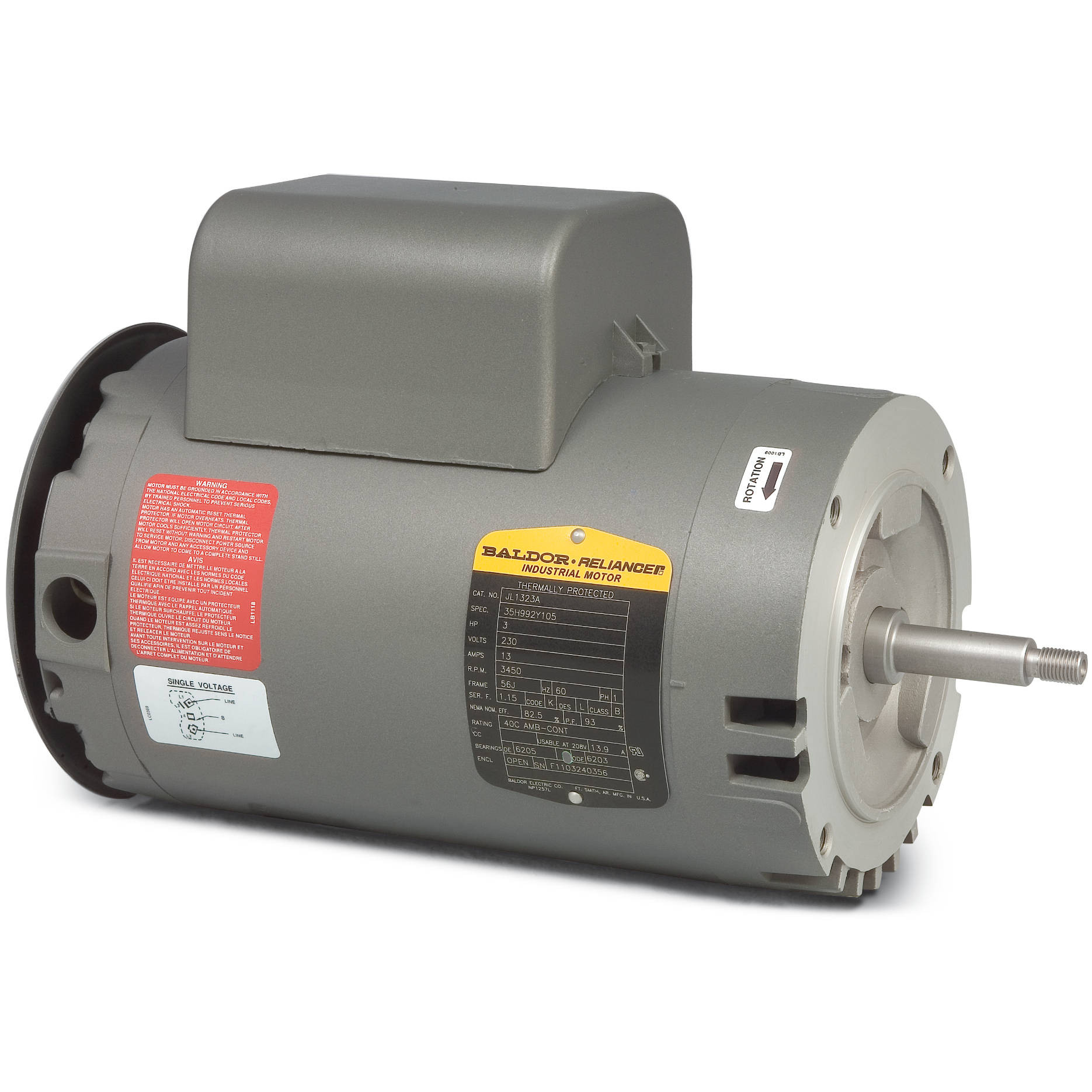

JL1323A Baldor 3HP Jet Pump Electric Motor, 3450RPM

MFG: Baldor Electric Company
MFG Part Number: JL1323A

Selected accessories will also be added to cart
$887.97 / Each
Quantity:
Open, 56J Frame, 230VAC 60Hz Single Phase, Rolled Steel, Round Body, C- Face, 5/8" Shaft

Specifications

Specs

Catalog Number JL1323A
Enclosure OPEN
Frame 56J
Frame Material Steel
Frequency 60.00 Hz
Output @ Frequency 3.000 HP @ 60 HZ
Phase 1
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Voltage @ Frequency 230.0 V @ 60 HZ
XP Class and Group None
XP Division Not Applicable
Agency Approvals UR
CSA
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Current @ Voltage 13.000 A @ 230.0 V
Design Code L
Drip Cover Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 82.5 %
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device NO FEEDBACK
High Voltage Full Load Amps 13.0 a
Front Face Code Terminal Panel
Front Shaft Indicator None
Heater Indicator No Heater
Insulation Class F
Inverter Code Not Inverter
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Terminal Panel
Motor Lead Termination None
Motor Lead Quantity/Wire Size 2 @ 14 AWG, A PH
Motor Type 3535LC
Mounting Arrangement F1
Number of Poles 2
Overall Length 14.13 IN
Power Factor 93
Product Family General Purpose
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Ext Thread
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Fixed Opposite Standard
Shaft Slinger Indicator No Slinger
Speed 3450 rpm
Speed Code Single Speed
Motor Standards NEMA
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 Automatic Thermal Overload
Winding Thermal 1 Location SB
Winding Thermal 2 None

Applications

Features

Nameplate

Nameplate

CAT.NO. JL1323A
SPEC. 35H992Y105
HP 3
VOLTS 230
AMP 13
RPM 3450
FRAME 56J HZ 60 PH 1
SER.F. 1.15 CODE K DES L CL F
NEMA-NOM-EFF 82.5 PF 93
RATING 40C AMB-CONT
CC USABLE AT 208V 13.9
DE 6205 ODE 6203
ENCL OPEN SN
NP1257L

Performance

Performance

Performance at 230 V, 60 Hz, 3 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque 0 LB-FT
No-Load Current 0 A
Line-Line Res. @ 25° C 0.617 Ohms A Ph / 2.54 Ohms B Ph
Temp. Rise @ Rated Load 49° C
Temp. Rise @ S.F. Load 56° C
Start Configuration DOL
Break-Down Torque 15.5 LB-FT
Pull-Up Torque 13 LB-FT
Locked-Rotor Torque 13 LB-FT
Starting Current 108 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 48.0 61.0 80.0 87.0 91.0 92.0 93.0 92.0
Efficiency 0.0 68.8 78.5 82.1 82.5 82.6 81.0 82.6
Speed (RPM) 3,590 3,578 3,556 3,535 3,517 3,487 3,450 3,499
Line Amps 5.00 6.00 7.90 10.30 13.00 16.00 19.00 14.80
