/Products/Electric Motors/Single Phase/Baldor/Jet Pump/JL1301A Baldor 1/3HP Jet Pump Electric Motor, 1800RPM
Click Image to Expand

Product ID: JL1301A

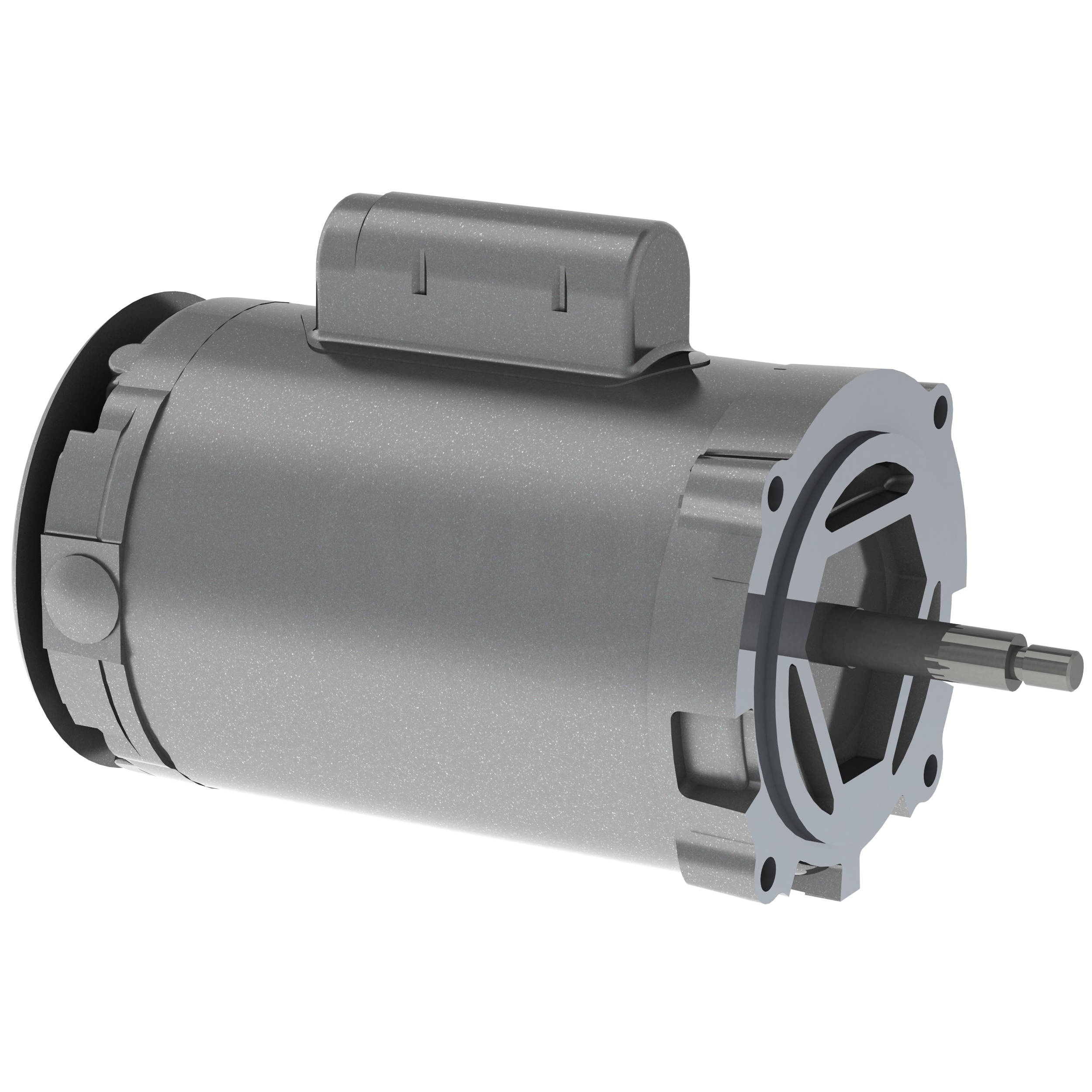

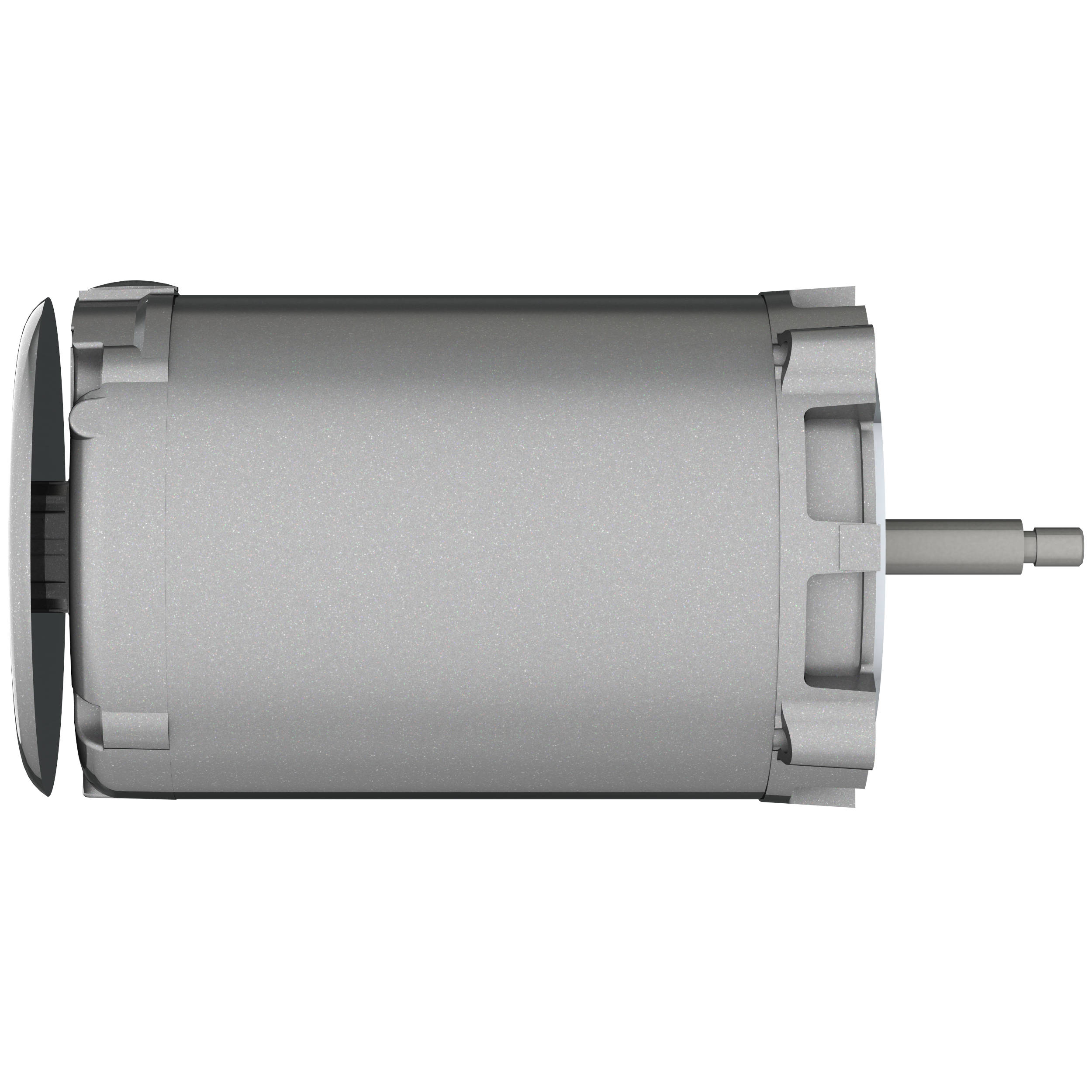

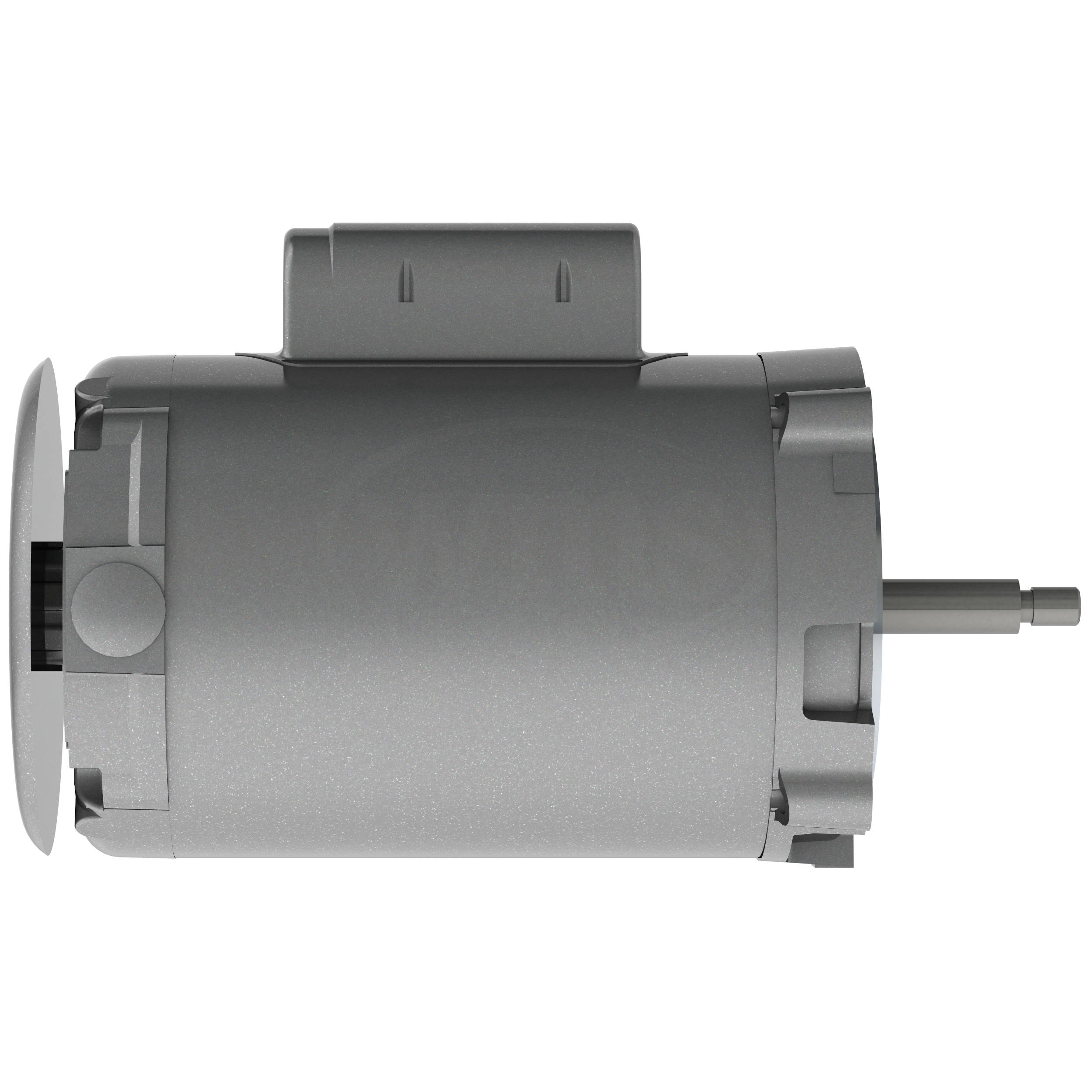

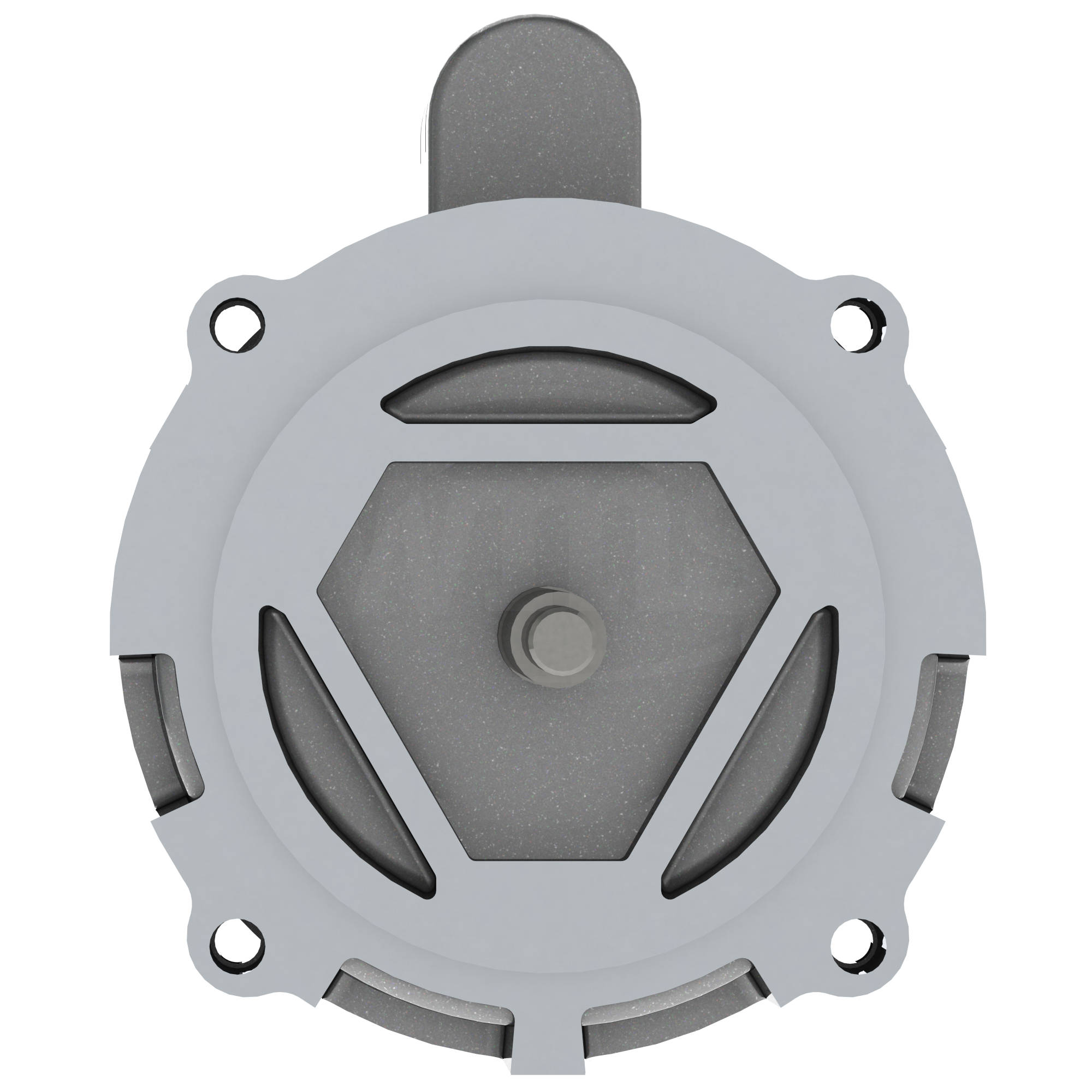

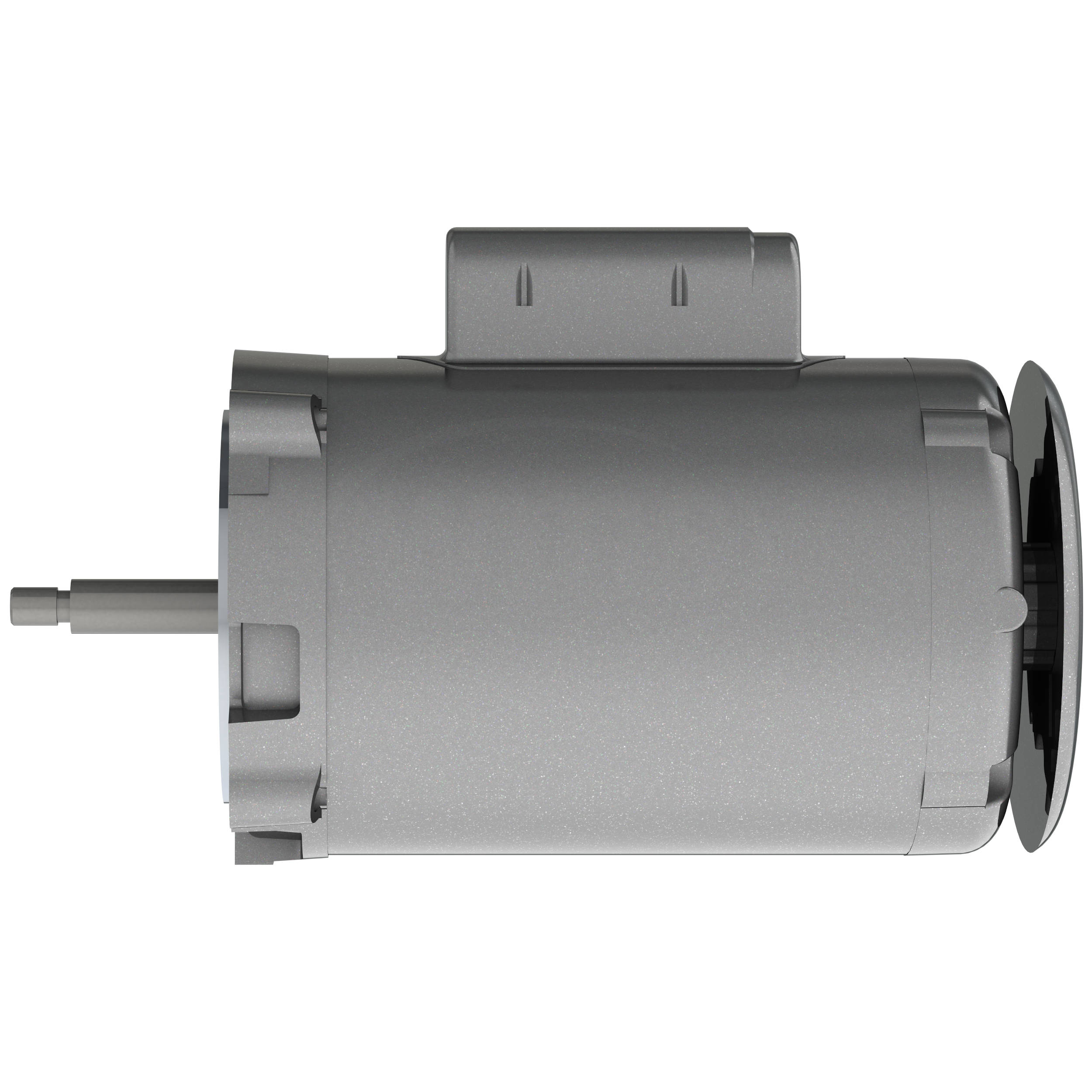

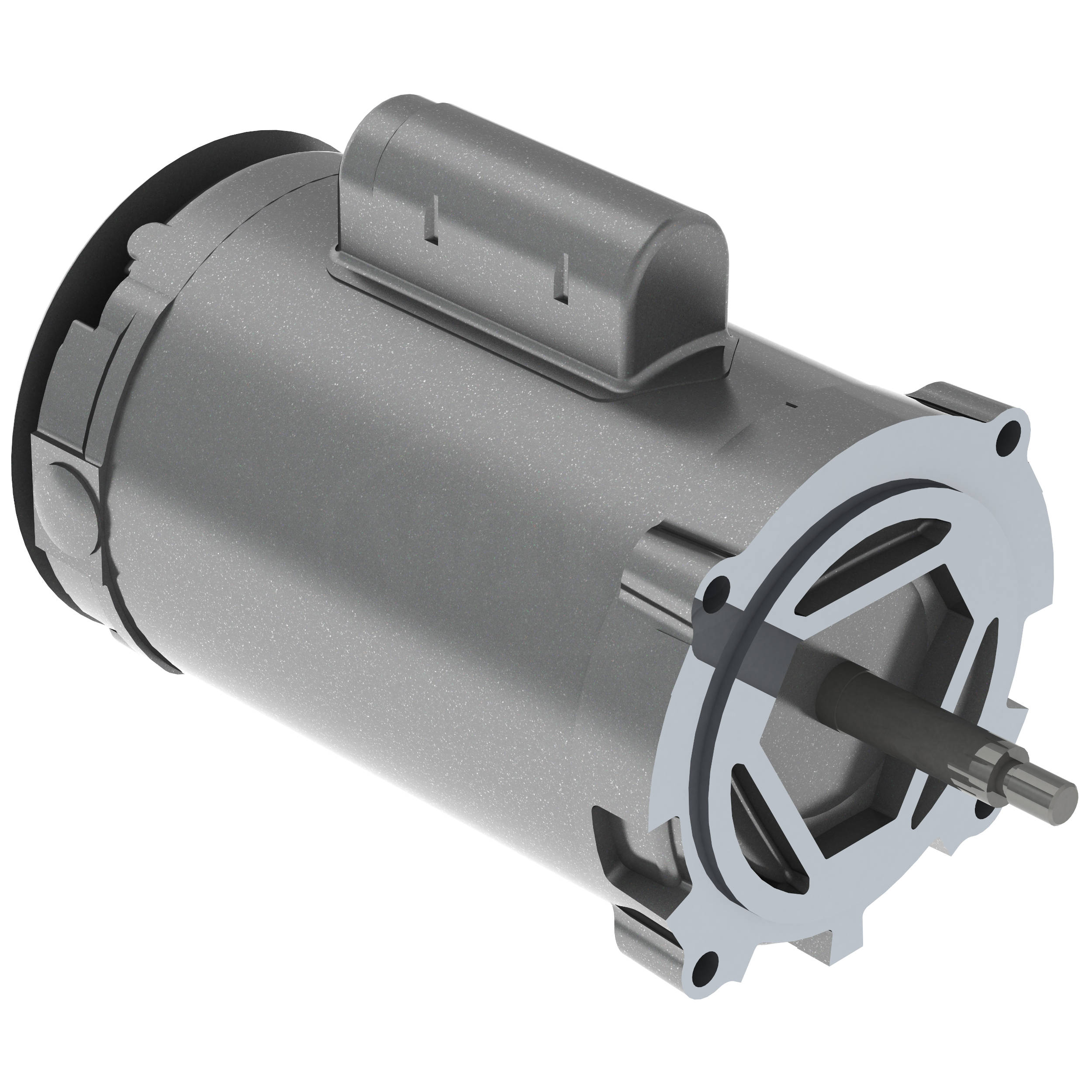

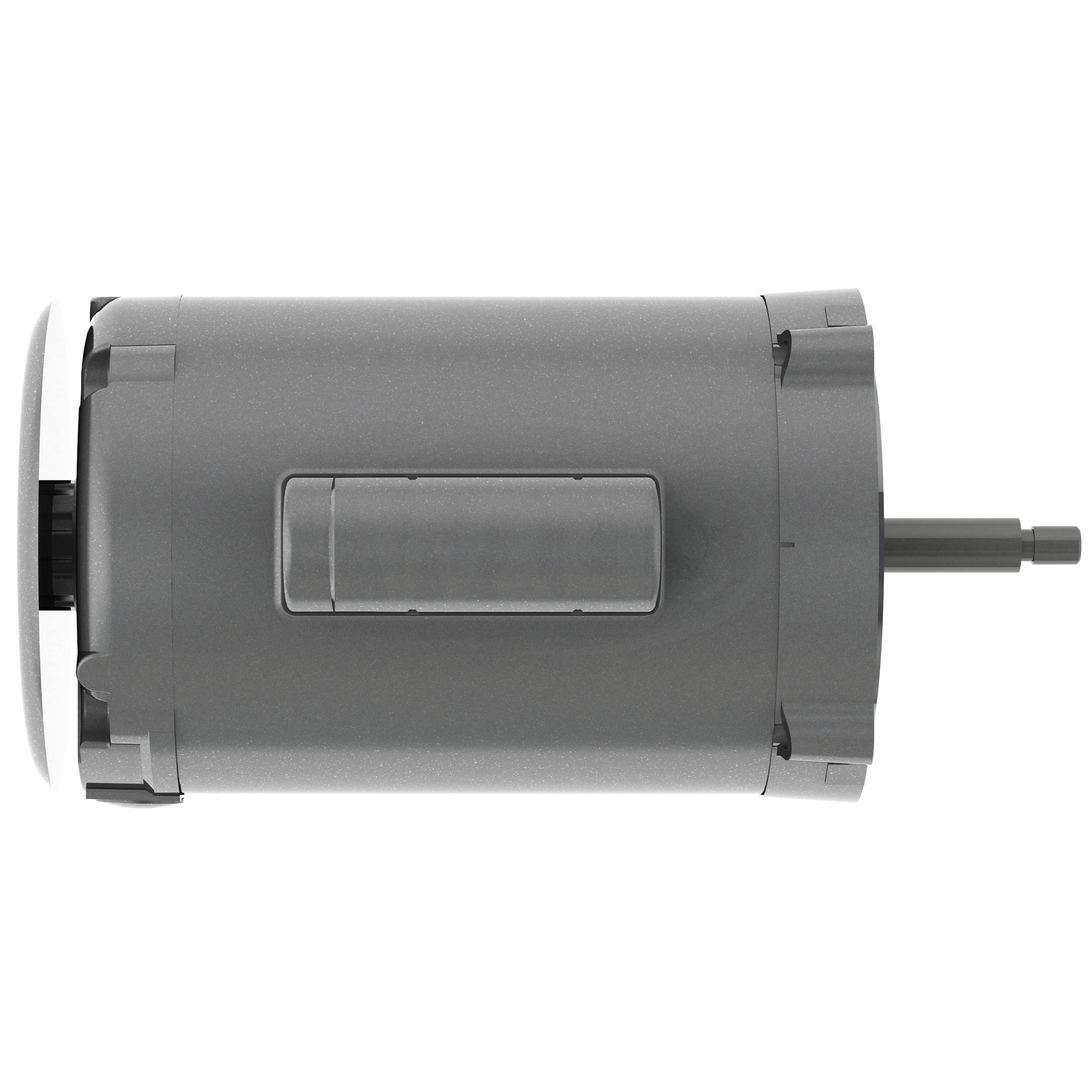

JL1301A Baldor 1/3HP Jet Pump Electric Motor, 1800RPM

MFG: Baldor Electric Company
MFG Part Number: JL1301A

Selected accessories will also be added to cart
$377.97 / Each
Quantity:
Open, 56J Frame, 115/230VAC 60Hz Single Phase, C-Face, Footless, Round Body, Rolled Steel, 3414L, 34F036-5599

Specifications

Specs

Output 0.330 hp
Phase 1
Synchronous Speed 1,800 rpm
Frequency 60.00 Hz
Voltage 230 V
115 V
Frame Material Steel
Frame 56J
XP Class and Group NONE
XP Division Not Applicable
Brand Baldor-Reliance
Agency Approvals CSA
UR
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type POLYREX EM (-20F +300F)
Blower None
Current 6.0 A @ 115 V
3.6 A @ 208 V
3.0 A @ 230 V
Design Code N
Drip Cover Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 60.0%
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device No feedback
Front Face Code Terminal panel
Front Shaft Indicator None
Heater Indicator No heater
High Voltage Full Load Amps 3.0 A
Insulation Class B
Inverter Code Not inverter
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Terminal Panel or Lead Hole
Motor Lead Quantity/Wire Size 6 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Standards NEMA
Motor Type 3414L
Number of Poles 4
Overall Length 11.89 in
Power Factor 60
Product Family General Purpose
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Ext Thread
Rodent Screen None
RoHS Status RoHS Compliant
Service Factor 1.35
Shaft Diameter 0.625 in
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Fixed Opposite Standard
Shaft Slinger Indicator No Slinger
Speed 1,725 rpm
Speed Code Single Speed
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 Automatic Thermal Overload
Winding Thermal 1 Location SB
Winding Thermal 2 None

Applications

Features

Nameplate

Nameplate

CAT.NO. JL1301A
SPEC. 34F036-5599
HP .33
VOLTS 115/230
AMP 6/3
RPM 1725
FRAME 56J HZ 60 PH 1
SER.F. 1.35 CODE L DES N CL B
NEMA-NOM-EFF 60 PF 60
RATING 40C AMB-CONT
CC USABLE AT 208V 3.6
DE 6203 ODE 6203
ENCL OPEN SN
SFA 6.8/3.4
NP1257L

Performance

Performance

Performance at 230 V, 60 Hz, 0.33 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque 0 LB-FT
No-Load Current 0 A
Line-Line Res. @ 25° C 6.32 Ohms A Ph / 4.93 Ohms B Ph
Temp. Rise @ Rated Load 43° C
Temp. Rise @ S.F. Load 53° C
Start Configuration DOL
Break-Down Torque 2.95 LB-FT
Pull-Up Torque 2.55 LB-FT
Locked-Rotor Torque 3.6 LB-FT
Starting Current 13 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 20.0 31.0 41.0 51.0 60.0 66.0 72.0 70.0
Efficiency 0.0 34.0 49.0 56.0 60.0 62.0 63.0 63.0
Speed (RPM) 1,795 1,783 1,765 1,745 1,730 1,710 1,680 1,695
Line Amps 2.60 2.60 2.70 2.80 3.00 3.30 3.70 3.40
