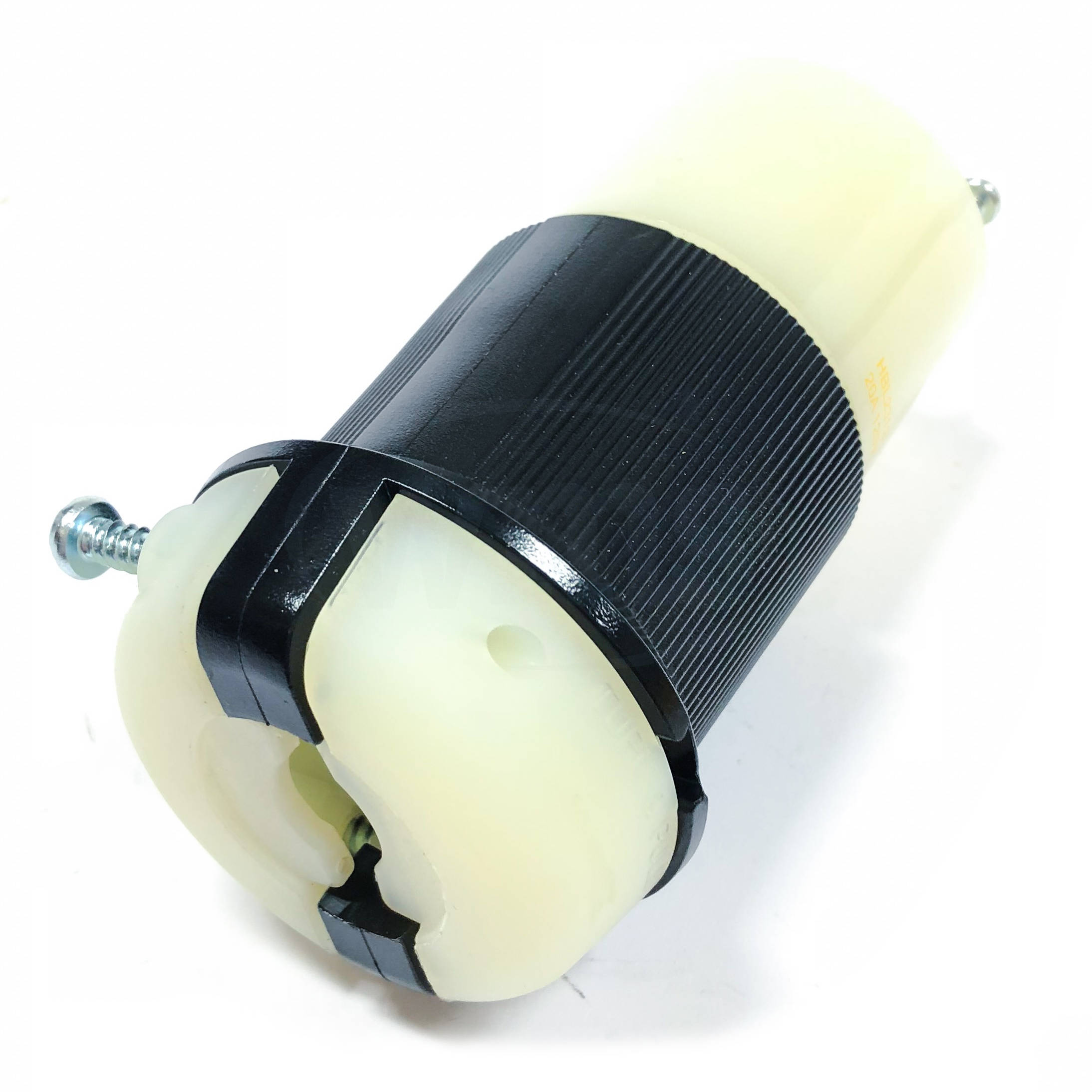

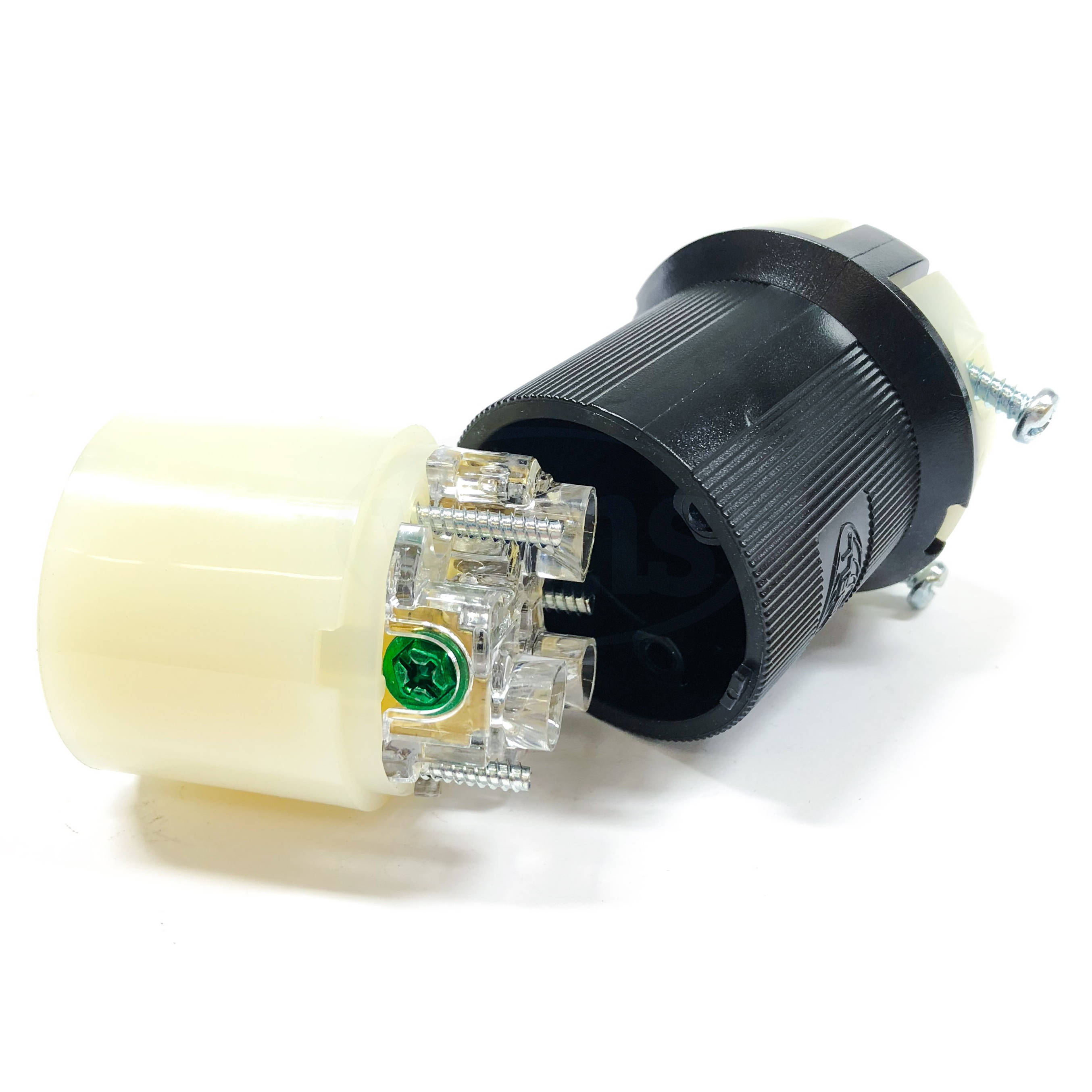

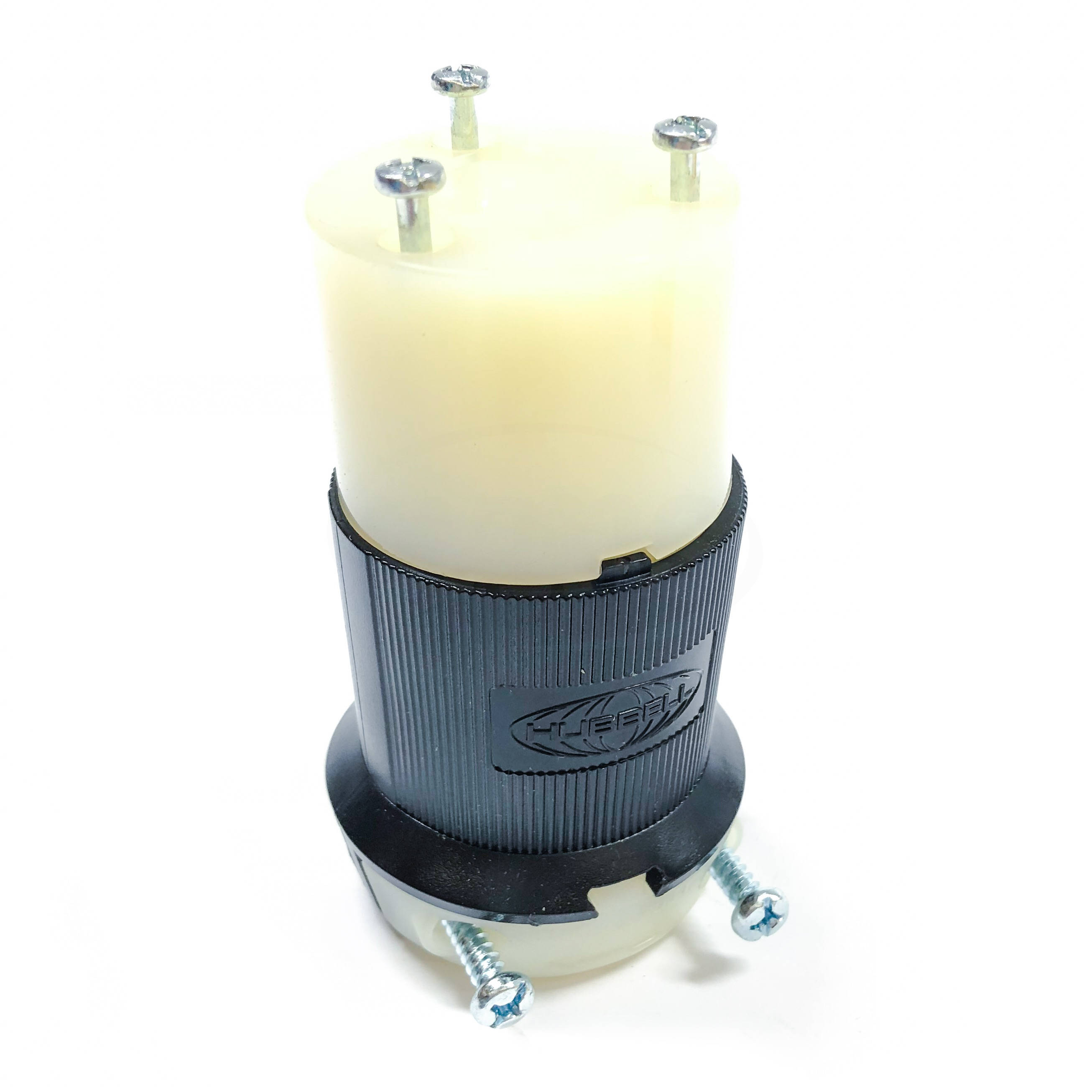

Locking Devices, Twist-Lock®, Industrial, Female Insulgrip® Connector Body, 20A 125V AC, 2-Pole 3-Wire Grounding, NEMA L5-20R, Screw Terminal, Black and White Nylon.
• Ribbed nylon housing provides a secure grip and impact and chemical resistance.
• Superior cord grip design protects terminations from excess strain.
• Clear, funnel shaped wire entry for ease of termination.
• Integral dust shield protects wiring chamber from dust or contaminants.
General
Application Heavy Duty Industrial
Color Black, White
Cord Range 0.360"-0.930" (9-24)
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Horsepower - Maximum 1
Insulation Insulated Body
Item Type 20A Insulgrip® Connector
Material Nylon
Material - Mounting Hardware Cord Mounted
Number Of Poles 2-Pole
OEM Brand Name Hubbell Wiring Device-Kellems
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current
Electrical - Dielectric Voltage - Withstands 2,000V minimum
Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6
Environmental - Moisture Resistance - IP20 Suitability
Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Temperature Rating Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type Connector Body
UPC 783585037745
Dimensions
Display Size Standard
Height 3.86 in
Length 2.26 in
Weight 0.30 lb
Width 2.26 in
Electrical Ratings
Amperage Rating 20 A
Connectivity Pressure Terminal Screws
Current / Amperage Rating 20 A
Current Rating 20 A
Dielectric Strength Withstands 2,000V minimum
Voltage Rating 125 VAC
Voltage Rating Description 125 VAC
Conductor Related
Cable Range 0.360 - 0.930 in
Number Of Wires 3-Wire
Wire Size #16 AWG to #8 AWG
Certifications and Compliance
Industry Standard(s)
Certified to CSA C22.2 No.42
Fed.Spec. W-C-596
Listed to UL 498
Nema Rating L5-20R
