/Products/Electric Motors/Single Phase/Century/Hot Water Circulator/HW2034BL Century 1/3HP Circulator Pump Electric Motor, 1800RPM
Click Image to Expand

Product ID: HW2034BL

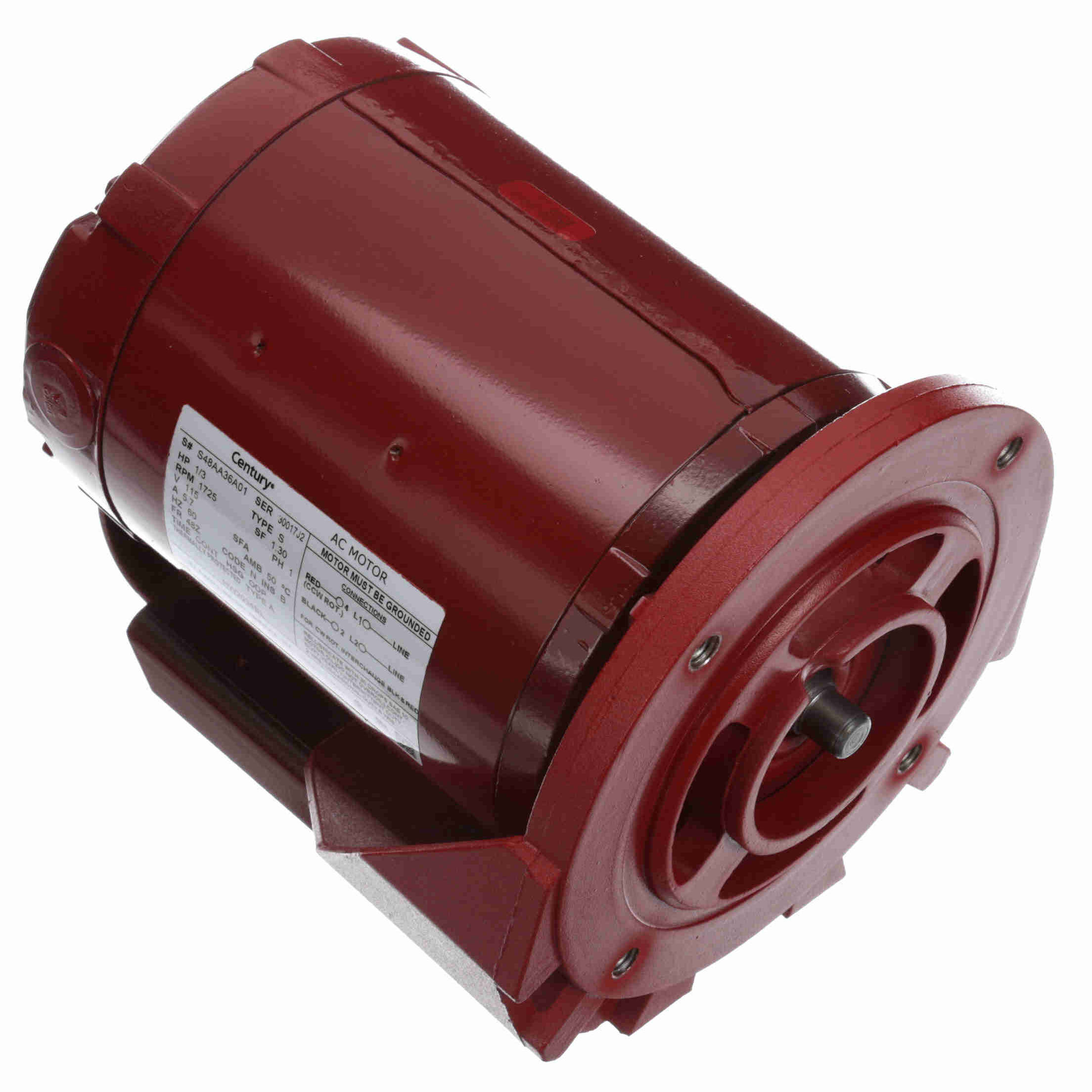

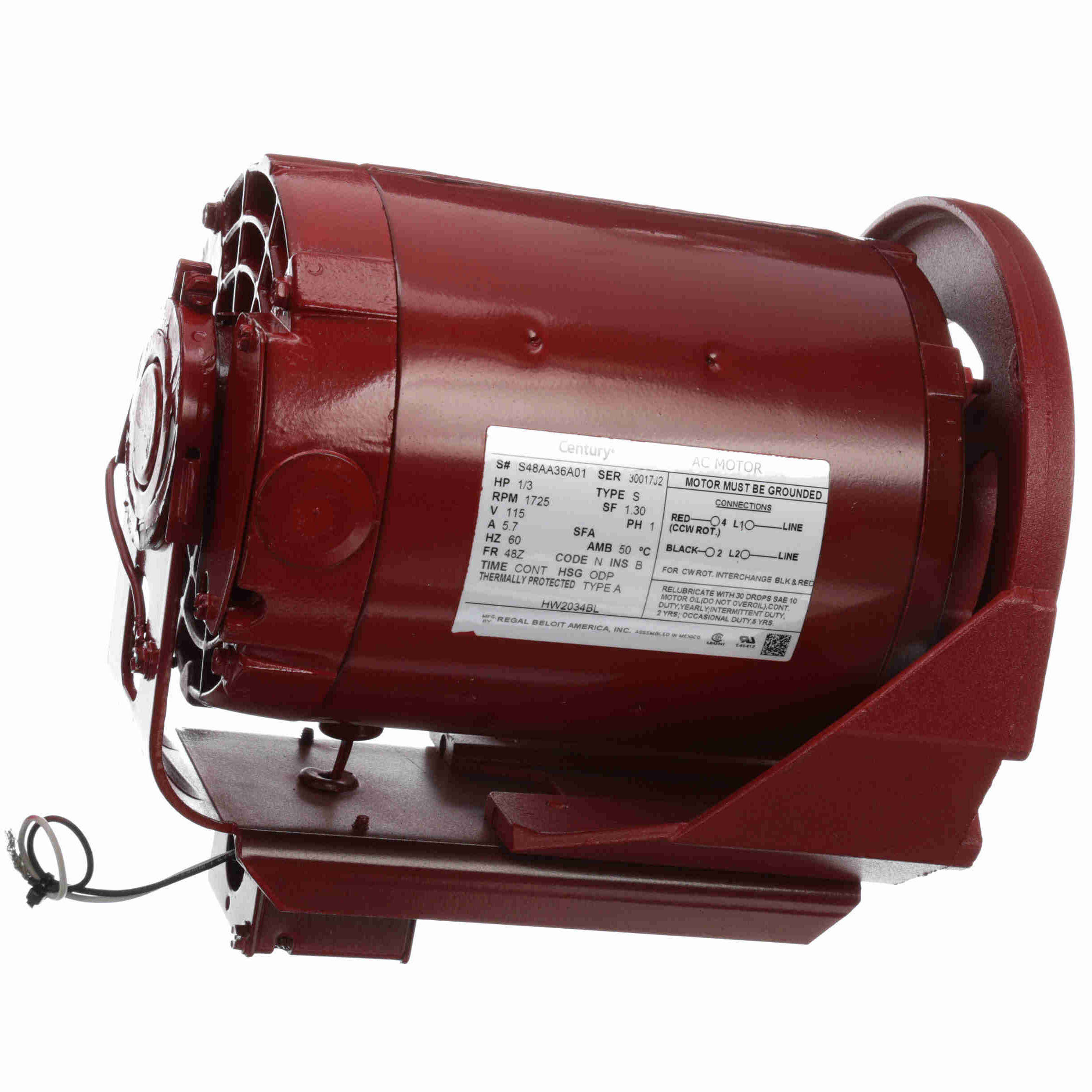

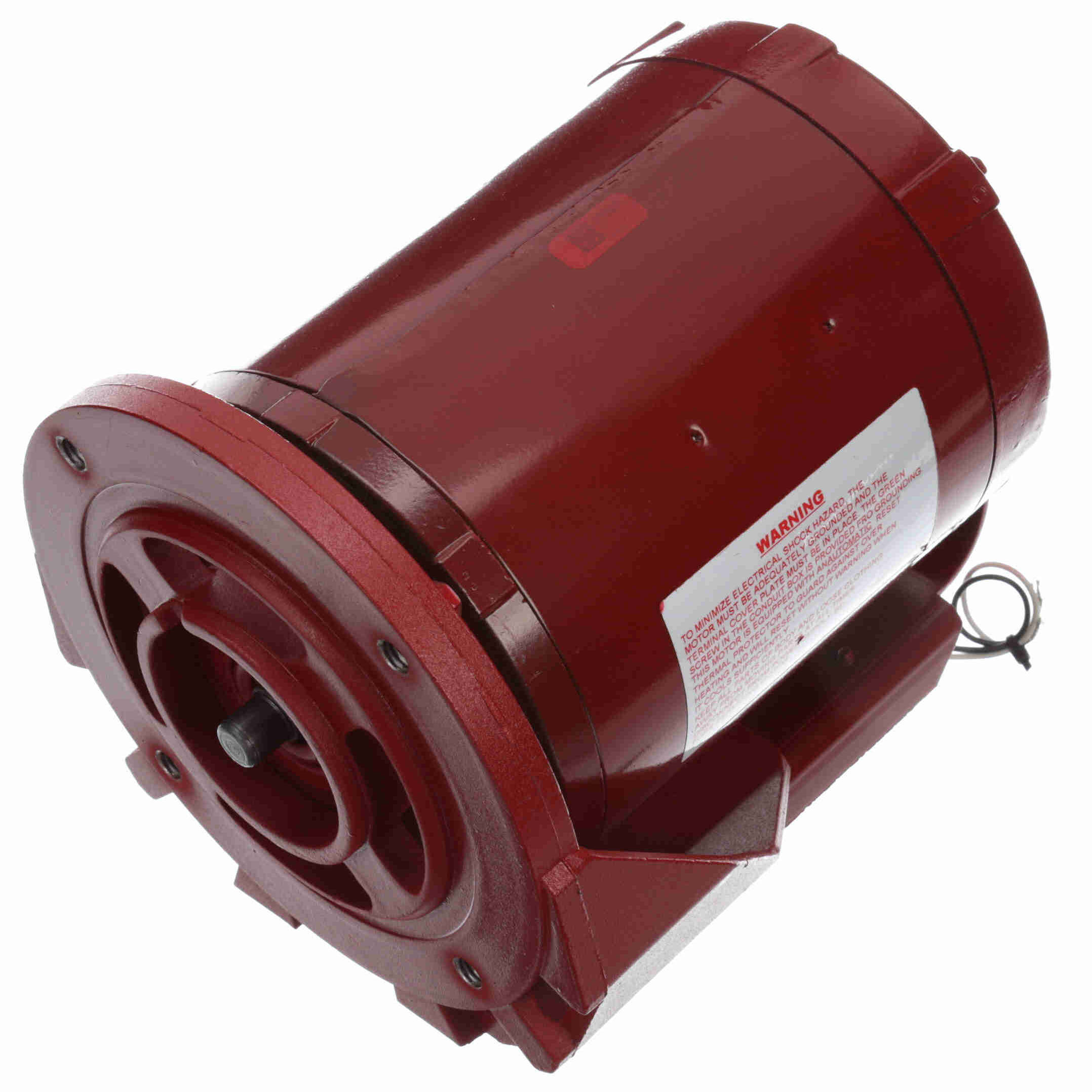

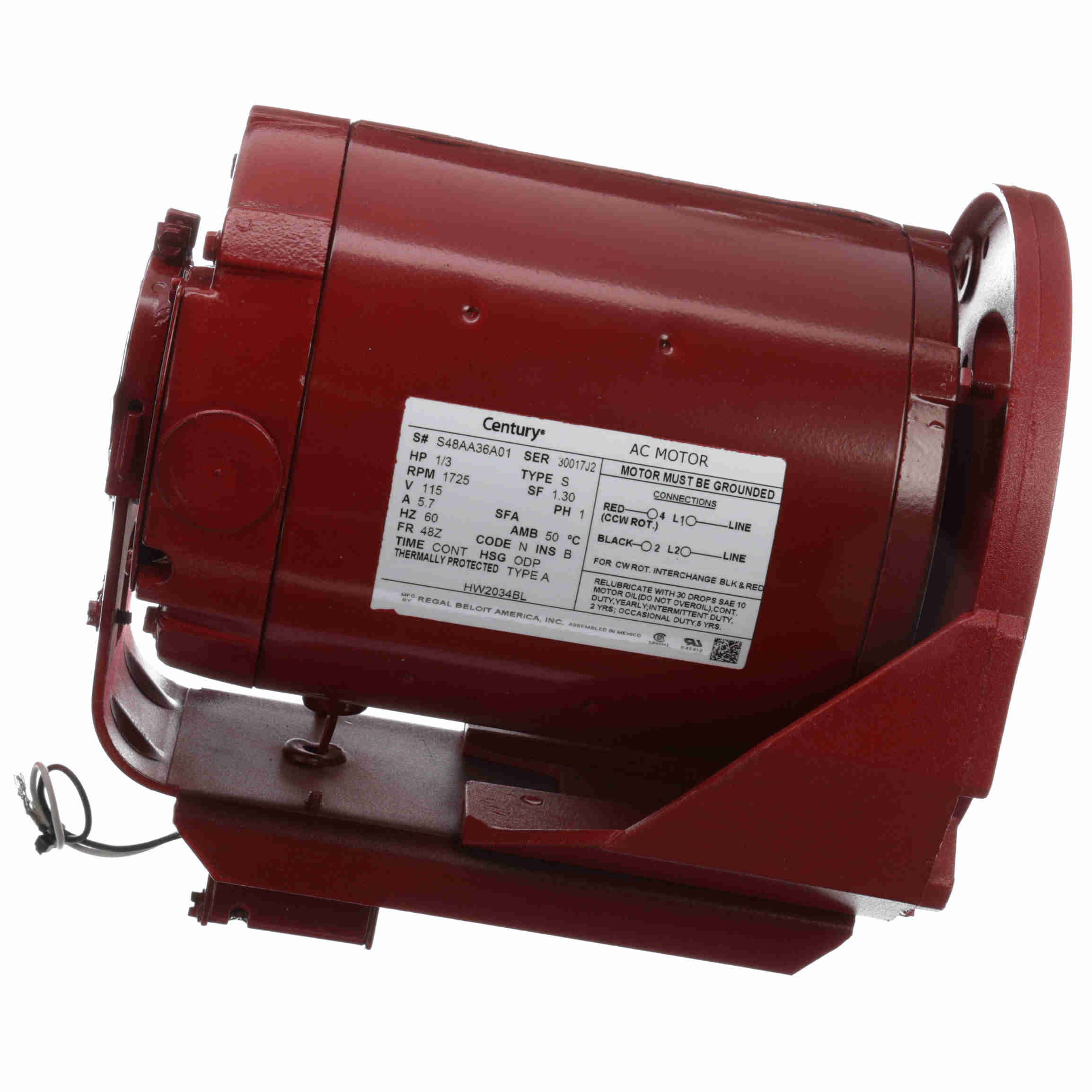

HW2034BL Century 1/3HP Circulator Pump Electric Motor, 1800RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: HW2034BL

Selected accessories will also be added to cart
$287.97 / Each
Quantity:
ODP, 48Z Frame, 115VAC 60Hz Single Phase, Resilient Base, Rolled Steel, 1/2" Shaft

Features

  • Automatic reset thermal protector

General Specifications

UPC: 786674025357 Weight: 17.00 LB
Packaged Length: 10.88 IN Packaged Width: 10.81 IN
Packaged Height: 9.81 IN

Nameplate Specifications

Output HP: 1/3 Hp Output KW: 0.25 kW
Frequency: 60 Hz Voltage: 115 V
Current: 5.7 A Speed: 1725 rpm
Service Factor: 1.3 Phase: 1
Duty: Continuous Insulation Class: B
Frame: 48Z Enclosure: Open Drip Proof
Thermal Protection: Automatic Ambient Temperature: 50 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Split Phase Starting Method: Across The Line
Poles: 4 Rotation: Clockwise
Mounting: Resilient Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Spot Drill Overall Length: 8.96 in
Frame Length: 5.59 in Shaft Diameter: 0.500 in
Shaft Extension: 0.6 in
