/Products/Electric Motors/Single Phase/Century/Hot Water Circulator/HW2024B1L Century 1/4HP Circulator Pump Electric Motor, 1800RPM
Click Image to Expand

Product ID: HW2024B1L

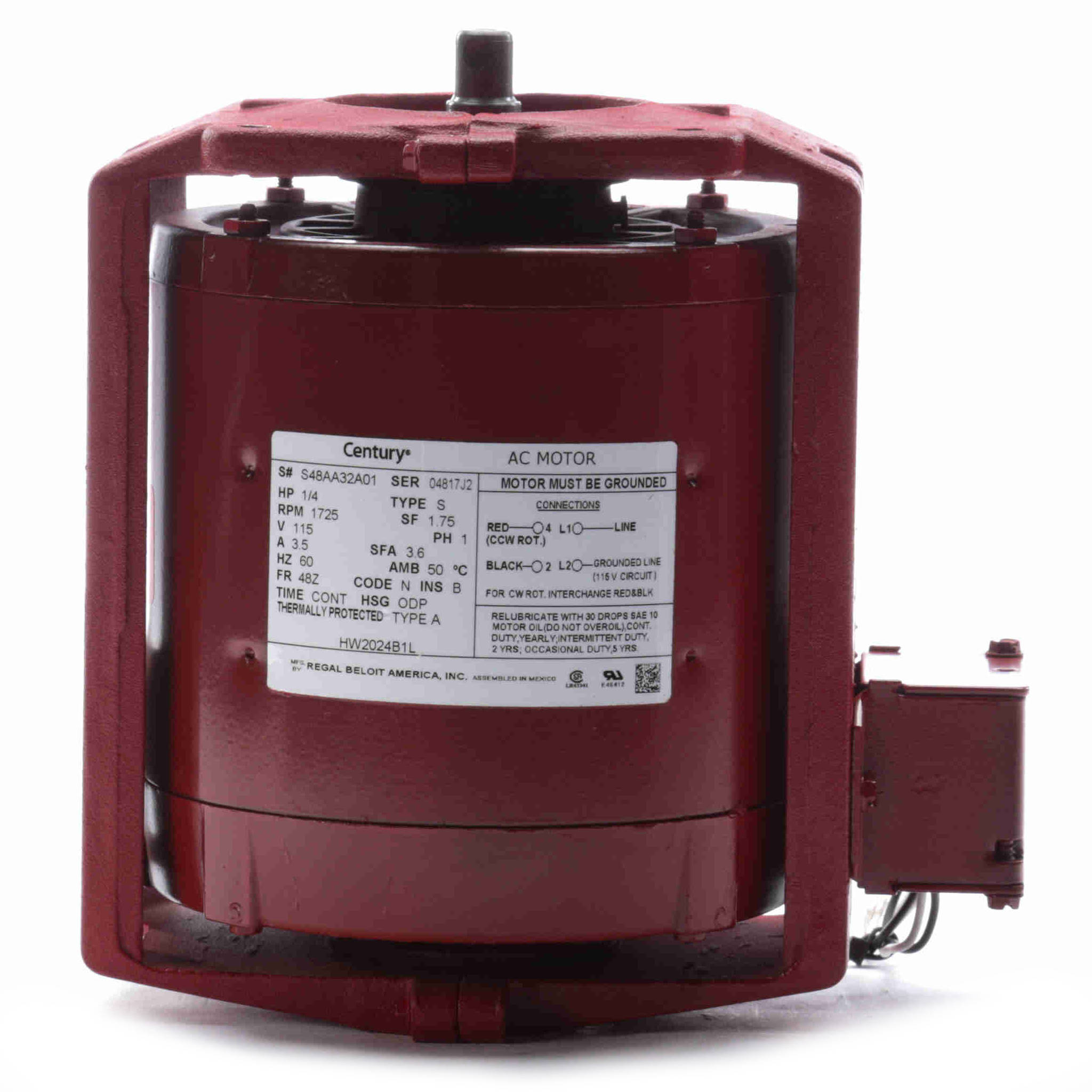

HW2024B1L Century 1/4HP Circulator Pump Electric Motor, 1800RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: HW2024B1L

Selected accessories will also be added to cart
$228.97 / Each
Quantity:
ODP, 48Z Frame, 115VAC Single Phase 60Hz, Resilient Base, Rolled Steel, Reversible CCW, 1/2" Shaft

Features

  • Automatic reset thermal protector

General Specifications

UPC: 786674025326 Weight: 16.00 LB
Packaged Length: 11 IN Packaged Width: 8 IN
Packaged Height: 9 IN

Nameplate Specifications

Output HP: 1/4 Hp Output KW: 0.19 kW
Frequency: 60 Hz Voltage: 115 V
Current: 3.5 A Speed: 1725 rpm
Service Factor: 1.75 Phase: 1
Duty: Continuous Insulation Class: B
Frame: 48Z Enclosure: Open Drip Proof
Thermal Protection: Automatic Ambient Temperature: 50 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Split Phase Starting Method: Across The Line
Poles: 4 Rotation: Reversible Counterclockwise
Mounting: Resilient Base Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Rolled Steel
Shaft Type: Spot Drill Overall Length: 8.29 in
Frame Length: 4.34 in Shaft Diameter: 0.500 in
Shaft Extension: 0.83 in

Speed & Load Characteristics
