/Products/Phase Converters/Maxiphase/460 Volt Phase Converters, ODP/HVC 2-6 Maxiphase Hi-Volt Rotary Phase Converter
Click Image to Expand

Product ID: HVC 2-6

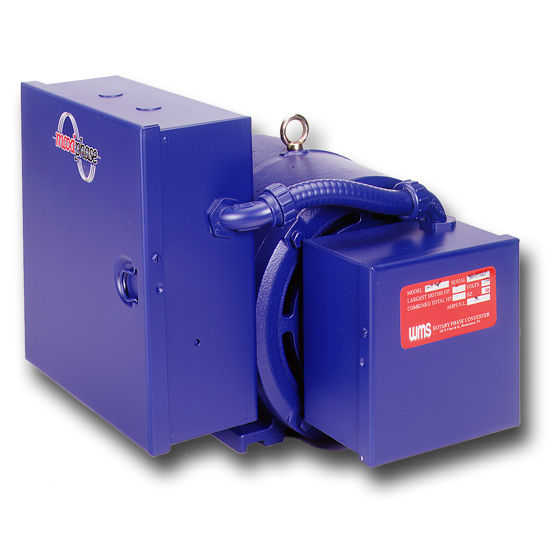

HVC 2-6 Maxiphase Hi-Volt Rotary Phase Converter

MFG: Witmer Motor Service
MFG Part Number: HVC 2-6

Selected accessories will also be added to cart
$690.00 / Each
Quantity:
Largest HP: 2, Combined HP: 6, N.L. Amps: 0.9

Specifications

Model HVC 2-6
Largest Single Load 2 HP
Maximum Combined Load 6 HP
Voltage 460 Volts
Frequency 60Hz
No Load Amperage 0.9 Amps
"a" Dimension 14 Inches
"b" Dimension 13 Inches
"c" Dimension 14 Inches
Motor Enclosure ODP
Open Drip Proof
Motor Frame Size
Input Circuit Breaker Rating 15 Amp
Input Wire Size #14 Minimum
Approximate Weight 102 lbs
Notes

Product Information Links:

WMS Rotary Phase Converters are an economical alternative to commercial three phase power!

  • Easy installation, reliabile performance and low maintenance make rotary units an attractive solution for three phase power needs.
  • WMS Phase Converters are available from electric motor shops, machinery dealers and electrical supply stores across the nation.
  • WMS has developed a proven product through years of experience in the manufacturing and installation of phase converters.
  • Quick start-up using electrolytic start capacitors and a positive mechanical centrifugal switch!
  • 1 Year Warranty
WMS Maxiphase
