/Products/Phase Converters/Maxiphase/460 Volt Phase Converters TEFC/HVC 15-453R Maxiphase Rotary Phase Converter

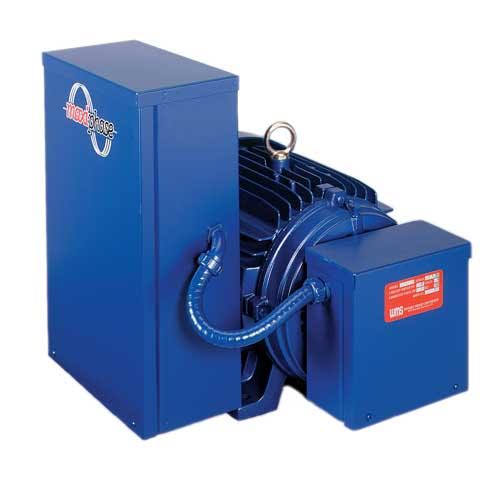

HVC 15-453R Maxiphase Rotary Phase Converter
Enlarge Photo

Product ID: HVC 15-453R

HVC 15-453R Maxiphase Rotary Phase Converter

MFG: Witmer Motor Service
MFG Part Number: HVC 15-453R

Selected accessories will also be added to cart
$3,800.00 / Each
Quantity:

Specifications

Model
Largest Single Load 15 HP
Maximum Combined Load 45 HP
Voltage 460 Volts
Frequency 60Hz
No Load Amperage 5.0 Amps
"a" Dimension 22 Inches
"b" Dimension 21 Inches
"c" Dimension 23 Inches
Motor Enclosure TEFC
Motor Frame Size 284T
Input Circuit Breaker Rating 100 Amp
Input Wire Size #4 Minimum
Approximate Weight 400 lbs
Notes

Product Information Links:

WMS Maxiphase
Brand
Model
Description
HP
Enclosure
TEFC
Voltage
460 V
Hz
