/Products/Surplus Industrial/Circuit Breakers/Square D (Schneider Electric)/HDP36125 Square D PowerPact Thermo-Magnetic Circuit Breaker, 125 Amp 3-Pole

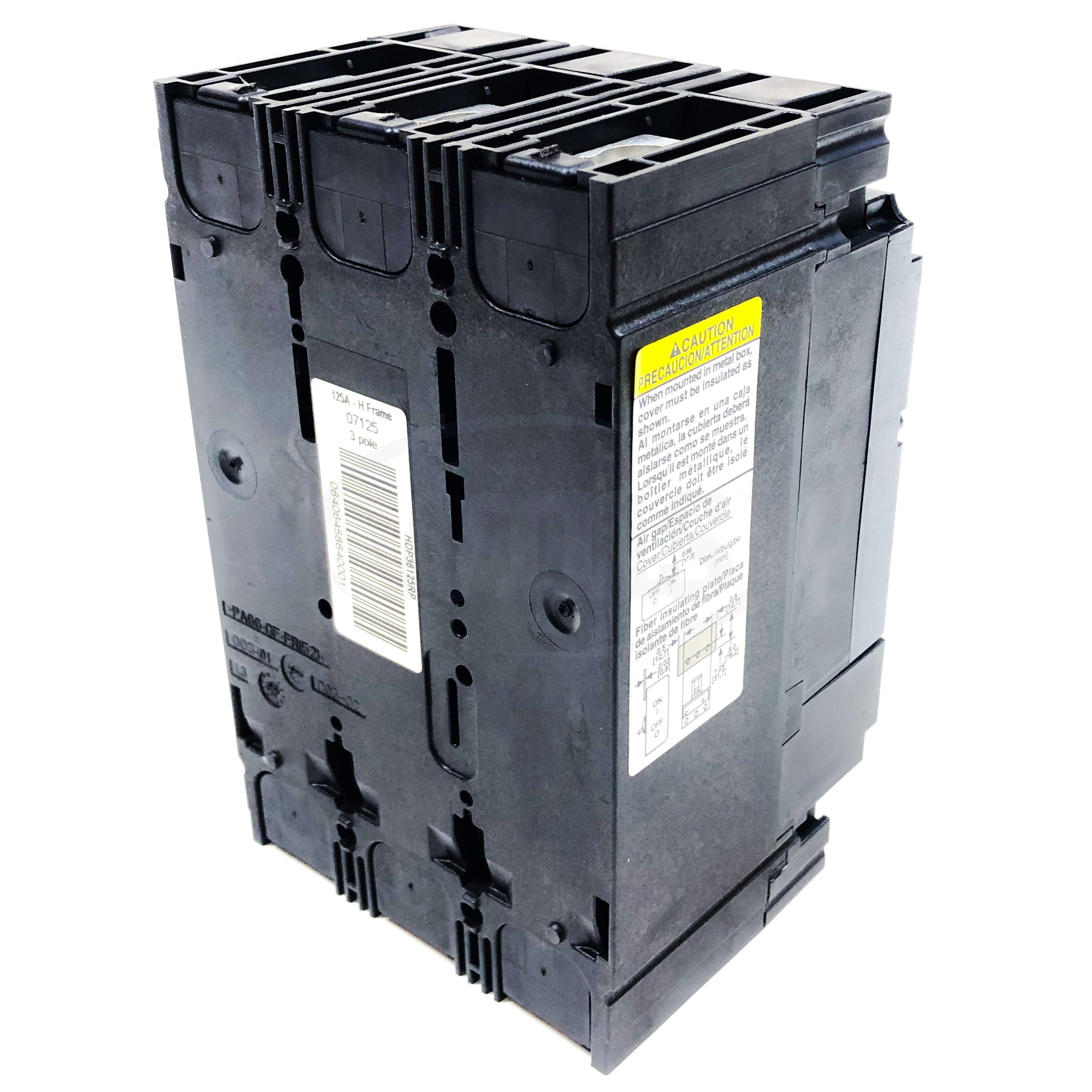

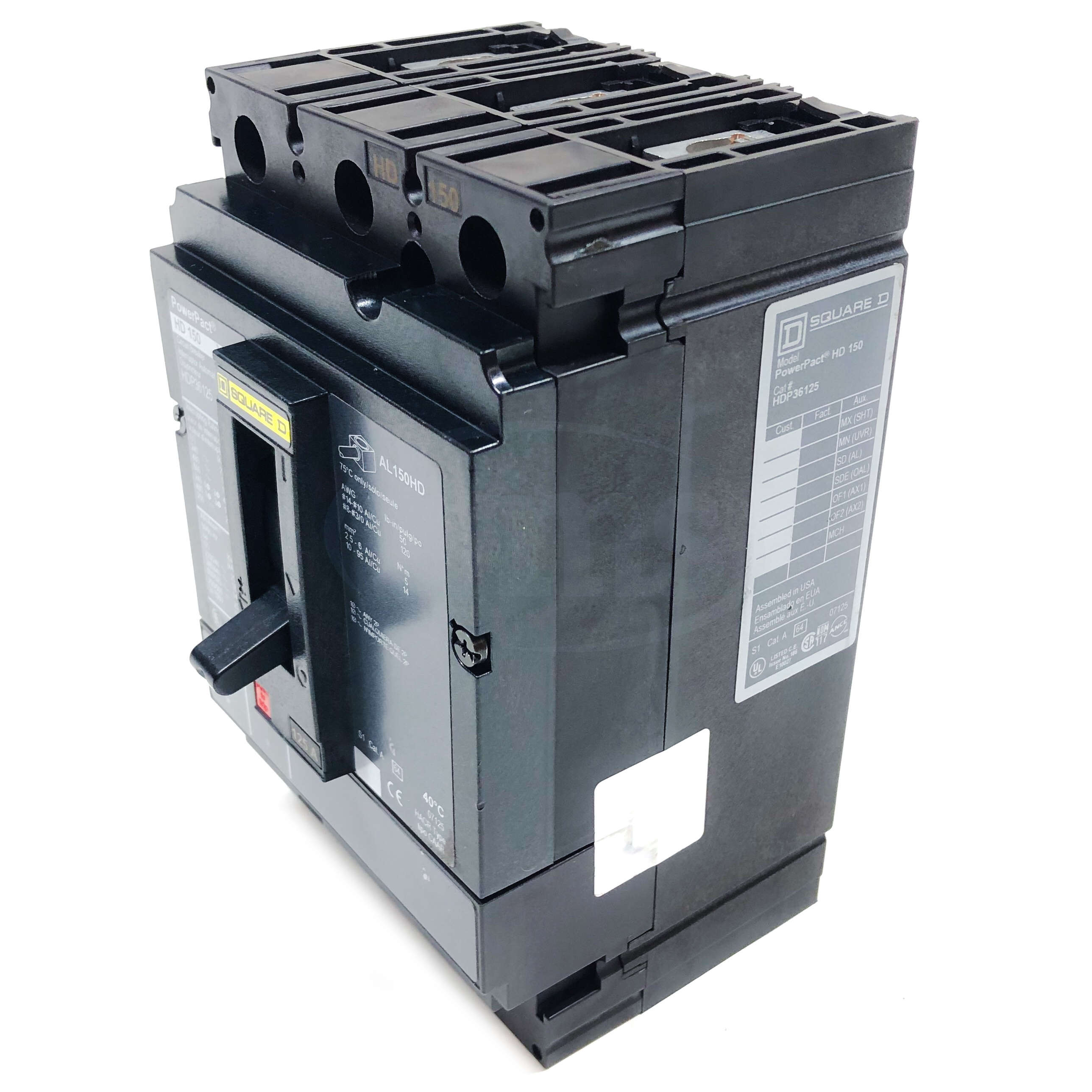

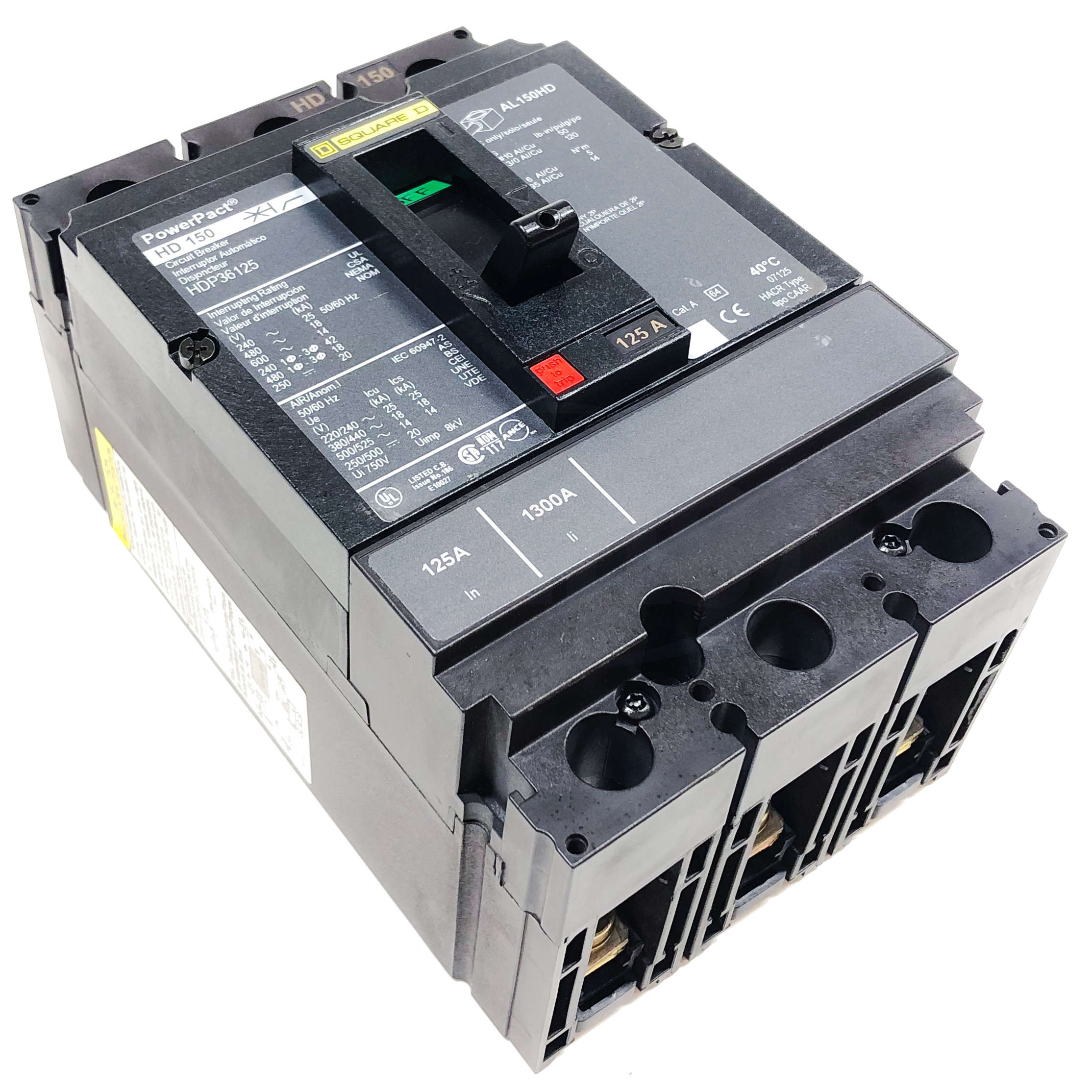

Click Image to Expand

Product ID: HDP36125

HDP36125 Square D PowerPact Thermo-Magnetic Circuit Breaker, 125 Amp 3-Pole

MFG: Schneider Electric (Square D)
MFG Part Number: HDP36125

Available Stock: 1
Selected accessories will also be added to cart
$999.97 / Each
Quantity:
New, Surplus Stock. 600VAC/250VDC 40°C
Main
product or component type
Circuit breaker
range of product
PowerPact H
Trip Unit Type
Thermal-magnetic
breaking capacity code
D
Complementary
Line Rated Current
125 A
Number of Poles
3P
Interrupt Rating
25 kA 240 V AC
18 kA 480 V AC
14 kA 600 V AC
20 kA 250 V DC
[Ue] rated operational voltage
250 V DC
600 V AC
continuous current rating
80 %
mounting mode
Unit mount
electrical connection
Terminal nut line
Lugs load
Wire Gauge
AWG 14...AWG 3/0 aluminium/copper
magnetic hold current
900 A
magnetic tripping current
1700 A
height
162.56 mm (6.4 in)
width
104.65 mm (4.12 in)
depth
110.74 mm (4.36 in)
tightening torque
49.56…60.18 lbf.in (5.6…6.8 N.m)
Environment
product certifications
IEC
UL listed
CSA
CCC
CE
ambient air temperature for operation
104 °F (40 °C)
