/Products/Electric Motors/3 Phase/Century/Hot Water Circulator/H988L Century 3HP Circulator Pump Electric Motor, 1800RPM
Click Image to Expand

Product ID: H988L

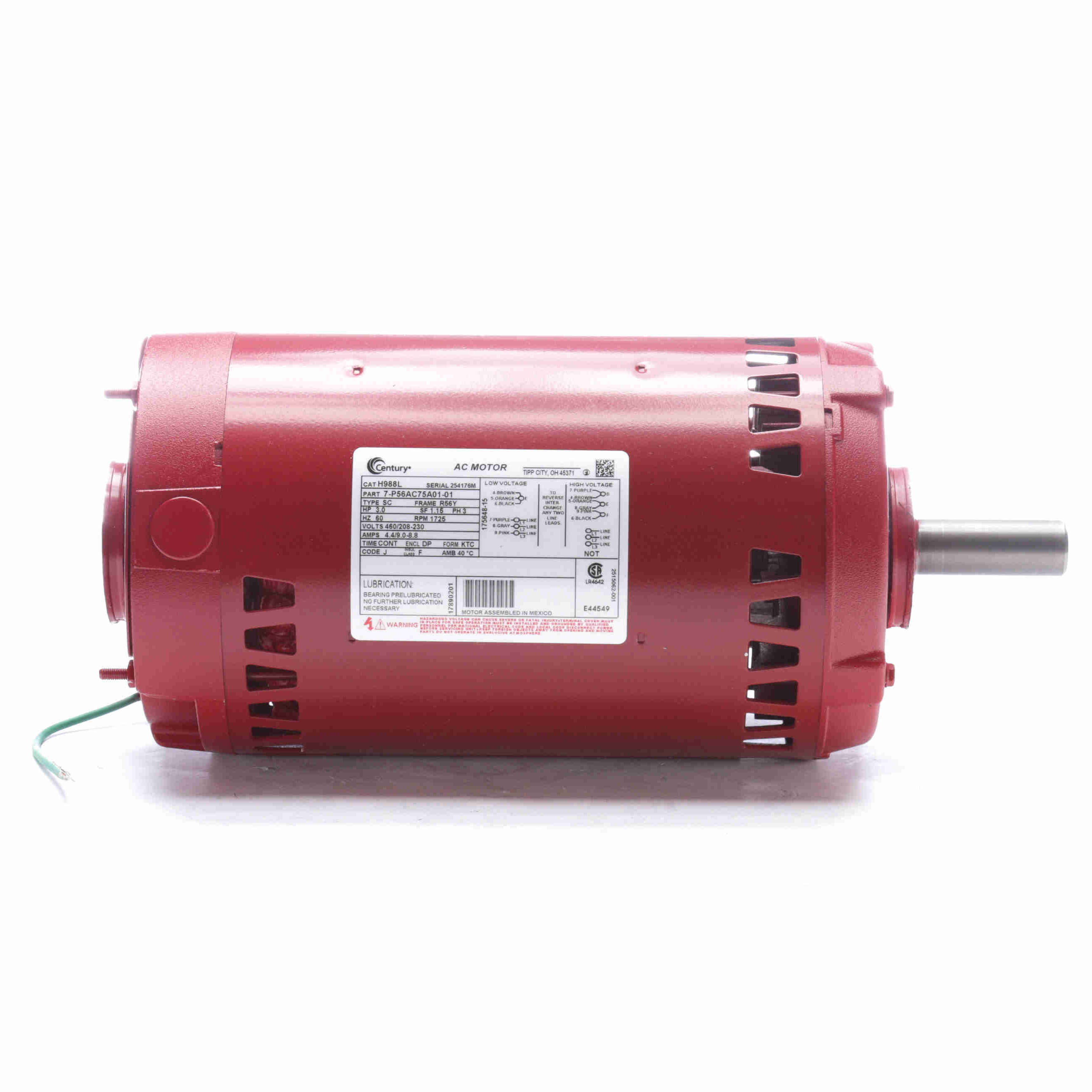

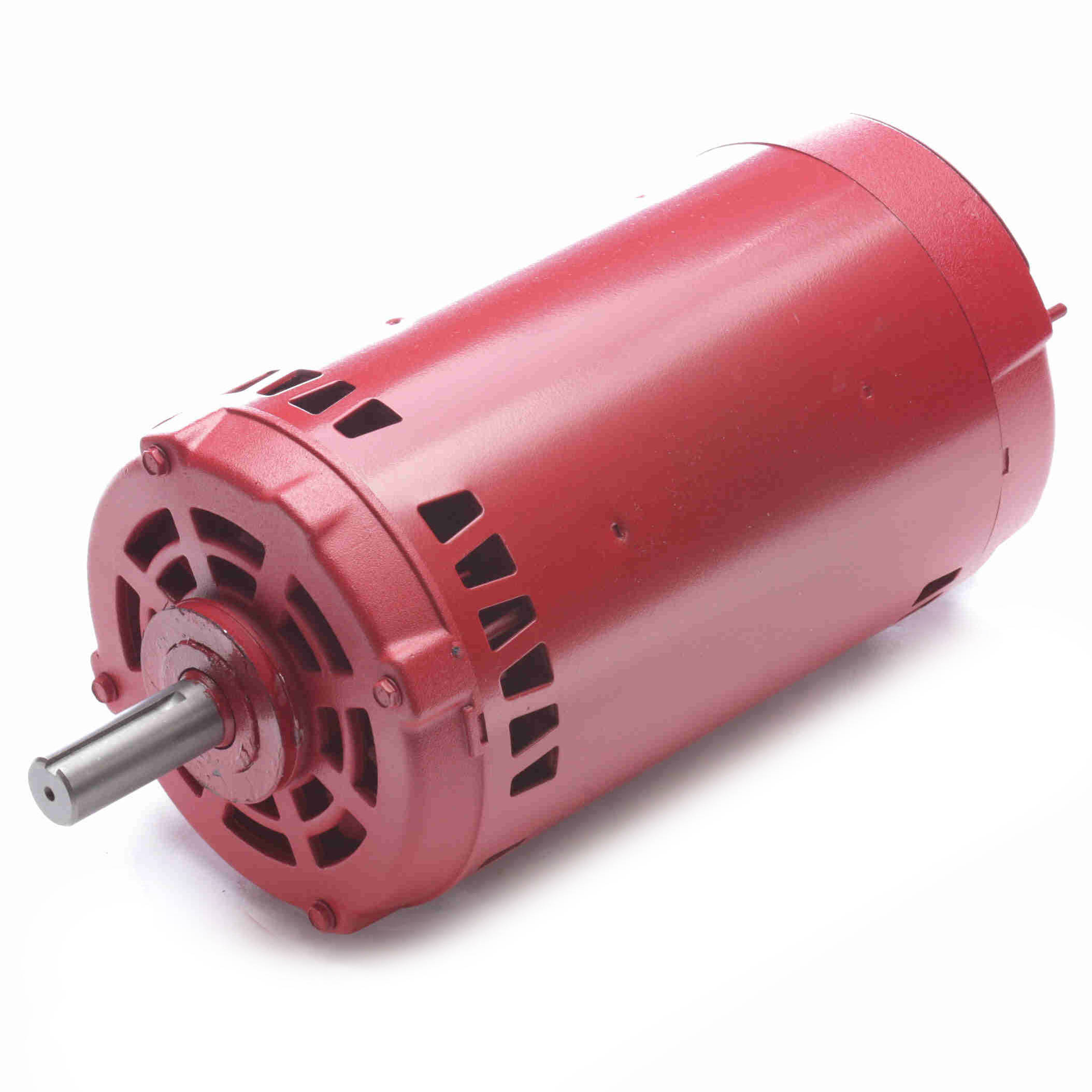

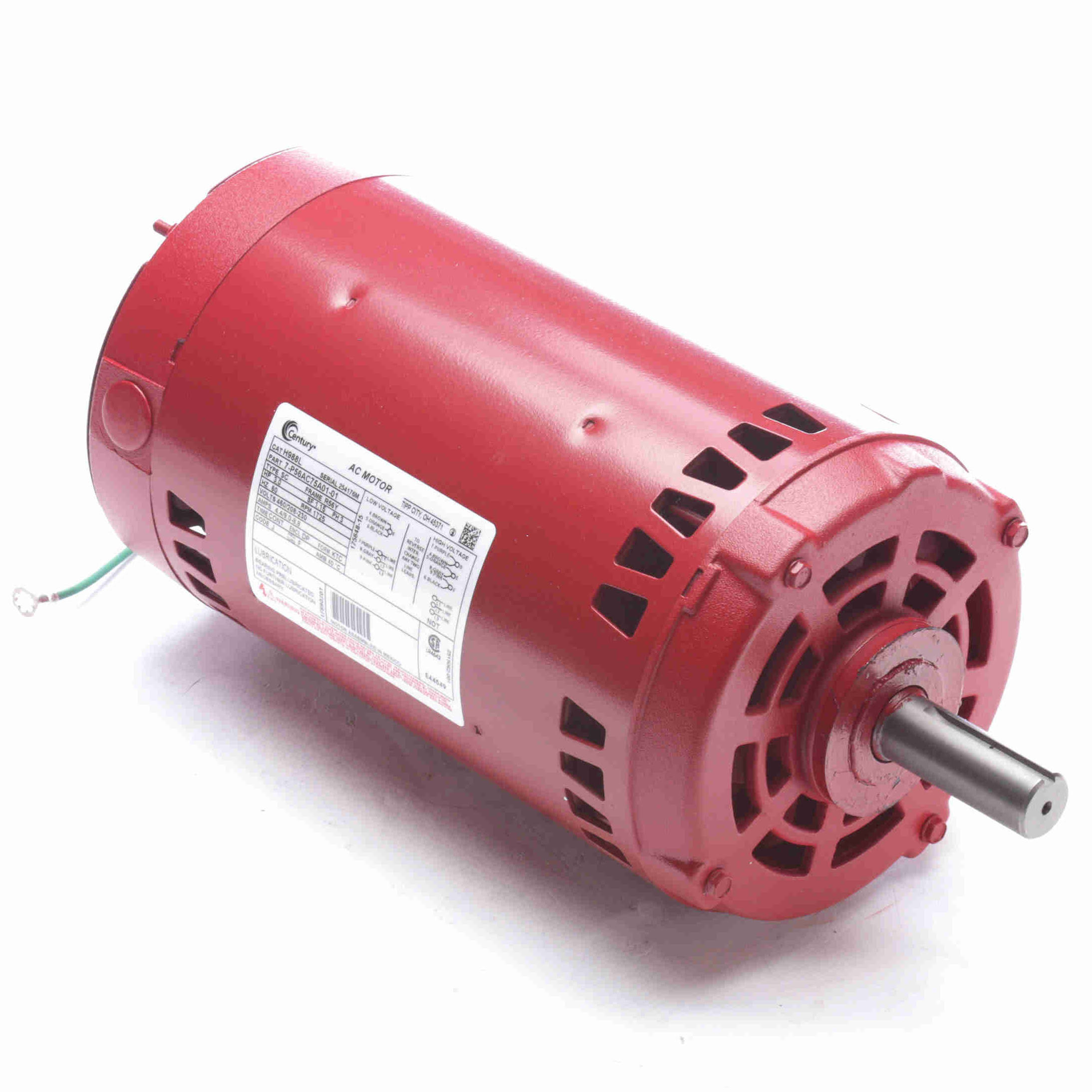

H988L Century 3HP Circulator Pump Electric Motor, 1800RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: H988L

Selected accessories will also be added to cart
$539.97 / Each
Quantity:
ODP, R56Y Frame, 208-230/460VAC 60Hz 3-Phase, 7-P56AC75A01-01, Rolled Steel, Round Body, Cushion Ring, 7/8" Keyed Shaft

Features

  • Reversible
  • Cushion ring, no base and C-face
  • No protector

General Specifications

UPC: 786674056542 Weight: 42.00 LB
Packaged Length: 19 IN Packaged Width: 10 IN
Packaged Height: 9 IN

Nameplate Specifications

Output HP: 3.0 Hp Output KW: 2.2 kW
Frequency: 60 Hz Voltage: 460/208-230 V
Current: 4.4/9.0-8.8 A Speed: 1725 rpm
Service Factor: 1.15 Phase: 3
Duty: Continuous Insulation Class: F
Frame: R56Y Enclosure: Drip Proof
Thermal Protection: None Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage Starting Method: Across The Line
Poles: 4 Rotation: Reversible Counterclockwise
Mounting: Cushion Ring Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 14.56 in
Frame Length: 8.75 in Shaft Diameter: 0.875 in
Shaft Extension: 2.31 in
