/Products/Electric Motors/3 Phase/Century/Hot Water Circulator/H986L Century 1.5HP Circulator Pump Electric Motor, 1725RPM
Click Image to Expand

Product ID: H986L

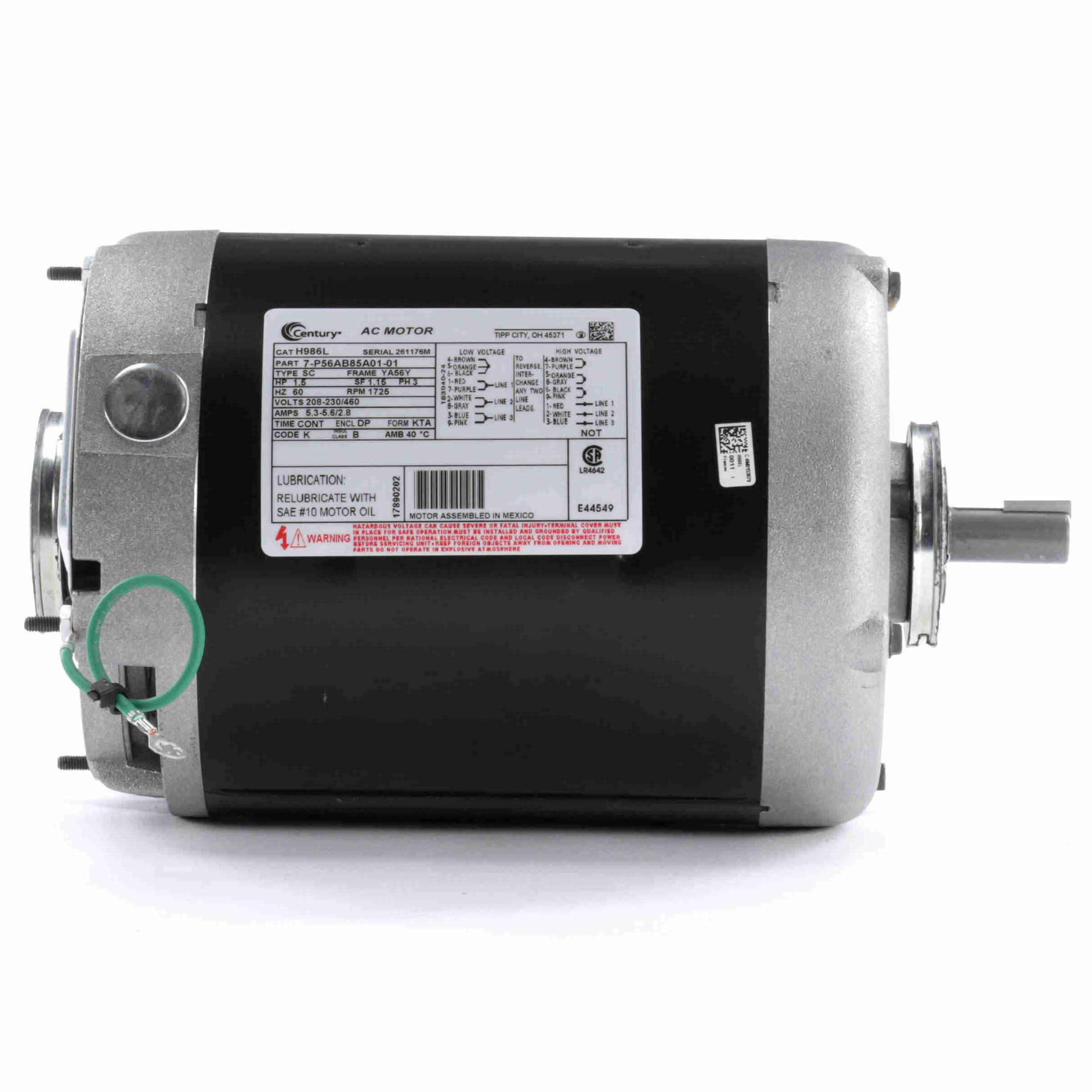

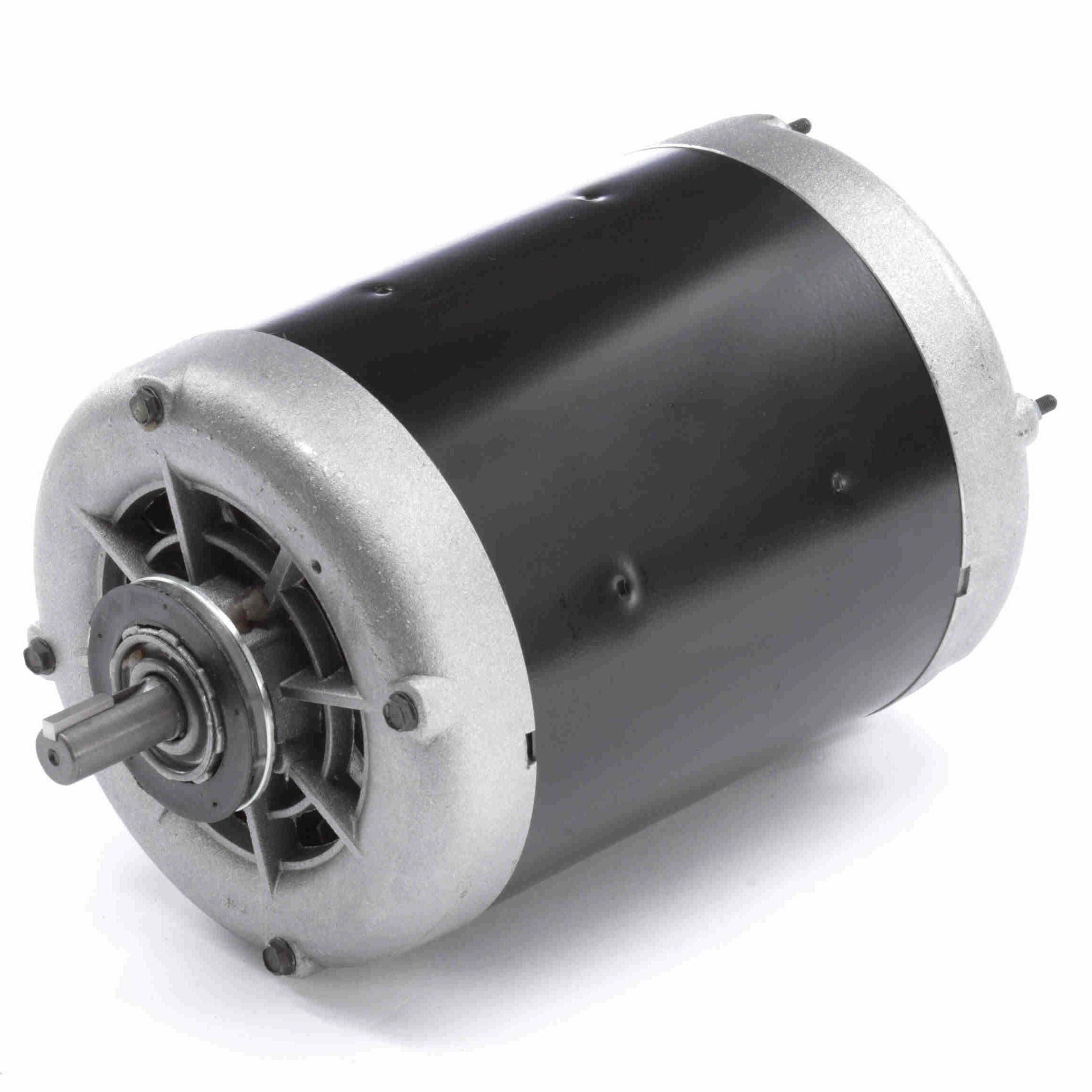

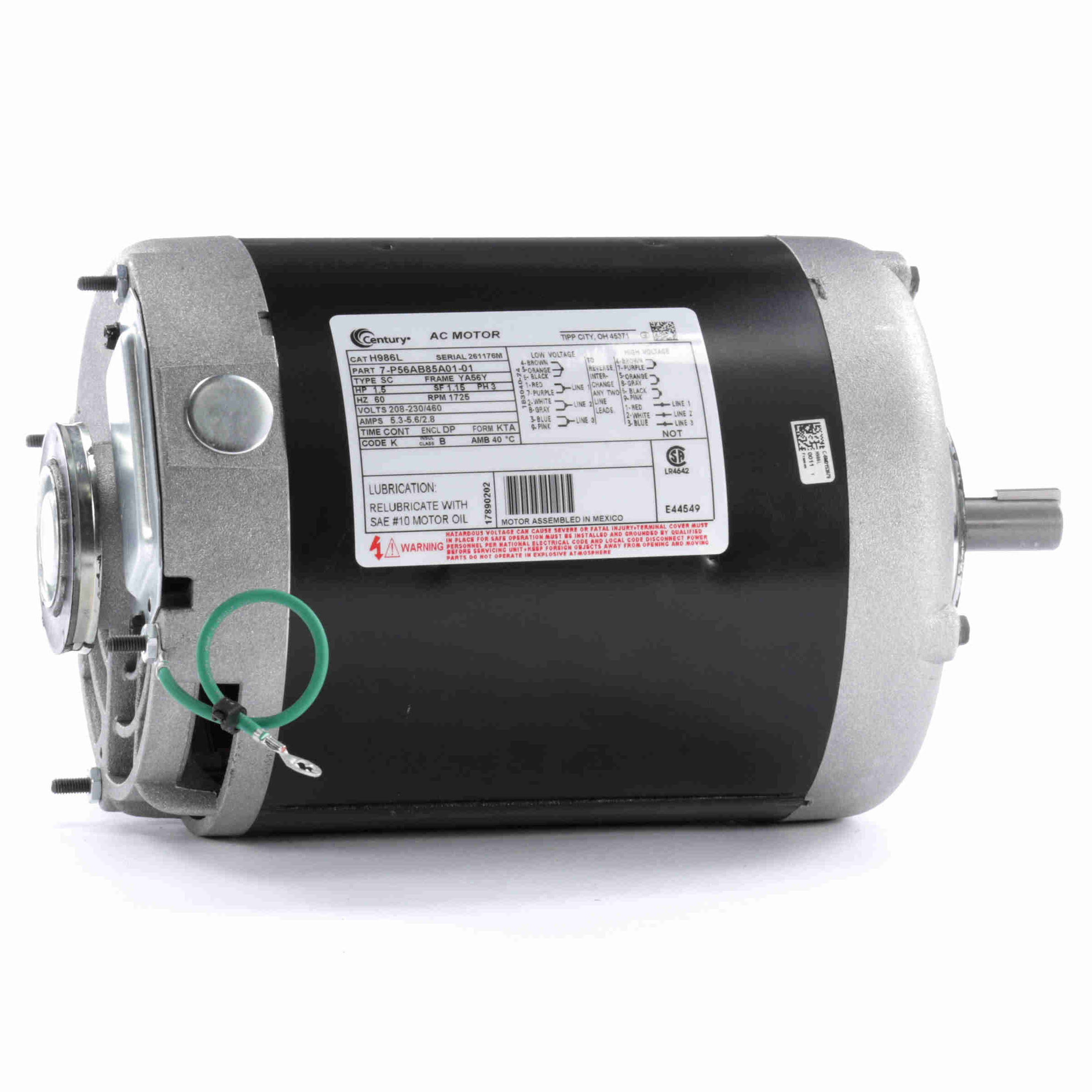

H986L Century 1.5HP Circulator Pump Electric Motor, 1725RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: H986L

Selected accessories will also be added to cart
$729.97 / Each
Quantity:
DP, YA56Y Frame, 208-230/460VAC 3-Phase 60Hz

Features

  • Reversible
  • Cushion ring, no base and C-face
  • No protector

General Specifications

UPC: 786674055828 Weight: 28.00 LB
Packaged Length: 16 IN Packaged Width: 8 IN
Packaged Height: 10 IN

Nameplate Specifications

Output HP: 1.5 Hp Output KW: 1.1 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 5.3-5.6/2.8 A Speed: 1725 rpm
Service Factor: 1.15 Phase: 3
Duty: Continuous Insulation Class: B
Frame: YA56Y Enclosure: Drip Proof
Thermal Protection: None Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage Starting Method: Across The Line
Poles: 4 Rotation: Reversible Counterclockwise
Mounting: Cushion Ring Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 11.37 in
Frame Length: 6.00 in Shaft Diameter: 0.625 in
Shaft Extension: 1.37 in

Speed & Load Characteristics
