/Products/Electric Motors/3 Phase/Century/Hot Water Circulator/H947L Century 1HP Circulator Pump Electric Motor, 1800RPM
Click Image to Expand

Product ID: H947L

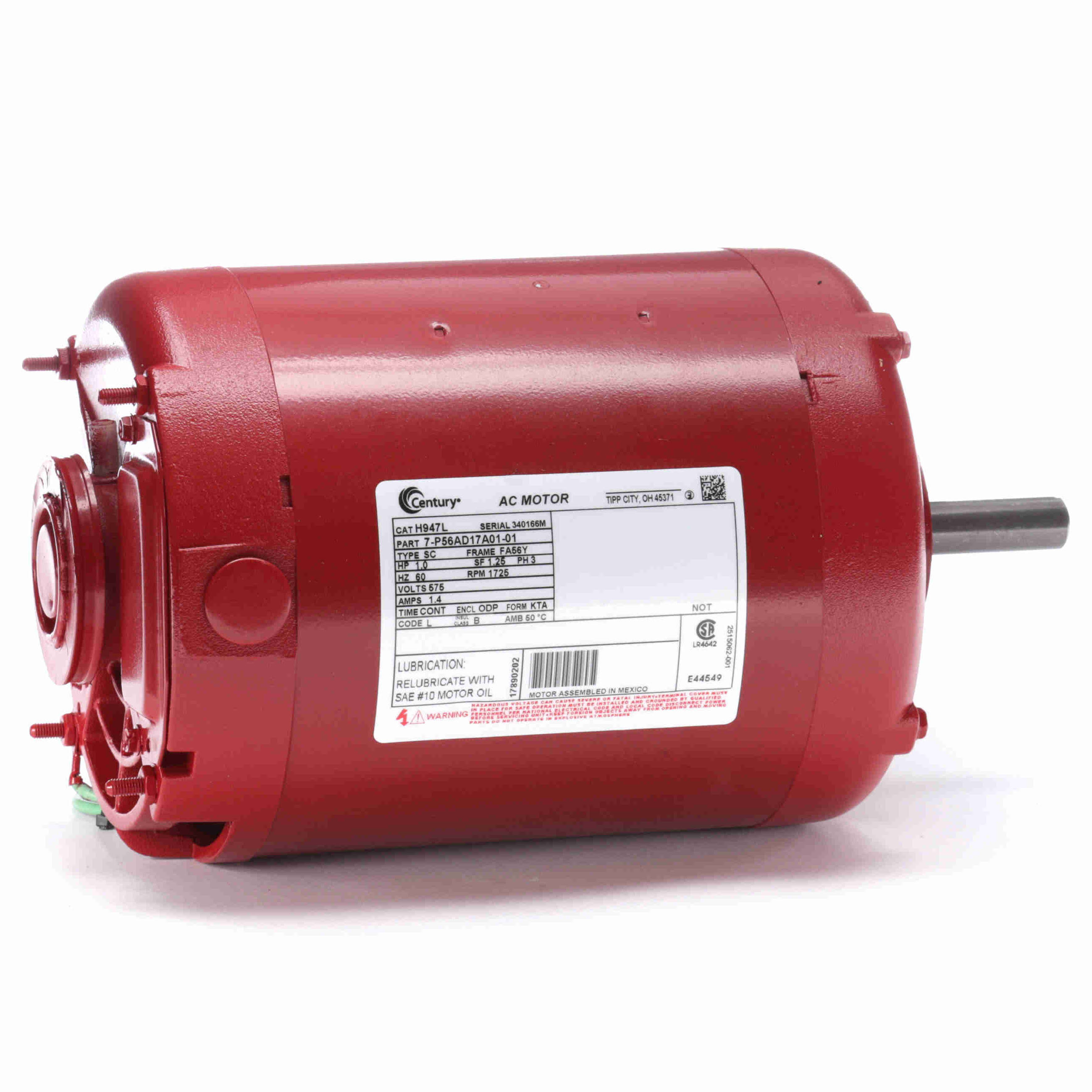

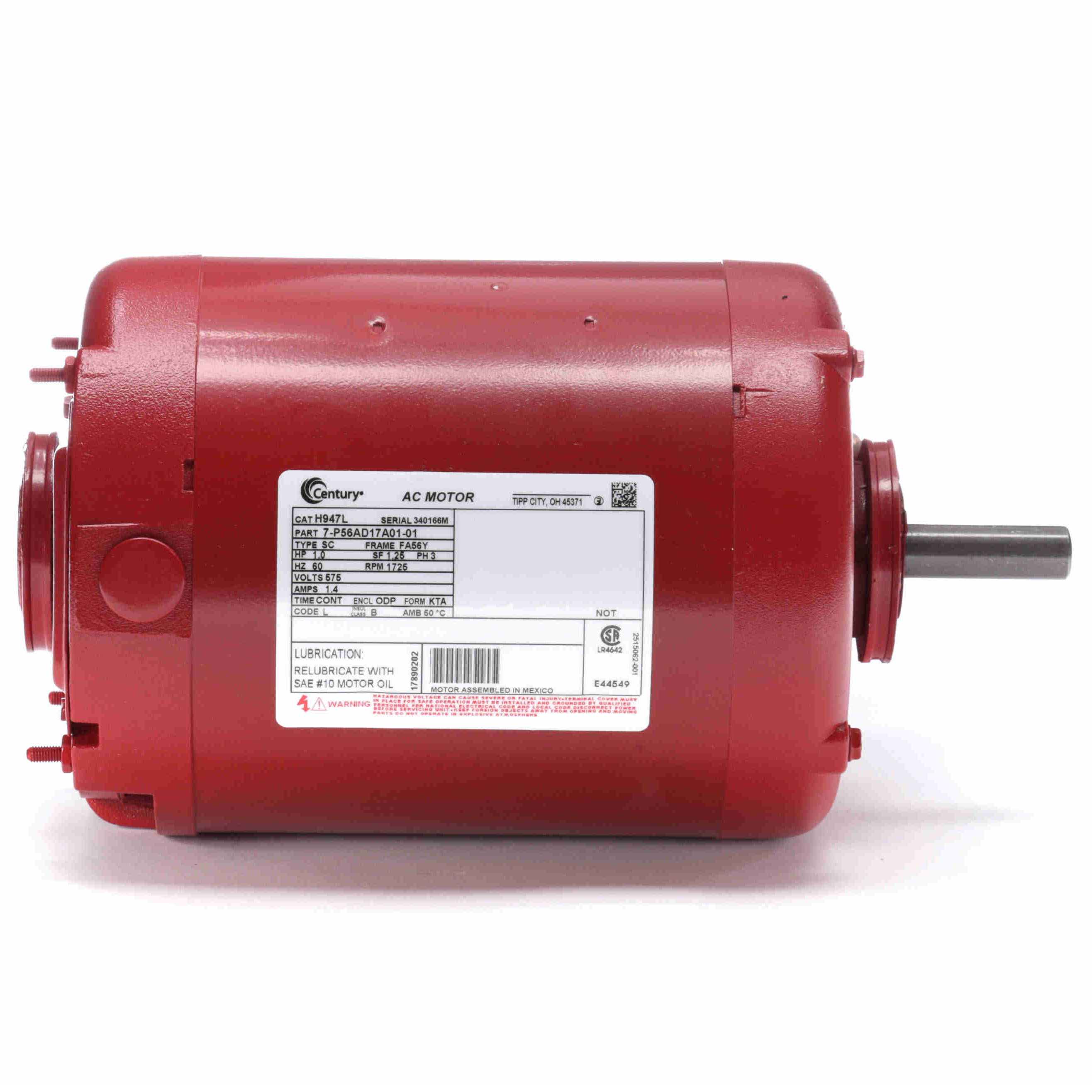

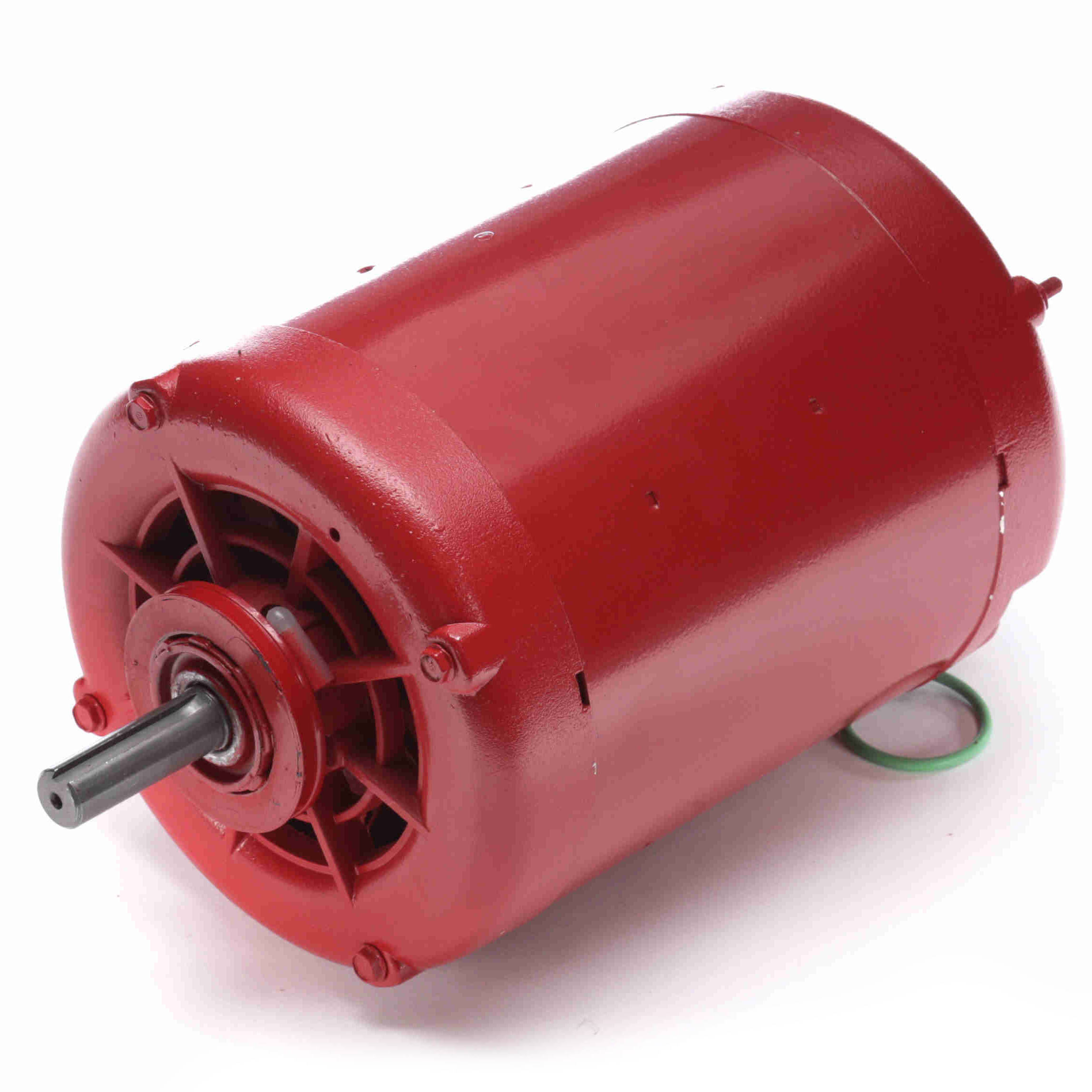

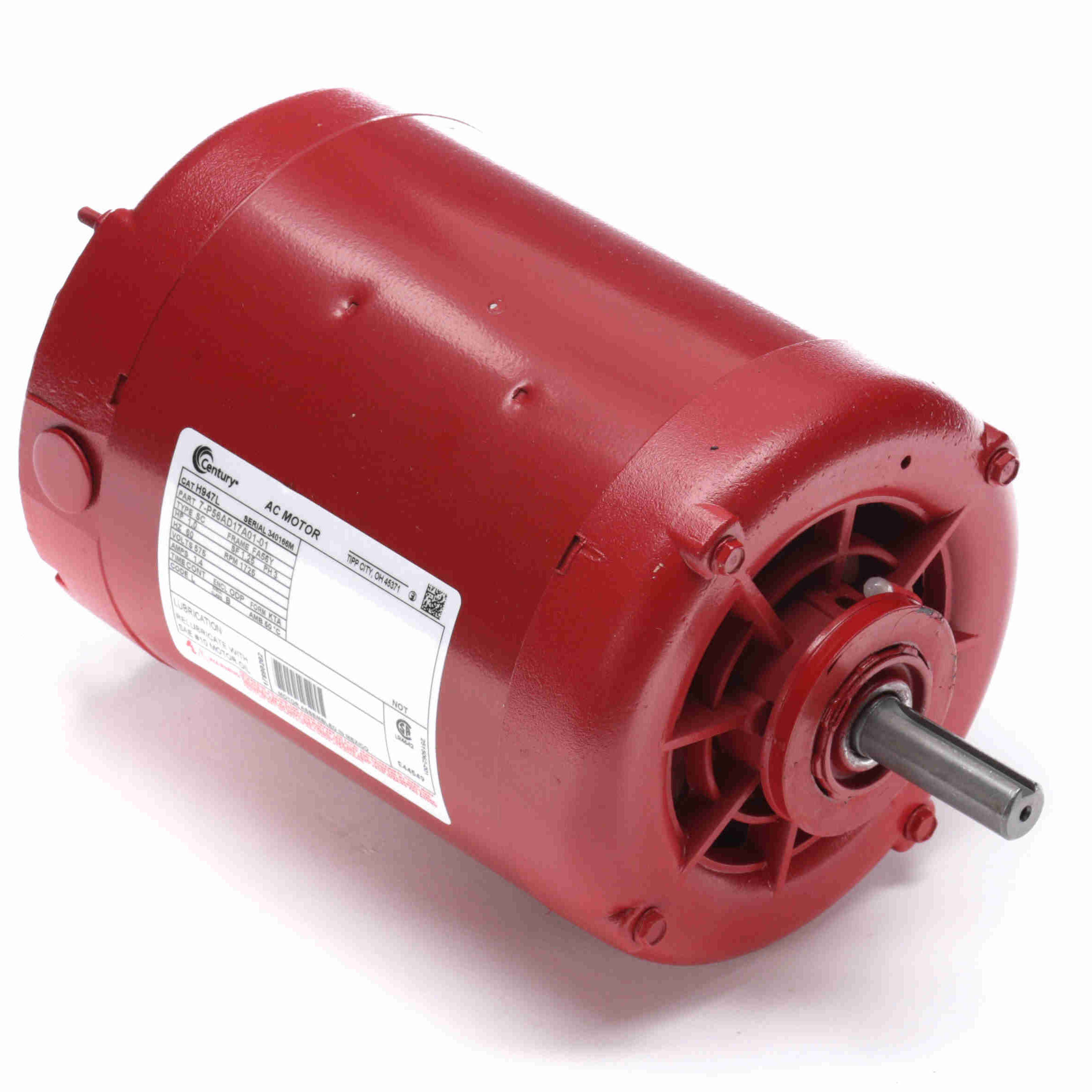

H947L Century 1HP Circulator Pump Electric Motor, 1800RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: H947L

Selected accessories will also be added to cart
$129.97 / Each
Quantity:
ODP, FA56Y Frame, 575VAC 60Hz 3-Phase, 7-P56AD17A01-01, Rolled Steel, Round Body, Cushion Ring, 5/8" Keyed Shaft

Features

  • Reversible
  • Cushion ring, no base and C-face
  • No protector

General Specifications

UPC: 786674057143 Weight: 24.00 LB
Packaged Length: 15.5 IN Packaged Width: 10.5 IN
Packaged Height: 10 IN

Nameplate Specifications

Output HP: 1.0 Hp Output KW: 0.75 kW
Frequency: 60 Hz Voltage: 575 V
Current: 1.4 A Speed: 1725 rpm
Service Factor: 1.25 Phase: 3
Duty: Continuous Insulation Class: B
Frame: FA56Y Enclosure: Open Drip Proof
Thermal Protection: None Ambient Temperature: 50 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage Starting Method: Across The Line
Poles: 4 Rotation: Reversible Counterclockwise
Mounting: Cushion Ring Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 11.69 in
Frame Length: 5.75 in Shaft Diameter: 0.625 in
Shaft Extension: 1.94 in
