/Products/Electric Motors/Single Phase/Marathon/Farm Duty/TEAO, Rigid/Resilient Base/H647 Marathon 1/2HP Farm Duty General Purpose Electric Motor, 1800RPM
Click Image to Expand

Product ID: 5KHC39QN9584X

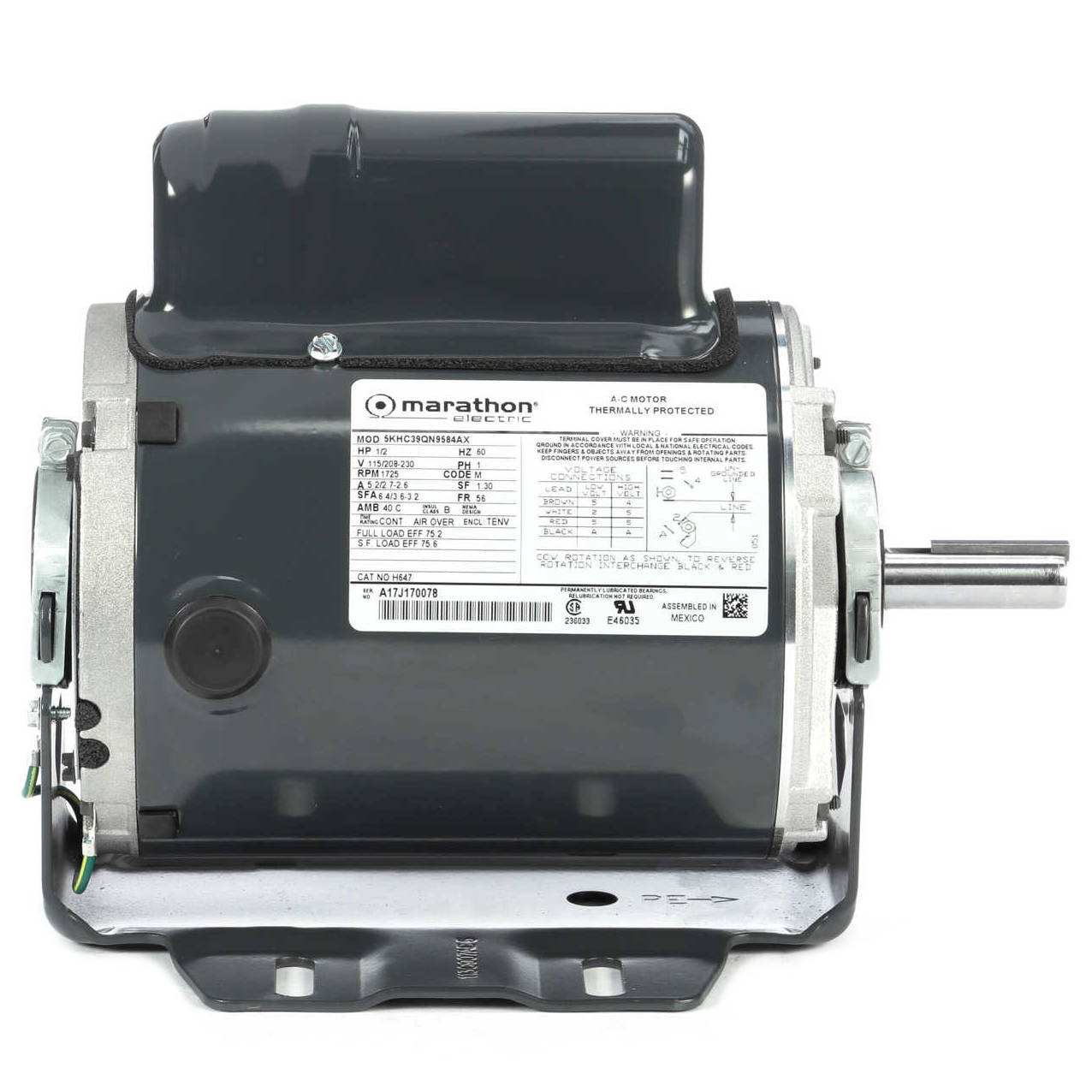

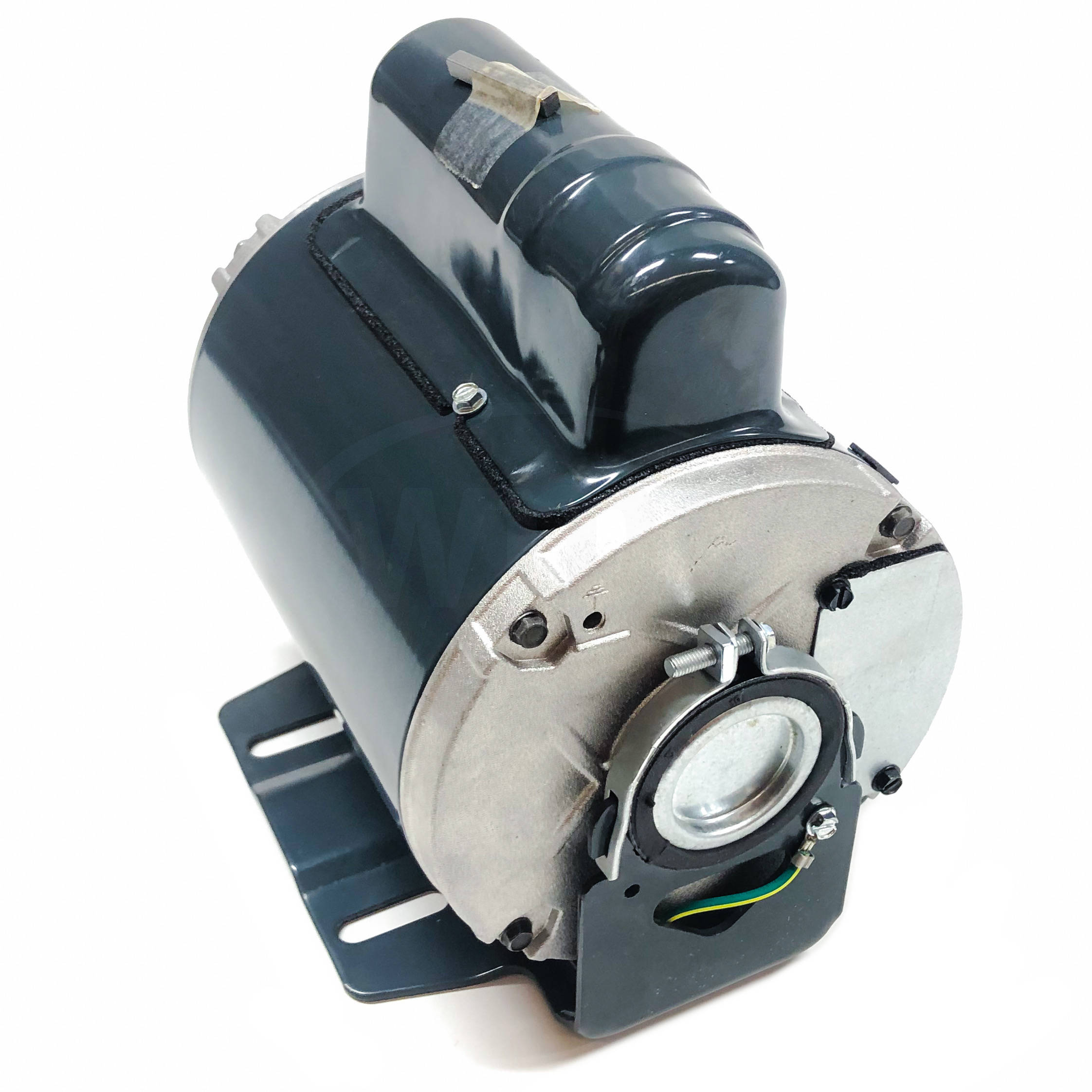

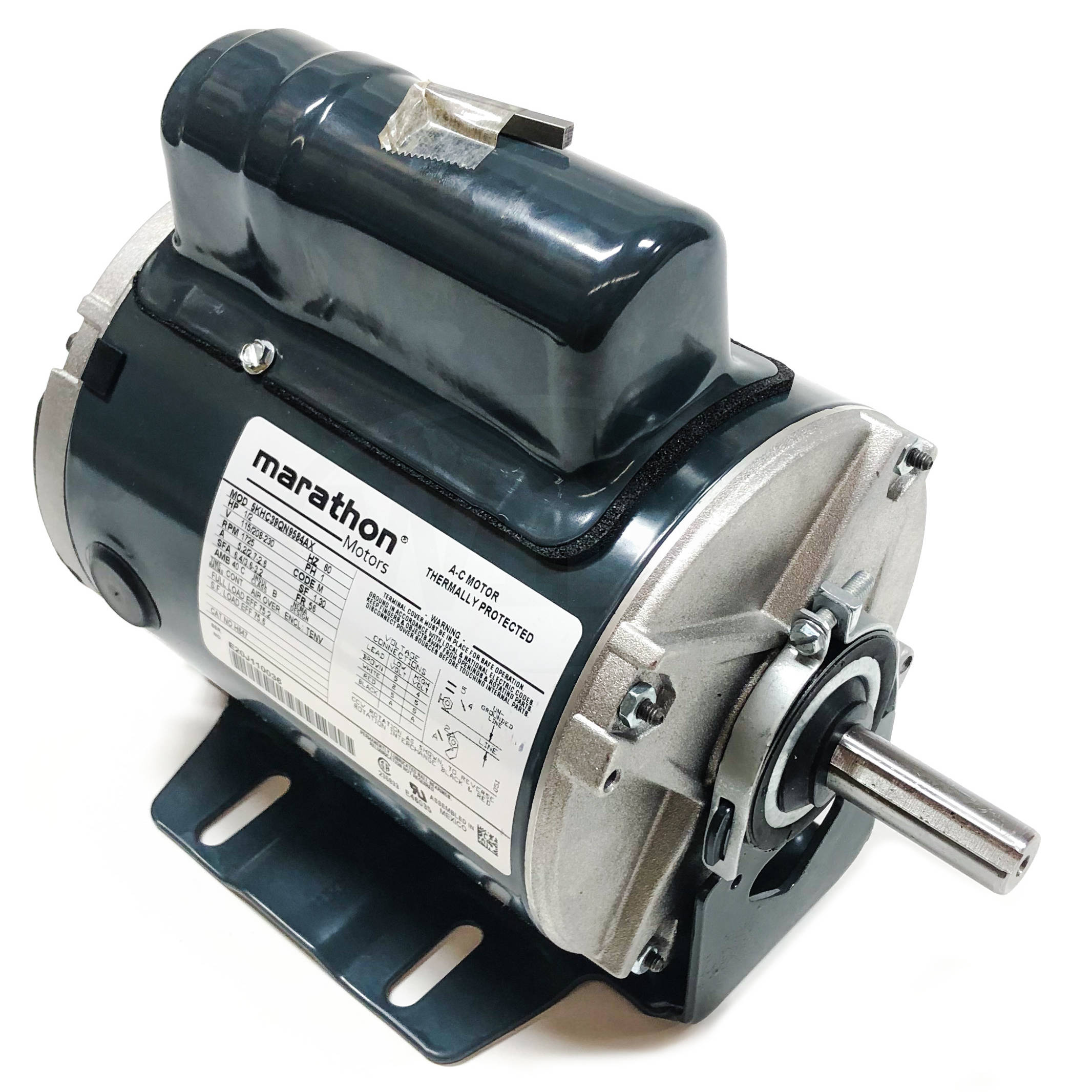

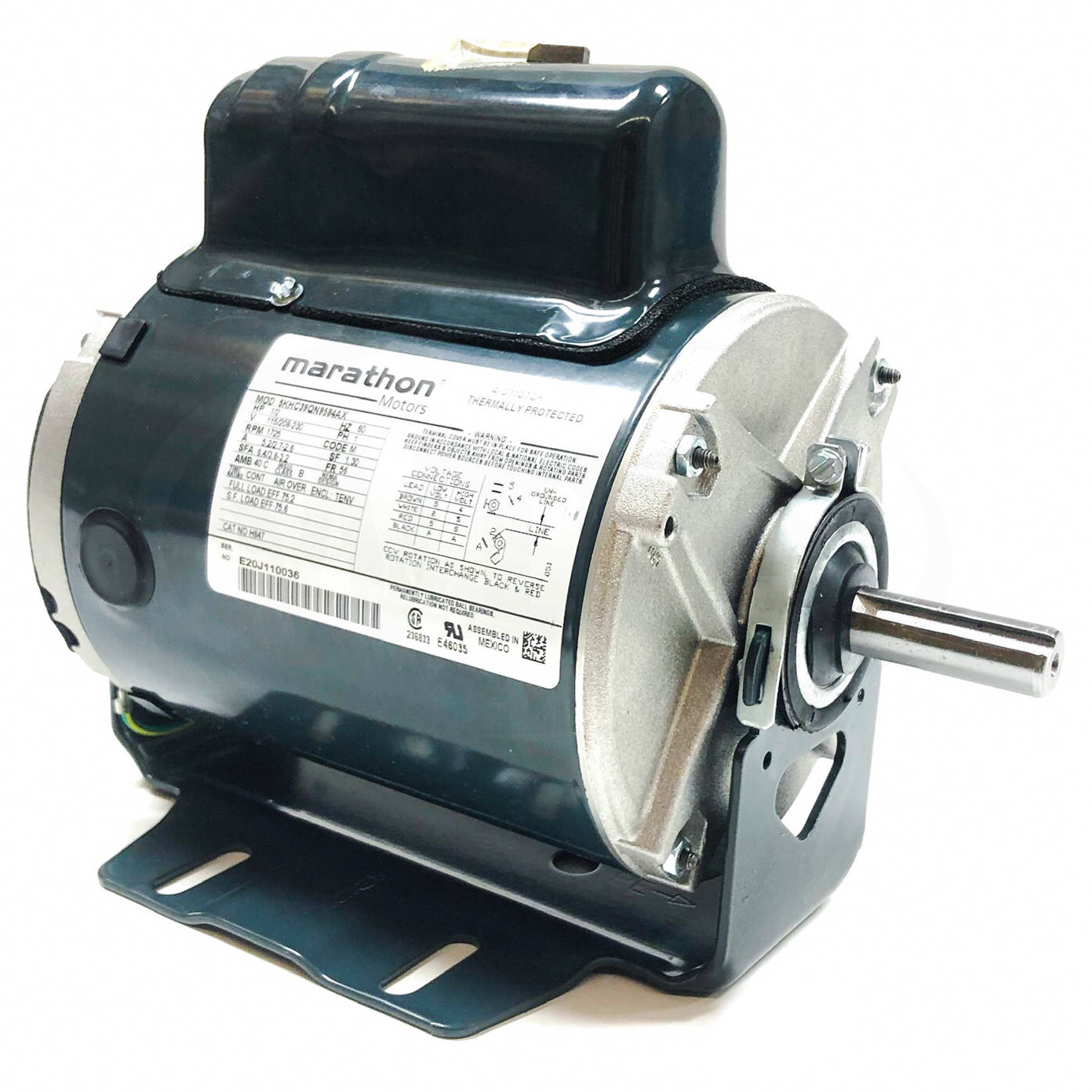

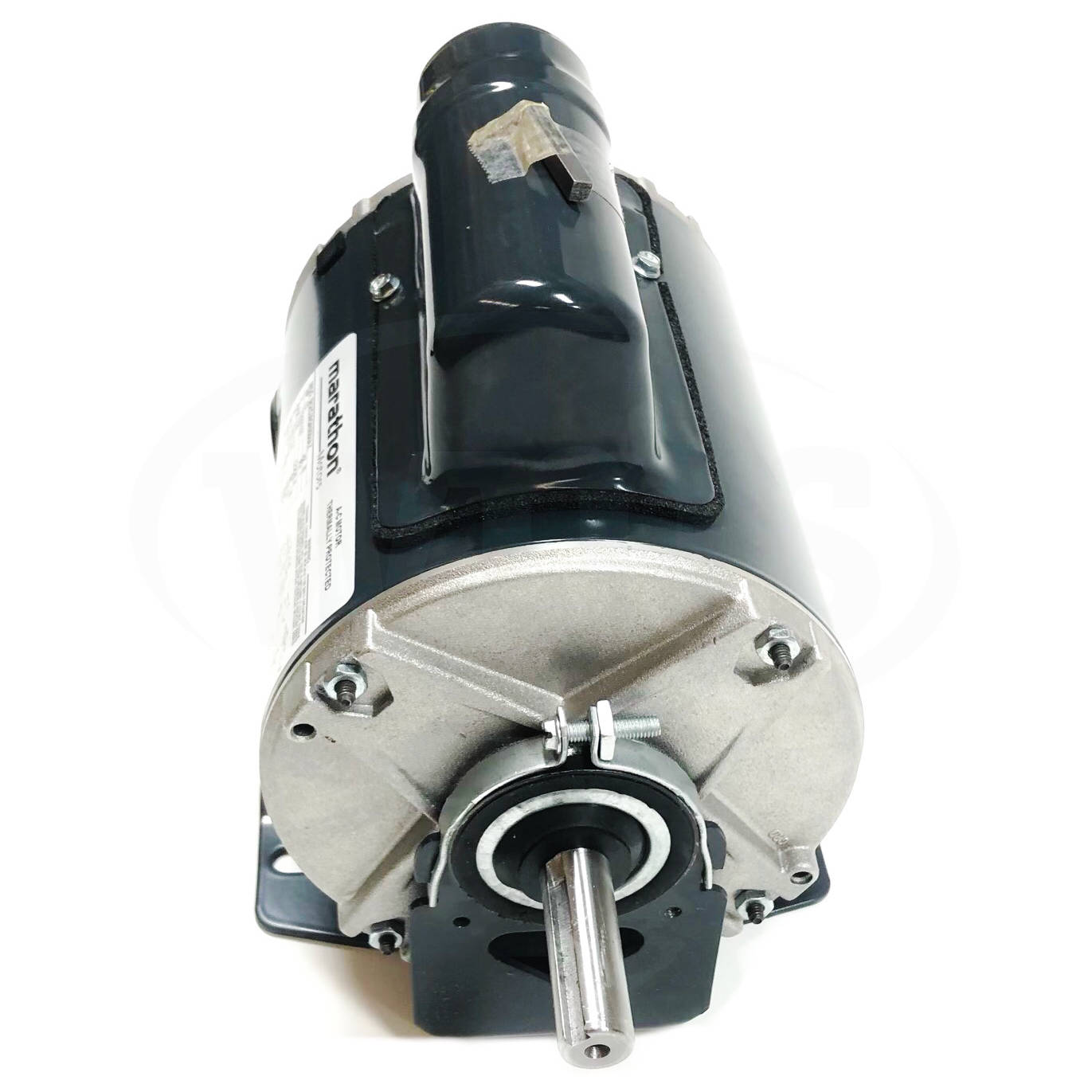

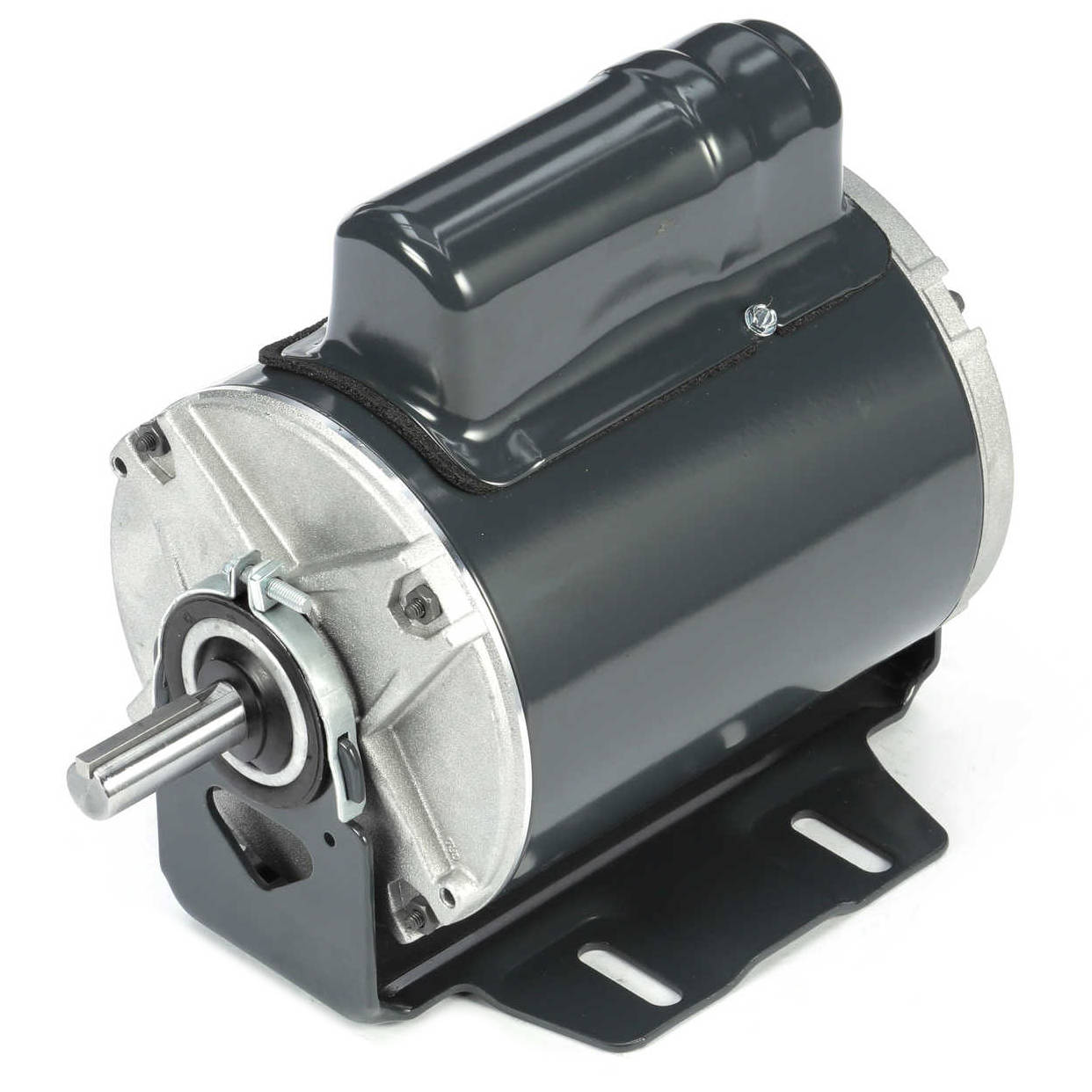

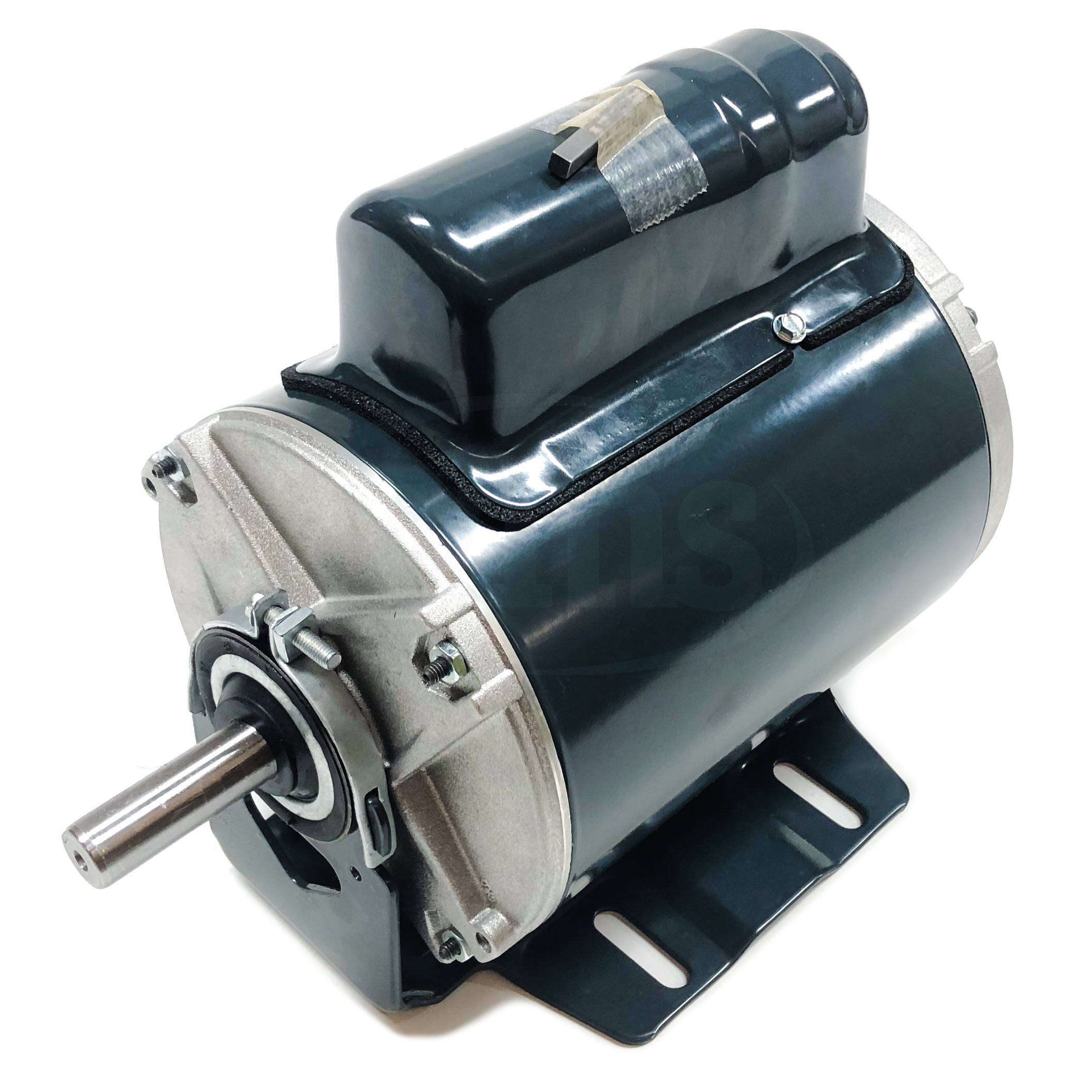

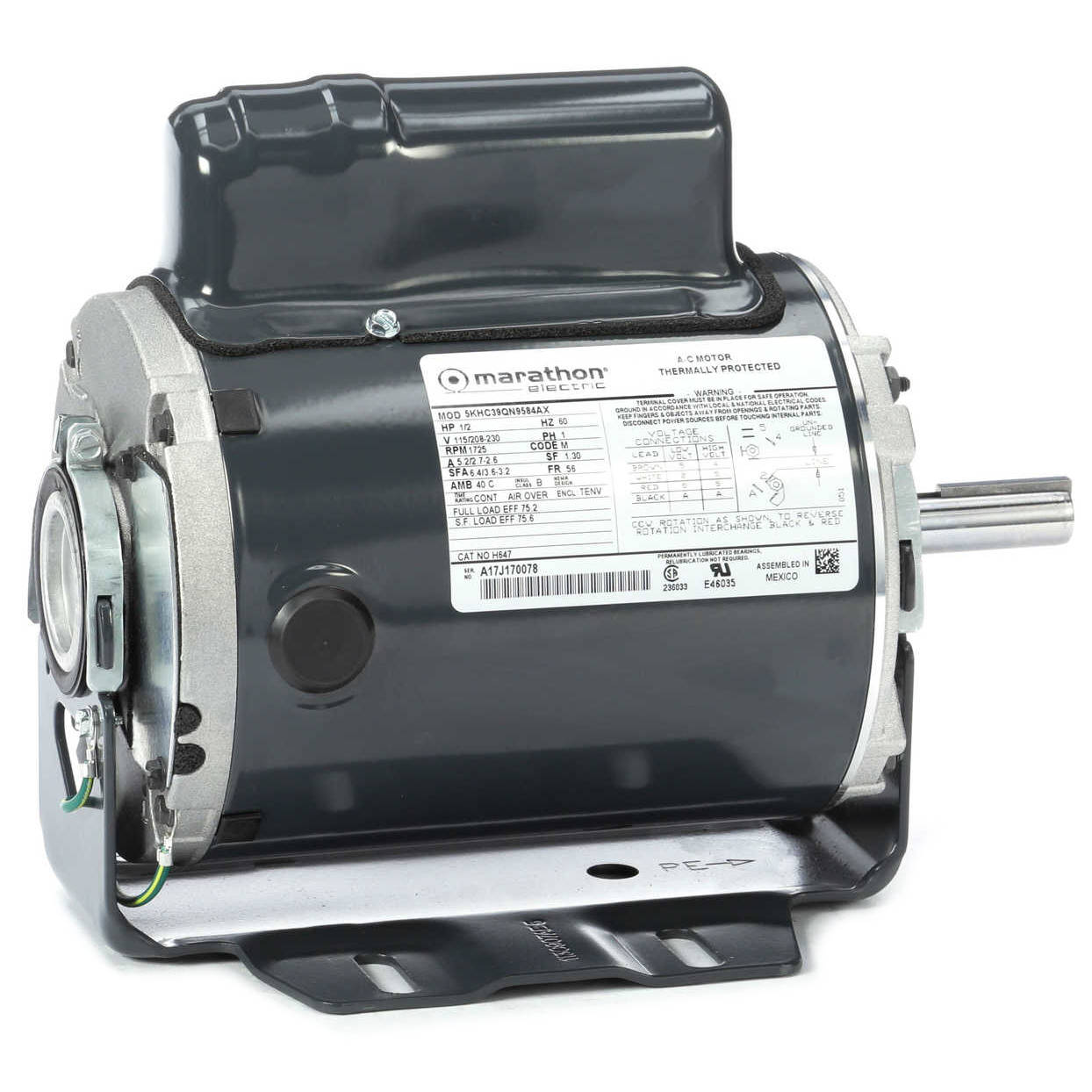

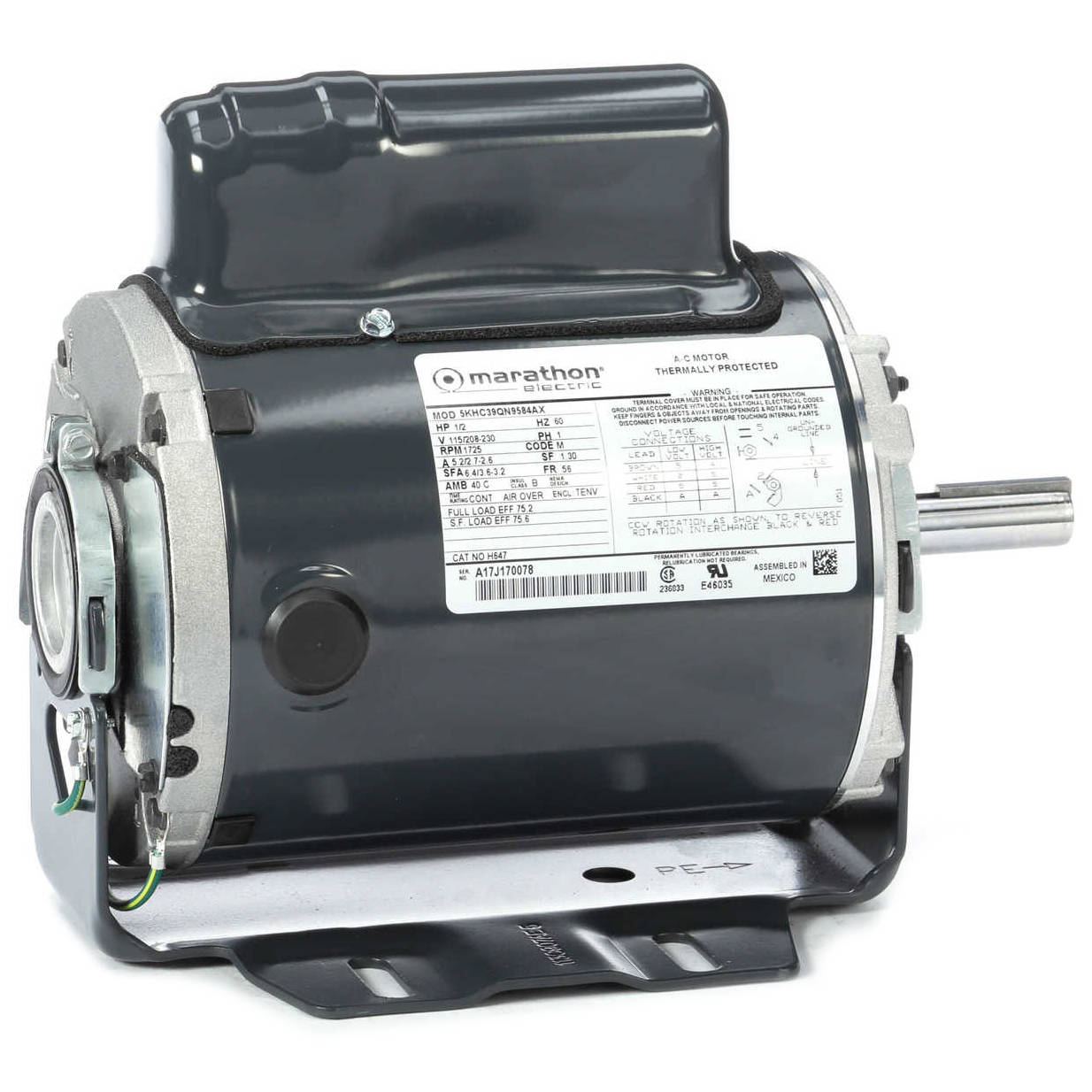

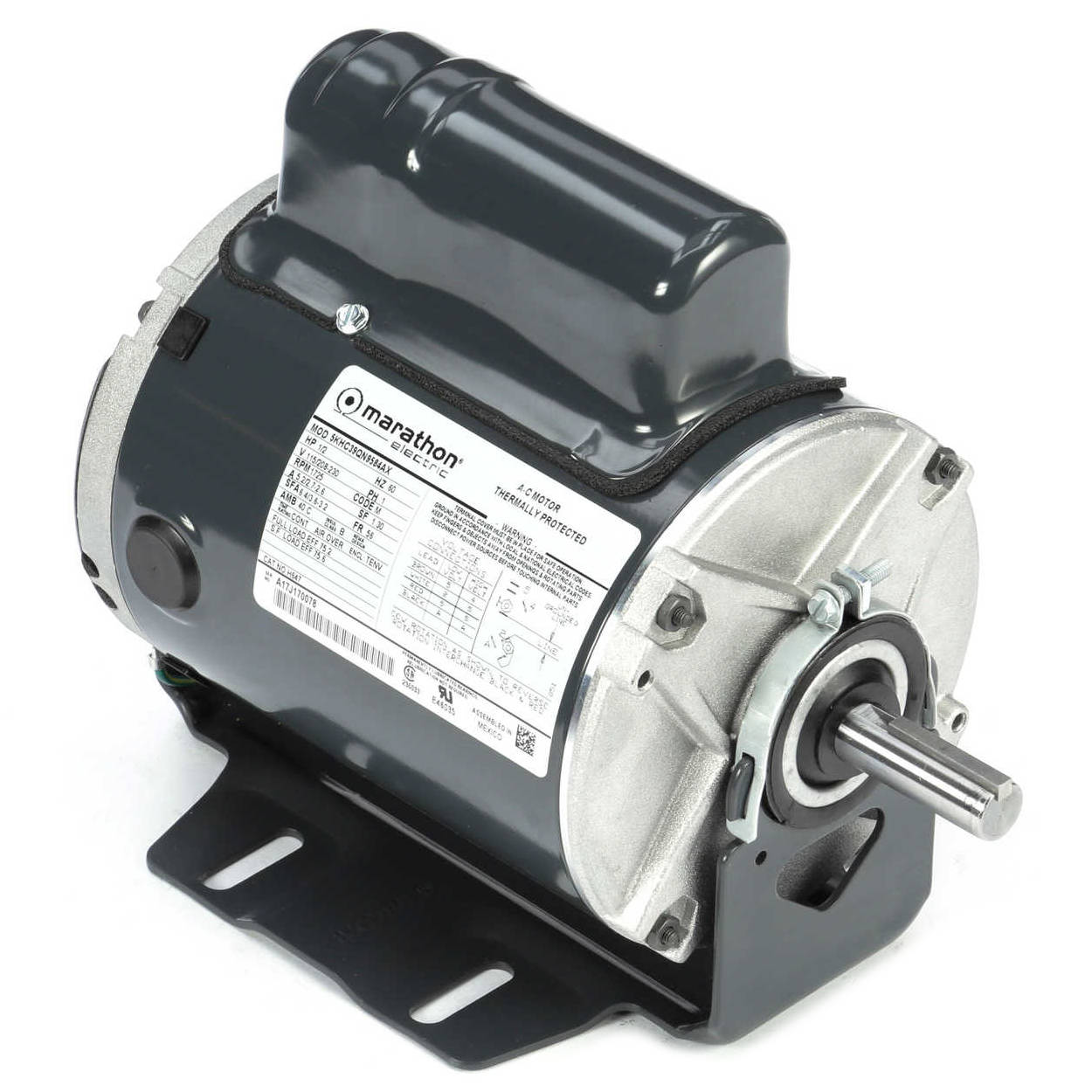

H647 Marathon 1/2HP Farm Duty General Purpose Electric Motor, 1800RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: 5KHC39QN9584X

Selected accessories will also be added to cart
$609.97 / Each
Quantity:
TENV, 56 Frame, 115/208-230VAC 60Hz Single Phase, 5KHC39QN9584X, Resilient Base, Rolled Steel, 5/8" Keyed Shaft

Features

  • Split Phase design
  • 56Z Frame has 1/2” dia. x 1-7/8” long with 1-5/8” flat
  • Fully Gasketed

General Specifications

UPC: 722856028273 Weight: 19 LB
Packaged Length: 13.69 IN Packaged Width: 7.13 IN
Packaged Height: 7.5 IN

Nameplate Specifications

Output HP: 1/2 Hp Output KW: 0.37 kW
Frequency: 60 Hz Voltage: 115/208-230 V
Current: 5.2,2.7-2.6 A Speed: 1725 rpm
Service Factor: 1.3 Phase: 1
Efficiency: 73.2 % Power Factor: 0
Duty: Continuous Insulation Class: B
KVA Code: M Frame: 56
Enclosure: Totally Enclosed Non Ventilated Thermal Protection: AUTO
Ambient Temperature: 40 °C Drive End Bearing Size: 6203
Opp Drive End Bearing Size: 6203 UL: Recognized
CSA: Yes CE: N

Technical Specifications

Electrical Type: Split Start Capacitor Run Starting Method: SM
Poles: 4 Rotation: Counterclockwise/Clockwise
Mounting: Resilient Base Motor Orientation: ANY
Drive End Bearing: BALL Opp Drive End Bearing: BALL
Frame Material: Rolled Steel Overall Length: 10.37 in
Frame Length: 6.22 in Shaft Diameter: 0.63 in
Shaft Extension: 1.88 in
