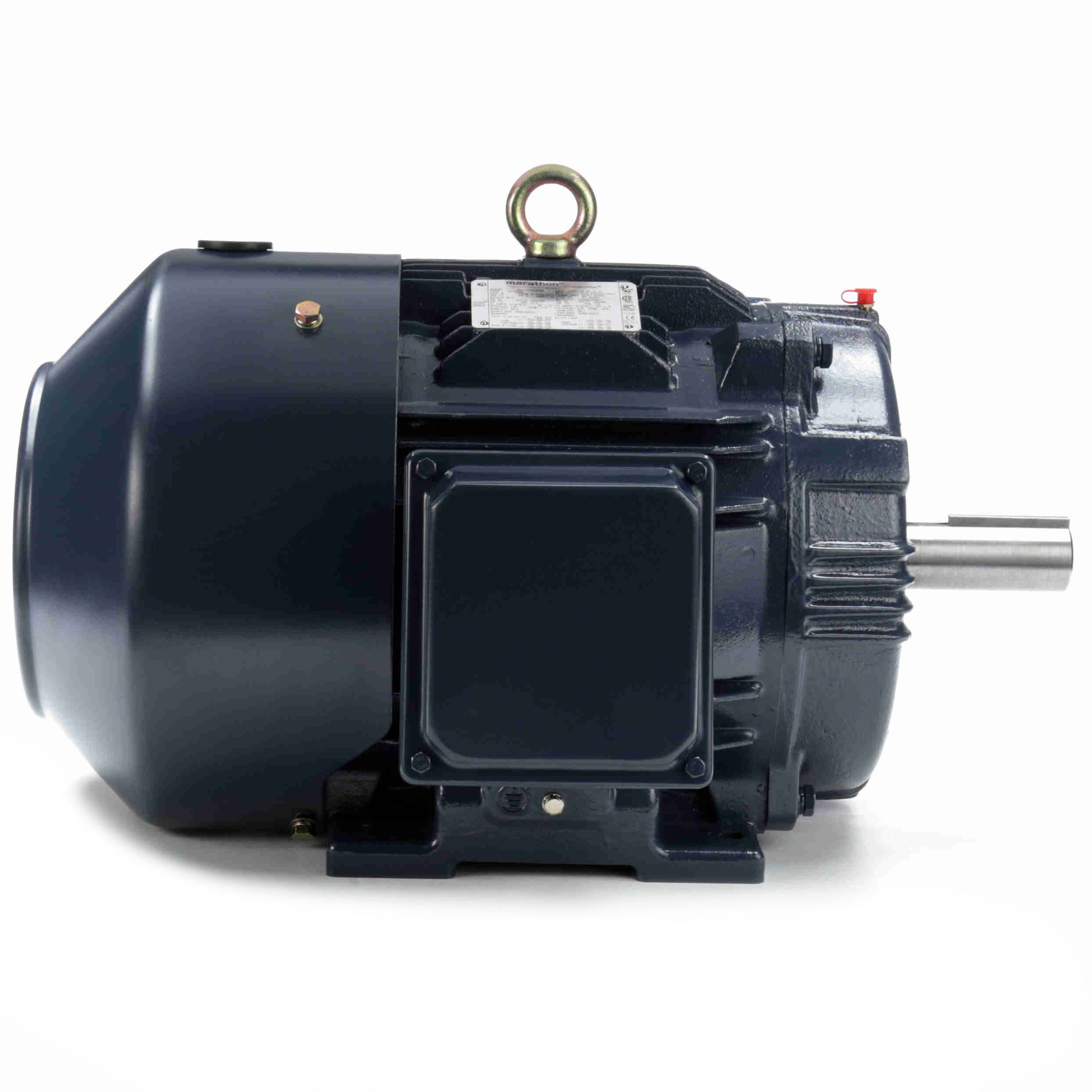

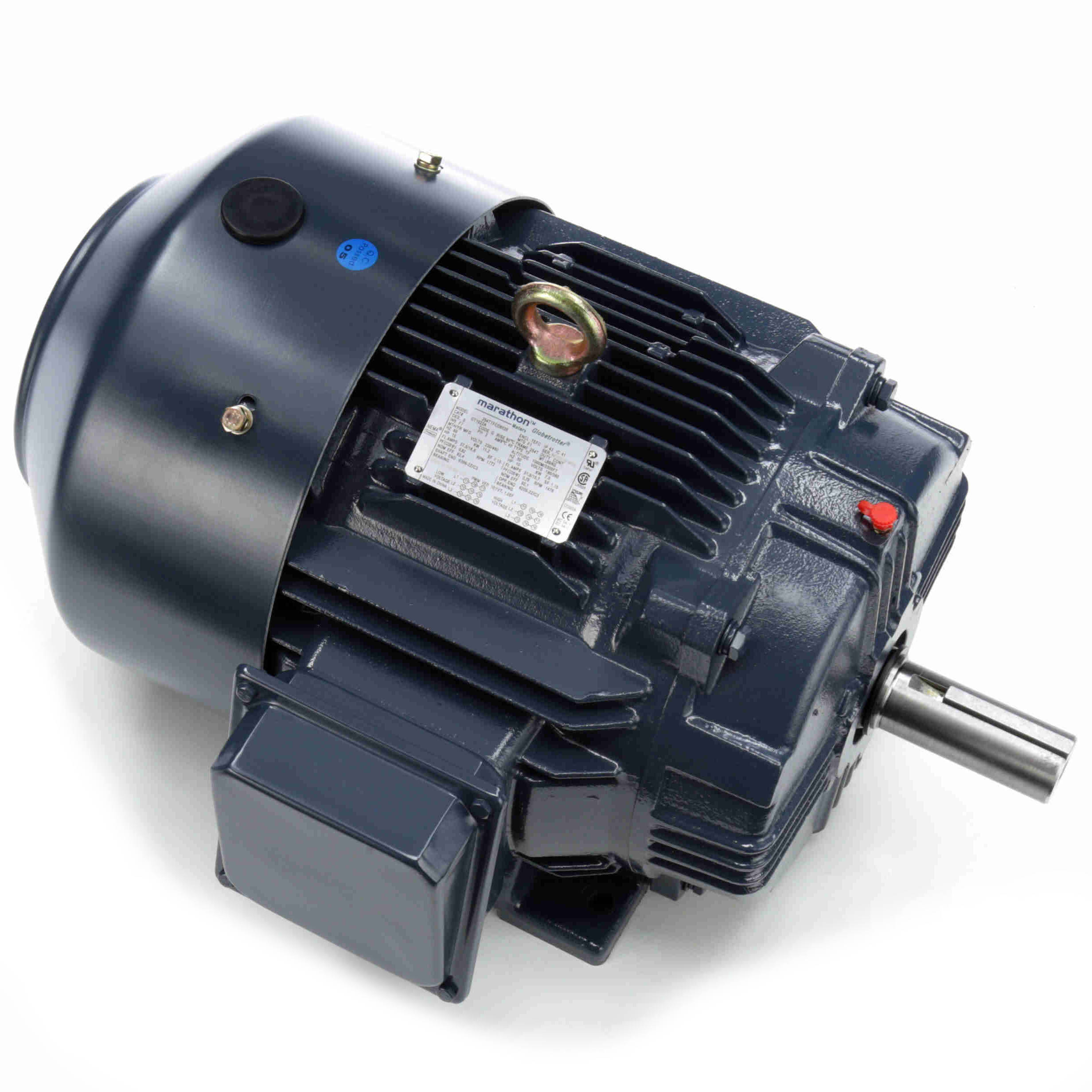

GT1022A Marathon 15HP Globetrotter Electric Motor, 1800RPM
Product ID: GT1022A
MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: GT1022A
Selected accessories will also be added to cart
$2,499.97 / Each
Quantity:
TEFC, 254T Frame, 230/460VAC 60Hz 3-Phase
Details
Features
Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2014
Hazardous Duty Division 2, Zone 2, Class I, Groups A,B,C,D, Temperature code T2B
IP55 enclosure on cast iron frames
Inverter Duty 10:1 Variable Torque and up to 10:1 Constant Torque
Class F Insulation
Standard F1, reversible to F2 assembly. Dual frame mounting holes.
C-face addition may result in non-NEMA "BA" dim. For new "BA" dim consult chart found in modification section
General Specifications
UPC:
722856067203
Weight:
299.00 LB
Packaged Length:
31.77 IN
Packaged Width:
28.03 IN
Packaged Height:
28.14 IN
Nameplate Specifications
Output HP:
15 Hp
Output KW:
11.2 kW
Frequency:
60 Hz
Voltage:
230/460 V
Current:
37.5/18.8 A
Speed:
1772 rpm
Service Factor:
1.15
Phase:
3
Efficiency:
92.4 %
Power Factor:
82
Duty:
Continuous
Insulation Class:
F
Design Code:
B
KVA Code:
G
Frame:
254T
Enclosure:
Totally Enclosed Fan Cooled
Thermal Protection:
No
Ambient Temperature:
40 °C
Drive End Bearing Size:
6309
Opp Drive End Bearing Size:
6209
UL:
Listed
CSA:
Y
CE:
Y
IP Code:
55
Technical Specifications
Electrical Type:
Squirrel Cage Inverter Rated
Starting Method:
Line Or Inverter
Poles:
4
Rotation:
Reversible
Resistance Main:
.6738 Ohms
Mounting:
Rigid Base
Motor Orientation:
Horizontal
Drive End Bearing:
Ball
Opp Drive End Bearing:
Ball
Frame Material:
Cast Iron
Shaft Type:
T
Overall Length:
24.15 in
Shaft Diameter:
1.625 in
Shaft Extension:
4 in
Assembly/Box Mounting:
F1/F2 CAPABLE
Speed Characteristics
Curvepoint
Current (Amps)
Current (%)
Torque (ft-lbs)
(%)
Speed (RPM)
Rated Output (KW)
Power Factor (%)
Rated Output (Hp)
1/3
105.00
559.0
75.50
170.0
600
15.00
Pull-Up
100.00
532.0
76.50
172.0
900
15.00
Break-Down
66.00
351.0
118.00
265.0
1,622
69.0
15.00
No Load
8.50
45.0
0.00
0.0
1,800
5.0
15.00
2/3
91.00
484.0
95.00
213.0
1,200
15.00
Locked-Rotor
113.00
601.0
91.00
204.0
0
41.0
15.00
Full Load
18.80
100.0
44.50
100.0
1,772
82.0
15.00
Load Characteristics
% of Rated Load
0 %
25 %
50 %
75 %
100 %
115 %
125 %
Current (Amps)
8.50
9.50
11.80
15.00
18.80
21.00
22.80
Rated Output (KW)
0.50
3.20
6.10
9.00
12.10
14.00
15.20
Efficiency (%)
0.0
87.5
91.7
92.4
92.4
92.4
91.7
Power Factor (%)
5.0
42.5
65.5
76.5
82.0
83.5
84.0
Speed (RPM)
1,800
1,792
1,785
1,780
1,772
1,768
1,762
Temp. Rise @ FL
0.0
0.0
0.0
0.0
50.0
65.0
80.0
Torque (ft-lbs)
0.00
11.00
22.00
33.50
44.50
51.50
56.00
