Product ID: GH3303

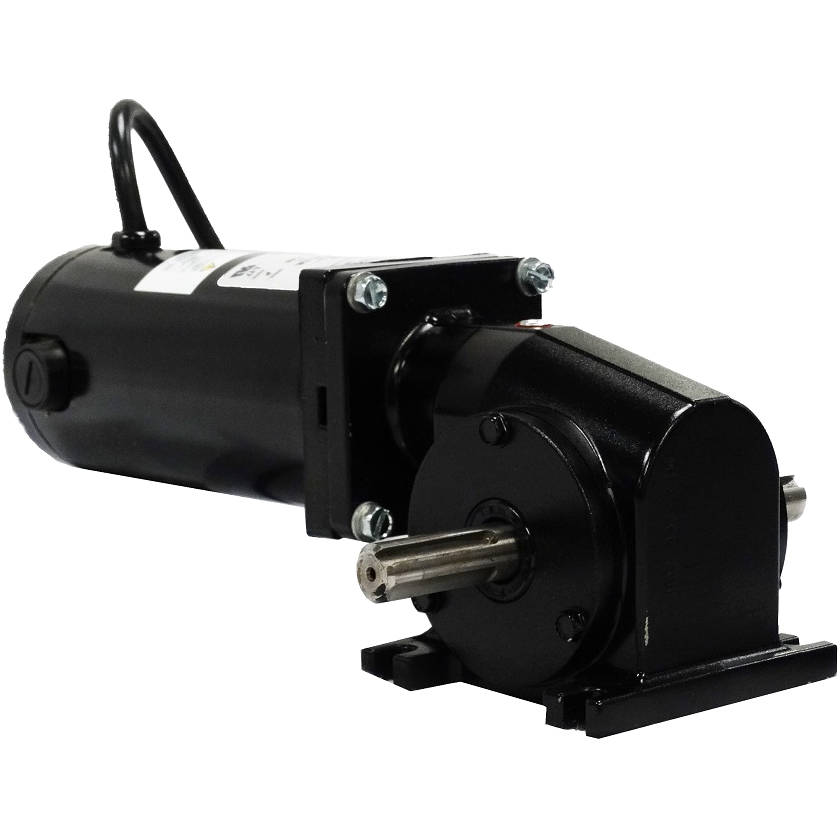

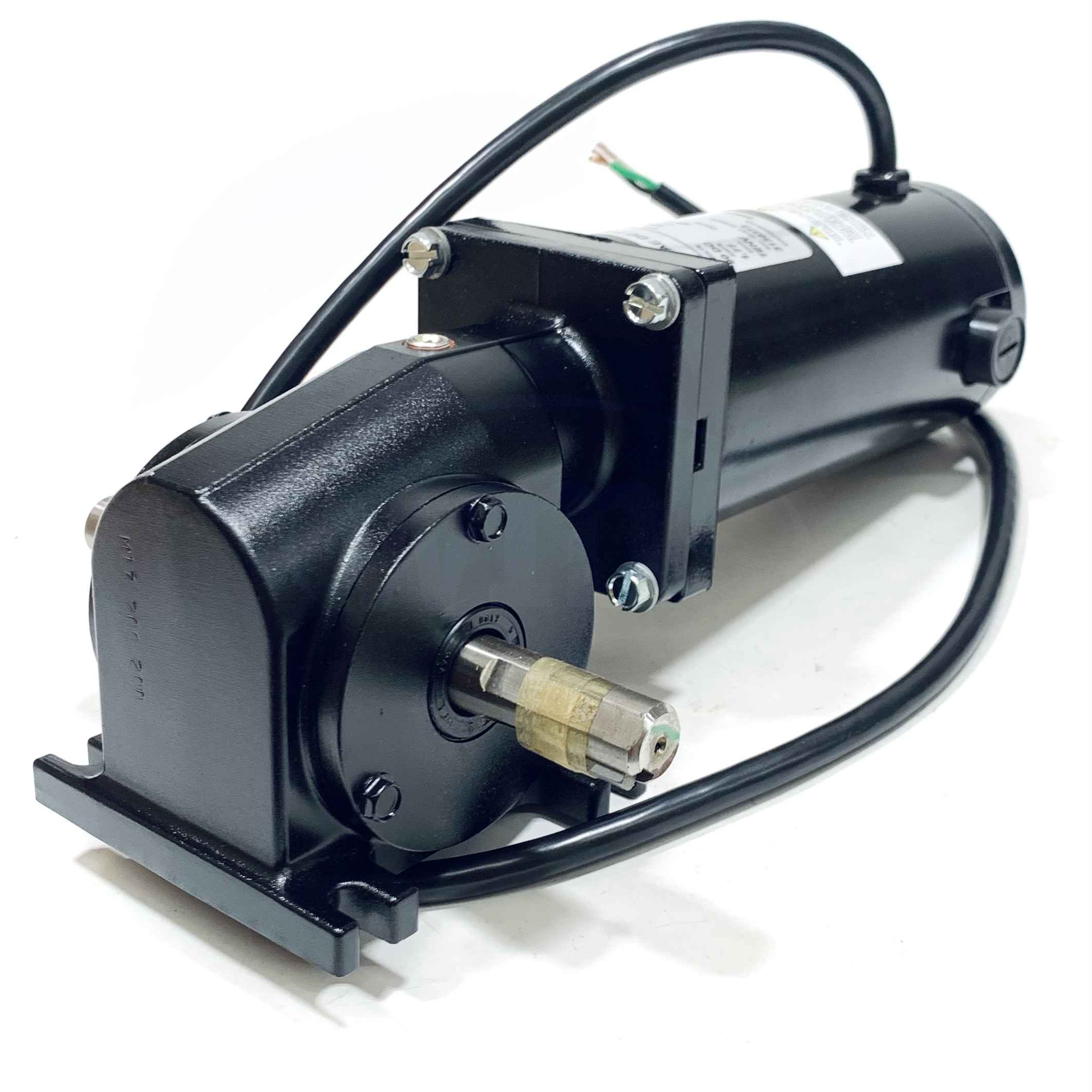

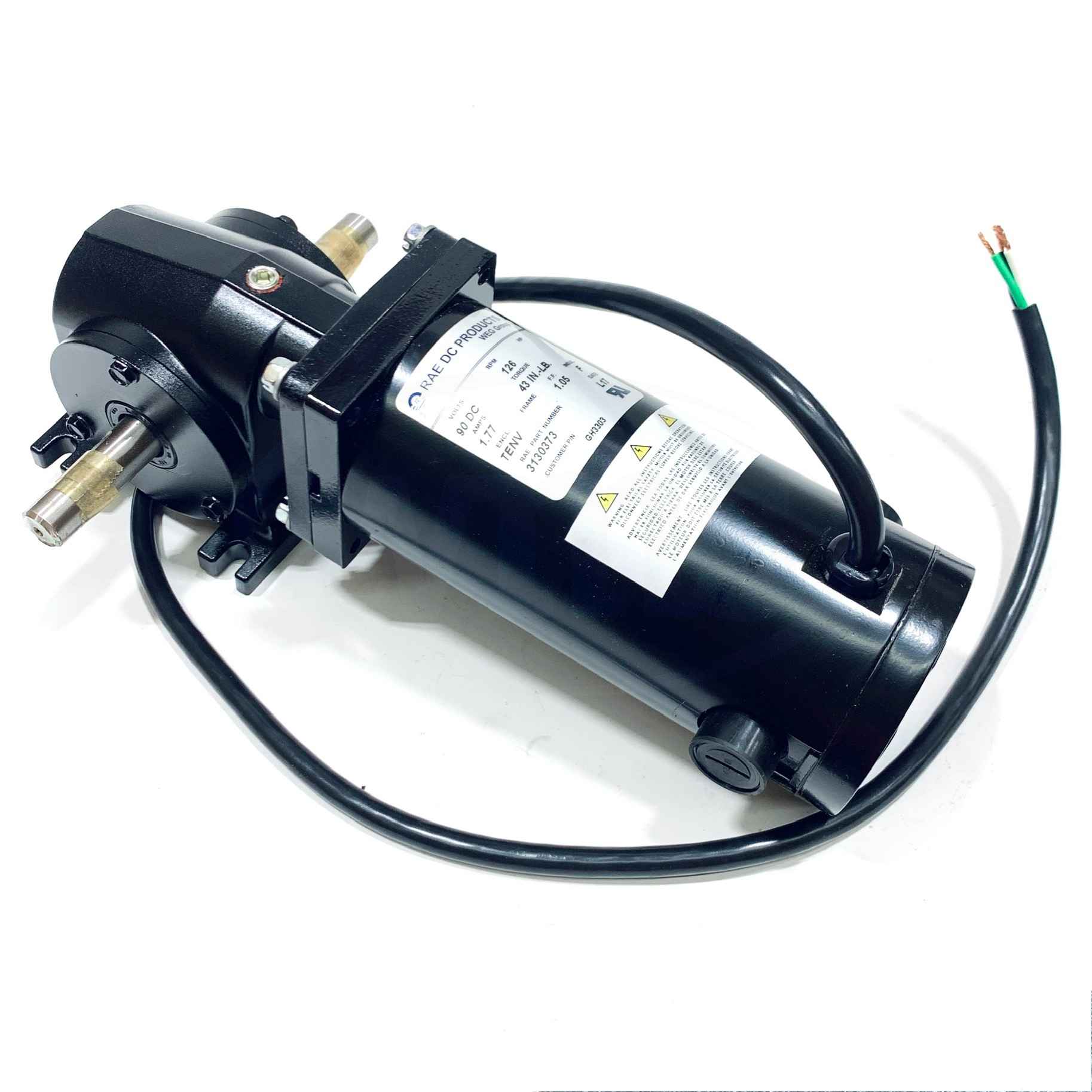

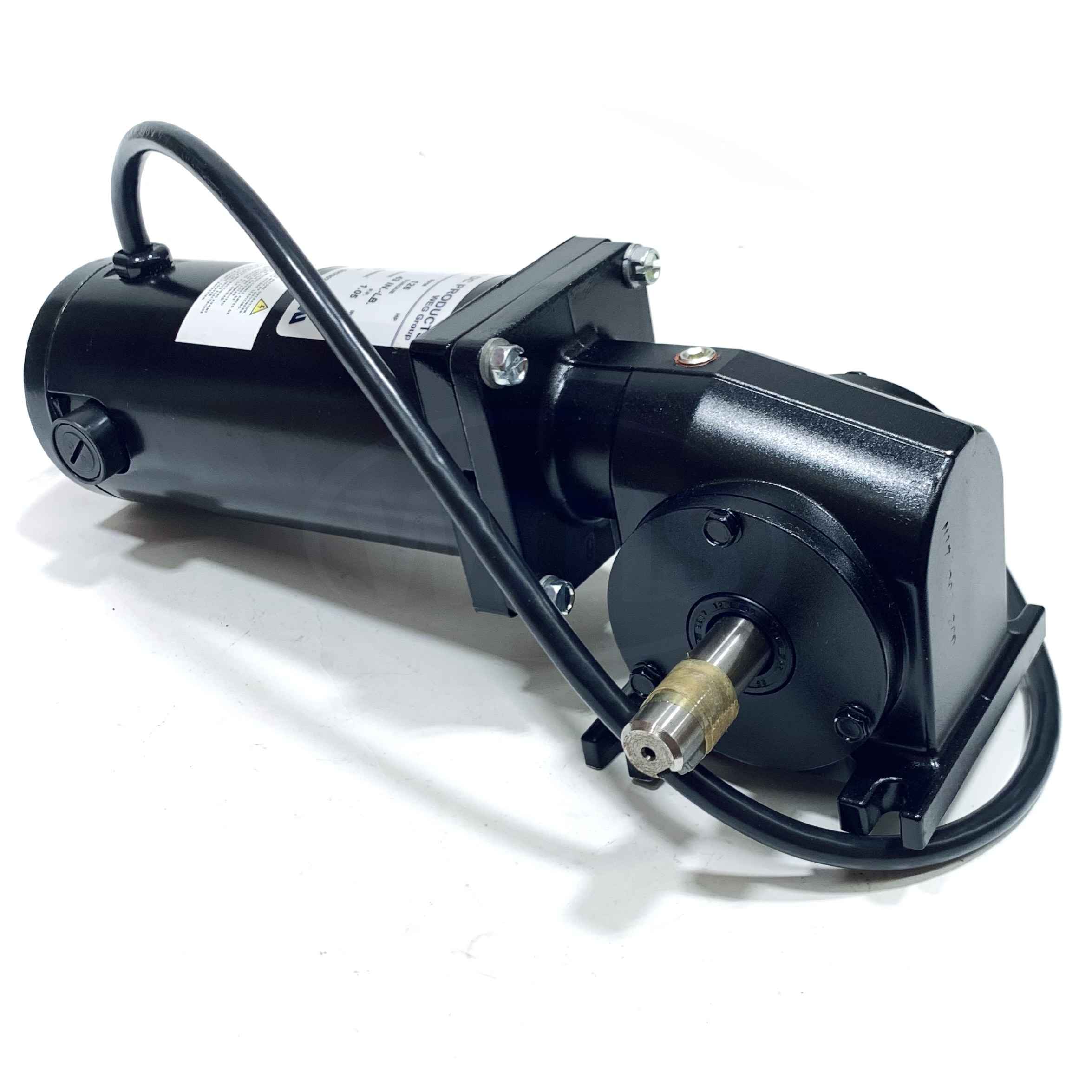

GH3303 WEG 1/8HP Right Angle Gearmotor, 126RPM

MFG: WEG Electric Corporation
MFG Part Number: GH3303

Selected accessories will also be added to cart
$435.75 / Each
Quantity:

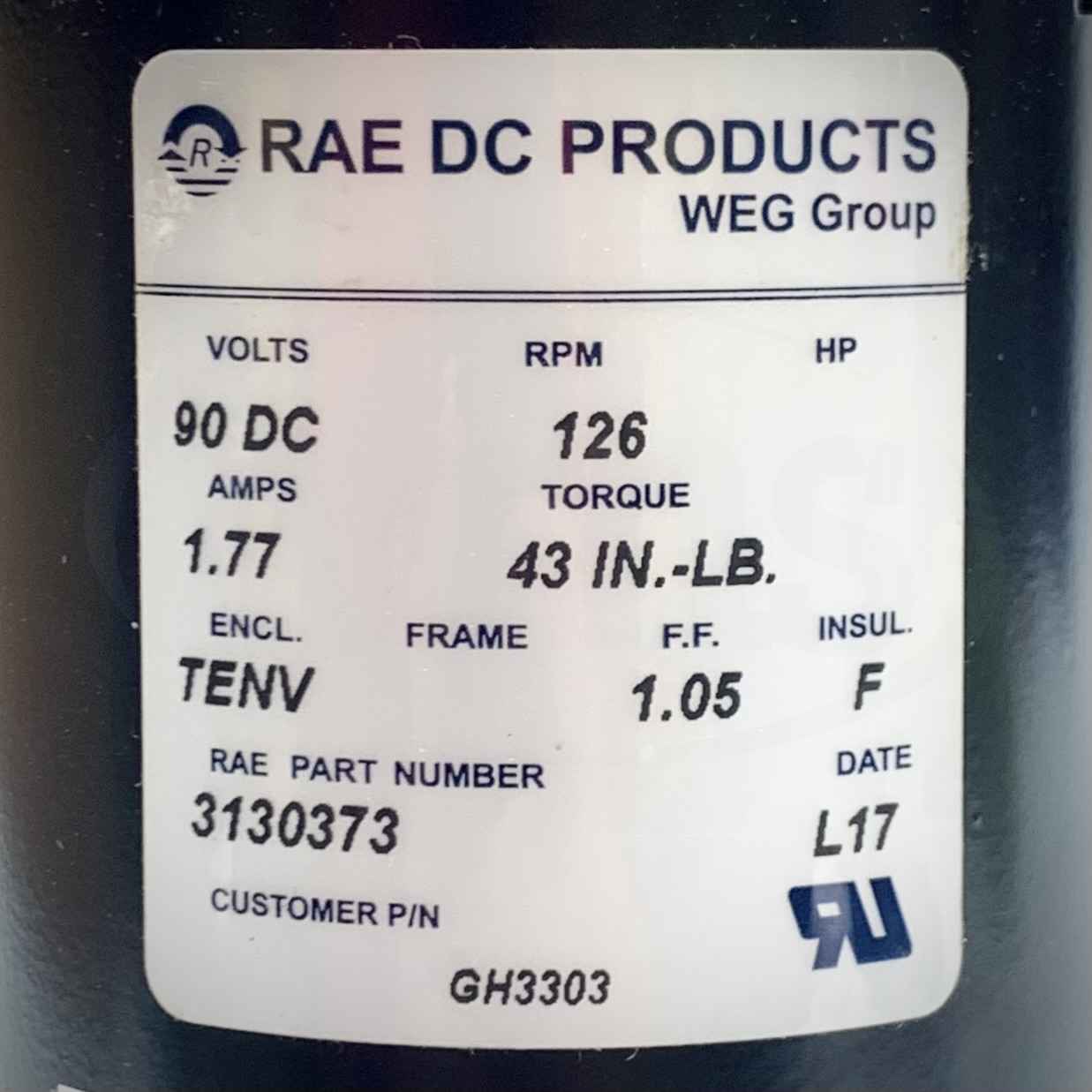

IP55, 90VDC, 20:1 Ratio, 43 in-lbs

Description

The G33 Series Single Worm Reduction Right Angle Gearbox, when matched with the appropriate RAE motor: is designed for applications requiring high output torques and a dependable, rugged design.

Features

  • Lifetime Oil Lubrication
  • Antifriction Bearings
  • Foot Mounting
  • High Energy Ceramic Magnets
  • Dynamically Balanced Armature
  • Externally Replaceable Brushes
  • Auto-Hook Tang Type Commutator
  • Continuous Duty
  • Class "F" Insulation
