/Products/Electric Motors/Single Phase/Century/GF2024D Century 1/4HP Fan and Blower Electric Motor, 1800RPM

Click Image to Expand

Previous Next

Product ID: GF2024D

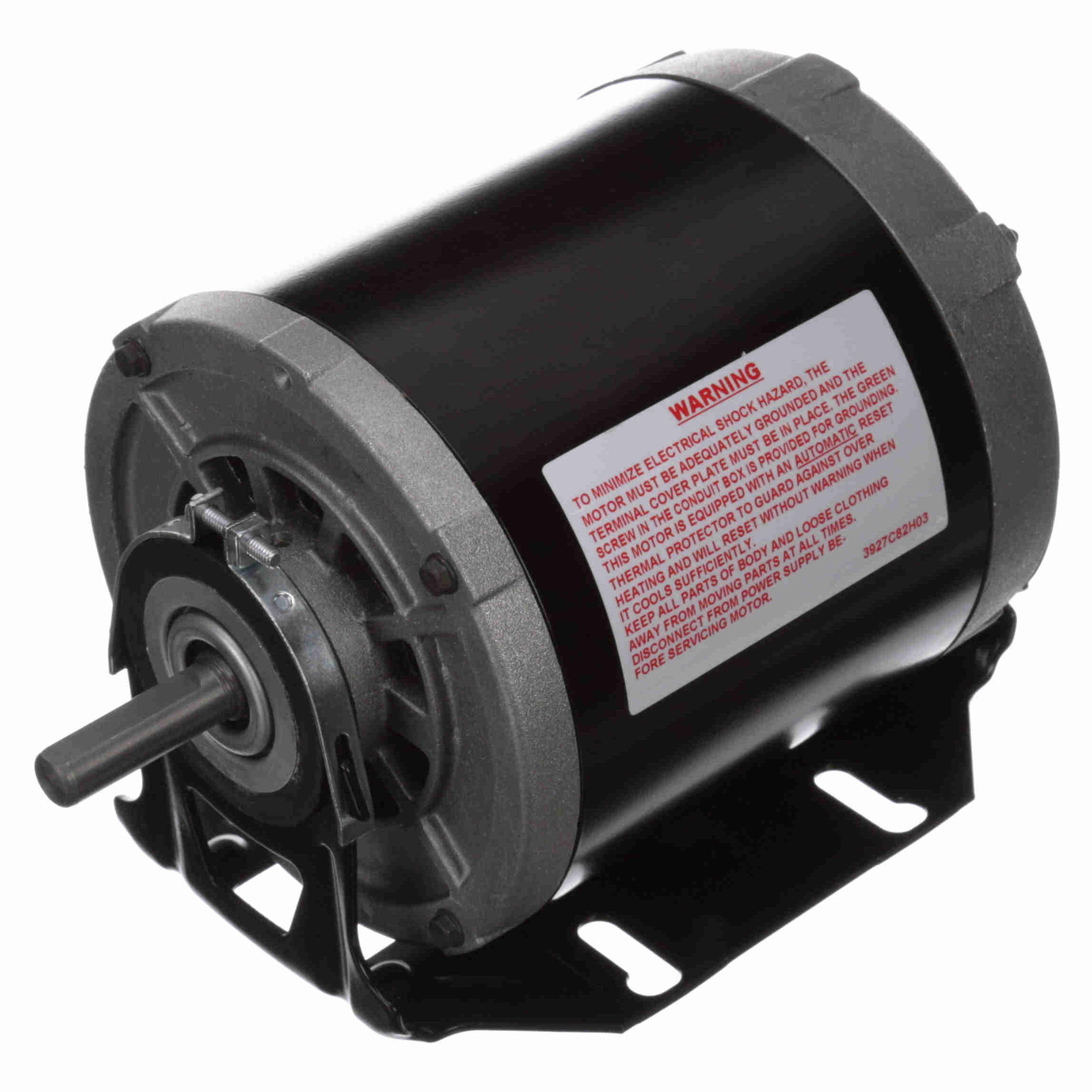

GF2024D Century 1/4HP Fan and Blower Electric Motor, 1800RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: GF2024D

Selected accessories will also be added to cart

$328.97 / Each

Quantity:

Open, 48 Frame, 115/208-230VAC 60Hz Single Phase, Rolled Steel Frame, Sleeve Bearings, 5/8" Keyed Shaft

Details

Features

Automatic reset thermal protector prevents overheating.
Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
Vertical/horizontal mounting for proper placement of the fan within airflow.

General Specifications

UPC:	786674021779	Weight:	14.00 LB
Packaged Length:	11 IN	Packaged Width:	7.5 IN
Packaged Height:	7 IN	HTC:	8501.40.4040
Country of Origin:	Mexico

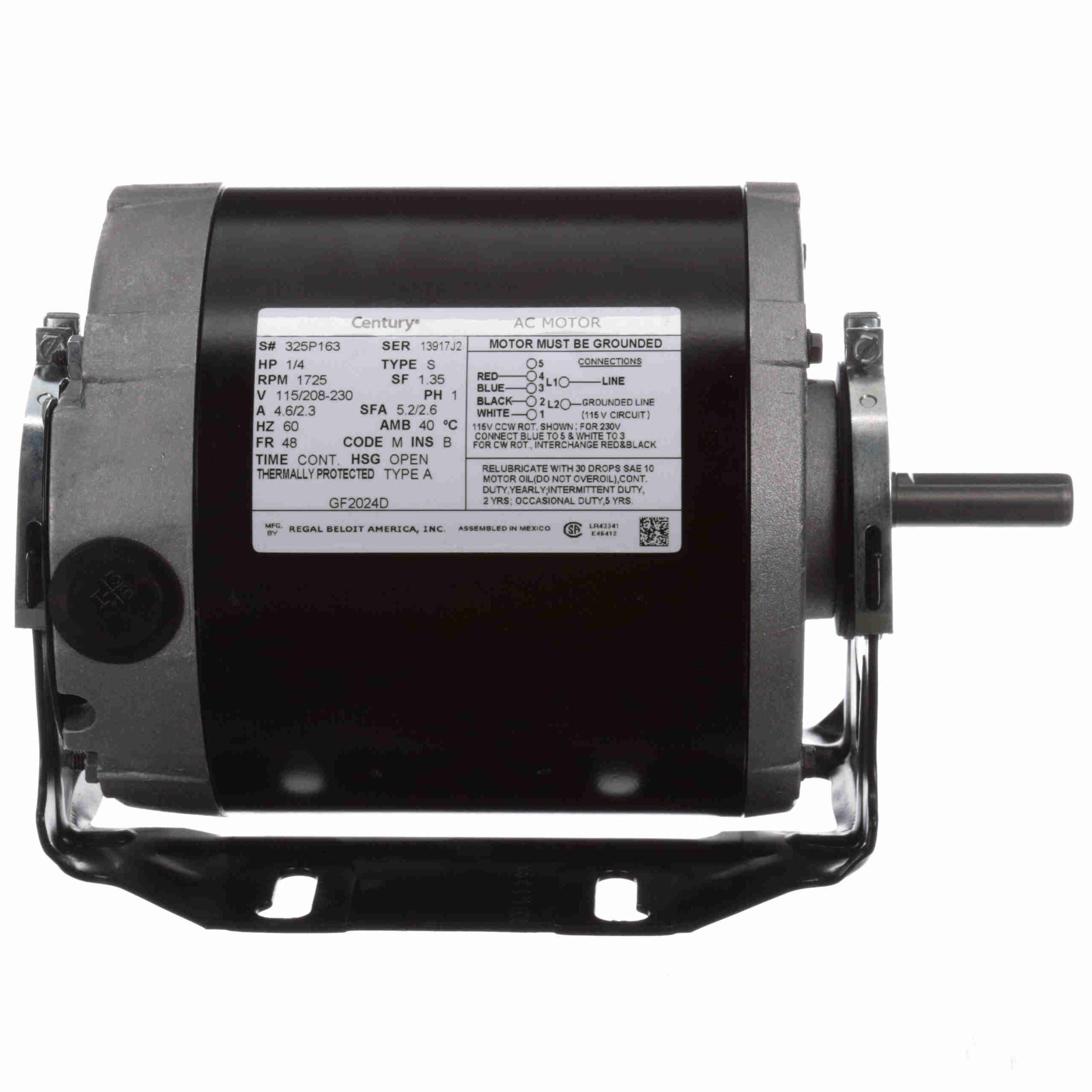

Nameplate Specifications

Output HP:	1/4 Hp	Output KW:	0.19 kW
Frequency:	60 Hz	Voltage:	115/208-230 V
Current:	4.6/2.3 A	Speed:	1725 rpm
Service Factor:	1.35	Phase:	1
Duty:	Continuous	Insulation Class:	B
Frame:	48	Enclosure:	Open Enclosed
Thermal Protection:	Automatic	Ambient Temperature:	40 °C
UL:	No	CSA:	Y
CE:	N	Number of Speeds:	1

Technical Specifications

Electrical Type:	Split Phase	Starting Method:	Across The Line
Poles:	4	Rotation:	Reversible
Mounting:	Resilient Base	Drive End Bearing:	Sleeve
Opp Drive End Bearing:	Sleeve	Frame Material:	Rolled Steel
Shaft Type:	Keyed	Overall Length:	9.21 in
Frame Length:	4.69 in	Shaft Diameter:	0.625 in
Shaft Extension:	1.5 in
