Product ID: G574

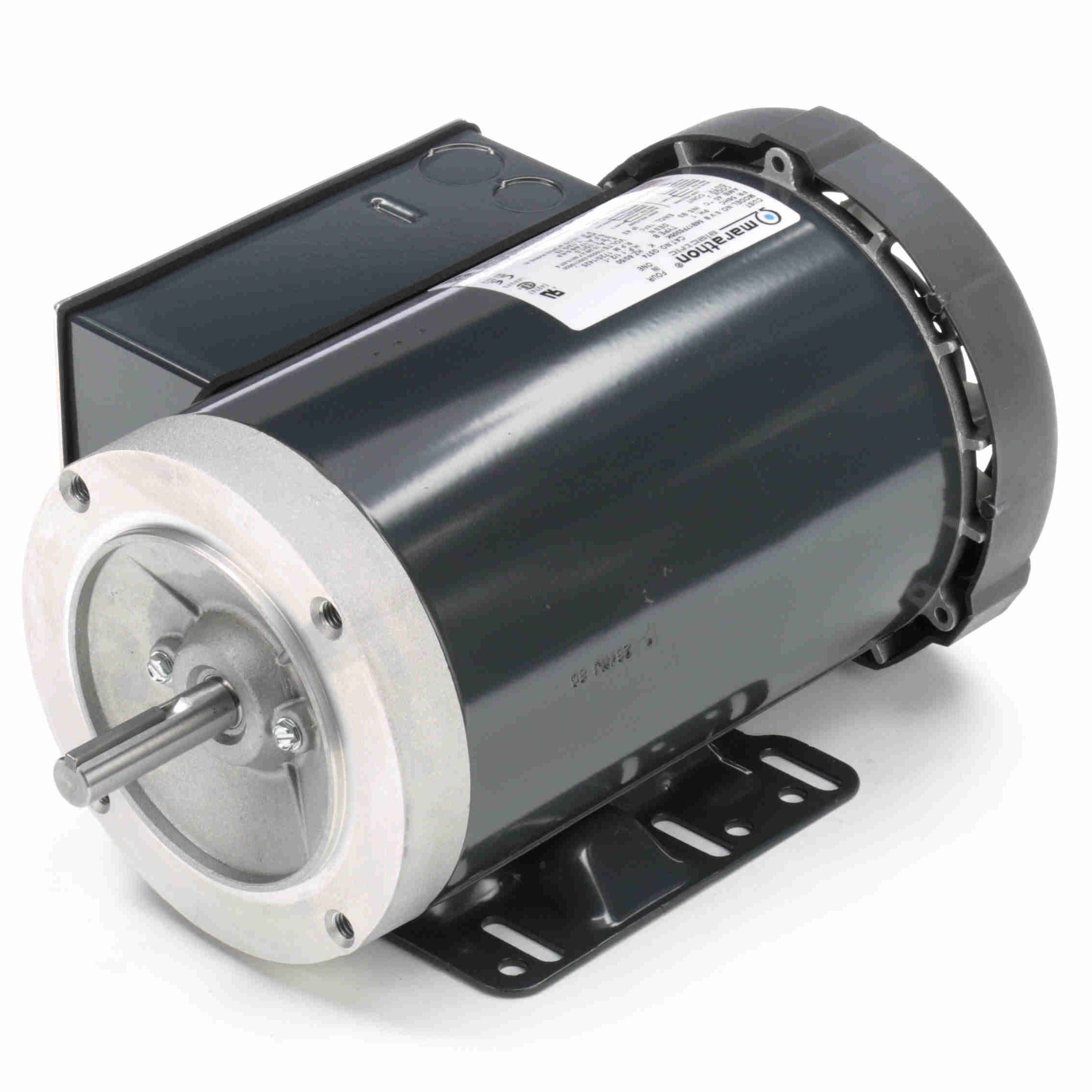

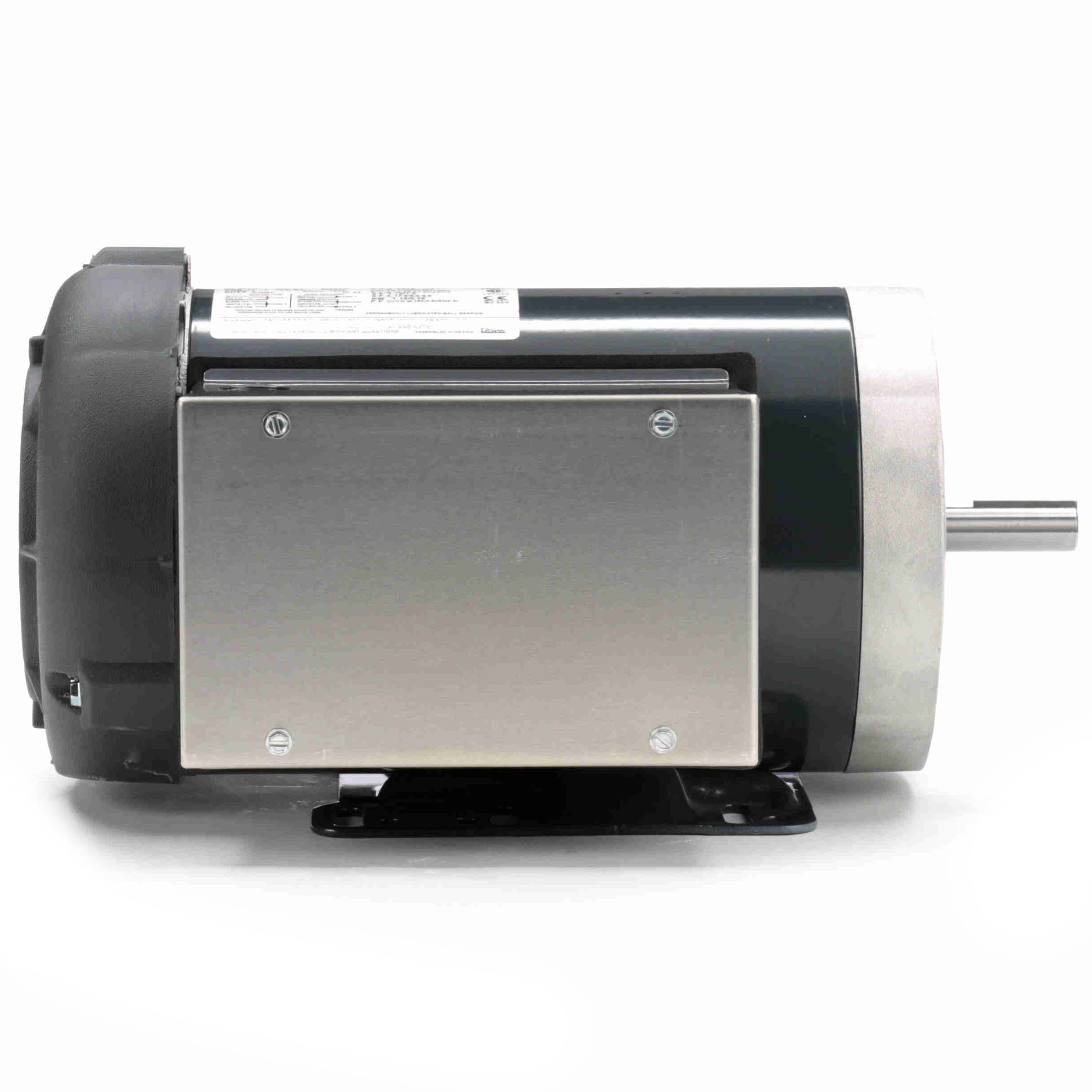

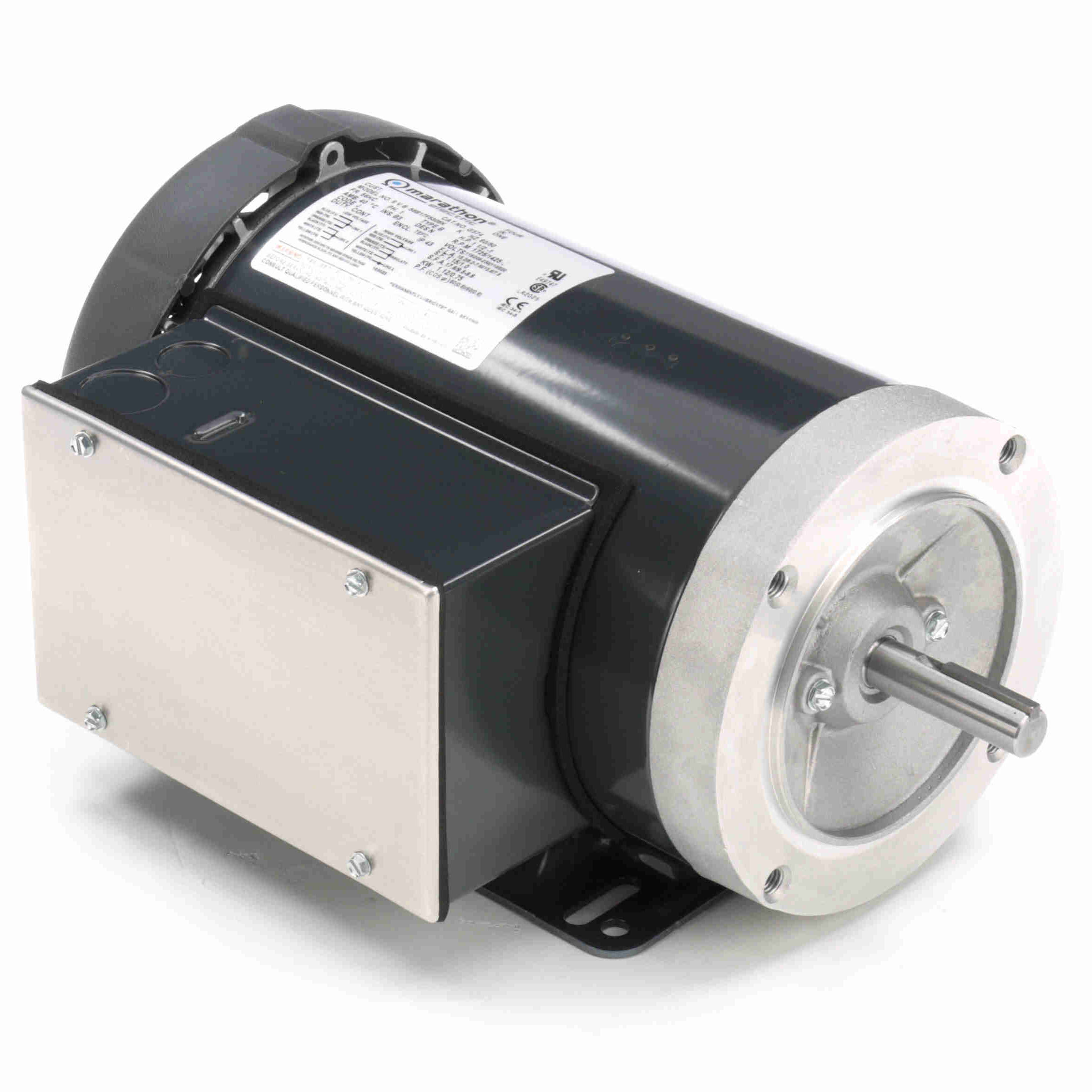

G574 Marathon 1.5HP General Purpose Electric Motor, 1800RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: 056B17F5305

Selected accessories will also be added to cart

$759.97 / Each

Quantity:

TEFC, 56HC Frame, 115/208-230VAC Single Phase 60Hz, 056B17F5305, Bolt-On Base, Rolled Steel, 5/8" Shaft

Details
Purchase Components

Features

Double sealed ball bearings, mechanically locked on shaft end
Heavy gauge steel constructions
Bolt-on, removable rigid base
Suitable for horizontal or vertical mounting
Capacitor start design for high starting torque
Capacitor start/capacitor run design for reduced amperage
Will accept brake kits, see Accessory section
Will accept drip cover kits, see Accessories section
56H, 143T, and 145T combination base with 12 mounting holes

General Specifications

UPC:	722856009494	Weight:	42.00 LB
Packaged Length:	16.38 IN	Packaged Width:	10.5 IN
Packaged Height:	8.12 IN

Nameplate Specifications

Output HP:	1.50 Hp	Output KW:	1.1 kW
Frequency:	60 Hz	Voltage:	115/208-230 V
Current:	15.2/8.2-7.6 A	Speed:	1725 rpm
Service Factor:	1.15	Phase:	1
Efficiency:	80 %	Power Factor:	80
Duty:	Continuous	Insulation Class:	B
Design Code:	N	KVA Code:	J
Frame:	56HC	Enclosure:	Totally Enclosed Fan Cooled
Thermal Protection:	No	Ambient Temperature:	40 °C
Drive End Bearing Size:	6203	Opp Drive End Bearing Size:	6203
UL:	Recognized	CSA:	Y
CE:	Y	IP Code:	43

Technical Specifications

Electrical Type:	Capacitor Start Capacitor Run	Starting Method:	Across The Line
Poles:	4	Rotation:	Selective Counterclockwise
Resistance Main:	0 Ohms	Mounting:	Bolt-on Base
Motor Orientation:	Horizontal	Drive End Bearing:	Ball
Opp Drive End Bearing:	Ball	Frame Material:	Rolled Steel
Shaft Type:	NEMA 56	Overall Length:	13.81 in
Frame Length:	8.56 in	Shaft Diameter:	0.625 in
Shaft Extension:	2.06 in	Assembly/Box Mounting:	F1 ONLY

Speed & Load Characteristics

Speed Characteristics

Curvepoint	Current (Amps)	Current (%)	Torque (ft-lbs)	(%)	Speed (RPM)	Rated Output (KW)	Power Factor (%)	Rated Output (Hp)
Locked-Rotor	53.80	708.0	14.80	328.0	0	10.90	0.0	1.50
Full Load	7.60	100.0	4.51	100.0	1,740	1.40	80.3	1.50
Break-Down	28.40	374.0	12.40	275.0	1,500	5.40	0.0	1.50
Pull-Up	53.70	707.0	12.60	279.0	164	10.90	0.0	1.50

Load Characteristics

% of Rated Load	0 %	25 %	50 %	75 %	100 %	115 %	125 %	150 %	175 %	200 %
Current (Amps)	4.05	4.40	5.20	6.35	7.60	8.80	9.30	11.20	13.60	16.90
Rated Output (KW)	0.24	0.44	0.73	1.04	1.40	1.61	1.76	2.18	2.67	3.33
Efficiency (%)	0.0	64.0	76.1	80.5	80.0	79.8	79.1	76.0	72.5	65.7
Power Factor (%)	17.0	43.5	61.0	71.2	80.0	79.5	82.3	84.6	85.4	85.7
Speed (RPM)	1,800	1,785	1,770	1,755	1,740	1,729	1,720	1,698	1,665	1,618
Temp. Rise @ FL	0.0	0.0	0.0	0.0	70.0	90.0	0.0	0.0	0.0	0.0
Torque (ft-lbs)	0.00	1.11	2.21	3.36	4.51	5.23	5.70	6.87	8.18	9.52
