/Products/Electric Motors/Single Phase/Marathon/General Purpose/G571 Marathon 1/2HP General Purpose Electric Motor, 1800RPM

Click Image to Expand

Previous Next

Product ID: G571

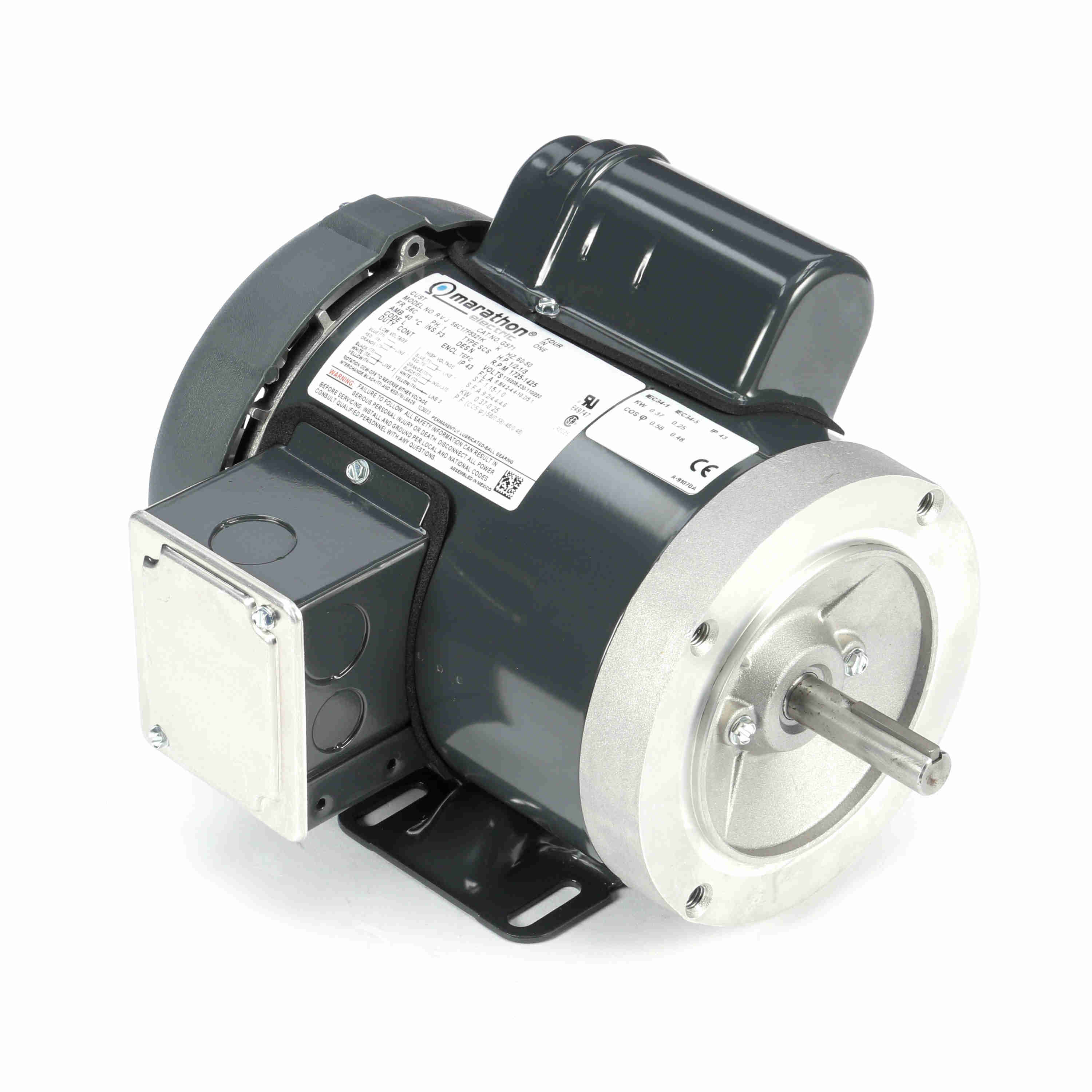

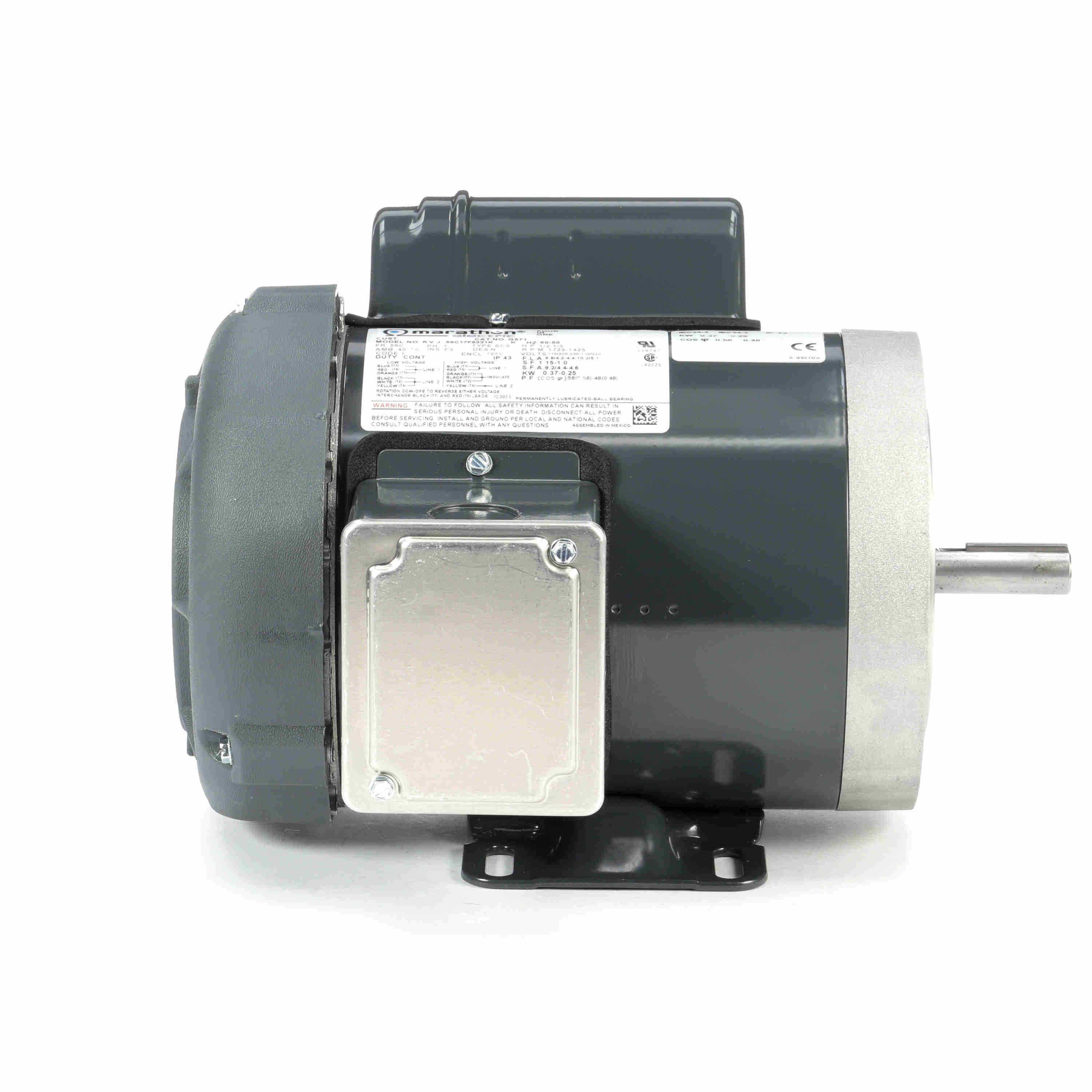

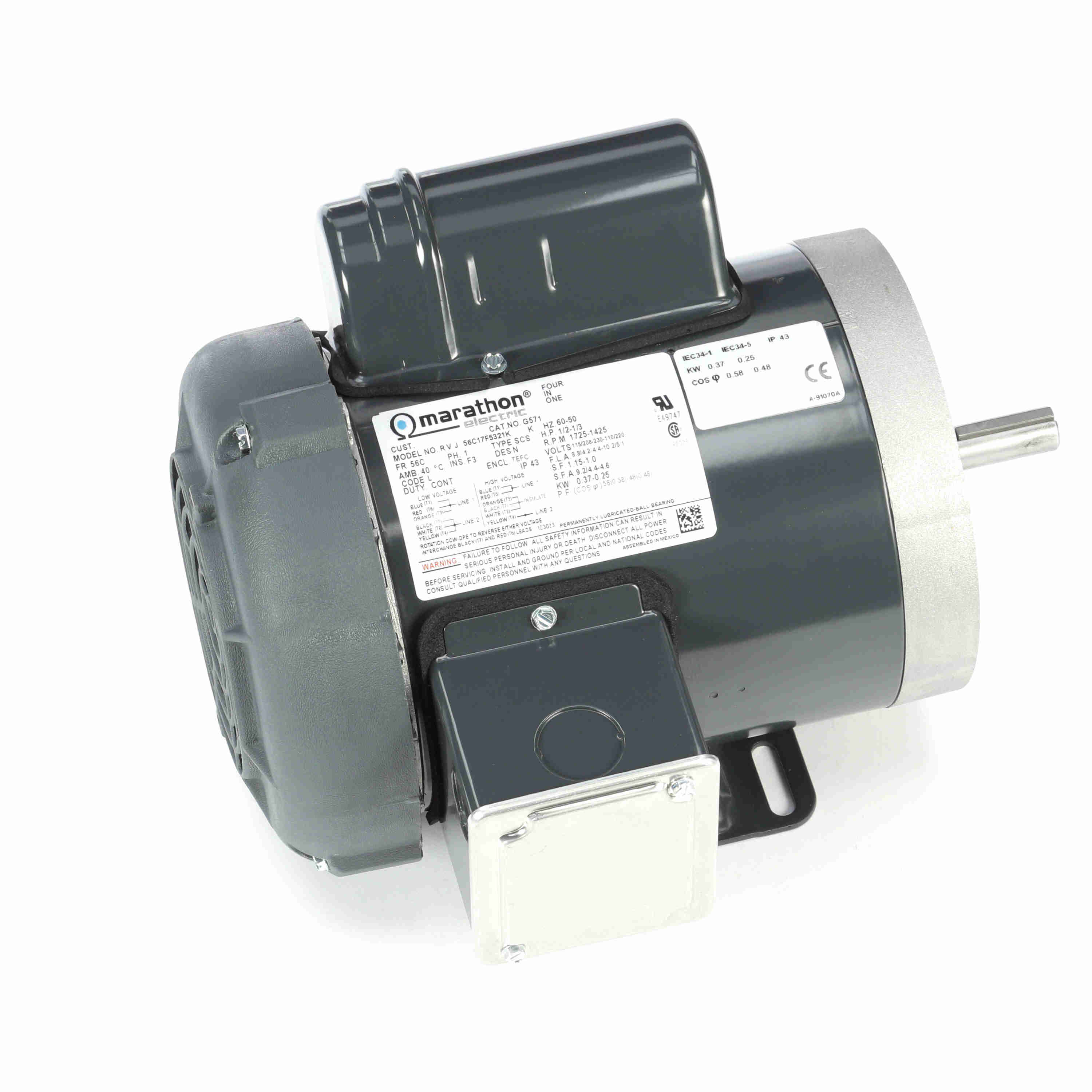

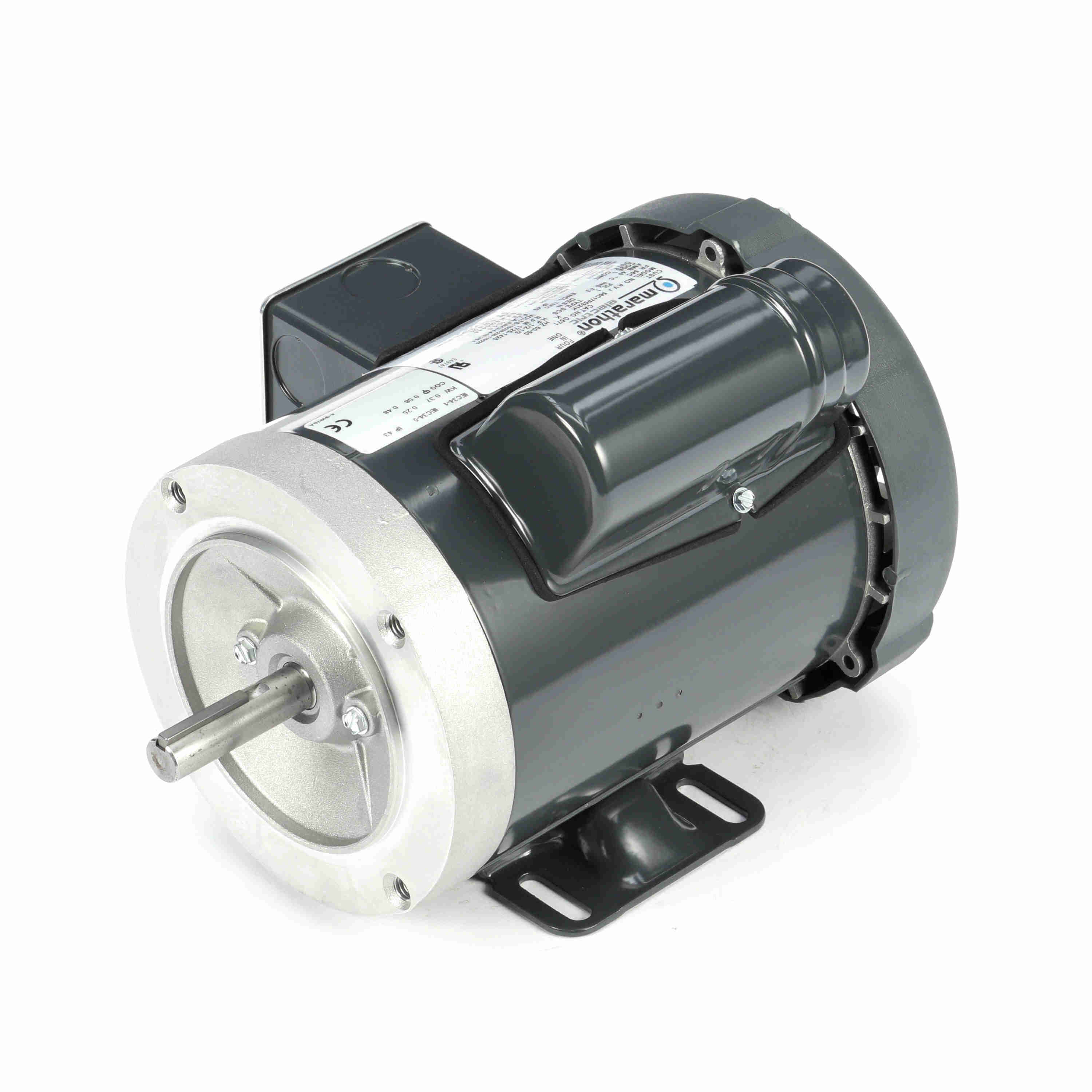

G571 Marathon 1/2HP General Purpose Electric Motor, 1800RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: G571

Selected accessories will also be added to cart

$519.97 / Each

Quantity:

TEFC, 56C Frame, 115/208-230VAC Single Phase 60Hz, 056C17F5321, Bolt-On Base, Rolled Steel, 5/8" Shaft

Details
Purchase Components

Features

Double sealed ball bearings, mechanically locked on shaft end
Heavy gauge steel constructions
Bolt-on, removable rigid base
Suitable for horizontal or vertical mounting
Capacitor start design for high starting torque
Will accept brake kits, see Accessory section
Will accept drip cover kits, see Accessories section

General Specifications

UPC:	722856009463	Weight:	26.00 LB
Packaged Length:	16.12 IN	Packaged Width:	10.25 IN
Packaged Height:	9.12 IN

Nameplate Specifications

Output HP:	0.50 Hp	Output KW:	0.37 kW
Frequency:	60 Hz	Voltage:	115/208-230 V
Current:	8.8/4.2-4.4 A	Speed:	1725 rpm
Service Factor:	1.15	Phase:	1
Efficiency:	66 %	Power Factor:	58
Duty:	Continous	Insulation Class:	F
Design Code:	N	KVA Code:	L
Frame:	56C	Enclosure:	Totally Enclosed Fan Cooled
Thermal Protection:	No	Ambient Temperature:	40 °C
Drive End Bearing Size:	6203	Opp Drive End Bearing Size:	6203
UL:	Recognized	CSA:	Y
CE:	Y	IP Code:	43

Technical Specifications

Electrical Type:	Capacitor Start Induction Run	Starting Method:	Across The Line
Poles:	4	Rotation:	Selective Counterclockwise
Resistance Main:	0 Ohms	Mounting:	Bolt-on Base
Motor Orientation:	Horizontal	Drive End Bearing:	Ball
Opp Drive End Bearing:	Ball	Frame Material:	Rolled Steel
Shaft Type:	T	Overall Length:	11.81 in
Frame Length:	6.56 in	Shaft Diameter:	0.625 in
Shaft Extension:	2.06 in	Assembly/Box Mounting:	F1 ONLY

Speed & Load Characteristics

Speed Characteristics

Curvepoint	Current (Amps)	Current (%)	Torque (ft-lbs)	(%)	Speed (RPM)	Rated Output (KW)	Power Factor (%)	Rated Output (Hp)
Pull-Up	14.40		61.20		1,221	2.60		0.50
Locked-Rotor	21.30		83.80		0	4.50		0.50
Break-Down	11.80		72.30		1,486	2.20		0.50

Load Characteristics

% of Rated Load	0 %	25 %	50 %	75 %	100 %	115 %	125 %	150 %	175 %	200 %
Current (Amps)	3.50	3.60	3.70	4.14	4.40	4.60	4.80	5.20	5.85	6.60
Rated Output (KW)	0.15	0.25	0.35	0.48	0.57	0.66	0.70	0.83	0.98	1.16
Efficiency (%)	0.0	38.3	54.3	58.3	66.0	66.5	67.2	68.0	66.7	64.5
Power Factor (%)	18.6	29.6	40.5	50.3	58.0	61.0	63.0	69.0	72.8	76.4
Speed (RPM)	1,800	1,783	1,772	1,760	1,746	1,735	1,730	1,712	1,692	1,665
Temp. Rise @ FL	0.0	0.0	0.0	0.0	55.0	65.0	0.0	0.0	0.0	0.0
Torque (ft-lbs)	0.00	5.93	11.90	18.00	24.10	28.10	30.40	36.90	43.50	50.60
