/Products/Electric Motors/Single Phase/Marathon/General Purpose/G570 Marathon 1/3HP Electric Motor, 1725RPM
Click Image to Expand

Product ID: G570

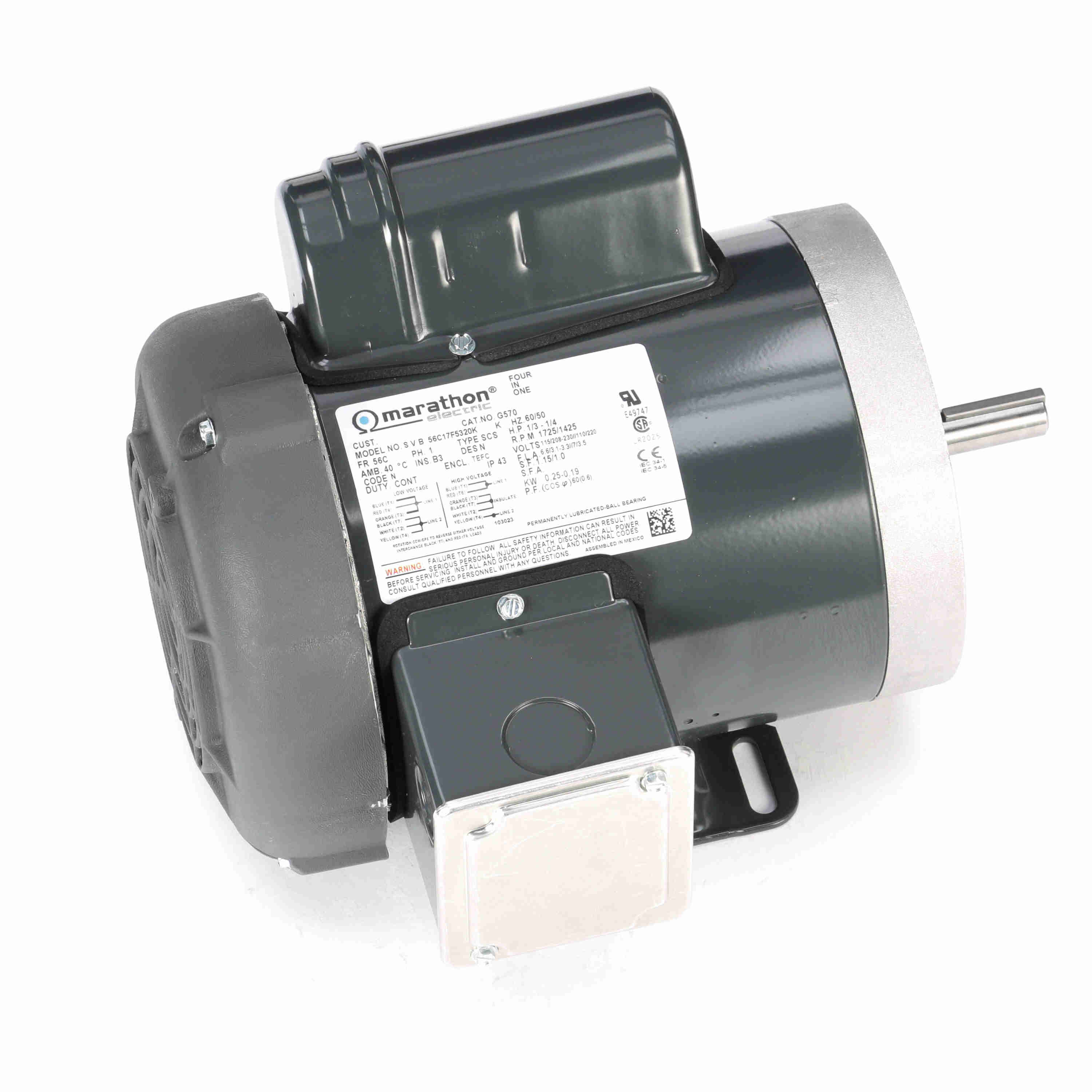

G570 Marathon 1/3HP Electric Motor, 1725RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: G570

Selected accessories will also be added to cart
$379.97 / Each
Quantity:
TEFC, 56C Frame, 115/208-230V Single Phase 60Hz, Rigid Base, 056C17F5320

Features

Features
  • Double sealed ball bearings, mechanically locked on shaft end
  • Heavy gauge steel constructions
  • Bolt-on, removable rigid base
  • Suitable for horizontal or vertical mounting
  • Capacitor start design for high starting torque
  • Will accept brake kits, see Accessory section
  • Will accept drip cover kits, see Accessories section

General Specifications

General Specifications
Model :056C17F5320 Catalog No :G570
Part Description :1/3,1725,TEFC,56C,1,60/115/208-230 Category :Totally Enclosed Fan Cooled (TEFC)
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :0.33 HP Output KW :0.25 kW
Frequency :60 Hz Voltage :115/208-230 V
Current :6.6/3.1-3.3 A Speed :1725 RPM
Service Factor :1.15 Phase :1
Efficiency :55 % Duty :Continous
Insulation Class :B Design Code :N
KVA Code :N Frame :56C
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :Y
IP Code :43

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Induction Run Starting Method :Across The Line
Poles :4 Rotation :Selective Counterclockwise
Mounting :Rigid Base Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :NEMA 56
Overall Length :11.81 in Frame Length :6.56 in
Shaft Diameter :0.625 in Shaft Extension :2.06 in
Assembly/Box Mounting :F1 Only UPC :722856009456
Weight :28.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Break-Down7.60230.044.60279.01,5361.490.00.33
Locked-Rotor16.20491.055.70348.003.460.00.33
Pull-Up9.33283.039.90249.01,3431.760.00.33
Full Load3.30100.016.00100.01,7500.4560.00.33
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 2.80
  • 0.150
  • 0.0
  • 23.3
  • 1,800
  • 0.0
  • 0.00
  • 25 %
  • 2.85
  • 0.225
  • 27.9
  • 34.3
  • 1,784
  • 0.0
  • 3.96
  • 50 %
  • 2.95
  • 0.290
  • 43.2
  • 42.7
  • 1,771
  • 0.0
  • 7.96
  • 75 %
  • 3.15
  • 0.365
  • 50.5
  • 50.0
  • 1,760
  • 0.0
  • 12.00
  • 100 %
  • 3.30
  • 0.445
  • 55.0
  • 60.0
  • 1,750
  • 45.0
  • 16.00
  • 115 %
  • 3.40
  • 0.500
  • 57.3
  • 63.9
  • 1,744
  • 52.0
  • 18.50
  • 125 %
  • 3.55
  • 0.535
  • 58.3
  • 65.5
  • 1,739
  • 0.0
  • 20.20
  • 135 %
  • 3.70
  • 0.620
  • 58.5
  • 68.0
  • 1,730
  • 0.0
  • 22.50
  • 150 %
  • 3.67
  • 0.635
  • 58.8
  • 75.2
  • 1,723
  • 0.0
  • 24.40
  • 175 %
  • 4.25
  • 0.745
  • 58.4
  • 76.2
  • 1,702
  • 0.0
  • 28.80
  • 200 %
  • 4.85
  • 0.890
  • 55.9
  • 79.8
  • 1,674
  • 0.0
  • 33.50
