/Products/Electric Motors/Single Phase/Marathon/Fan & Blower/G1115 Marathon 1/4HP Fan & Blower Electric Motor, 1725RPM
Click Image to Expand

Product ID: 5KC35JN7X

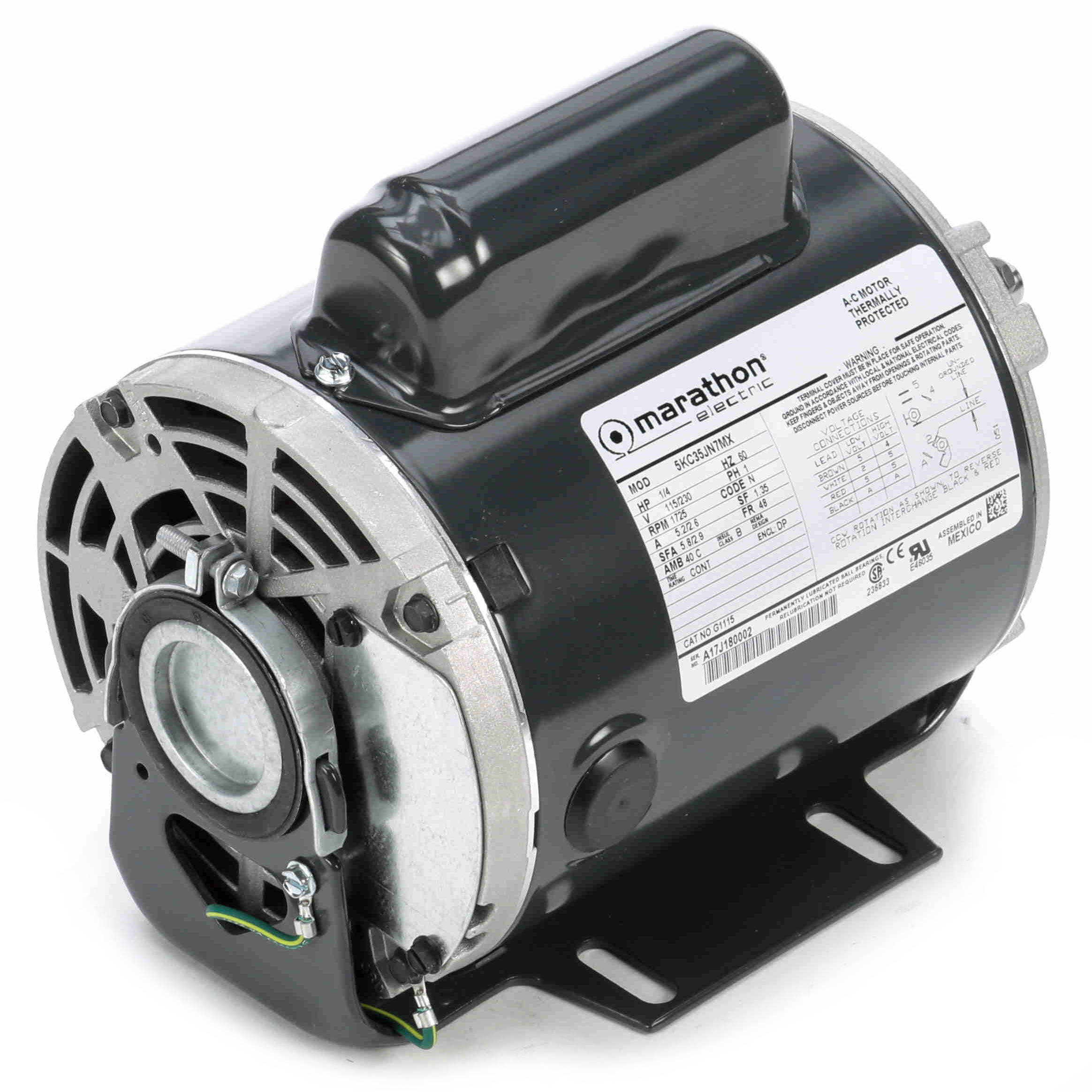

G1115 Marathon 1/4HP Fan & Blower Electric Motor, 1725RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: 5KC35JN7X

Selected accessories will also be added to cart
$299.97 / Each
Quantity:
DP, 48 Frame, 115/230V Single Phase 60Hz, Resilient Base, 5KC35JN7X

Features

Features
  • Heavy gauge steel frame and base
  • Ball bearings

General Specifications

General Specifications
Model :5KC35JN7X Catalog No :G1115
Part Description :1/4,1725,DP,48,1/60/115/230 Category :Open Drip Proof (ODP)
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :1/4 HP Output KW :0.19 kW
Frequency :60 Hz Voltage :115/230 V
Current :5.2,2.6 A Speed :1725 RPM
Service Factor :1.35 Phase :1
Efficiency :55 % Duty :Continous
Insulation Class :B KVA Code :N
Frame :48 Enclosure :Drip Proof
Overload Protector :AUTO Ambient Temperature :40 °C
Drive End Bearing Size :6203 Opp Drive End Bearing Size :6203
UL :Recognized CSA :Yes
CE :N

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Induction Run Starting Method :SM
Poles :4 Rotation :Counterclockwise/Clockwise
Mounting :Resilient Base Motor Orientation :ANY
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Rolled Steel Overall Length :9.57 in
Frame Length :5.79 in Shaft Diameter :0.5 in
Shaft Extension :1.5 in UPC :722856048400
Weight :16.00 LB

Speed & Load Characteristics
