WEG’s IEEE 841 motors are specially suited for Pulp & Paper mills, Steel mills, Petrochemical Plants and diverse demanding applications requiring severe duty long life motors.
WEG’s W22 cast iron platform has a superior cooling system and solid feet for cool operation and lower vibration and noise extending the life of the motor.
IC411 - TEFC, IP55, 284T/286T Frame, 460VAC 60Hz 3 Phase, 12424289, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, IEEE 841, 1-7/8" Keyed Shaft
01009ST3QIE284T-W22
IC411 - TEFC, IP55, 254T/256T Frame, 460VAC 60Hz 3 Phase, 11431955, NEMA Premium Efficiency, Foot Mounted, IEEE 841, Cast Iron Frame, 1-5/8" Keyed Shaft
01012ST3QIE256T-W22
IC411 - TEFC, IP55, 213T/215T Frame, 460VAC 60Hz 3 Phase, 11431640, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, IEEE 841, 1-3/8" Keyed Shaft
01018ST3QIE215T-W22
IC411 - TEFC, IP55, 213T/215T Frame, 460VAC 60Hz 3 Phase, 11431348, NEMA Premium Efficiency, IEEE 841, Foot Mounted, Cast Iron Frame, 1-3/8" Keyed Shaft
01036ST3QIE215T-W22
IC411 - TEFC, IP55, 284T/286T Frame, 460VAC 60Hz 3 Phase, 11584390, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, IEEE 841, 1-7/8" Keyed Shaft
01509ST3QIE286T-W22

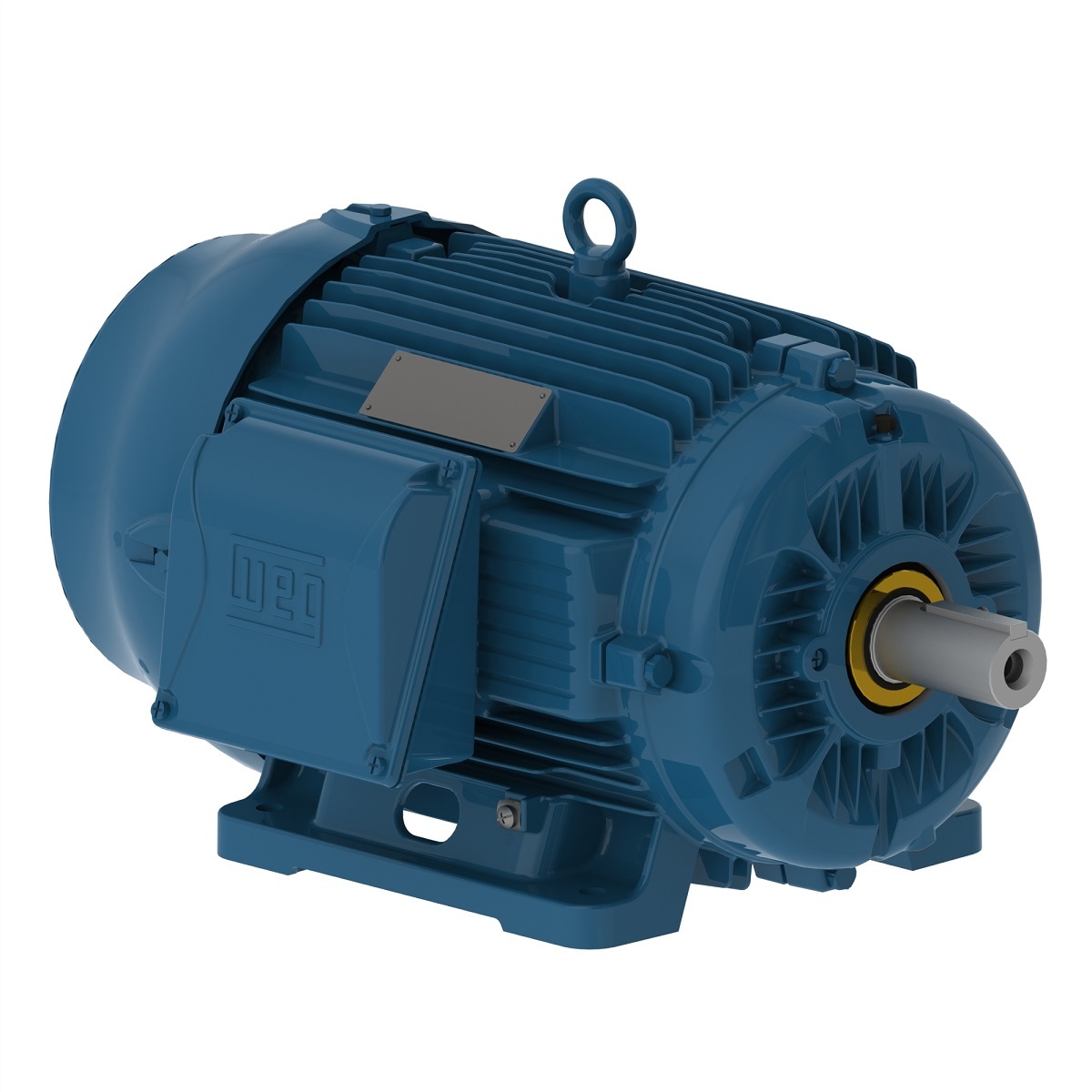

IC411 - TEFC, IP55, 284T/286T Frame, 460VAC 60Hz 3 Phase, 12424292, NEMA Premium Efficiency, IEEE 841, Foot Mounted, Cast Iron Frame, 1-7/8" Keyed Shaft
01512ST3QIE284T-W22
IC411 - TEFC, IP55, 254T/256T Frame, 460VAC 60Hz 3 Phase, 12385115, NEMA Premium Efficiency, IEEE 841, Foot Mounted, Cast Iron Frame, 1-5/8" Keyed Shaft
01518ST3QIE254T-W22
IC411 - TEFC, IP55, 254T/256T Frame, 460VAC 60Hz 3 Phase, 12385189, NEMA Premium Efficiency, IEEE 841, Foot Mounted, Cast Iron Frame, 1-5/8" Keyed Shaft
01536ST3QIE254T-W22
IC411 - TEFC, IP55, 324T/326T Frame, 460VAC 60Hz 3 Phase, 12447724, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, IEEE 841, 2-1/8" Keyed Shaft
02009ST3QIE324T-W22
IC411 - TEFC, IP55, 284T/286T Frame, 460VAC 60Hz 3 Phase, 11432056, NEMA Premium Efficiency, IEEE 841, Foot Mounted, Cast Iron Frame, 1-7/8" Keyed Shaft
02012ST3QIE286T-W22
IC411 - TEFC, IP55, 254T/256T Frame, 460VAC 60Hz 3 Phase, 11432088, NEMA Premium Efficiency, IEEE 841, Foot Mounted, Cast Iron Frame, 1-5/8" Keyed Shaft
02018ST3QIE256T-W22
IC411 - TEFC, IP55, 254T/256T Frame, 460VAC 60Hz 3 Phase, 11432095, NEMA Premium Efficiency, IEEE 841, Foot Mounted, Cast Iron Frame, 1-5/8" Keyed Shaft
02036ST3QIE256T-W22
IC411 - TEFC, IP55, 324T/326T Frame, 460VAC 60Hz 3 Phase, 11584354, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, IEEE 841, 2-1/8" Keyed Shaft
02509ST3QIE326T-W22
IC411 - TEFC, IP55, 324T/326T Frame, 460VAC 60Hz 3 Phase, 12447793, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, IEEE 841, 2-1/8" Keyed Shaft
02512ST3QIE324T-W22
IC411 - TEFC, IP55, 284T/286T Frame, 460VAC 60Hz 3 Phase, 12424295, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, IEEE 841, 1-7/8" Keyed Shaft
02518ST3QIE284T-W22
IC411 - TEFC, IP55, 284TS/286TS Frame, 460VAC 60Hz 3 Phase, 12424297, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, IEEE 841, 1-5/8" Keyed Shaft
02536ST3QIE284TS-W22
IC411 - TEFC, IP55, 364T/365T Frame, 460VAC 60Hz 3 Phase, 11431716, NEMA Premium Efficiency, IEEE 841, Foot Mounted, Cast Iron Frame, 2-3/8" Keyed Shaft
03009ST3QIE364T-W22
IC411 - TEFC, IP55, 324T/326T Frame, 460VAC 3-Phase 60Hz, 11431847, Cast Iron, Foot Mounted, NEMA Premium Efficiency, IEEE 841, 2-1/8" Keyed Shaft
03012ST3QIE326T-W22
IC411 - TEFC, IP55, 284T/286T Frame, 460VAC 60Hz 3 Phase, 11431667, NEMA Premium Efficiency, IEEE 841, Foot Mounted, Cast Iron Frame, 1-7/8" Keyed Shaft
03018ST3QIE286T-W22
IC411 - TEFC, IP55, 284TS/286TS Frame, 575VAC 60Hz 3 Phase, 13906220, NEMA Premium Efficiency, IEEE 841, Foot Mounted, Cast Iron Frame, 1-5/8" Keyed Shaft
03036ST3HIE286TS-W22
IC411 - TEFC, IP55, 284TS/286TS Frame, 460VAC 60Hz 3 Phase, 11431928, NEMA Premium Efficiency, IEEE 841, Foot Mounted, Cast Iron Frame, 1-5/8" Keyed Shaft
03036ST3QIE286TS-W22
IC411 - TEFC, IP55, 364T/365T Frame, 460VAC 60Hz 3 Phase, 11584358, NEMA Premium Efficiency, IEEE 841, Foot Mounted, Cast Iron Frame, 2-3/8" Keyed Shaft
04009ST3QIE365T-W22
IC411 - TEFC, IP55, 364T/365T Frame, 575VAC 60Hz 3 Phase, 11431929, NEMA Premium Efficiency, IEEE 841, Foot Mounted, Cast Iron Frame, 2-3/8" Keyed Shaft
04012ST3HIE364T-W22
IC411 - TEFC, IP55, 364T/365T Frame, 460VAC 60Hz 3 Phase, 12109400, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-3/8" Keyed Shaft
04012ST3QIE364T-W22
IC411 - TEFC, IP55, 324T/326T Frame, 575VAC 60Hz 3 Phase, 12447808, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, IEEE 841, 2-1/8" Keyed Shaft
04018ST3HIE324T-W22
