/Products/VFD's & Soft Starters/Fuji/FRENIC-ECO/FRN020F1S-2U Fuji 20HP FRENIC-ECO Inverter/Variable Speed Drive, 208/230VAC
Click Image to Expand

Product ID: FRN020F1S-2U

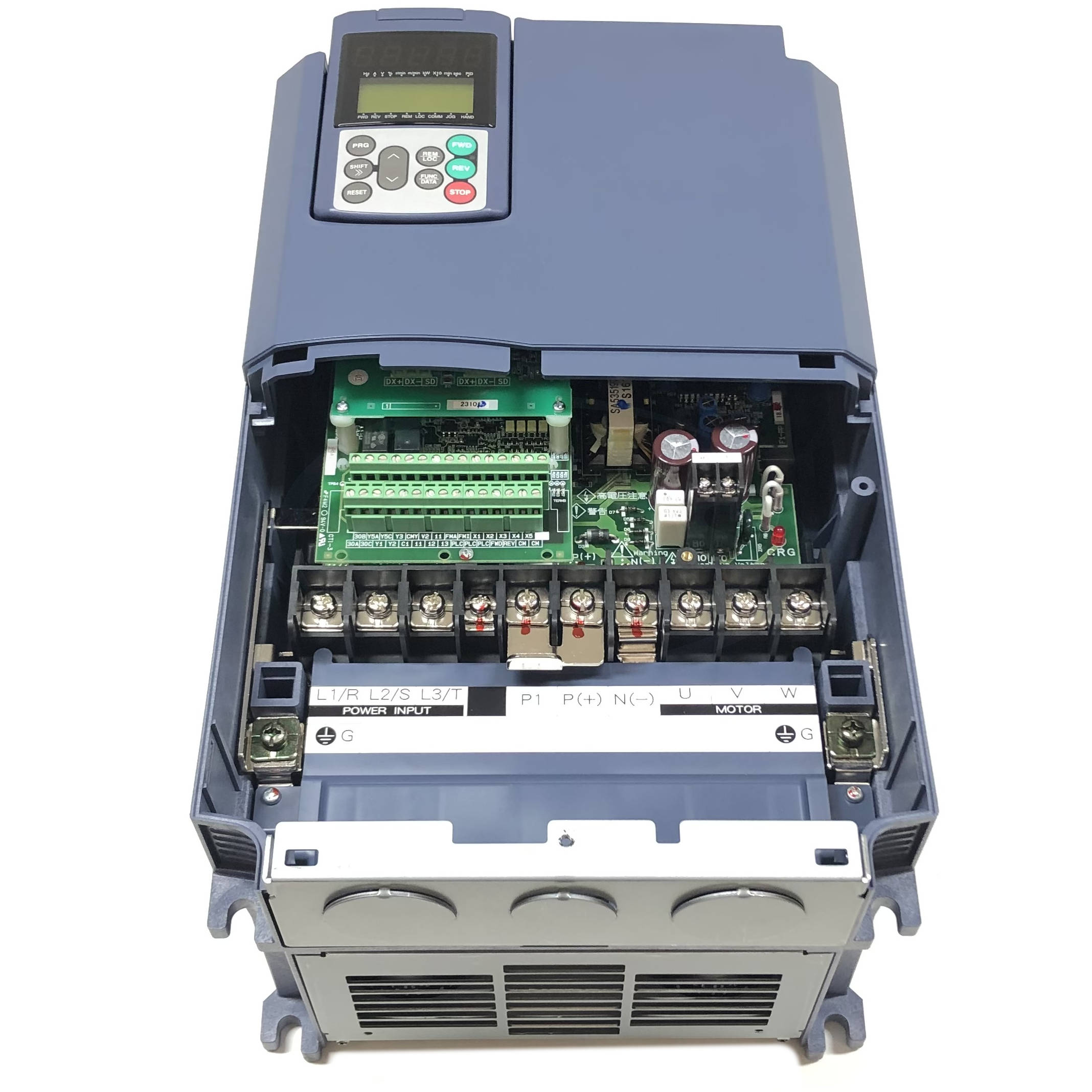

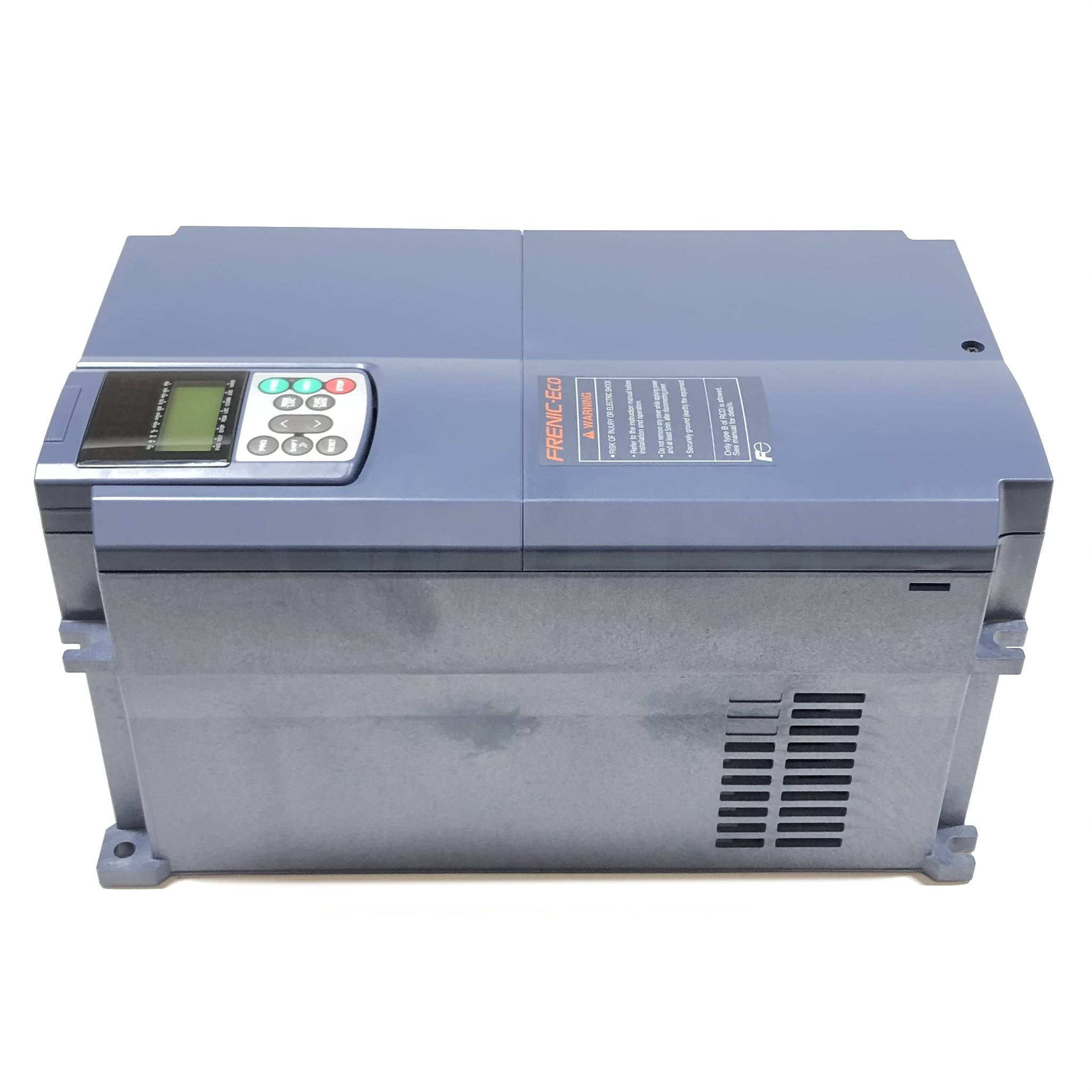

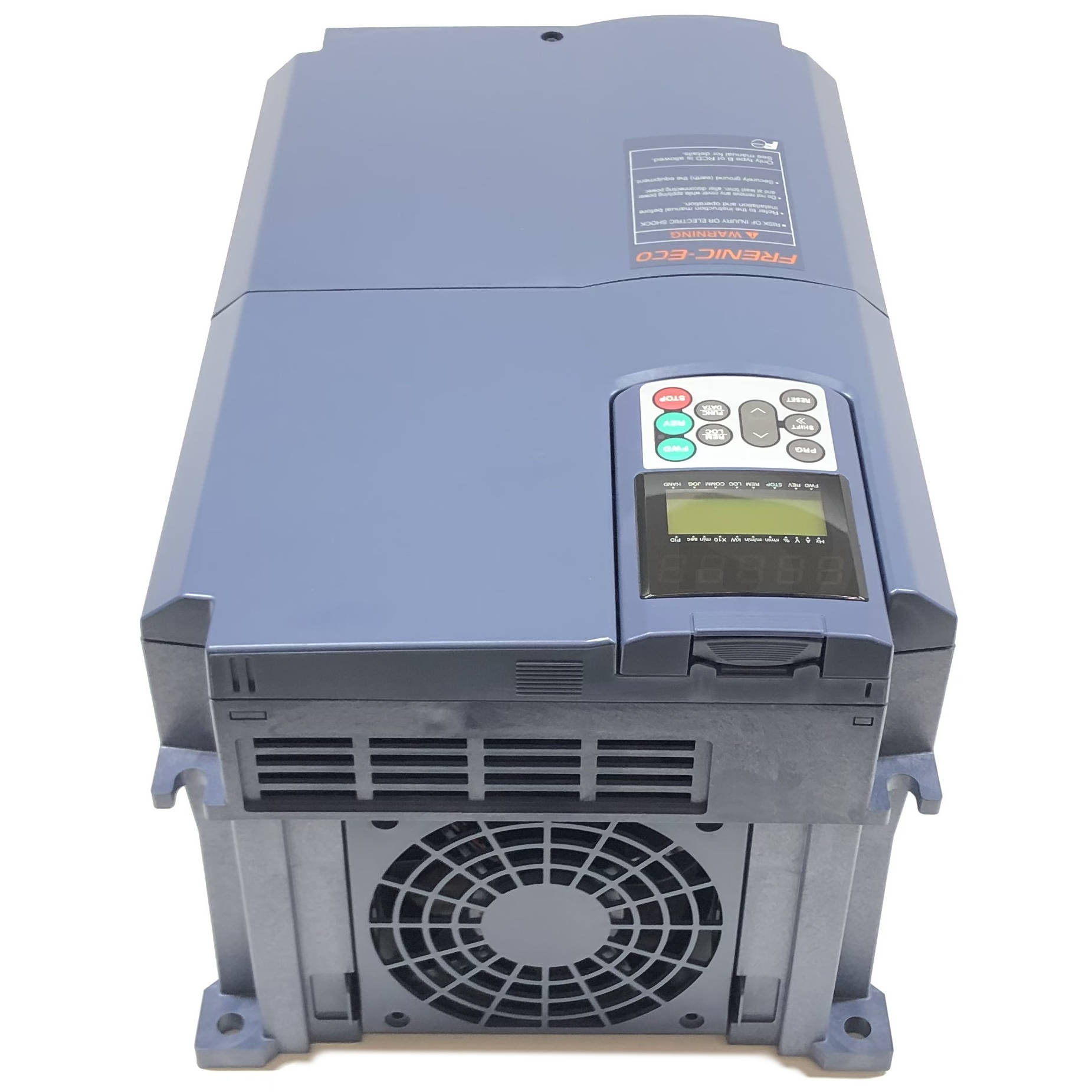

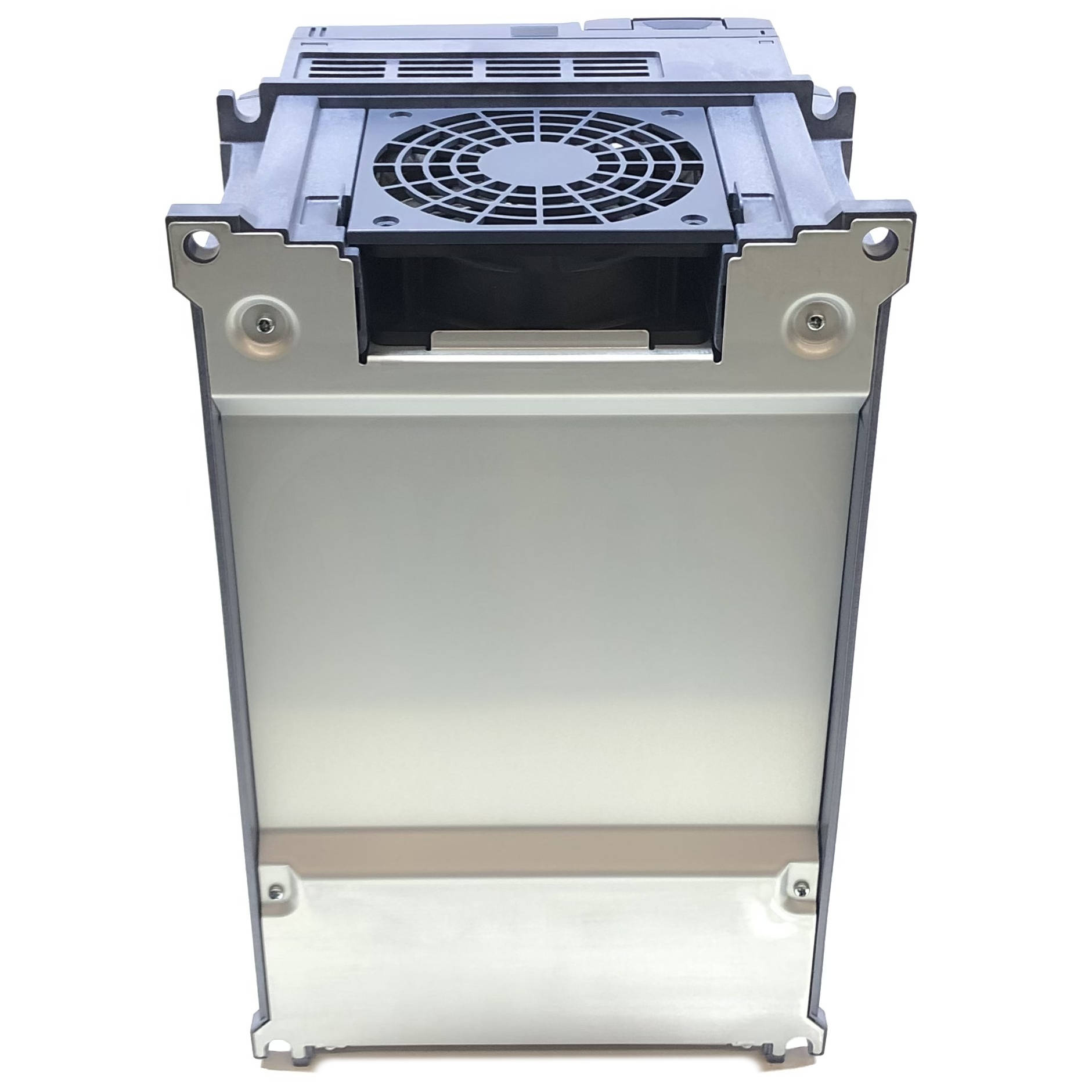

FRN020F1S-2U Fuji 20HP FRENIC-ECO Inverter/Variable Speed Drive, 208/230VAC

MFG: Fuji Electric Corp. of America
MFG Part Number: FRN020F1S-2U

Selected accessories will also be added to cart
$1,285.20 / Each
Quantity:
Single or 3 Phase Input (0 to 230VAC 3-Phase Output)
Accessories
Select any of the accessories below to purchase them with this inventory item:

Description

Fuji Electric’s FRENIC-Eco series is environmentally friendly by helping to significantly reduce energy use. These drives feature a small footprint for tight installations, network compatibility, and long-term reliability for three-phase applications ranging from 1 HP up to 900 HP. These high performance AC drives / variable frequency drives (VFD) / v/ Hz vector drives are optimized for HVAC applications, such as chillers, air handlers, and fan coils.

General Specifications

Brand Fuji Electric Corp of America
Model FRN020F1S-2U
Series FRENIC-ECO
Nominal Motor HP 20HP (3 Phase Input)
7.5HP (Single Phase Input)
Input Voltage Single or 3 Phase
200-240VAC
50/60Hz
Output Capacity 60 Amps (3 Phase Input)
24 Amps (Single Phase Input)
21 kVA (3 Phase Input)
8.6 kVA (Single Phase Input)
Overload Capability 120% of rated current for 1 minute
Enclosure IP00, UL Open Type
Mass 21 lbs
9.7 kg
Ambient Temperature UL Open Type: +14 to +122°F (-10 to +50°C)
UL Type 1: +14 to +104°F (-10 to +40°C)

Inputs / Outputs

Analog Inputs Two 0 to +10VDC
One 4 to 20mA
Digital Inputs Five Programmable Inputs
Analog Outputs One 0 to +10VDC or 4 to 20mA
One 4 to 20mA
Digital Outputs One Form C (1NO/1NC) 0.3Amps @ 230VAC
One Form A (1NO) 0.3Amps @ 230VAC
Transistor Outputs One 50mA @ 27VDC
Power Supply 24VAC 50mA Max
