/Products/VFD's & Soft Starters/Fuji/FRENIC-ACE/FRN0085E2S-4GB Fuji 60 HP FRENIC-Ace Variable Frequency Drive (VFD)
Click Image to Expand

Product ID: FRN0085E2S-4GB

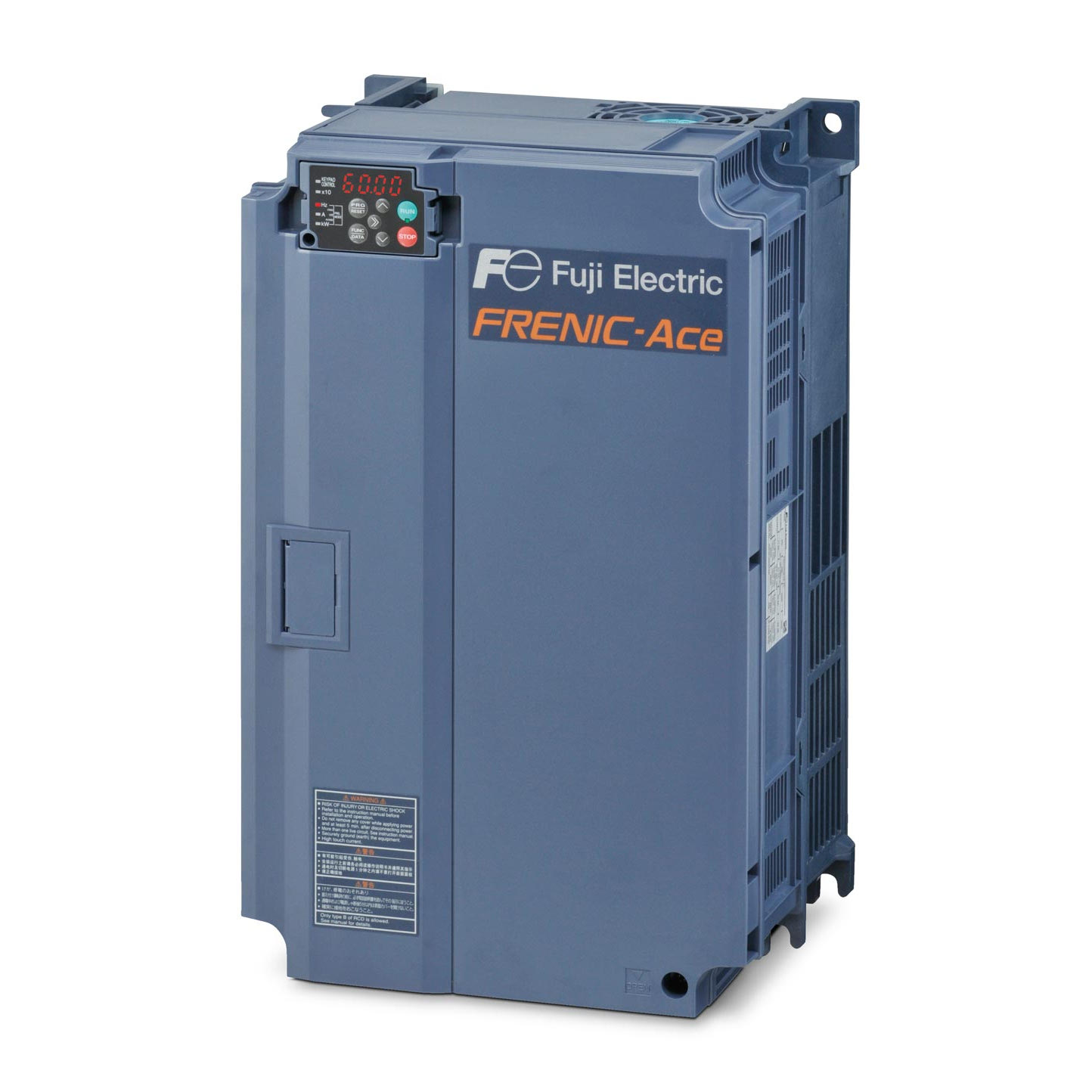

FRN0085E2S-4GB Fuji 60 HP FRENIC-Ace Variable Frequency Drive (VFD)

MFG: Fuji Electric Corp. of America
MFG Part Number: FRN0085E2S-4GB

Selected accessories will also be added to cart
$2,563.60 / Each
Quantity:
380-480VAC 3-Phase Input, 380-480VAC 3-Phase Output, 85 Amps Max), Factory parameters set for Global - English, 2 Analog Outputs
Accessories
Select any of the accessories below to purchase them with this inventory item:

Overview

The FRENIC-Ace is a high performance, full-featured Drive designed to suit a wide variety of applications including fans, pumps, specialized machinery and more. Equipped with 200 steps of customizable logic and PMAC motor control, the FRENIC-Ace provides compact, but powerful multi-rated specification solutions for virtually all AC drive applications and comes standard with an industry-leading 3-year warranty.

Specifications

Brand Fuji Electric
Model FRN0085E2S-4GB
Nominal Motor HP [kW] 60 HP [45 kW] (ND)
50 HP [37 kW] (HD & HND)
40 HP [30 kW] (HHD)
Rated Output Capacity kVA 65 kVA (ND)
57 kVA (HD & HND)
46 kVA (HHD)
Rated Output Voltage 3 Phase, 380 to 480 Volt (with AVR)
Rated Output Current 85.0 Amps (HD)
75.0 Amps (HD & HND)
60.0 Amps (HHD)
Rated Overload Capability 120 % of nominal current for 1 minute (ND & HND)
150 % of nominal current for 1 minute (HD)
150 % of nominal current for 1 minute or 200% of nominal current for 0.5 seconds (HHD)
Main Power Supply Input 3 Phase, 380 to 480 Volt, 50/60 Hz (With AVR)
Voltage / Frequency Variations Voltage: +10 % to -15%
Voltage Unbalance: 2% or less
Frequency: +5% to -5%
Rated Current Input without DC Reactor
[with DC Reactor]		 114 Amps[83.2 Amps] (ND)
94.3 Amps[68.5 Amps] (HD & HND)
77.9 Amps [57.0 Amps] (HHD)
Required Power Supply Capacity 58 kVA (ND)
47 kVA (HD & HND)
39 kVA(HHD)
Braking Torque 5 to 9% (ND)
7 to 12% (HD & HND)
10 to 15% (HHD)
DC Braking Starting frequency: 0.0 to 60.0 Hz
Braking Time: 0.0 to 30.0 Seconds
Braking Level: 0 to 60 % (ND),0 to 80 % (HD & HND), 0-100 % (HHD) of nominal current
Braking Chopper Optional
Braking Resister Optional
Minimum Connectable Resistance
DC Reactor Optional
Cooling Fan Cooling
EMC Filter Optional

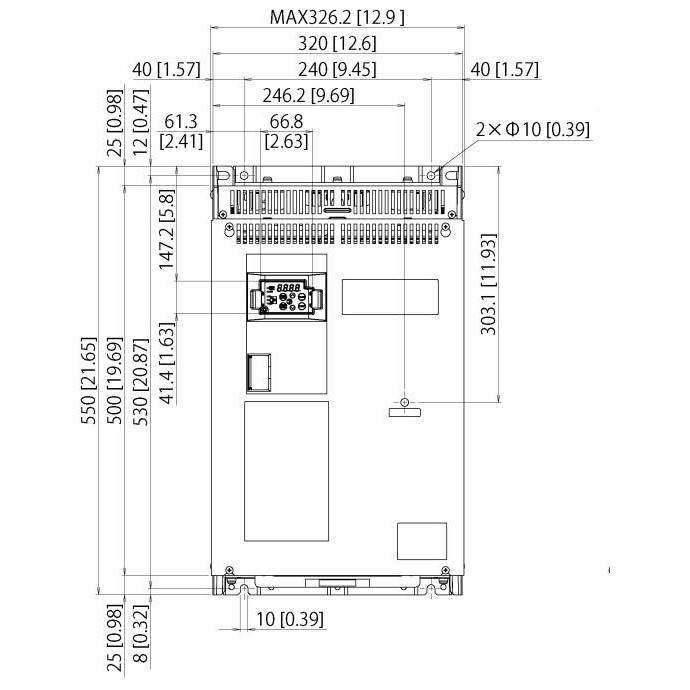

Dimensions " x " x "
Weight 56 lbs
25 kg
Warranty 3 Years
Destination Global - English

Environmental

Enclosure IP20, UL Open Type
UL Type 1 Optional
Ambient Temperature Standard (Open Type): -10 to +50 °C / 14 to 122 °F (HHD/HND)
NEMA 1/UL Type 1: -10 to+40 °C / 14 to 104 °F (HHD/HND)
Storage Temperature -25 to +65°C (-13 to 149 °F)
Humidity 5 to 95% Relative Humidity (without condensation)
Installation Location Indoors
Altitude <3,300ft (1,000m)
1000-1500m .97 Output Current Derating Factor
1500-2000m .95 Output Current Derating Factor
2000-2500m .91 Output Current Derating Factor
2500-3000m .88 Output Current Derating Factor

Codes and Standards

UL / cUL 508C C22.2 No.14
CE
RoHs
GOST-R
KC
EN / ISOc13849-1:2008 cat. 3/PL:e

Electrical

Control V/F Control
V/F Control with Slip Compensation
Dynamic Torque Vector Control
V/F Control with Encoder (Optional)
Vector Control with Encoder (Optional)
PM Motor Sensorless Vector Control
Output Stability Analog setting: +/-0.2% of maximum frequency
Digital setting: +/-0.01% of maximum frequency (by keypad settings)
Output Frequency Max 500Hz
Speed Control Range 1:1500 IM Vector Control w/encoder
1:100 IM V/F w/encoder
1:10 PM Sensorless Vector Control
Digital Inputs (7) X1 - X5, FWD, & REV Programmable, 60 selectable functions
Analog Inputs (1) -0 to +10Vdc
(1) -4 to 20mA
Digital Outputs (1) From C Relay
(2) Transistor Output, 78 Selectable Functions
Analog Output: Selectable Type (2) 0 to 10Vdc or 4 to 20mA, 19 Selectable Output Signal Functions.
RS-485 Connections (2) RJ45 Port Terminal

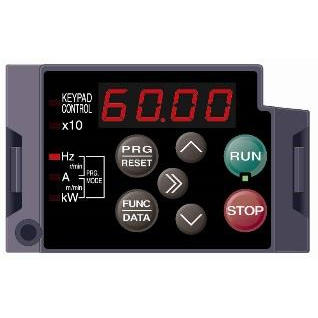

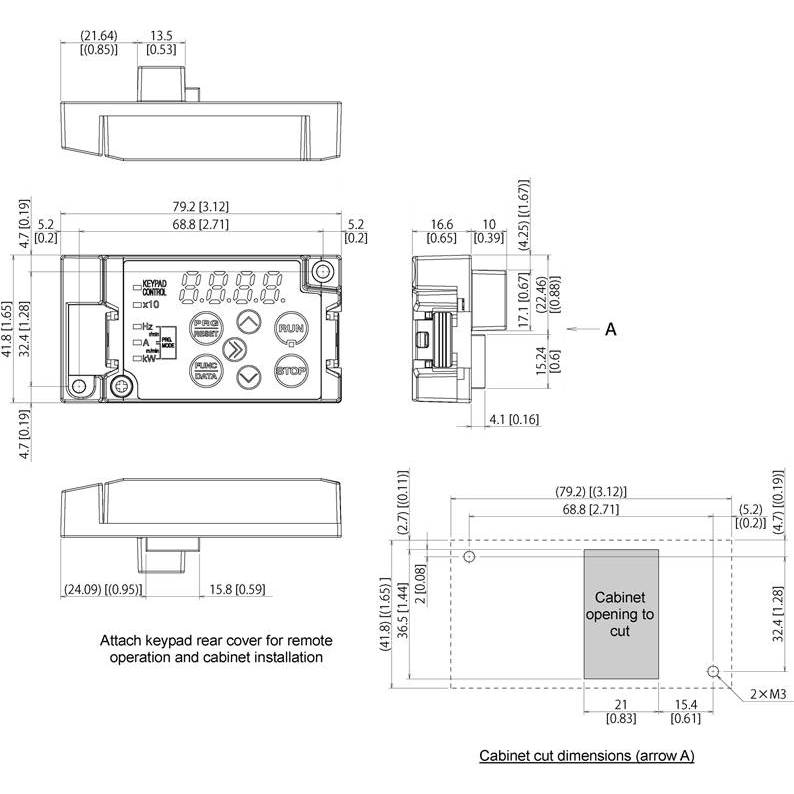

Operator's Keypad with LED Display Indicating System Operation and Associated Value Conversion, Status of I/O, Operations and Alarms
Keypad Indications Operations, Number of times unit placed in operation, Duration and kWh output
24Vdc Output Terminal 100mA Maximum Supply

Notes


*
Normal Duty
Heavy Duty
High Carrier Frequency Normal Duty
High Carrier Frequency Heavy Duty
