/Products/VFD's & Soft Starters/Fuji/FRENIC-Mini (C2)/FRN0011C2S-4U 5 HP Fuji FRENIC-Mini C2 Compact Variable Frequency Drive, 460V

Click Image to Expand

Previous Next

Product ID: FRN0011C2S-4U

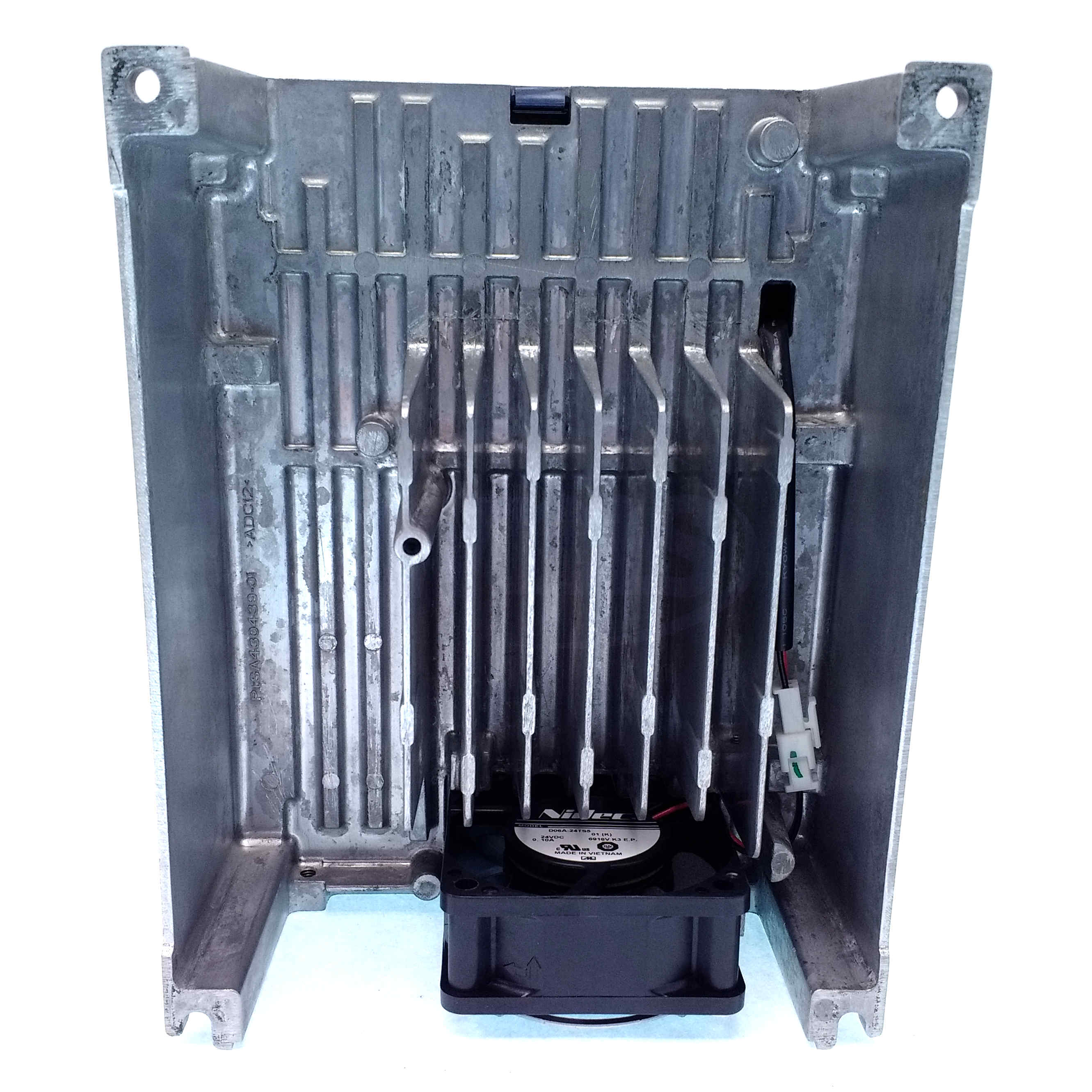

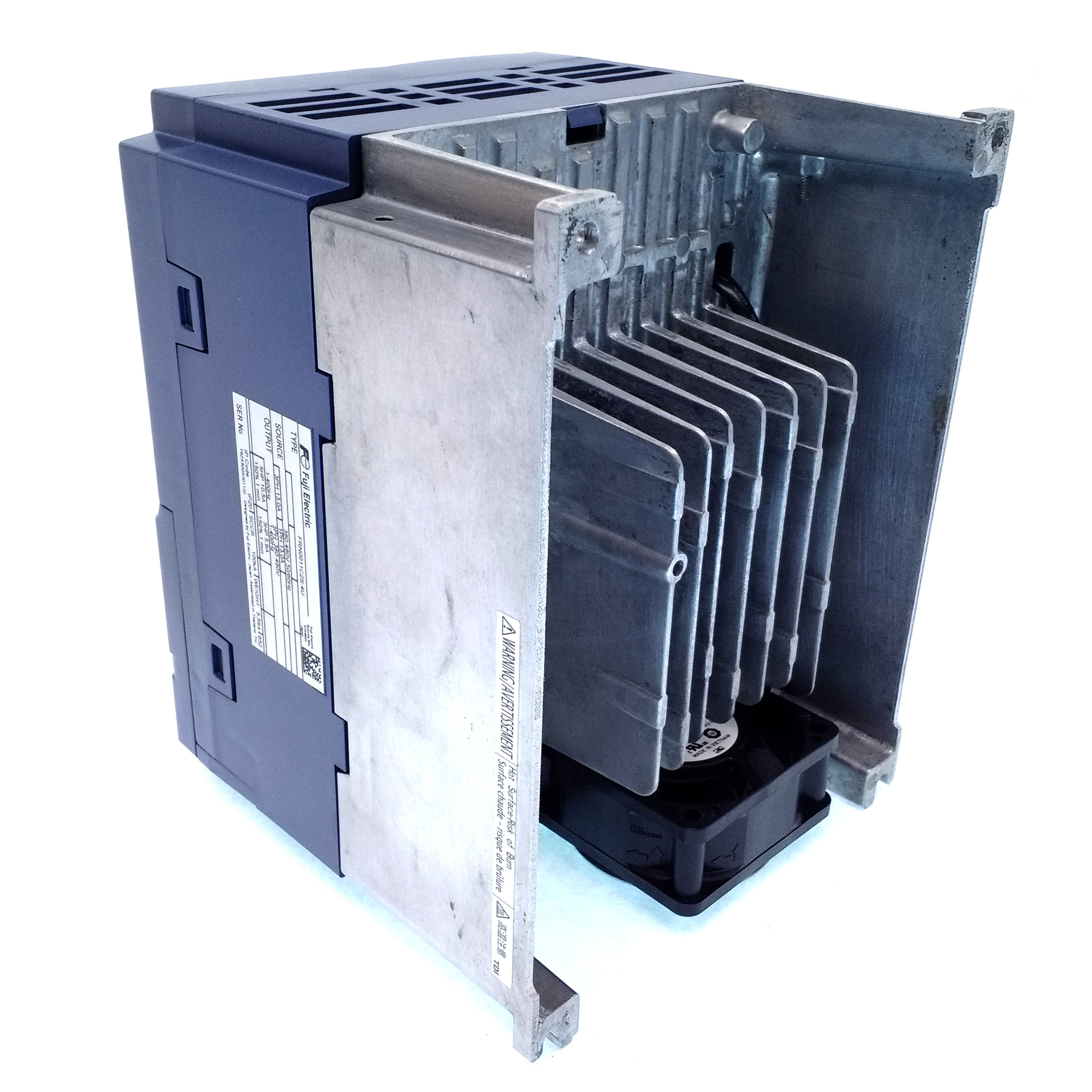

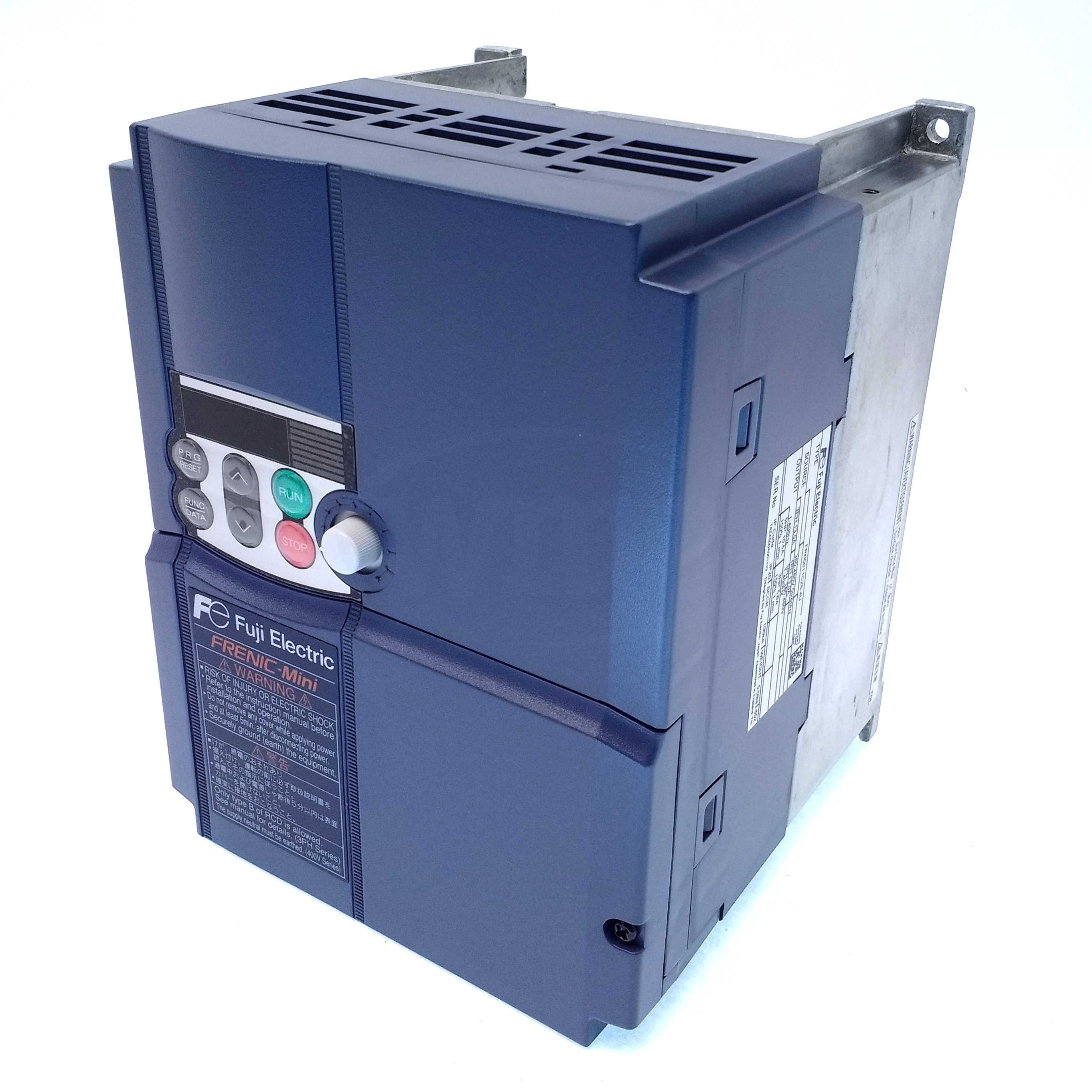

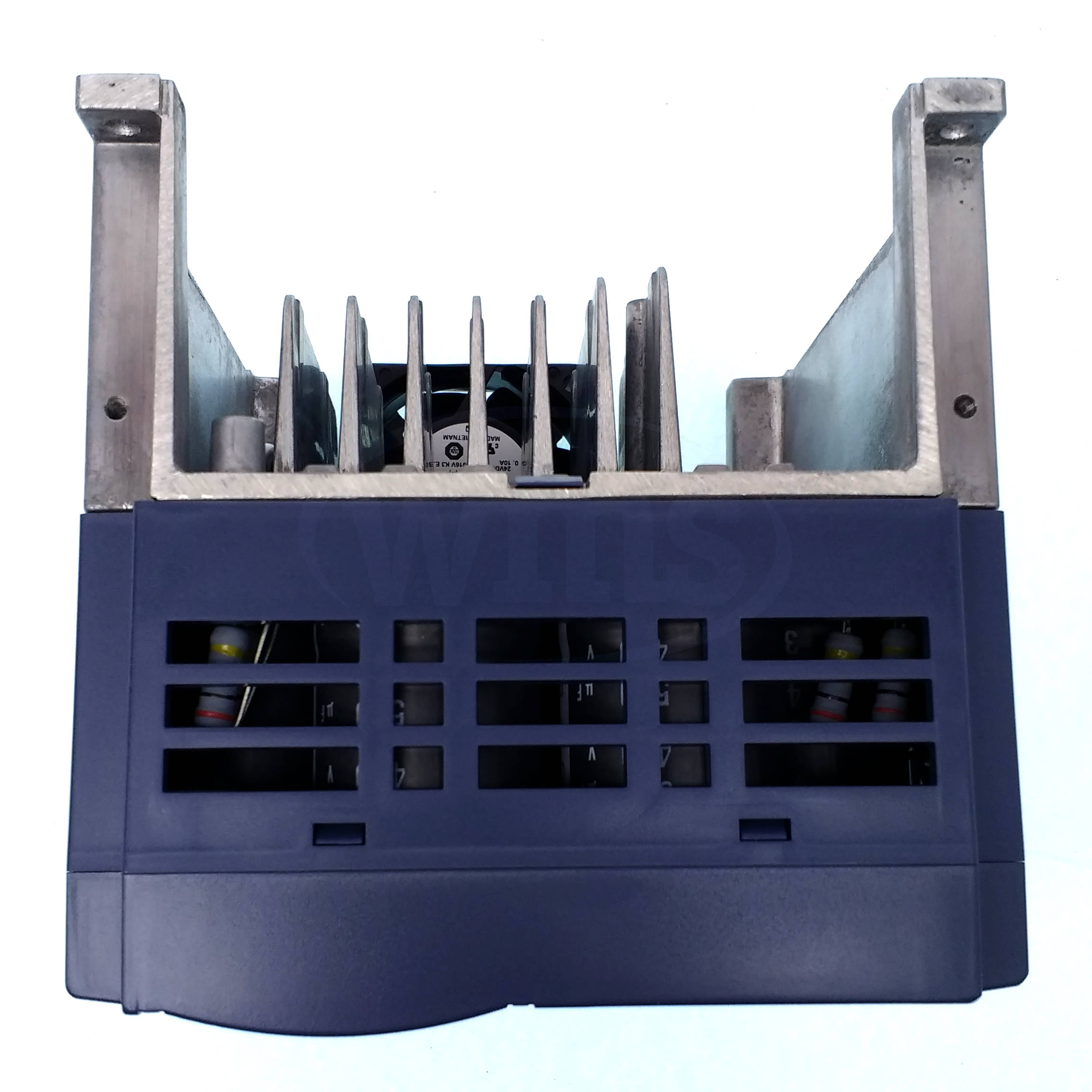

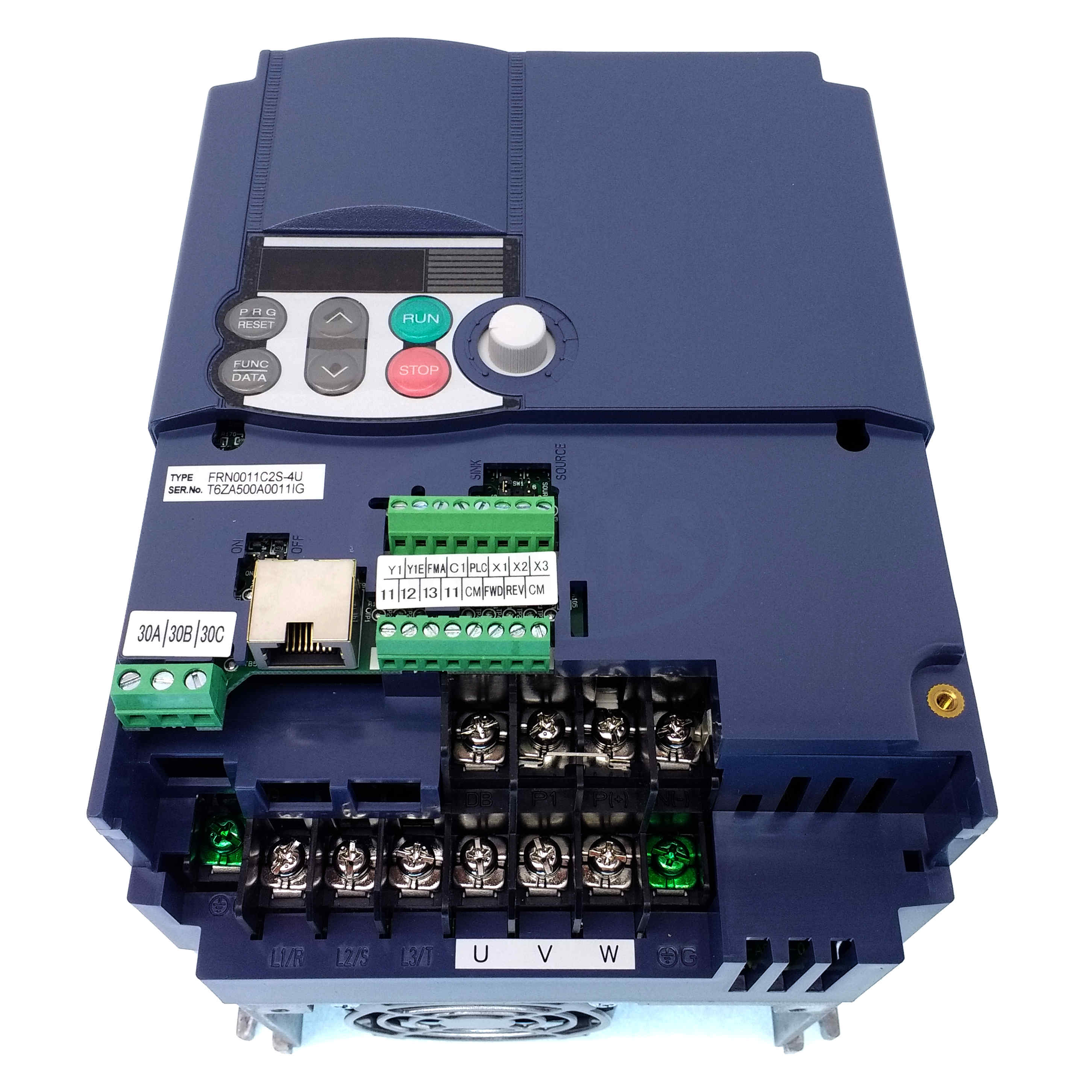

FRN0011C2S-4U 5 HP Fuji FRENIC-Mini C2 Compact Variable Frequency Drive, 460V

MFG: Fuji Electric Corp. of America
MFG Part Number: FRN0011C2S-4U

Available Stock: 22

Selected accessories will also be added to cart

$390.50 / Each

Quantity:

3-Phase Input (460V 3-Phase Output)

Accessories

Select any of the accessories below to purchase them with this inventory item:

CB-1S Remote Operation Extension Cable (1 meter)
$28.00 / Each
CB-3S Remote Operation Extension Cable (3 meters)
$35.00 / Each
CB-5S Remote Operation Extension Cable (5 meters)
$42.00 / Each
DB3.7-4C Fuji Electric Braking Resistor (10% Duty Cycle) 130 Ohm
$122.50 / Each
NEMA1-C2-301 Fuji NEMA/UL Type 1 Conversion Kit
$59.50 / Each
TP-E1 Remote Mount Keypad
$56.00 / Each
TP-E1U Fuji Electric USB-Equipped Remote Keypad
$59.50 / Each
Fuji TP-E1W Remote Mount Keypad with Gasket
$78.40 / Each

Details

Environmental

Enclosure	UL Open Type (IP20) Optional UL Type 1
Ambient Temperature	+14 to +122°F (-10 to +50°C) - UL Open Type +14 to +104°F (-10 to +40°C) - UL Type 1
Storage Temperature	-13 to +158°F (-25 to +70°C)
Humidity	5% to 95% With No Condensation
Altitude	0 to 3,300 ft. (1,000 m) Without Derating Derate Output Current for Higher Altitudes per User's Manual

Codes and Standards

UL508C
EN 61800-5-1:2007

Electrical

Input Voltage: Range-Phase	380-480VAC - 3 Phase
Input Voltage: Tolerance, Unbalance	3 - Phase Input = +10% to -15%, <2%
Input Frequency: Nominal, Tolerance	50/60Hz, +/-5%
Displacement Power Factor	>0.98 (@ Rated Load)
Output Voltage: Range-Phase	0 to Maximum Input Voltage -3 Phase
Maximum Output Frequency	400Hz
Rated Output Current	10.5
Nominal Applied Motor HP (KW)	5 (3.7/4.0)
Motor Control Method	Induction Motor: V/f Control Dynamic Torque Vector Control Slip Compensation Auto-Torque Boost Automatic Energy Savings Synchronous Motor (PMAC): Sensorless Magnetic Positioning [speed control range: 10% of base frequency and up
Overload Capacity	150% Rated Current for 1 minute. 200% Rated Current for 0.5 second
Analog Inputs	Qty 1: 0 to +10VDC Qty 1: 0/4-20mA
Digital Inputs	Qty 5: Programmable
Analog Outputs	Qty 1: 0 to +10VDC, User Selectable Proportional Analog Signal Functionality
Digital Outputs	Qty 1: Form C (1N.O. & 1N.C.) Dry Contacts Rated 0.3A @ 230V Max, User Selectable Functionality Qty 1: Transistor Output Rated 50mA @ 27Vdc Max, User Selectable Functionality
Power Supply	Qty 1: 24VDC, 50mA Max

Links

Fuji Electric FRENIC-Mini C2 Series User's Manual
Fuji Electric FRENIC-Mini C2 Series Quick Reference Guide
Fuji Electric FRENIC-Mini C2 Series Instruction Manual
Fuji Electric FRENIC-Mini C2 Series General Specifications
Fuji Electric FRENIC-Mini C2 Series Brochure
Fuji Electric FRENIC-Mini C2 Series Catalog
Fuji Electric FRENIC-Mini C2 Series Watts Loss

Application Notes

Fuji Electric FRENIC-Mini C2 Series Single Phase Ratings
Fuji Electric FRENIC-Mini C2 Series Automatic Restart after Power Failure
Fuji Electric FRENIC-Mini C2 Series PID Control with Pressure Transducer
Fuji Electric FRENIC-Mini C2 Series Pre-Set Speed Operation
Fuji Electric FRENIC-Mini C2 Series 3-Wire Start/Stop
