/Products/VFD's & Soft Starters/Fuji/FRENIC-Mini (C2)/FRN0005C2S-4U 2 HP Fuji FRENIC-Mini C2 Compact Variable Frequency Drive, 460V
Click Image to Expand

Product ID: FRN0005C2S-4U

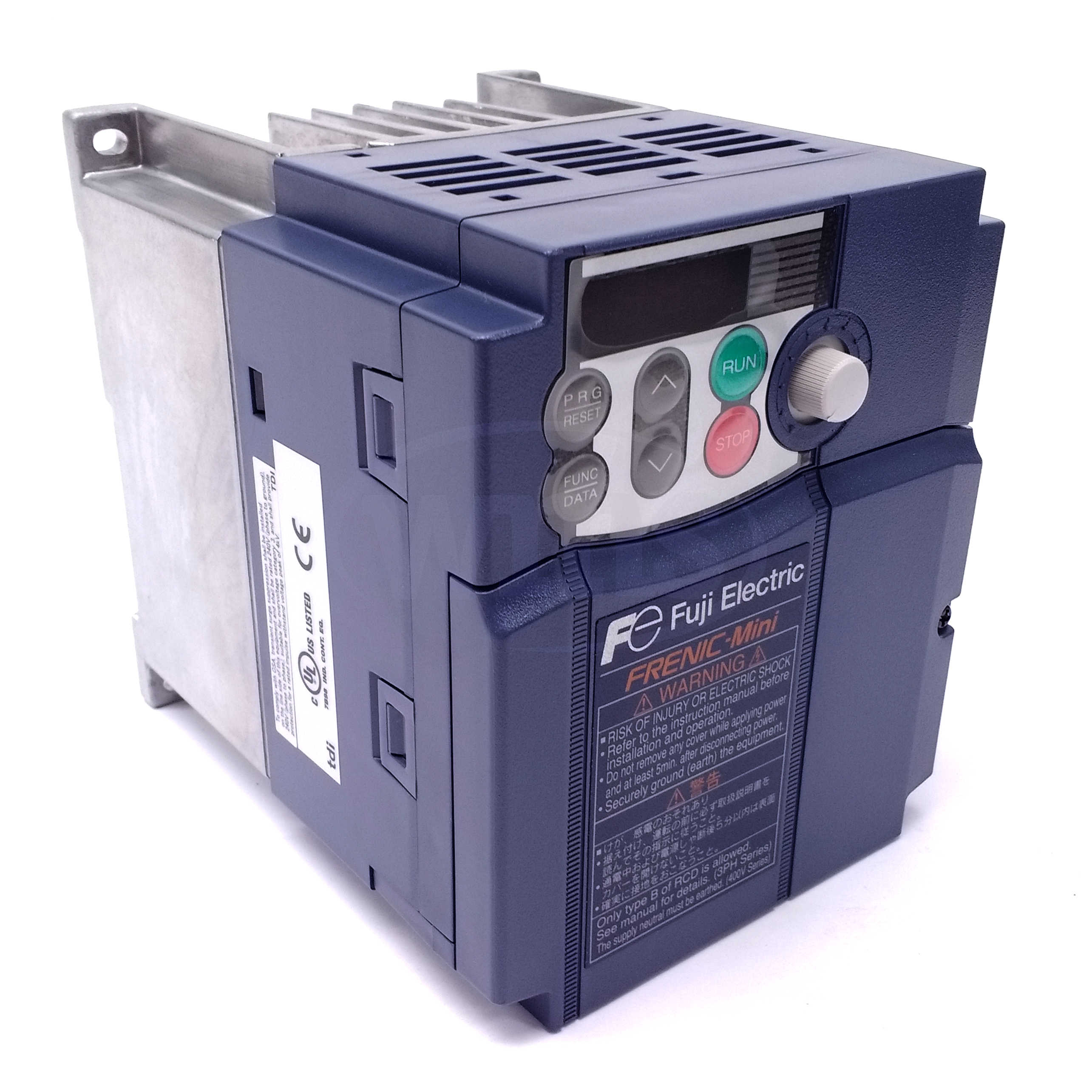

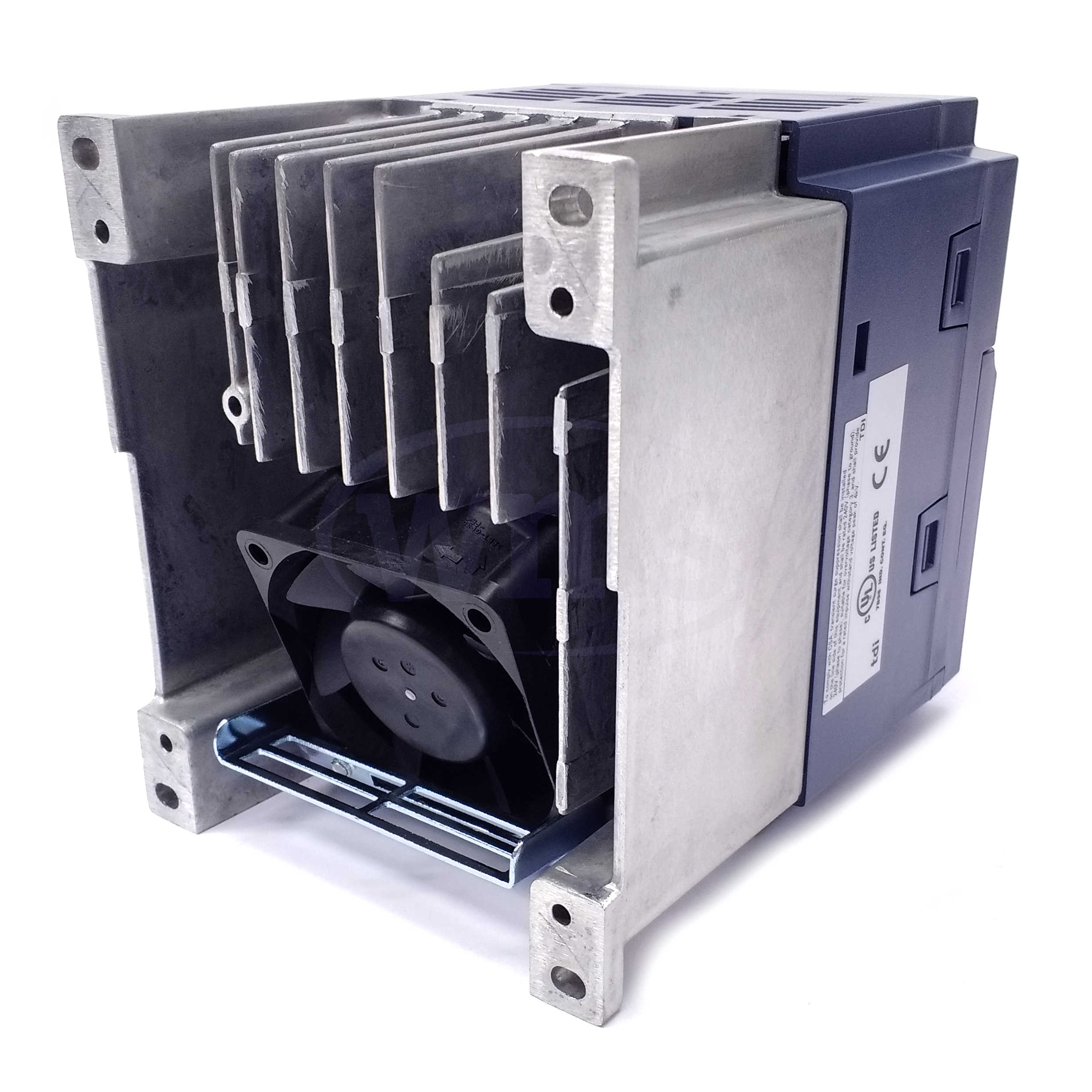

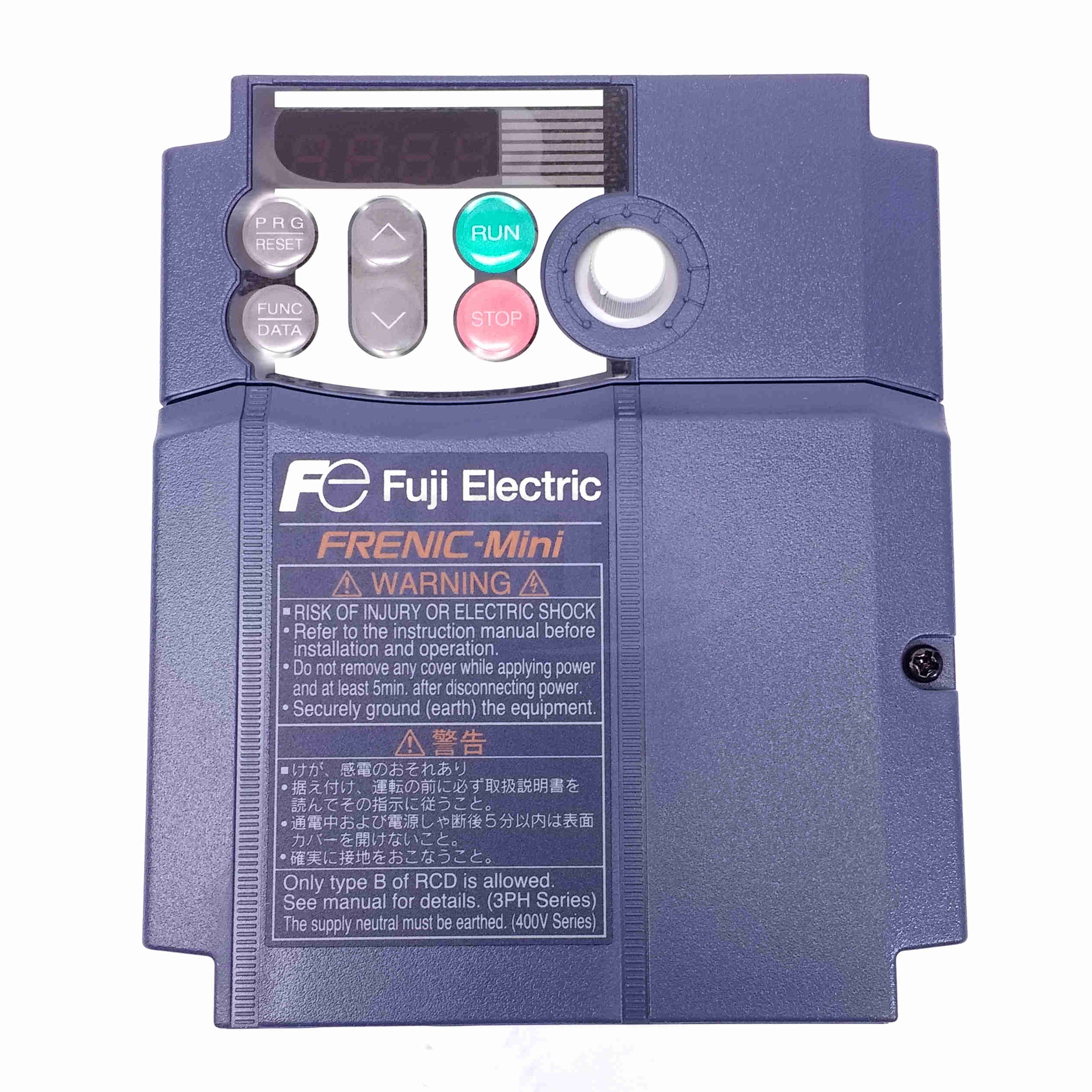

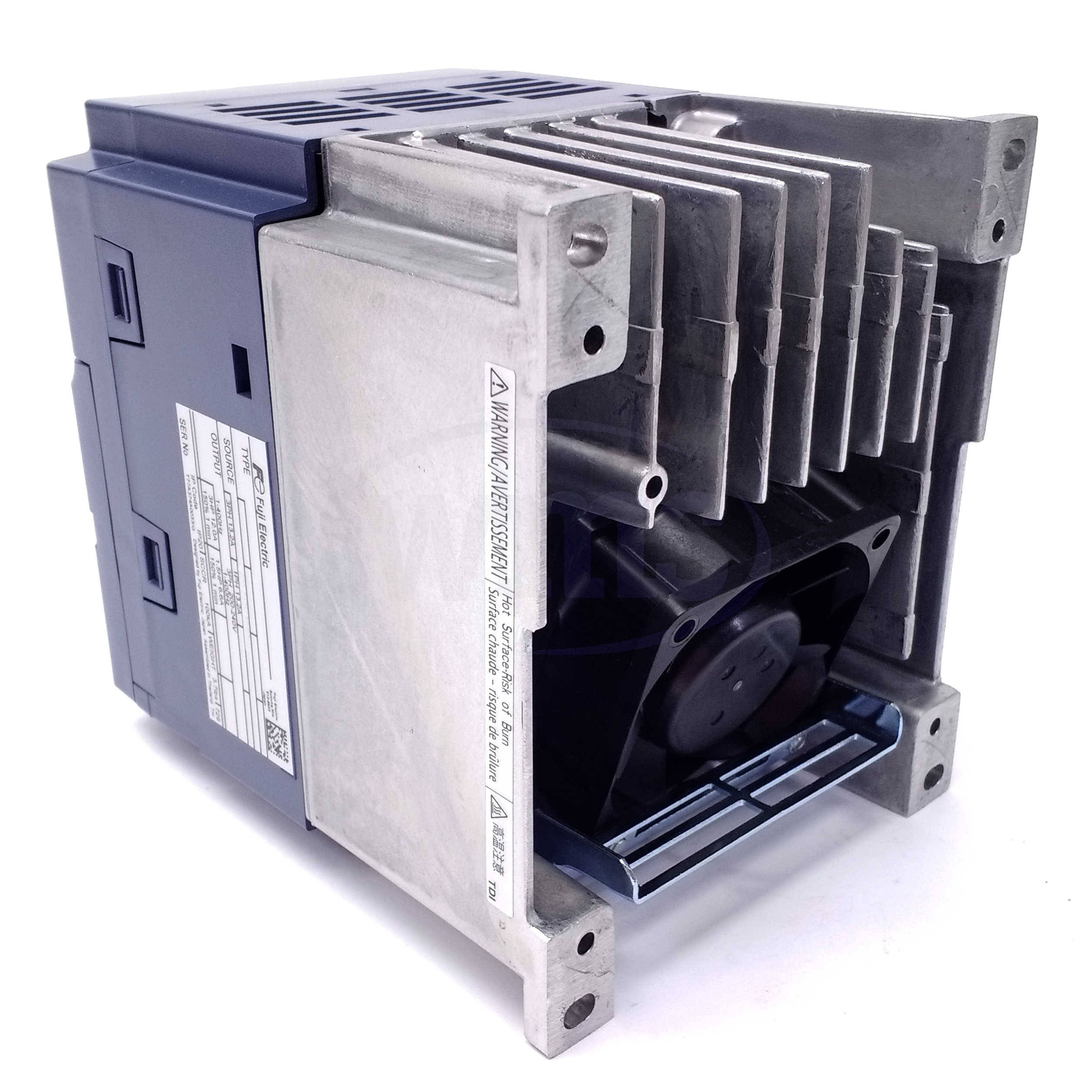

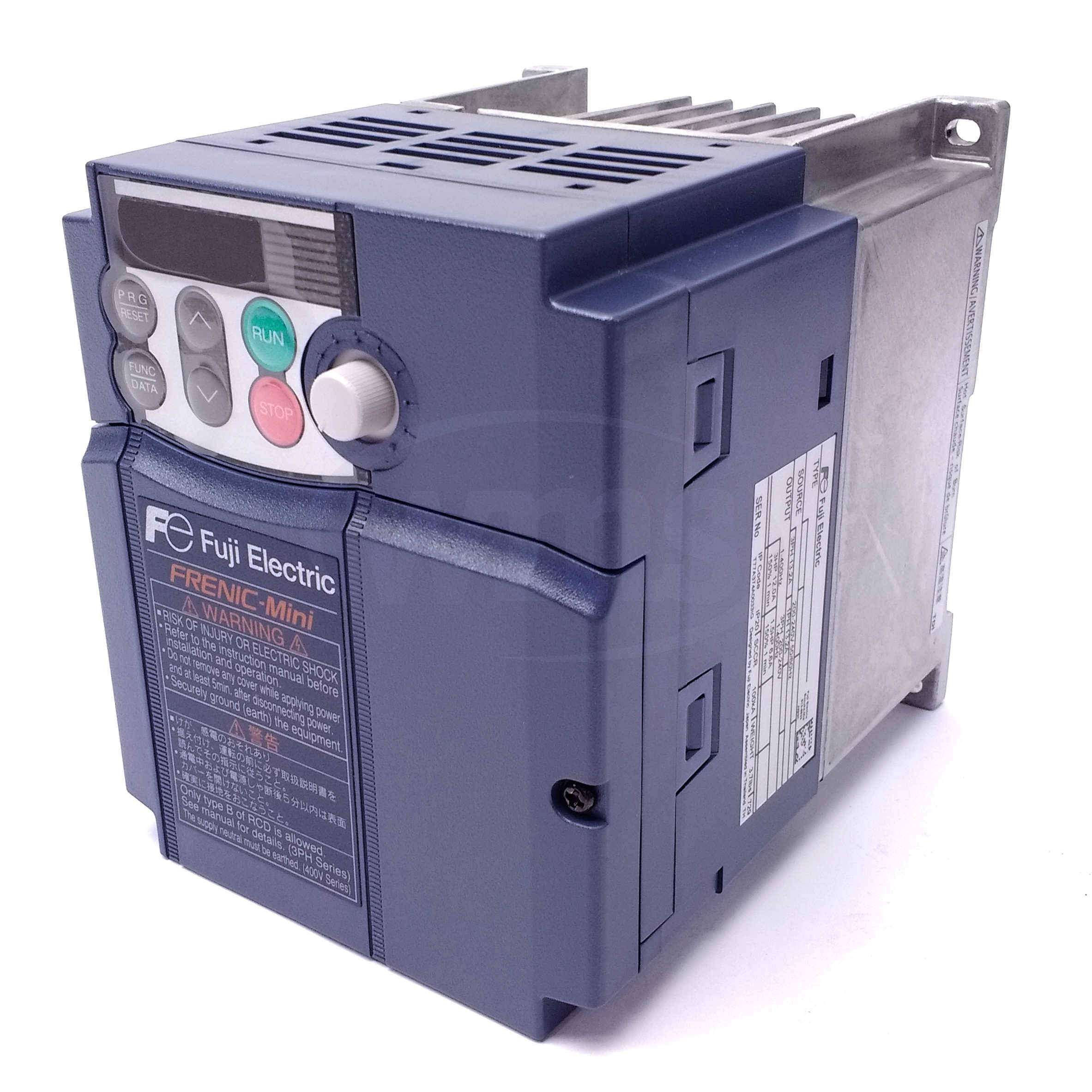

FRN0005C2S-4U 2 HP Fuji FRENIC-Mini C2 Compact Variable Frequency Drive, 460V

MFG: Fuji Electric Corp. of America
MFG Part Number: FRN0005C2S-4U

Available Stock: 12
Selected accessories will also be added to cart
$294.65 / Each
Quantity:
3-Phase Input (460V 3-Phase Output)
Accessories
Select any of the accessories below to purchase them with this inventory item:

Quick Specifications

Input Voltage: Range(Hz) - Phase 380-480VAC – 3 Phase
Rated Input Current 3.0 A (with DCR)
5.9 A (without DCR)
Output Voltage: Range-Phase 0 to Maximum Input Voltage - 3 Phase (With AVR)
Rated Output Current 4.3 A
3.7 A (Carrier Frequency >3kHz or Ambient Temp >40°C/104°F)
Nominal Applied Motor 2 HP
1.5 kW
Mass 1.7 lbs
3.7 kg

Environmental

Enclosure UL Open Type (IP20/IP00)
Optional UL Type 1
Ambient Temperature UL Open Type: +14 to +122°F (-10 to +50°C)
UL Type 1: +14 to +104°F (-10 to +40°C)
Storage Temperature -13 to +158°F (-25 to +70°C)
Humidity 5% to 95% (No Condensation)
Altitude 0 to 3,300 ft. (1,000 m) Without Derating
Derate Output Current for Higher Altitudes per User's Manual

Codes and Standards

UL508C
EN 61800-5-1:2007

Electrical

Input Voltage: Tolerance 3 Phase Input: +10% to -15%, <2% Unbalance
Input Frequency: Nominal, Tolerance 50/60Hz, +/-5%
Required Power Supply Capacity (kVA) 2.0 kVA
Displacement Power Factor >0.98 (@ Rated Load)
Maximum Output Frequency 400Hz
Motor Control Method Induction Motor: V/f, Dynamic Torque Vector, Slip Comp, Auto-Torque Boost, Automatic Energy Savings
Synchronous Motor (PMAC): Sensorless Magnetic Positioning [speed control range: 10% of base frequency and up]
Overload Capacity 150% of Rated Current for 1 minute
200% Rated Current for 0.5 seconds

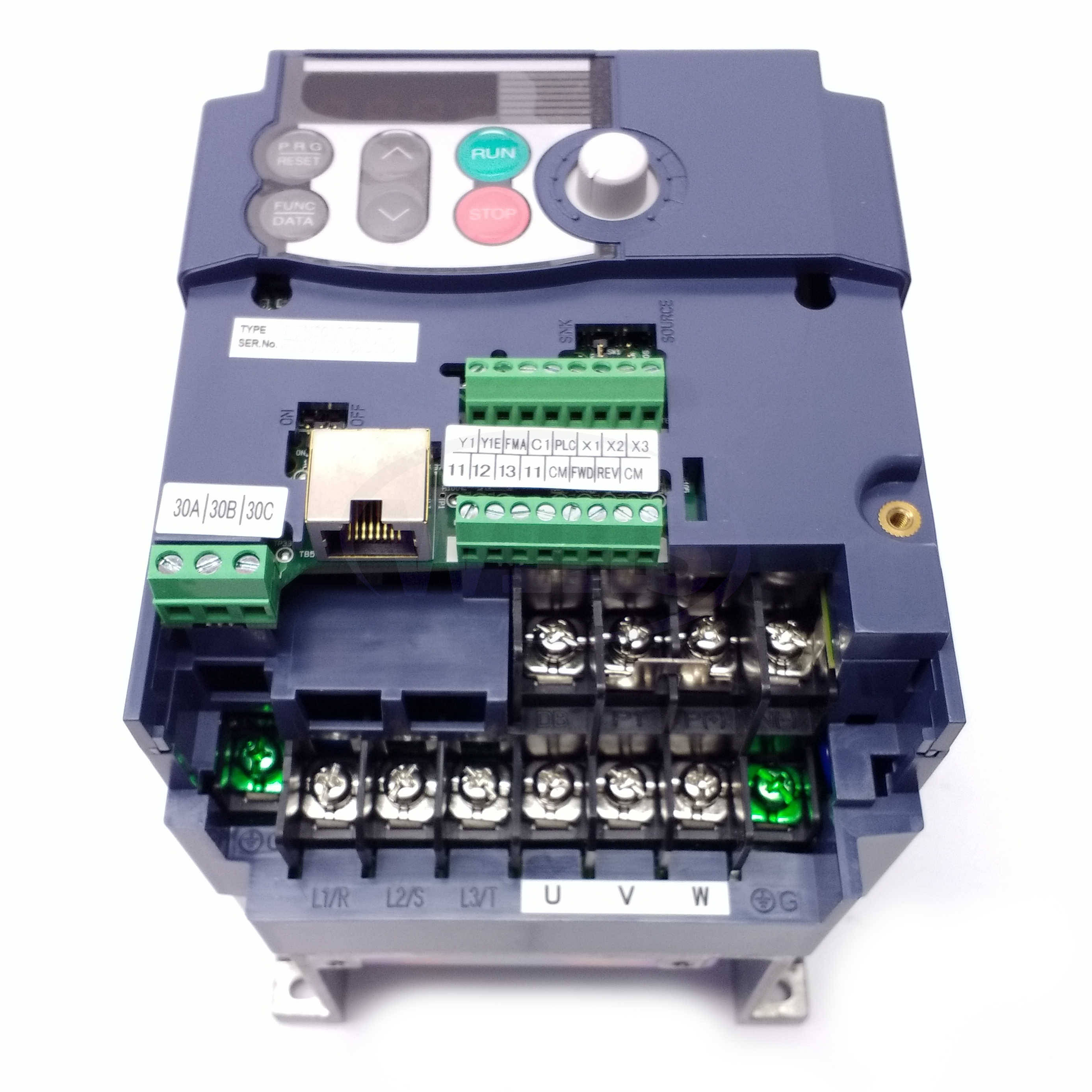

Analog Inputs Qty 1: 0 to +10VDC
Qty 1: 4 to 20mA
Digital Inputs Qty 5: Programmable Inputs
Analog Outputs Qty 1: Configurable for 0 to +10VDC, User Selectable for Proportional Analog Signal Functionality
Digital Outputs Qty 1: Form C (1 Normally Open & 1 Normally Closed) Dry Contacts Rated 0.3A @ 230VAC Max, User Selectable Functionality
Qty 1: Transistor Output Rated 50mA @ 27Vdc Max, User Selectable Functionality
Power Supply Qty 1: 24VDC, 50mA Max
Braking Torque 50 %
DC Injection Braking Starting Frequency: 0.0 to 60.0Hz
Braking Time: 0.0 to 30.0 Seconds
Braking Level: 0 to 100%
Braking Transistor Built-in

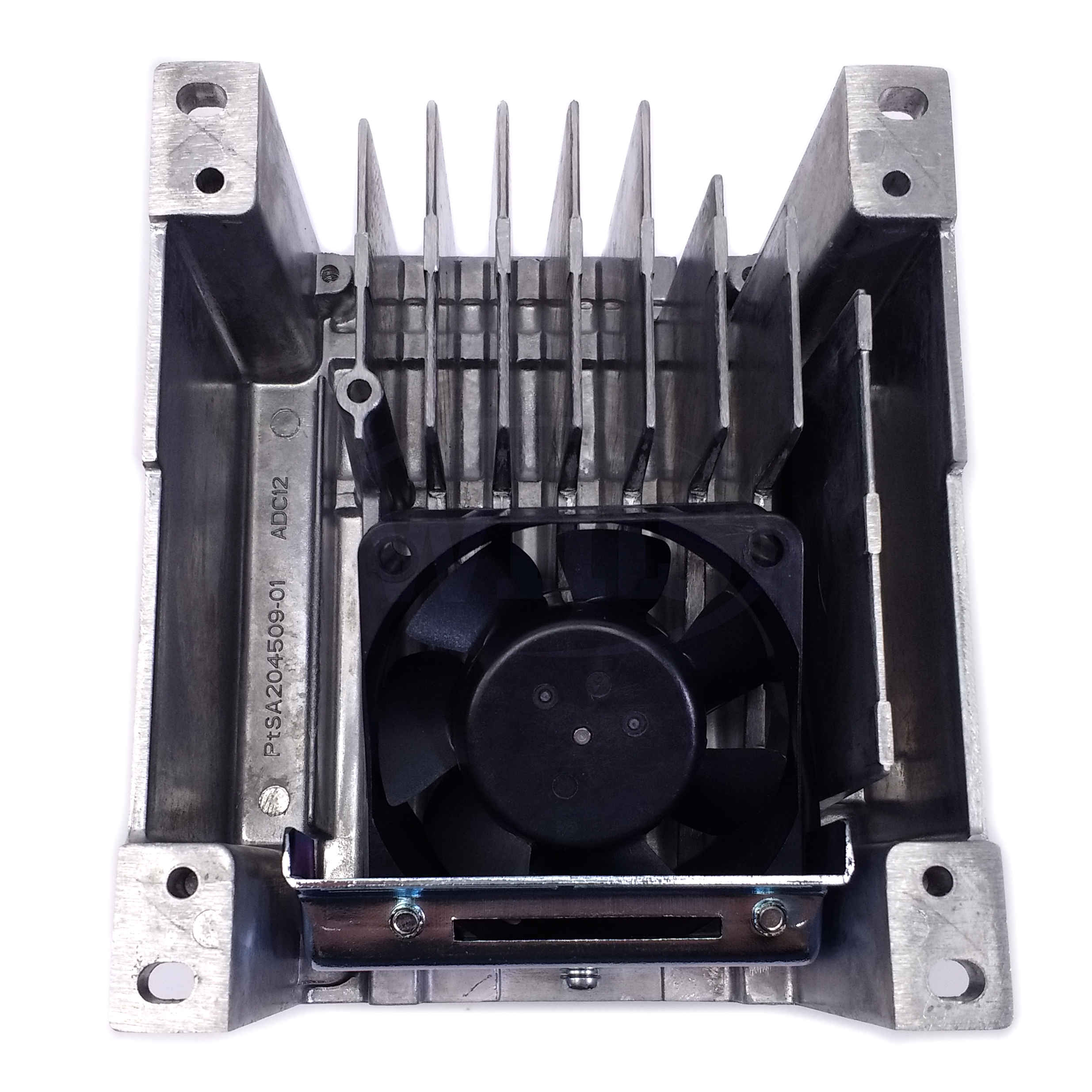

Cooling Method Fan Cooling

Links

Fuji Electric FRENIC-Mini C2 Series User's Manual
Fuji Electric FRENIC-Mini C2 Series Quick Reference Guide
Fuji Electric FRENIC-Mini C2 Series Instruction Manual
Fuji Electric FRENIC-Mini C2 Series General Specifications
Fuji Electric FRENIC-Mini C2 Series Brochure
Fuji Electric FRENIC-Mini C2 Series Catalog
Fuji Electric FRENIC-Mini C2 Series Watts Loss

Application Notes

Fuji Electric FRENIC-Mini C2 Series Single Phase Ratings
Fuji Electric FRENIC-Mini C2 Series Automatic Restart after Power Failure
Fuji Electric FRENIC-Mini C2 Series PID Control with Pressure Transducer
Fuji Electric FRENIC-Mini C2 Series Pre-Set Speed Operation
Fuji Electric FRENIC-Mini C2 Series 3-Wire Start/Stop
