/Products/VFD's & Soft Starters/Fuji/FRENIC-Mini (C2)/FRN0002C2S-7U 1/4 HP Fuji FRENIC-Mini C2 Compact Variable Frequency Drive, 230V

Product ID: FRN0002C2S-7U

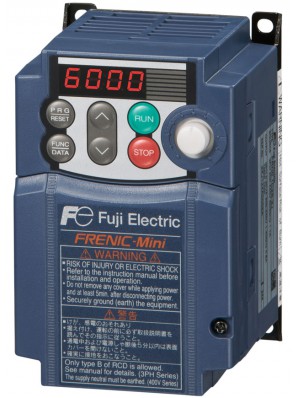

FRN0002C2S-7U 1/4 HP Fuji FRENIC-Mini C2 Compact Variable Frequency Drive, 230V

MFG: Fuji Electric Corp. of America
MFG Part Number: FRN0002C2S-7U

Selected accessories will also be added to cart

$170.40 / Each

Quantity:

1-Phase Input (230V 3-Phase Output)

Accessories

Select any of the accessories below to purchase them with this inventory item:

CB-1S Remote Operation Extension Cable (1 meter)
$28.00 / Each
CB-3S Remote Operation Extension Cable (3 meters)
$35.00 / Each
CB-5S Remote Operation Extension Cable (5 meters)
$42.00 / Each
NEMA1-C2-101 Fuji NEMA/UL Type 1 Conversion Kit
$38.50 / Each
RMA-C1-0.75 DIN Rail Mount Adapter
$21.00 / Each
TP-E1 Remote Mount Keypad
$56.00 / Each
TP-E1U Fuji Electric USB-Equipped Remote Keypad
$59.50 / Each
Fuji TP-E1W Remote Mount Keypad with Gasket
$78.40 / Each

Details

Quick Specifications

Input Voltage: Range(Hz) - Phase	200-240VAC – 1 Phase
Rated Input Current	2.0 A (with DCR) 3.3 A (without DCR)
Output Voltage: Range-Phase	Three-Phase, 200-240V (With AVR)
Rated Output Current	1.5 A 1.4 A (Carrier Frequency >3kHz or Ambient Temp >40°C/104°F)
Nominal Applied Motor	1/4 HP 0.2 kW
Mass	0.6 lbs 1.3 kg

Environmental

Enclosure	UL Open Type (IP20/IP00) Optional UL Type 1
Ambient Temperature	UL Open Type: +14 to +122°F (-10 to +50°C) UL Type 1: +14 to +104°F (-10 to +40°C)
Storage Temperature	-13 to +158°F (-25 to +70°C)
Humidity	5% to 95% (No Condensation)
Altitude	0 to 3,300 ft. (1,000 m) Without Derating Derate Output Current for Higher Altitudes per User's Manual

Codes and Standards

UL508C
EN 61800-5-1:2007

Electrical

Input Voltage: Tolerance	1 Phase Input = +10% to -10%
Input Frequency: Nominal, Tolerance	50/60Hz, +/-5%
Required Power Supply Capacity (kVA)	0.4 kVA
Displacement Power Factor	>0.98 (@ Rated Load)
Maximum Output Frequency	400Hz
Motor Control Method	Induction Motor: V/f, Dynamic Torque Vector, Slip Comp, Auto-Torque Boost, Automatic Energy Savings Synchronous Motor (PMAC): Sensorless Magnetic Positioning [speed control range: 10% of base frequency and up]
Overload Capacity	150% of Rated Current for 1 minute 200% Rated Current for 0.5 seconds
Analog Inputs	Qty 1: 0 to +10VDC Qty 1: 4 to 20mA
Digital Inputs	Qty 5: Programmable Inputs
Analog Outputs	Qty 1: Configurable for 0 to +10VDC, User Selectable for Proportional Analog Signal Functionality
Digital Outputs	Qty 1: Form C (1 Normally Open & 1 Normally Closed) Dry Contacts Rated 0.3A @ 230VAC Max, User Selectable Functionality Qty 1: Transistor Output Rated 50mA @ 27Vdc Max, User Selectable Functionality
Power Supply	Qty 1: 24VDC, 50mA Max
Braking Torque (%)	150 %
DC Injection Braking	Starting Frequency: 0.0 to 60.0Hz Braking Time: 0.0 to 30.0 Seconds Braking Level: 0 to 100%
Braking Transistor
Cooling Method	Natural Cooling

Links

Fuji Electric FRENIC-Mini C2 Series User's Manual
Fuji Electric FRENIC-Mini C2 Series Quick Reference Guide
Fuji Electric FRENIC-Mini C2 Series Instruction Manual
Fuji Electric FRENIC-Mini C2 Series General Specifications
Fuji Electric FRENIC-Mini C2 Series Brochure
Fuji Electric FRENIC-Mini C2 Series Catalog
Fuji Electric FRENIC-Mini C2 Series Watts Loss

Application Notes

Fuji Electric FRENIC-Mini C2 Series Single Phase Ratings
Fuji Electric FRENIC-Mini C2 Series Automatic Restart after Power Failure
Fuji Electric FRENIC-Mini C2 Series PID Control with Pressure Transducer
Fuji Electric FRENIC-Mini C2 Series Pre-Set Speed Operation
Fuji Electric FRENIC-Mini C2 Series 3-Wire Start/Stop
