/Products/Electric Motors/Single Phase/Century/FH1076 Century 3/4HP Electric Motor, 1075RPM
Click Image to Expand

Product ID: FH1076

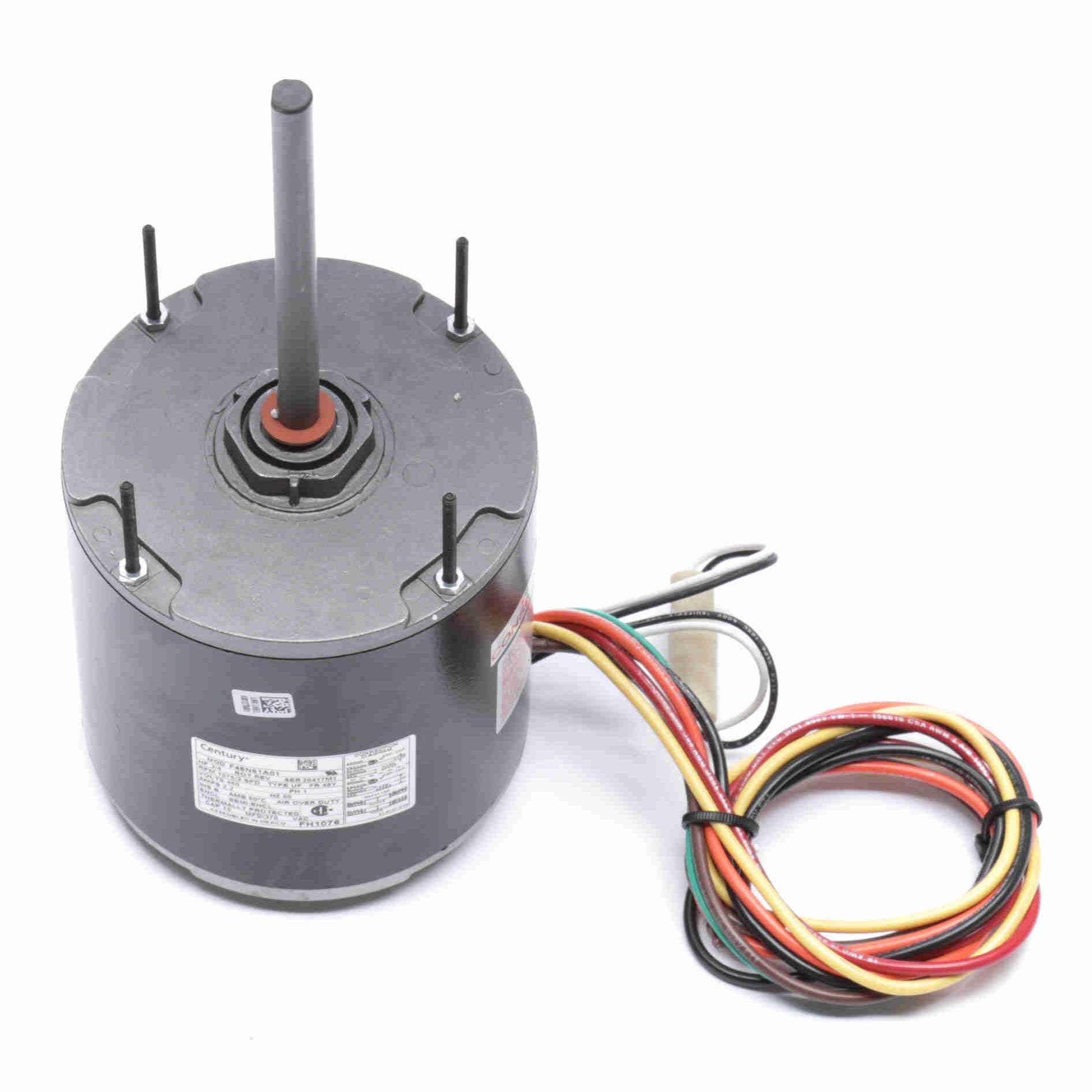

FH1076 Century 3/4HP Electric Motor, 1075RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: FH1076

Selected accessories will also be added to cart
$339.97 / Each
Quantity:
Semi Enclosed, 48Y Frame, 460V Single Phase 60Hz, PSC, 1/2" x 6.4" Double Flat Shaft

Features

Features
  • Condenser Fan - Heat Pump - Refrigeration Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Enclosed, Except Open Lead End End-Frame Air Over
  • Class B Insulation, 60°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Double Flat
  • 27" Leads
  • Extended Studs Shaft End, Hex Mounting Hub on Both Ends for Resilient Base Mounting (Resilient Rings Not Included), Belly Band

General Specifications

General Specifications
Model : Catalog No :FH1076
Part Description :MODEL-RFHP-48FR Category :Condenser Fans
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :3/4 HP Output KW :0.56 kW
Frequency :60 Hz Voltage :460 V
Current :2.2 A Speed :1075 RPM
Service Factor :1 Phase :1
Duty :Air Over Insulation Class :B
Frame :48Y Enclosure :Semi Enclosed
Overload Protector :Automatic Ambient Temperature :60 °C
UL :Recognized CSA :Y
CE :N

Technical Specifications

Technical Specifications
Electrical Type :Permanent Split Capacitor Starting Method :Induction Run
Poles :6 Rotation :Reversible
Mounting :Extended Studs Motor Orientation :Any
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :Double Flat
Overall Length :12.62 in Frame Length :5.13 in
Shaft Diameter :0.500 in Shaft Extension :.5X6.4 FLAT in
UPC :786674021090 Weight :20.00 LB

Speed & Load Characteristics
