/Products/Electric Motors/Single Phase/Century/FDL1016 Century 1/6HP Electric Motor, 1075 RPM
Click Image to Expand

Product ID: FDL1016

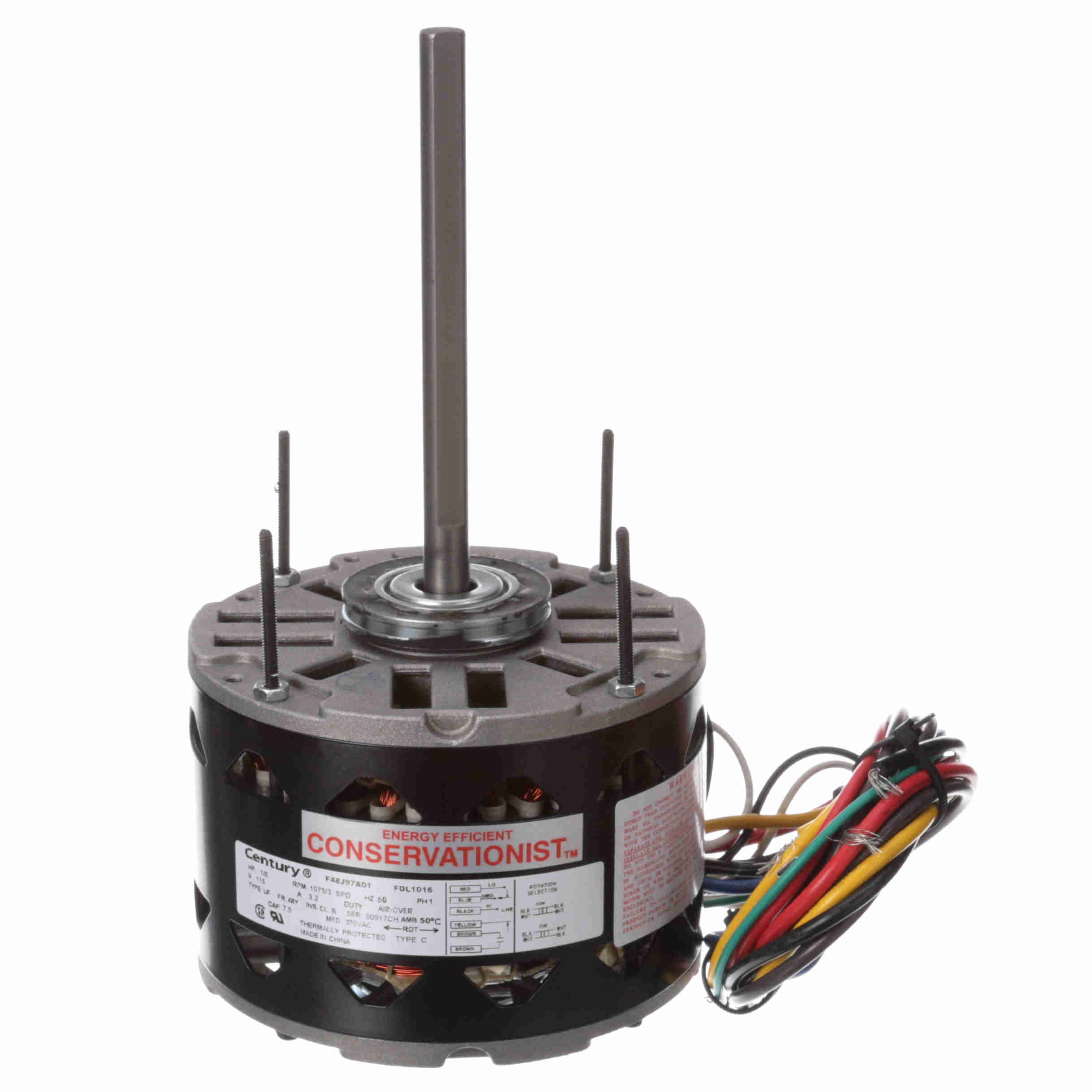

FDL1016 Century 1/6HP Electric Motor, 1075 RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: FDL1016

Selected accessories will also be added to cart
$139.97 / Each
Quantity:
Open Enclosed, 48Y Frame, 115VAC 60Hz Single Phase

Features

Features
  • Direct Drive Fan & Blower Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 50°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • 26" Leads
  • Extended Studs Shaft End, Resilient Ring Mounting, Belly Band

General Specifications

General Specifications
Model : Catalog No :FDL1016
Part Description :MODEL-RFHP-48FR Category :Direct Drive
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :1/6 Hp Output KW :0.13 kW
Frequency :60 Hz Voltage :115 V
Current :3.2 A Speed :1075 rpm
Service Factor :1 Phase :1
Duty :Air Over Insulation Class :B
Frame :48Y Enclosure :Open Enclosed
Overload Protector :Automatic Ambient Temperature :50 °C
UL :Recognized CSA :Y
CE :N

Technical Specifications

Technical Specifications
Electrical Type :Permanent Split Capacitor Starting Method :Induction Run
Poles :6 Rotation :Reversible
Mounting :Resilient Rings Motor Orientation :Any
Drive End Bearing :Sleeve Opp Drive End Bearing :Sleeve
Frame Material :Rolled Steel Shaft Type :Flat
Overall Length :10.80 in Frame Length :3.25 in
Shaft Diameter :0.500 in Shaft Extension :6.4 in
UPC :786674020550 Weight :11.00 LB
