/Products/Electric Motors/Single Phase/Century/FD1054 Century Direct Drive 1/2HP Fan & Blower Electric Motor, 1625RPM
Click Image to Expand

Product ID: FD1054

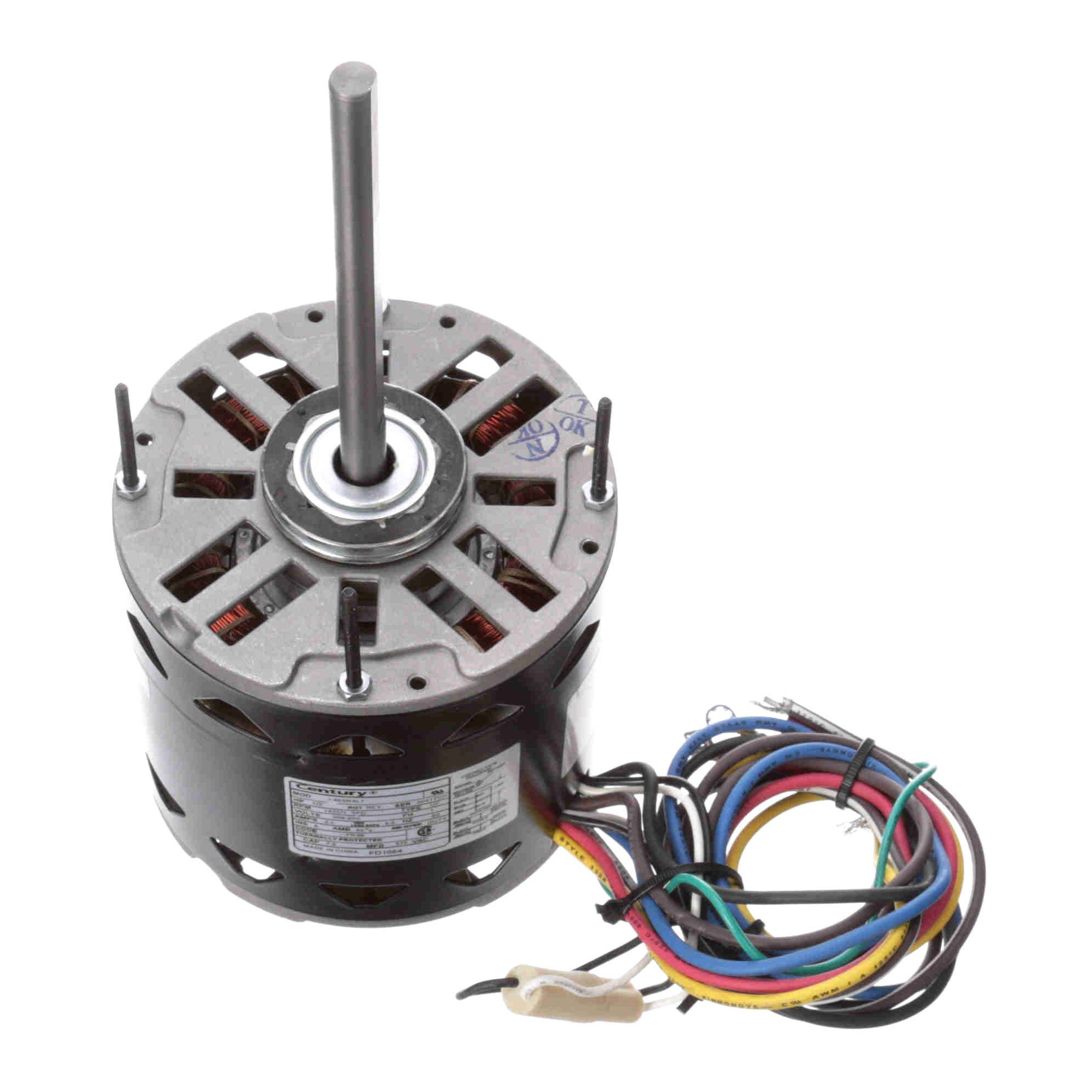

FD1054 Century Direct Drive 1/2HP Fan & Blower Electric Motor, 1625RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: FD1054

Selected accessories will also be added to cart
$321.97 / Each
Quantity:
Open, 48Y Frame, 208-230V Single Phase 60Hz, Resilient Ring / Extended Studs
Features
  • Direct Drive Fan & Blower Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Open Air Over
  • Class A Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • 26" Leads
  • Extended Studs Shaft End, Resilient Ring Mounting, Belly Band
General Specifications
Model : Catalog No :FD1054
Part Description :MODEL-RFHP-48FR Category :Direct Drive
Stock :Yes
Nameplate Specifications
Output HP :1/2 Hp Output KW :0.37 kW
Frequency :60 Hz Voltage :208-230 V
Current :2.8 A Speed :1625 rpm
Service Factor :1 Phase :1
Duty :Air Over Insulation Class :A
Frame :48Y Enclosure :Open Enclosed
Overload Protector :Automatic Ambient Temperature :40 °C
UL :Recognized CSA :Y
CE :N
Technical Specifications
Electrical Type :Permanent Split Capacitor Starting Method :Induction Run
Poles :4 Rotation :Reversible
Mounting :Resilient Ring/Extended Studs Motor Orientation :Any
Drive End Bearing :Sleeve Opp Drive End Bearing :Sleeve
Frame Material :Rolled Steel Shaft Type :Flat
Overall Length :12.05 in Frame Length :4.50 in
Shaft Diameter :0.500 in Shaft Extension :6.4 FLAT in
UPC :786674020499 Weight :17.00 LB
