/Products/Surplus Industrial/Circuit Breakers/FA36090 Square D Circuit Breaker, Black 3P 90A
Click Image to Expand

Product ID: FA36090

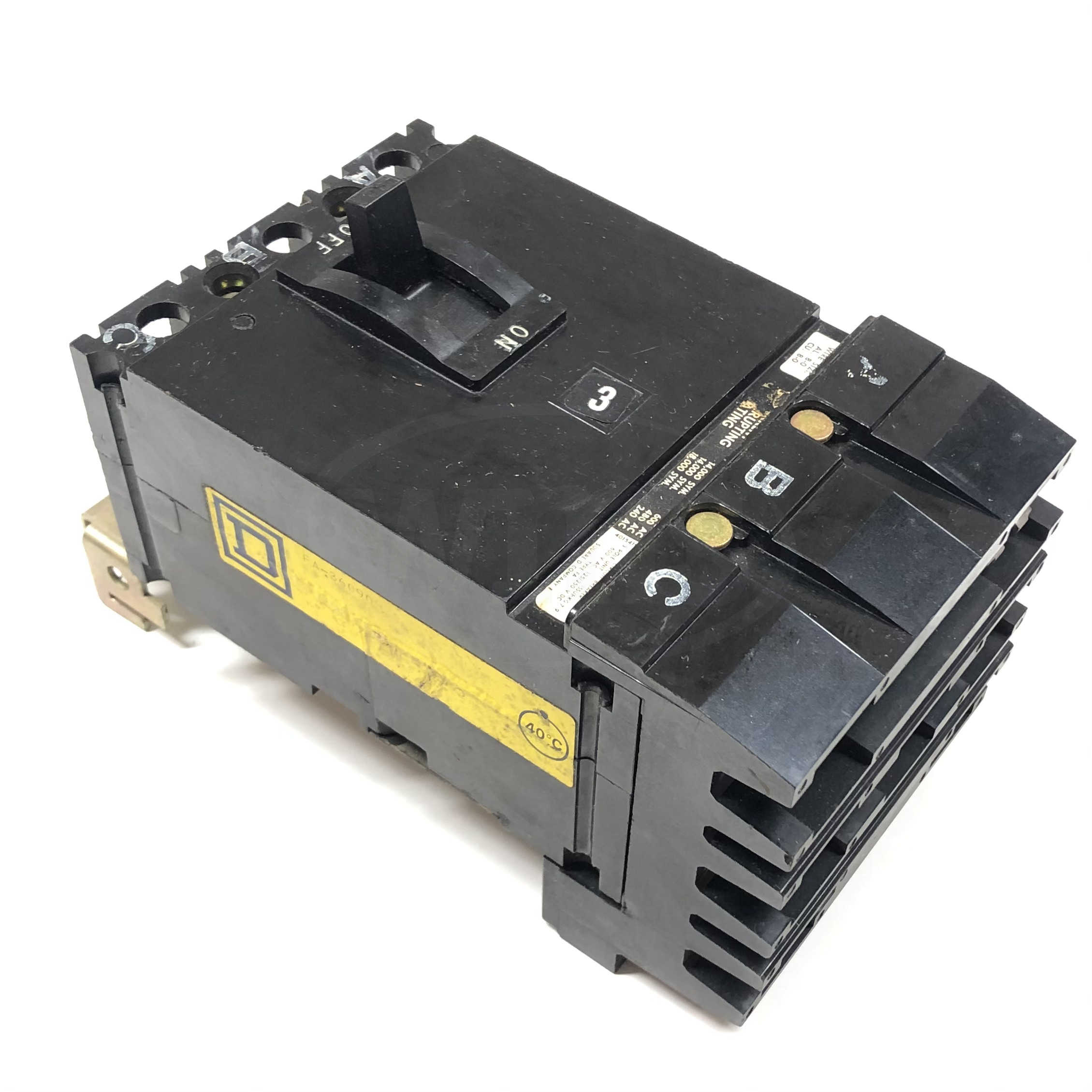

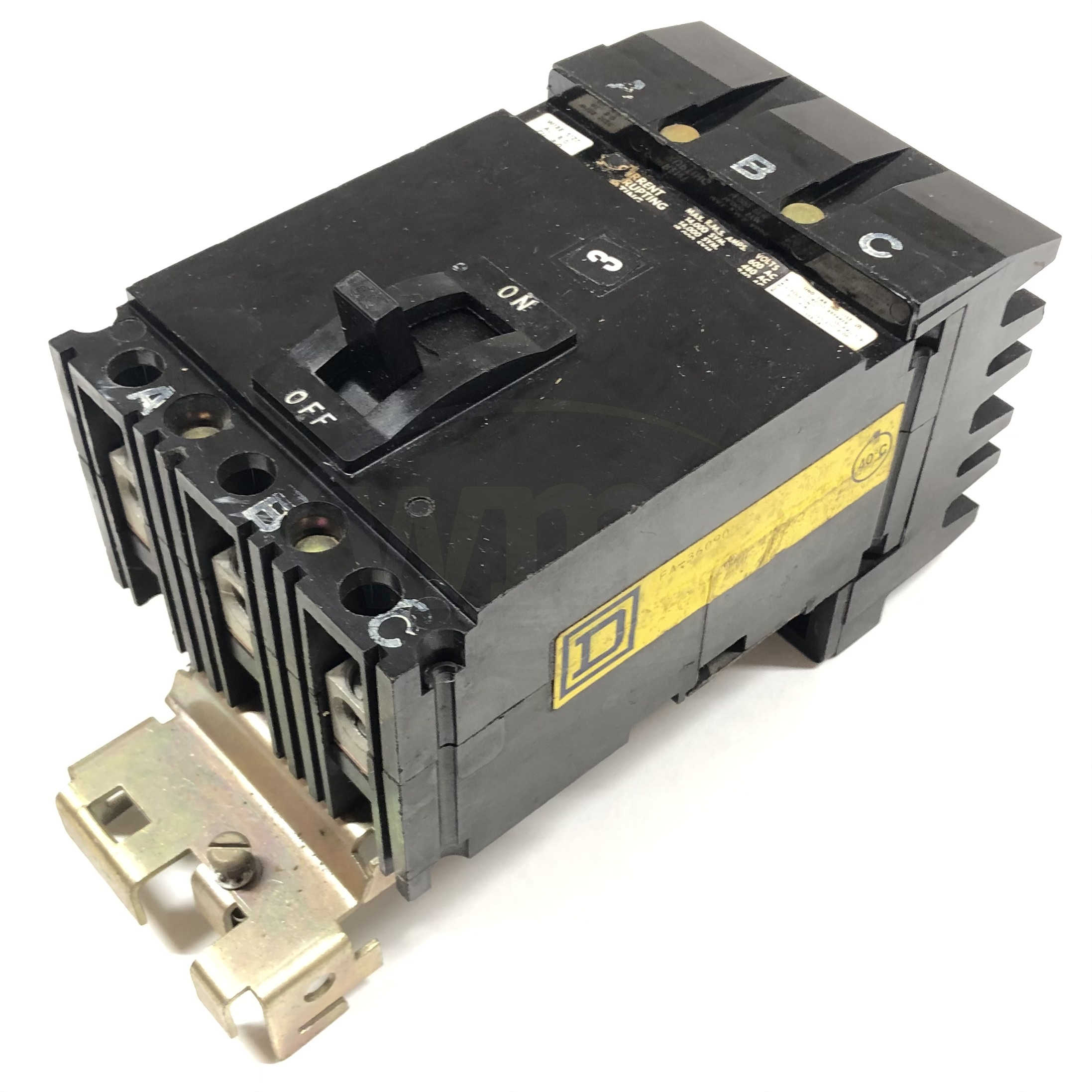

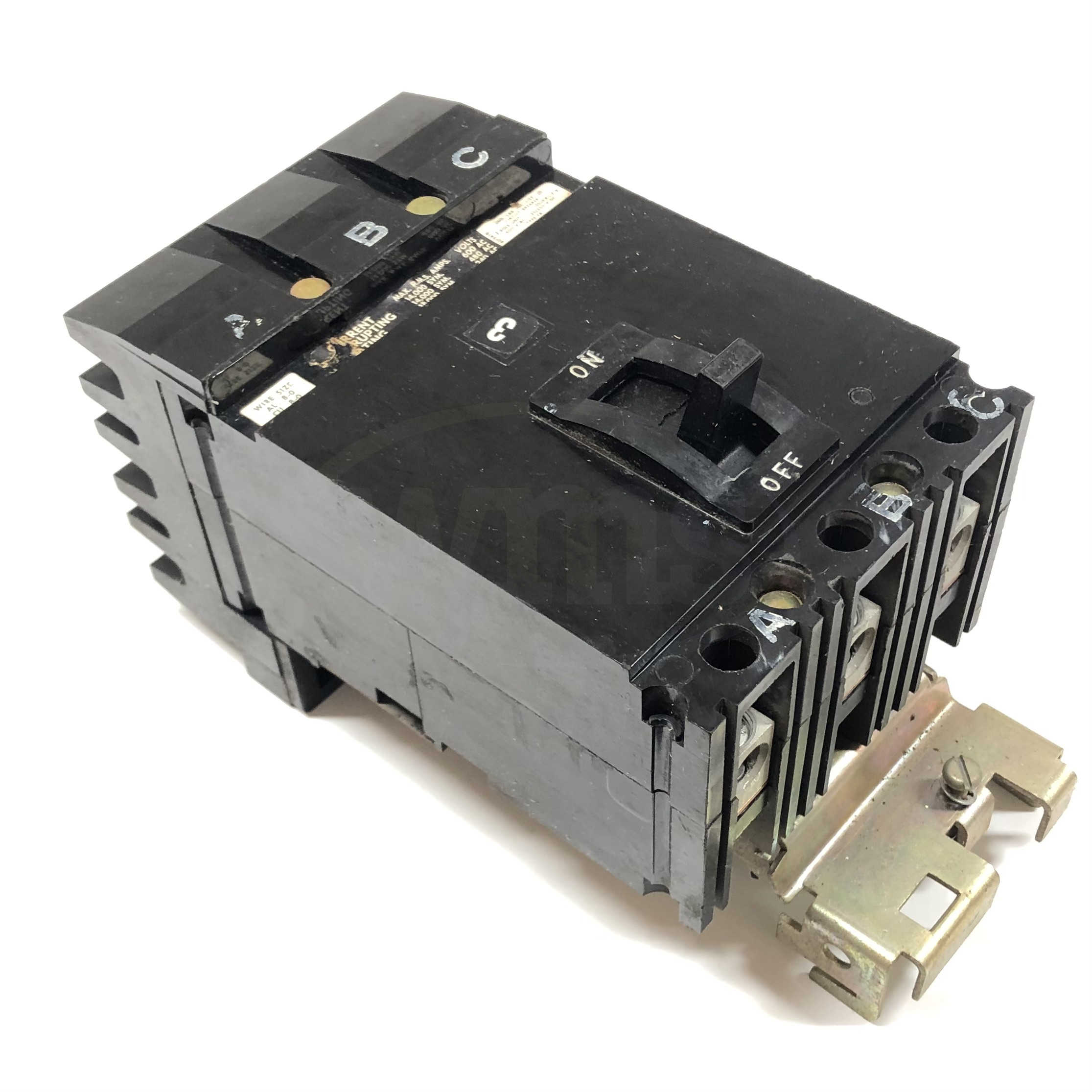

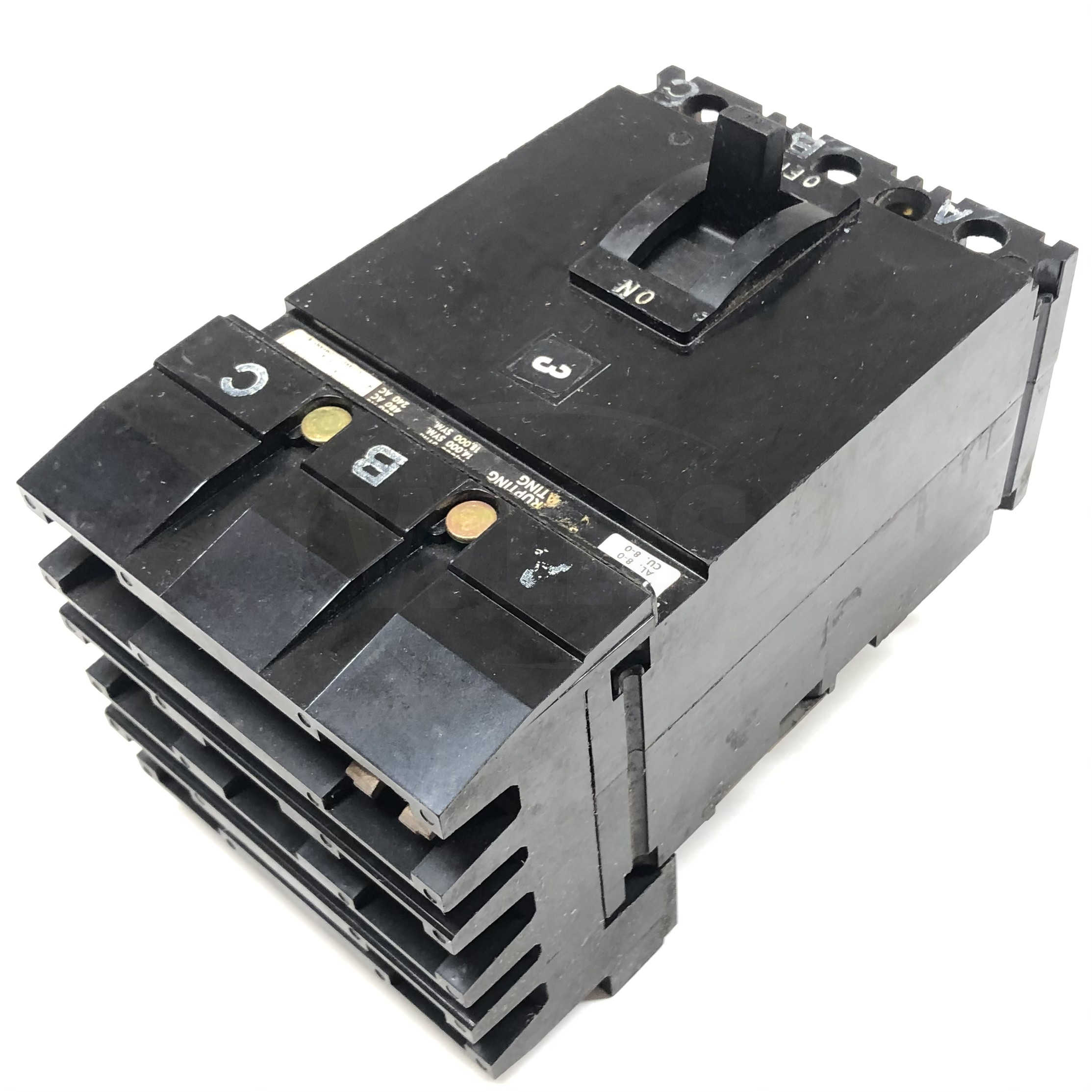

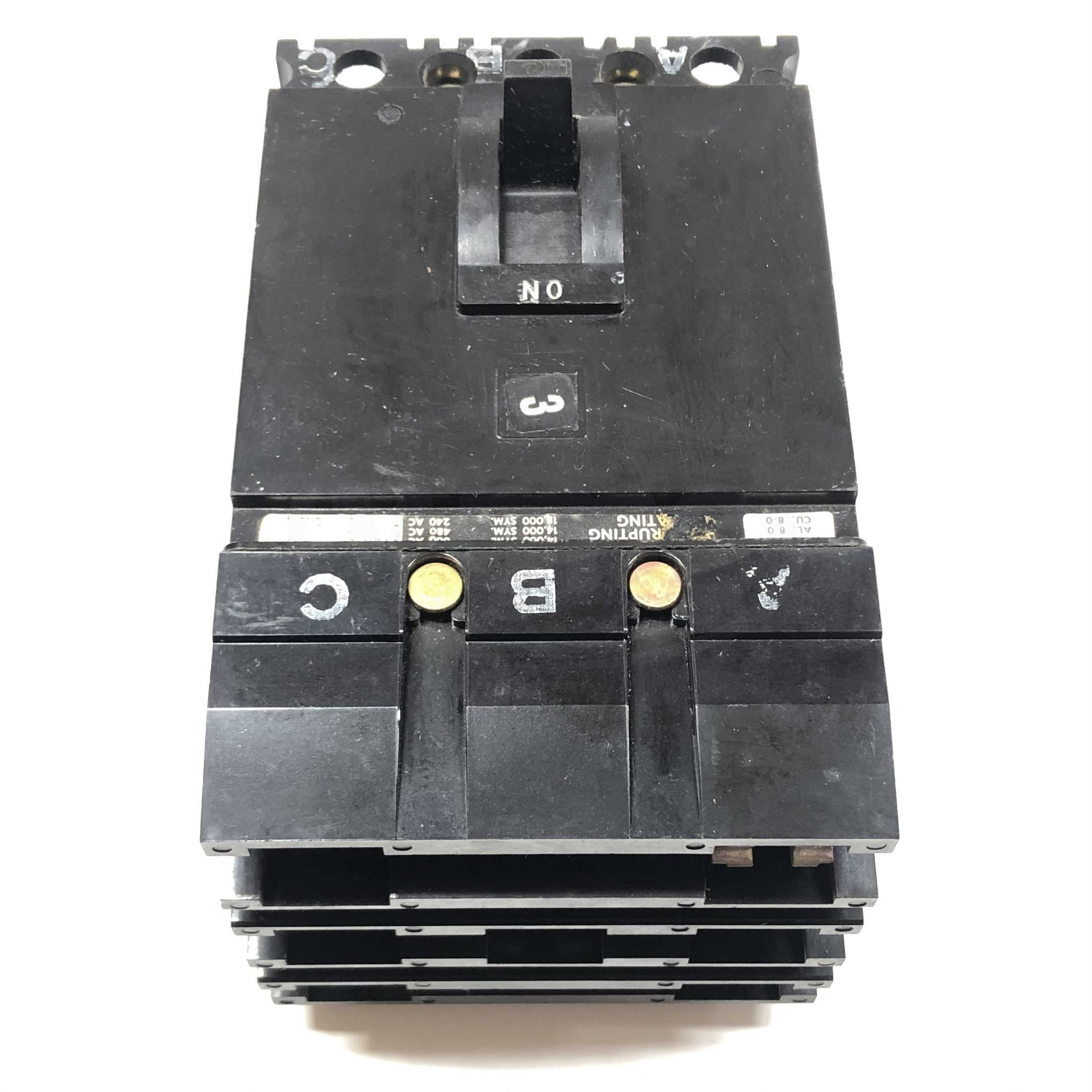

FA36090 Square D Circuit Breaker, Black 3P 90A

MFG: Schneider Electric (Square D)
MFG Part Number: FA36090

Available Stock: 1
Selected accessories will also be added to cart
$290.97 / Each
Quantity:
Used

  • Characteristics

    Main
    product or component type
    Circuit breaker
    range of product
    I-Line
    trip unit technology
    Thermal-magnetic
    breaking capacity code
    A
    Complementary
    Line Rated Current
    90 A
    poles description
    3P
    breaking capacity
    10 kA at 250 V DC
    25 kA at 120/240 V AC
    18 kA at 277/480 V AC
    14 kA at 347/600 V AC
    System Voltage
    250 V DC
    600 V AC
    mounting mode
    I-Line
    electrical connection
    I-Line connection line
    Lugs load
    AWG gauge
    AWG 14...AWG 4 (copper) 1 cable(s)
    AWG 12...AWG 4 (aluminium) 1 cable(s)
    terminal identifier
    AL50FA
    magnetic hold current
    900 A
    magnetic tripping current
    1700 A
    phase connection
    ABC
    Environment
    product certifications
    UL listed
    CSA
    Ordering and shipping details
    Category
    01010 - FA/FH 600V
    Discount Schedule
    DE2
    GTIN
    00785901009757
    Nbr. of units in pkg.
    1
    Package weight(Lbs)
    6.2199999999999998
    Returnability
    Y
    Country of origin
    MX
    Offer Sustainability
    Sustainable offer status
    Green Premium product
    RoHS (date code: YYWW)
    Compliant  - since  1304  -  Schneider Electric declaration of conformity
    REACh
    Reference not containing SVHC above the threshold
    Product environmental profile
    Available
    Product end of life instructions
    Need no specific recycling operations
    Contractual warranty
