/Products/Electric Motors/Single Phase/Century/Ventilation Fan/F684 Century 0.33/0.07HP Direct Drive Fan Electric Motor, 1800/900RPM
Click Image to Expand

Product ID: F684

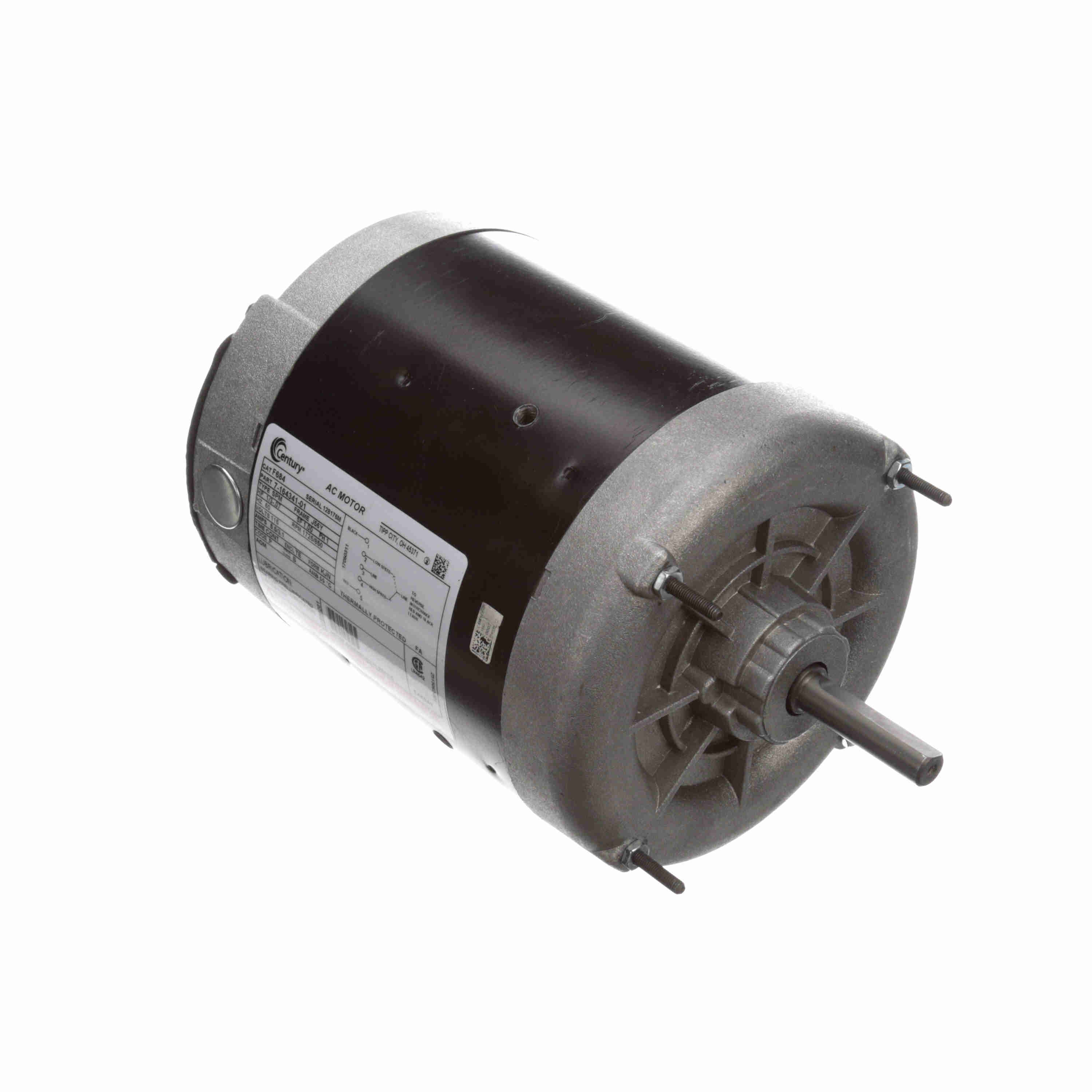

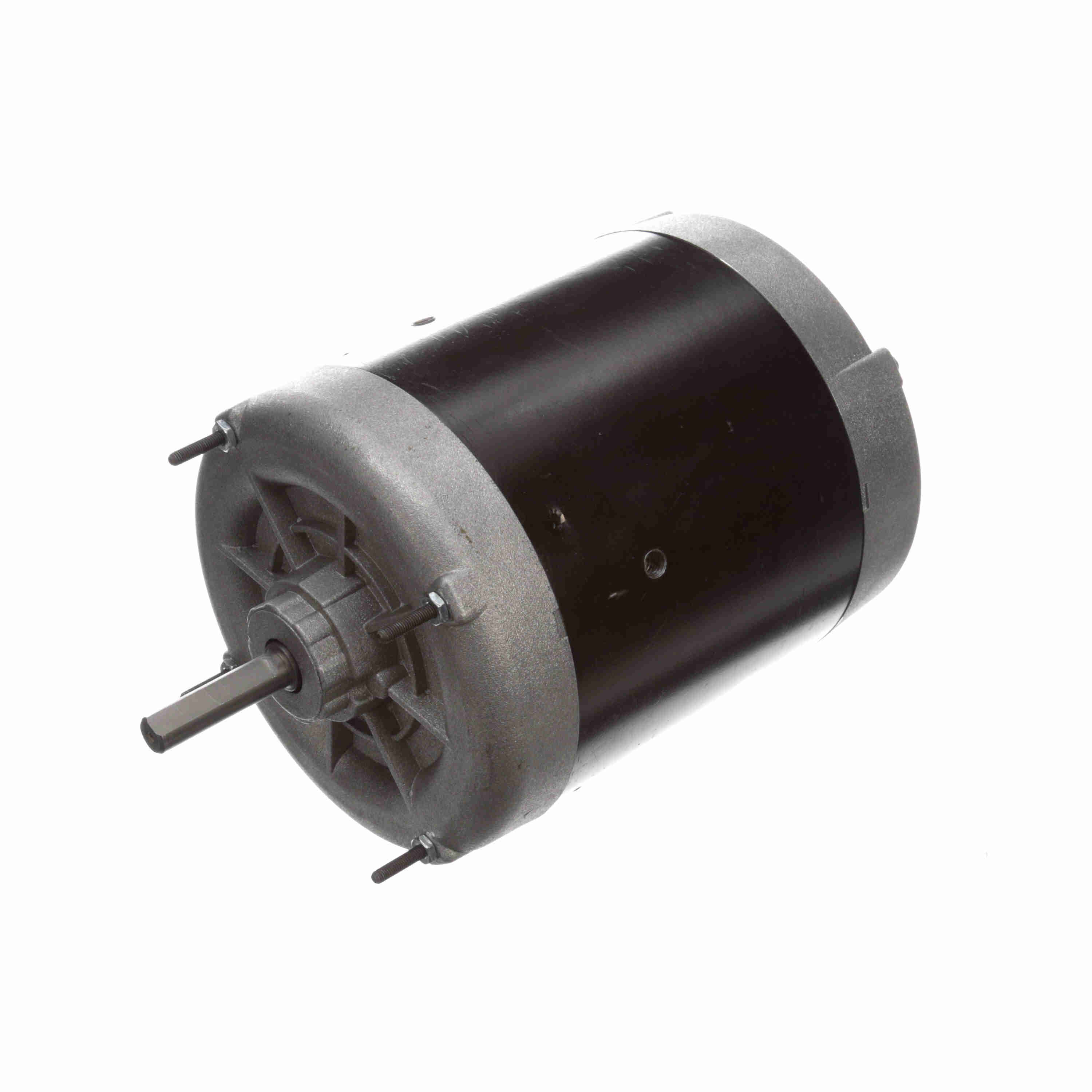

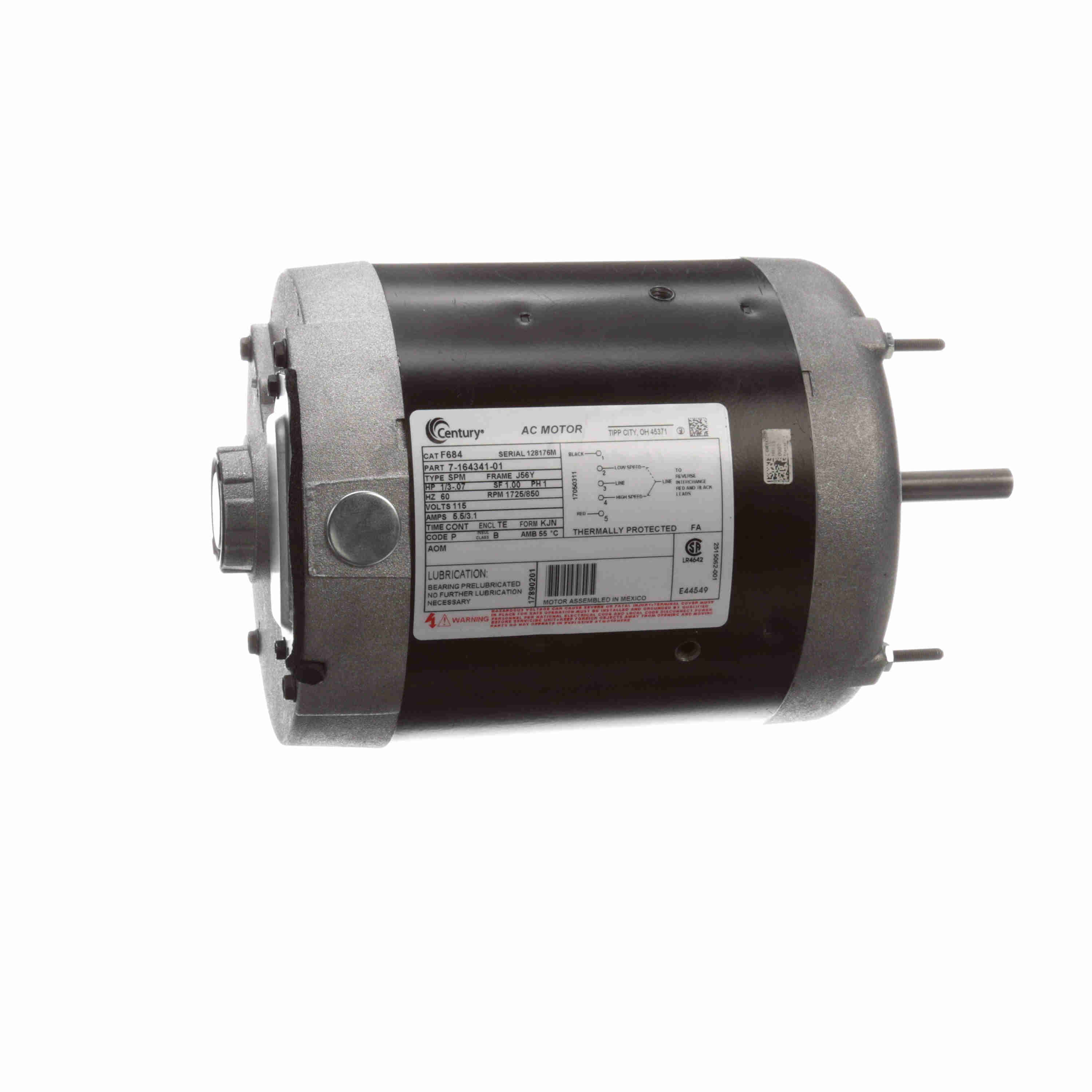

F684 Century 0.33/0.07HP Direct Drive Fan Electric Motor, 1800/900RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: F684

Selected accessories will also be added to cart
$129.97 / Each
Quantity:
TEAO, 56Y Frame, 2-Speed, 115VAC Single Phase 60Hz, 1/2" Keyed Shaft, Reversible

Features

  • Double sealed ball bearings
  • Fully gasketed
  • Auto protector

General Specifications

UPC: 786674020239 Weight: 27.00 LB
Packaged Length: 16 IN Packaged Width: 9 IN
Packaged Height: 8 IN

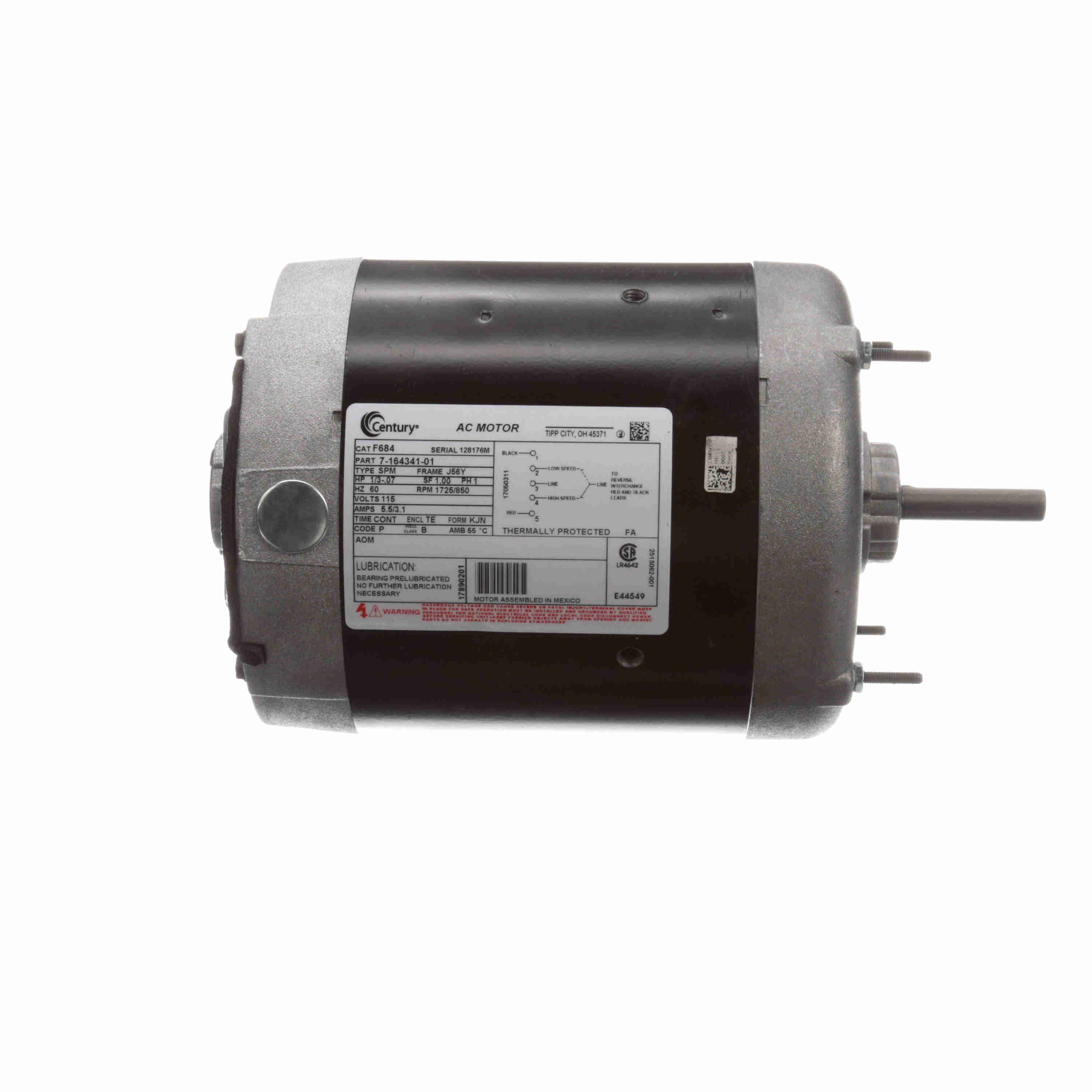

Nameplate Specifications

Output HP: 1/3-.07 Hp Output KW: 0.25 kW
Frequency: 60 Hz Voltage: 115 V
Current: 5.5/3.1 A Speed: 1725/850 rpm
Service Factor: 1 Phase: 1
Duty: Continuous Insulation Class: B
Frame: J56Y Enclosure: Totally Enclosed Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 55 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Split Phase, Induction Run, Multi-Speed Starting Method: Across The Line
Poles: 4/ 8 Rotation: Reversible Counterclockwise
Mounting: Round Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 11.12 in
Frame Length: 5.13 in Shaft Diameter: 0.498 in
Shaft Extension: 2.00 in
