Products
/
Electric Motors
/
Single Phase
/
Century
/
Ventilation Fan
/
F500L Century 1/3HP Belt Drive Fan Electric Motor, 1800RPM
Click Image to Expand
Previous
Next
Product ID: F500L

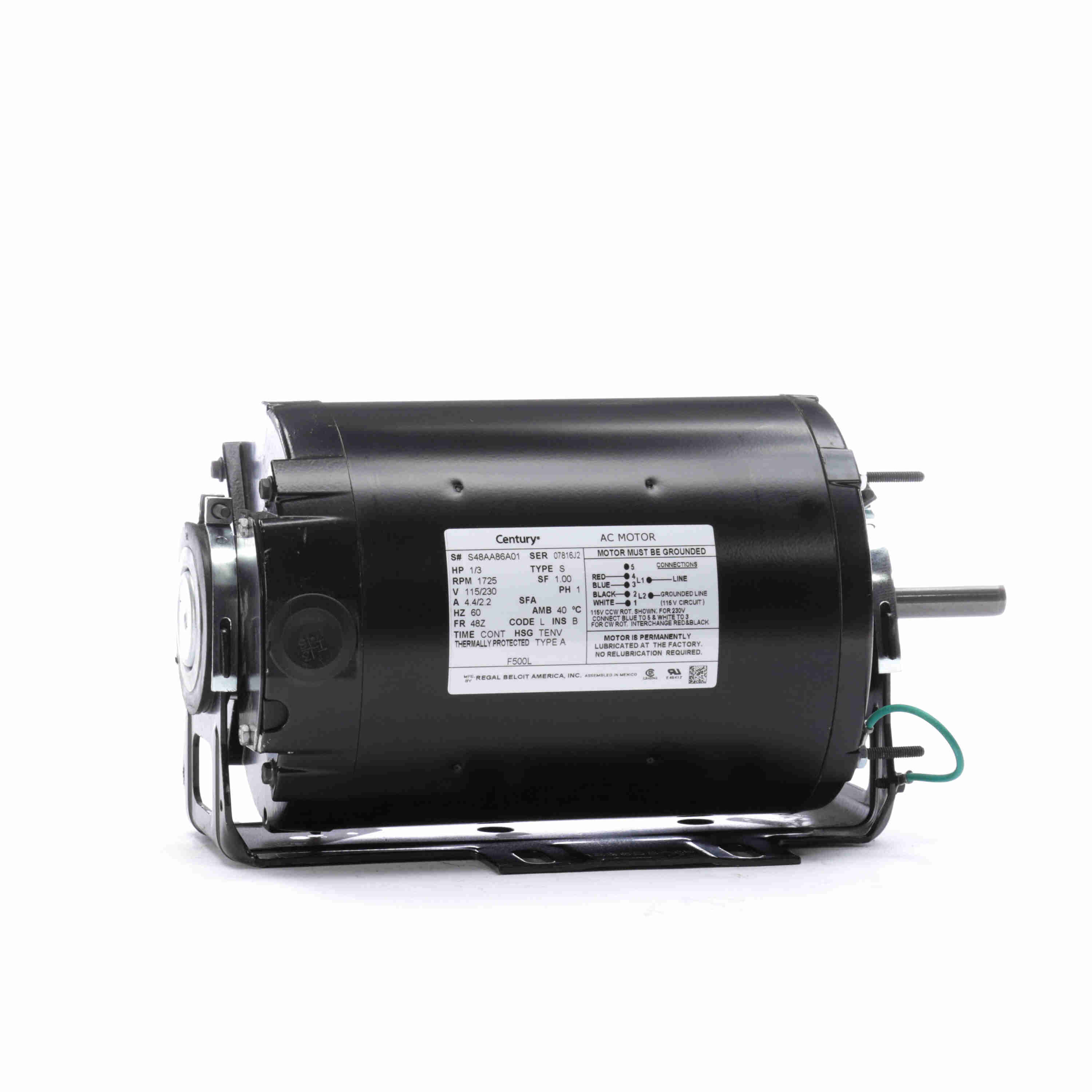

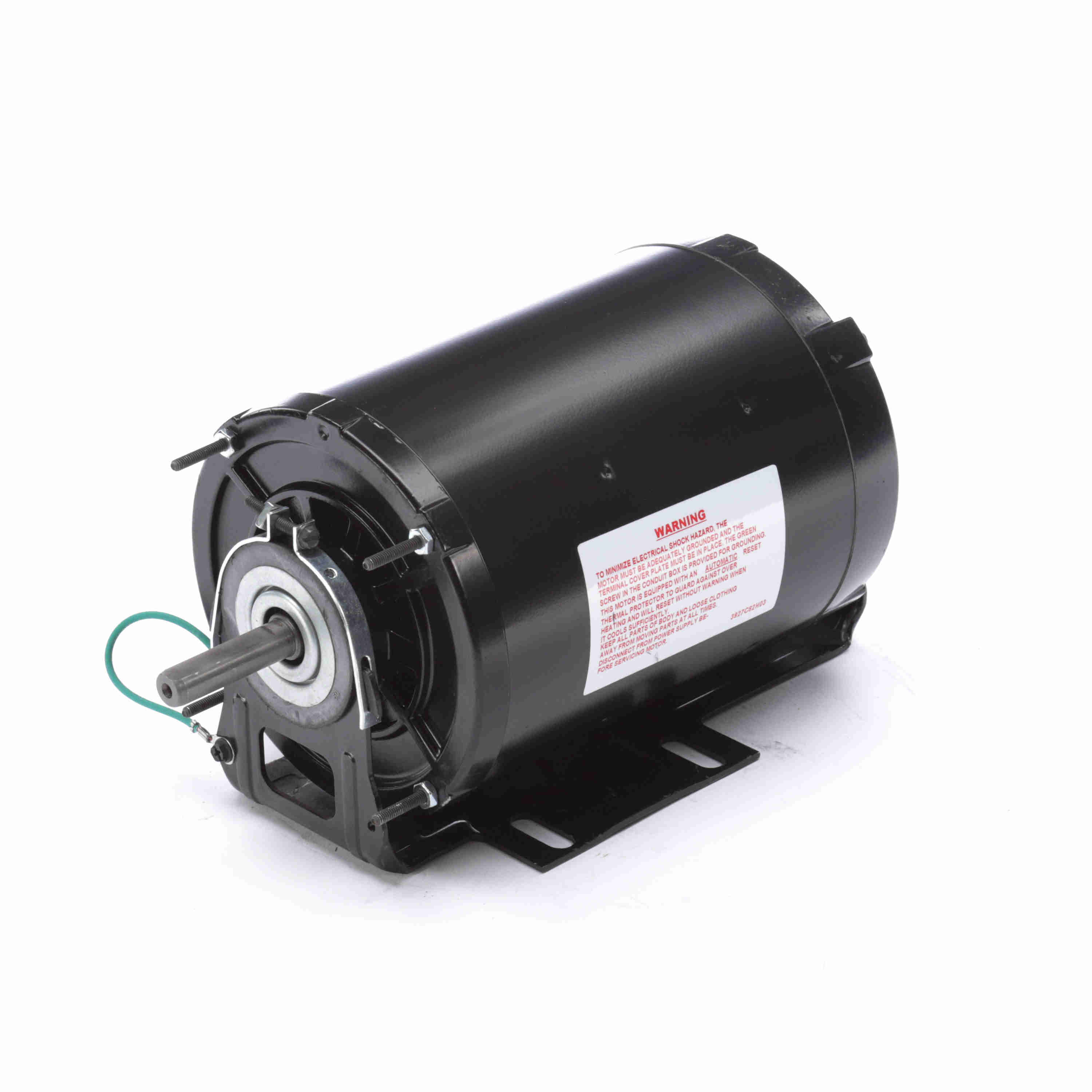

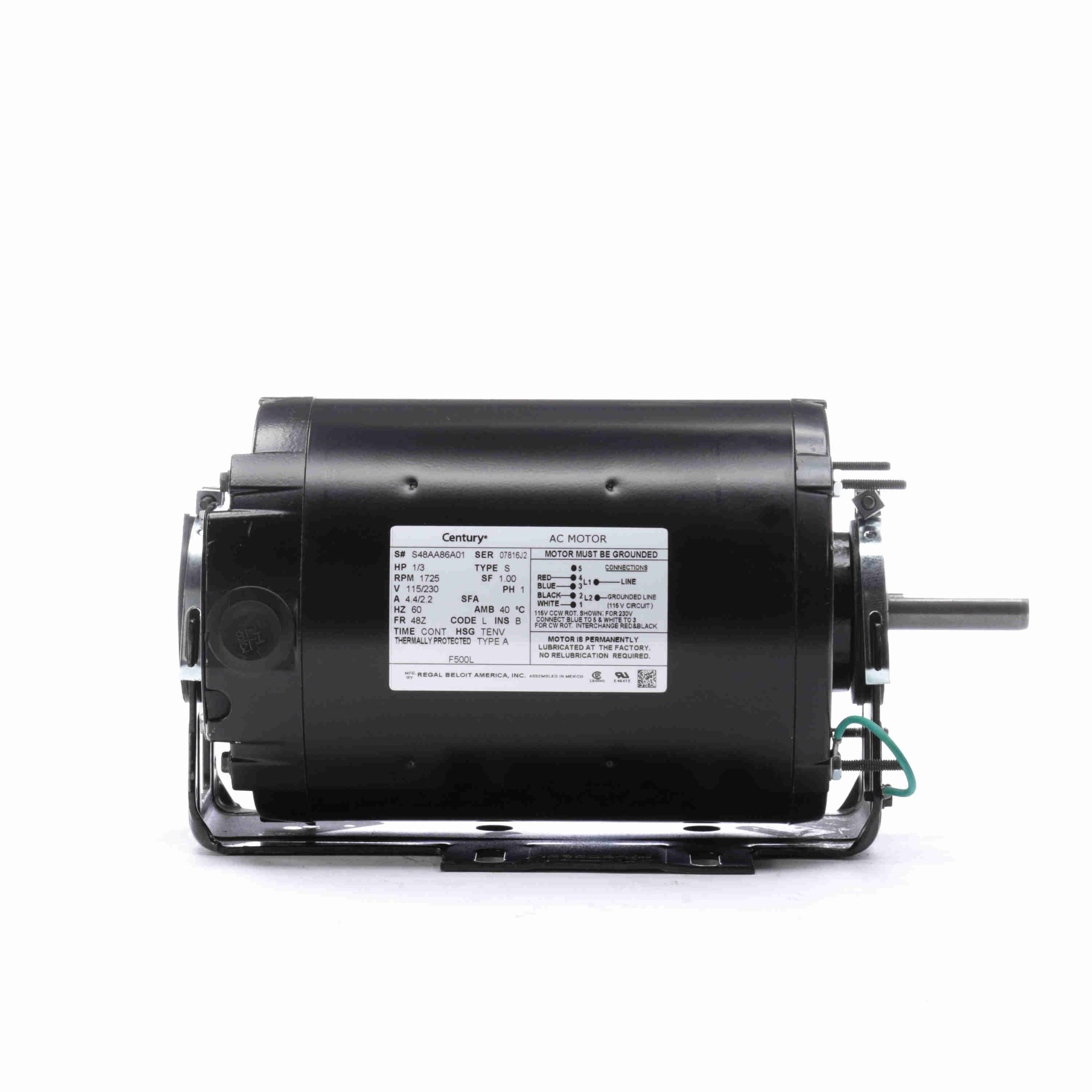

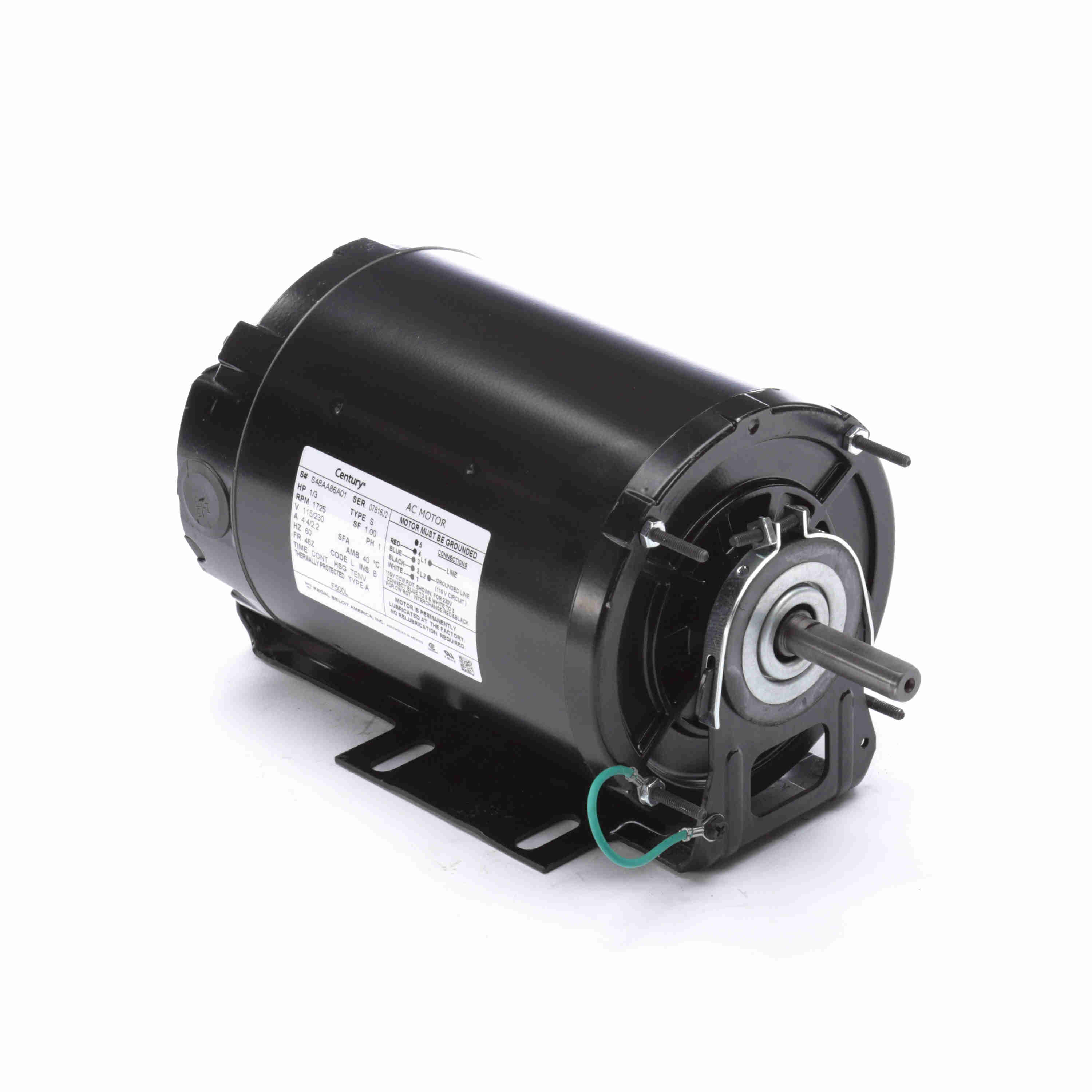

F500L Century 1/3HP Belt Drive Fan Electric Motor, 1800RPM
MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: F500L
Selected accessories will also be added to cart
$91.97 / Each
Quantity:
TENV, 48Z Frame, 115/230VAC Single Phase 60Hz, 1/2" Shaft, Resilient Base, Rolled Steel, Reversible
Details
Features
Suitable for belted loads
Automatic reset thermal protector
Fully gasketed
General Specifications
UPC:
786674020093
Weight:
21.00 LB
Packaged Length:
14 IN
Packaged Width:
8 IN
Packaged Height:
8.5 IN
Nameplate Specifications
Output HP:
1/3 Hp
Output KW:
0.25 kW
Frequency:
60 Hz
Voltage:
115/230 V
Current:
4.4/2.2 A
Speed:
1725 rpm
Service Factor:
1
Phase:
1
Duty:
Continuous
Insulation Class:
B
Frame:
48Z
Enclosure:
Totally Enclosed Non Ventilated
Thermal Protection:
Automatic
Ambient Temperature:
40 °C
UL:
Recognized
CSA:
Y
CE:
N
Technical Specifications
Electrical Type:
Split Phase
Starting Method:
Across The Line
Poles:
4
Rotation:
Reversible
Mounting:
Resilient Base
Drive End Bearing:
Ball
Opp Drive End Bearing:
Ball
Frame Material:
Rolled Steel
Shaft Type:
Flat
Overall Length:
11.21 in
Frame Length:
6.25 in
Shaft Diameter:
0.500 in
Shaft Extension:
1.88 in
Speed & Load Characteristics
