/Products/Electric Motors/Single Phase/Marathon/Farm Duty/F104 Marathon 1HP Farm Duty Electric Motor, 1725RPM
Click Image to Expand

Product ID: F104

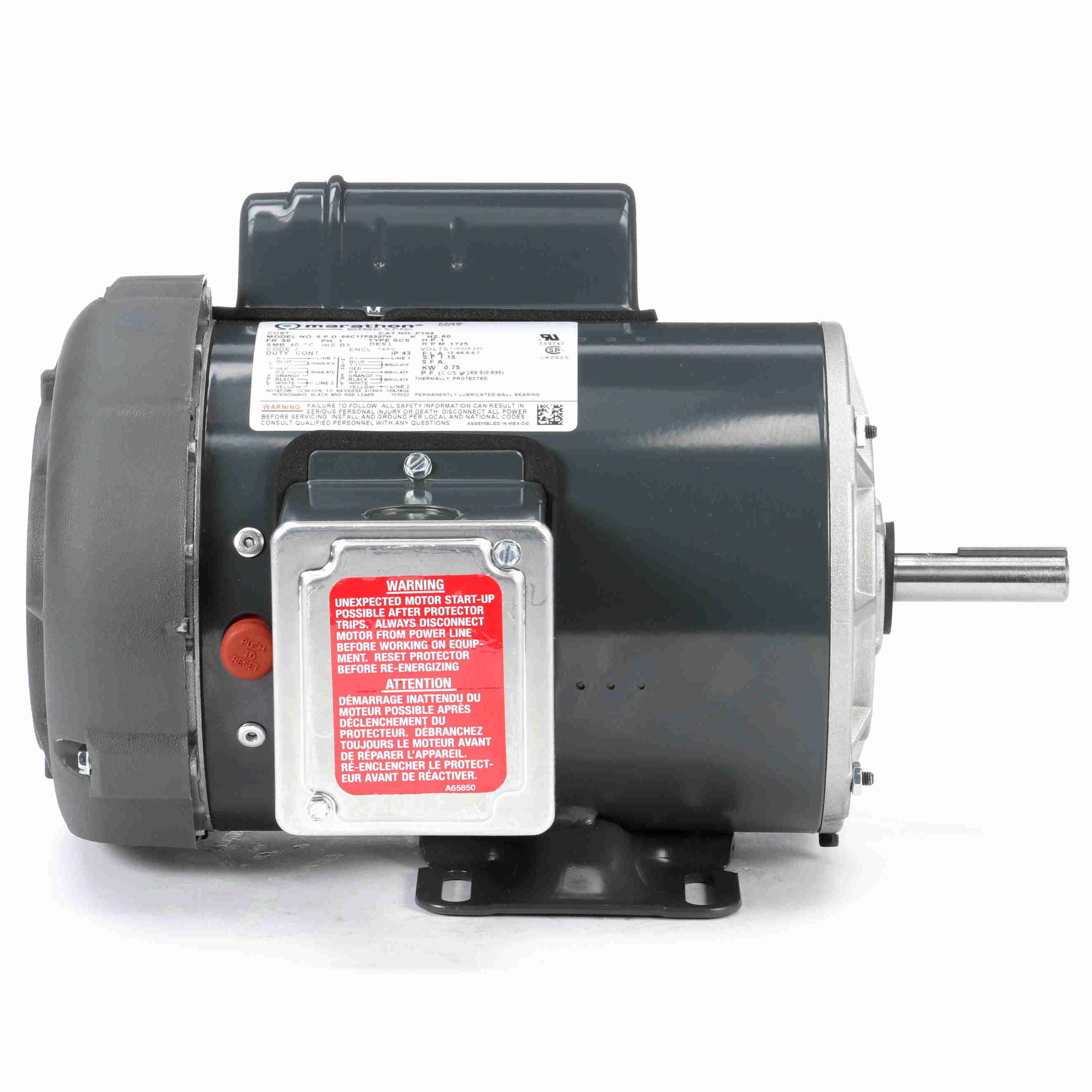

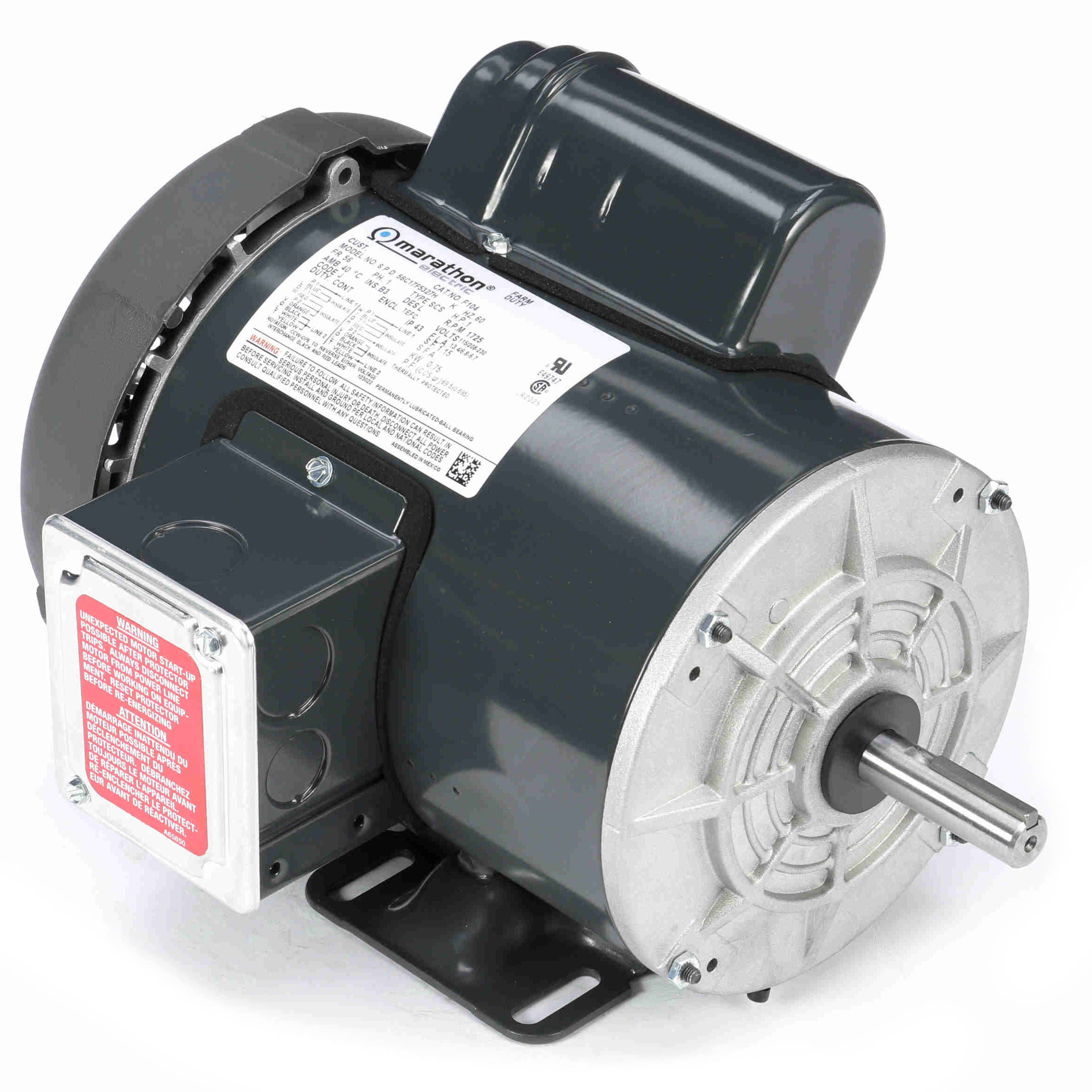

F104 Marathon 1HP Farm Duty Electric Motor, 1725RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: F104

Selected accessories will also be added to cart
$689.97 / Each
Quantity:
TEFC, 56 Frame, 115/208-230V Single Phase 60Hz, Rigid Base, 056C17F5327

Features

Features
  • Shaft end mechanically locked on C-face models (excludes 5K models )
  • Capacitor start design for high starting torque
  • Capacitor start/capacitor run design for higher efficiency
  • Low temperature manual reset thermal protector
  • Totally enclosed and fully gasketed construction for dirty environments
  • Condensate drains
  • Shaft slinger

General Specifications

General Specifications
Model :056C17F5327 Catalog No :F104
Part Description :1,1725,TEFC,56,1/60/115/208-230 Category :Single Phase
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :1 Hp Output KW :0.75 kW
Frequency :60 Hz Voltage :115/208-230 V
Current :13.4/6.8-6.7 A Speed :1725 rpm
Service Factor :1.15 Phase :1
Efficiency :72 % Duty :Continous
Insulation Class :B Design Code :L
KVA Code :J Frame :56
Enclosure :Totally Enclosed Fan Cooled Overload Protector :Manual
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N
IP Code :43

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Induction Run Starting Method :Across The Line
Poles :4 Rotation :Selective Counterclockwise
Mounting :Rigid Base Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :T
Overall Length :12.82 in Frame Length :7.56 in
Shaft Diameter :0.625 in Shaft Extension :2.32 in
Assembly/Box Mounting :F1 Only UPC :722856027788
Weight :32.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Locked-Rotor34.700.0142.500.007.1085.01.00
Pull-Up24.40101.001,2504.201.00
Break-Down18.600.0122.000.01,5143.400.01.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 4.40
  • 0.170
  • 0.0
  • 16.5
  • 1,800
  • 0.0
  • 0.00
  • 25 %
  • 4.80
  • 0.380
  • 50.2
  • 34.5
  • 1,785
  • 0.0
  • 11.70
  • 50 %
  • 5.20
  • 0.590
  • 64.3
  • 49.0
  • 1,774
  • 0.0
  • 23.70
  • 75 %
  • 5.80
  • 0.815
  • 70.0
  • 60.5
  • 1,760
  • 0.0
  • 35.80
  • 100 %
  • 6.70
  • 1.040
  • 72.0
  • 69.5
  • 1,740
  • 75.0
  • 48.30
  • 115 %
  • 7.00
  • 1.150
  • 74.6
  • 72.4
  • 1,734
  • 95.0
  • 55.70
  • 125 %
  • 7.80
  • 1.325
  • 71.0
  • 73.9
  • 1,725
  • 0.0
  • 61.00
  • 150 %
  • 9.00
  • 1.625
  • 69.5
  • 78.0
  • 1,705
  • 0.0
  • 74.10
  • 175 %
  • 10.70
  • 1.980
  • 66.0
  • 80.4
  • 1,670
  • 0.0
  • 88.20
