/Products/Electric Motors/Single Phase/Marathon/Farm Duty/F102 Marathon 1/2HP Farm Duty Electric Motor, 1800RPM
Click Image to Expand

Product ID: F102

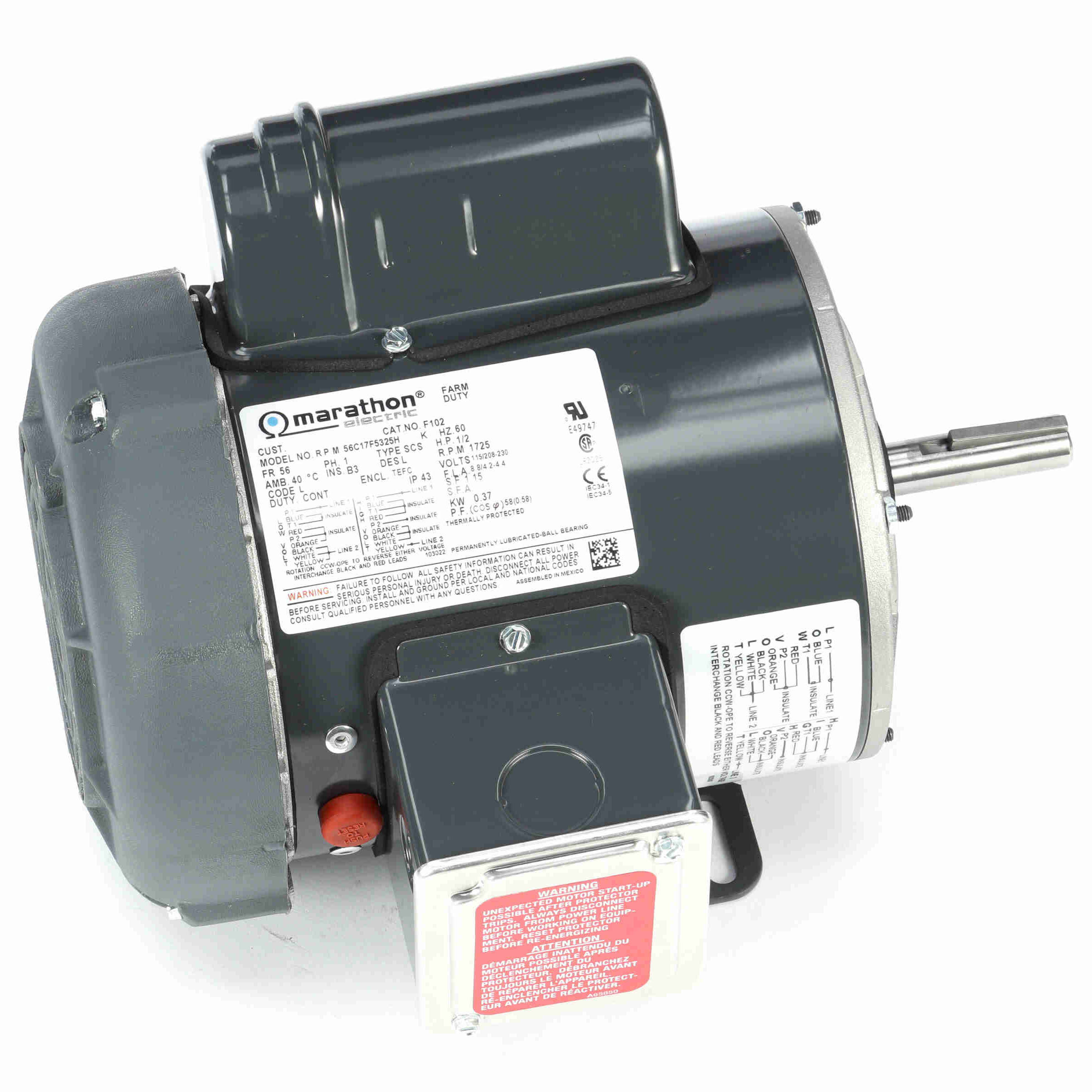

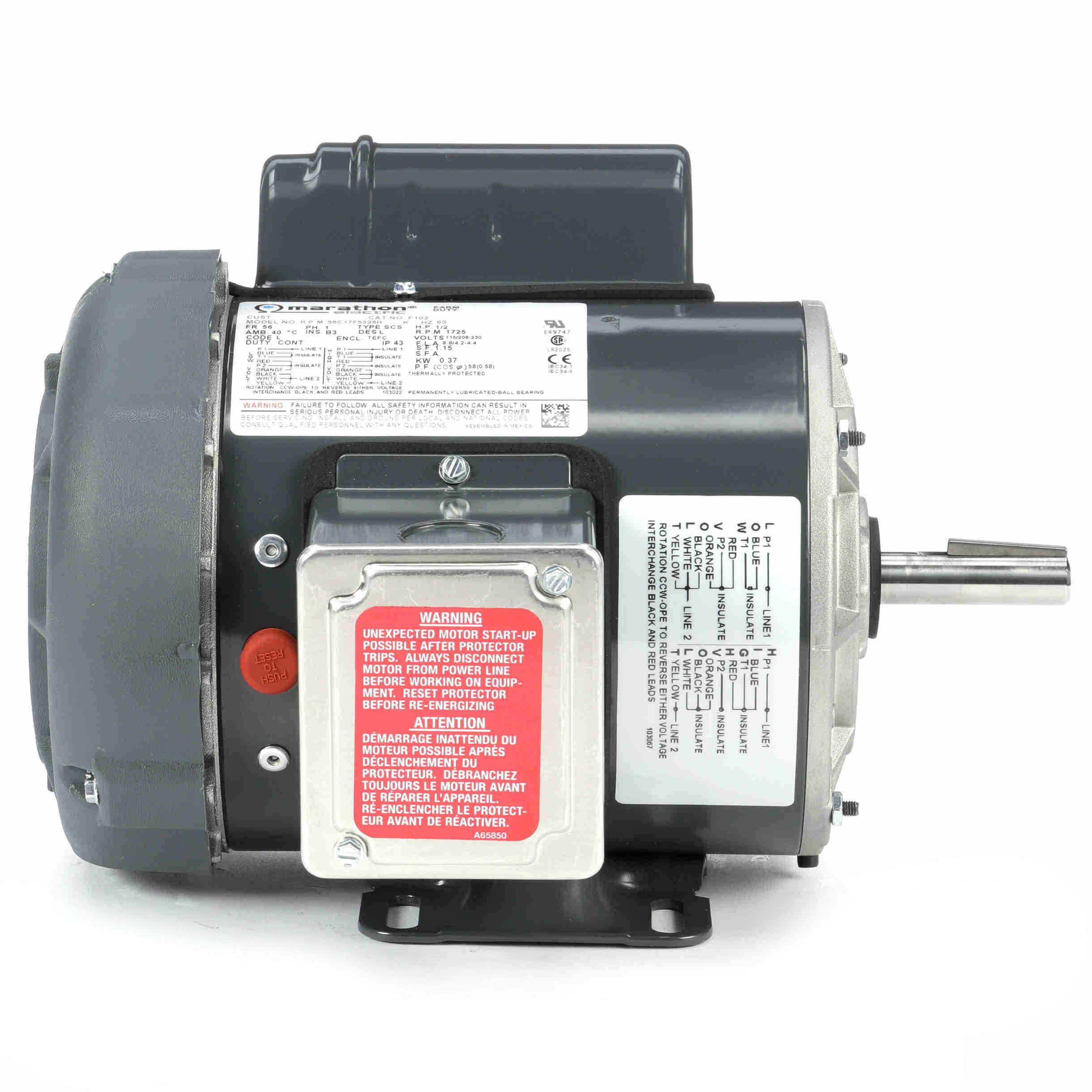

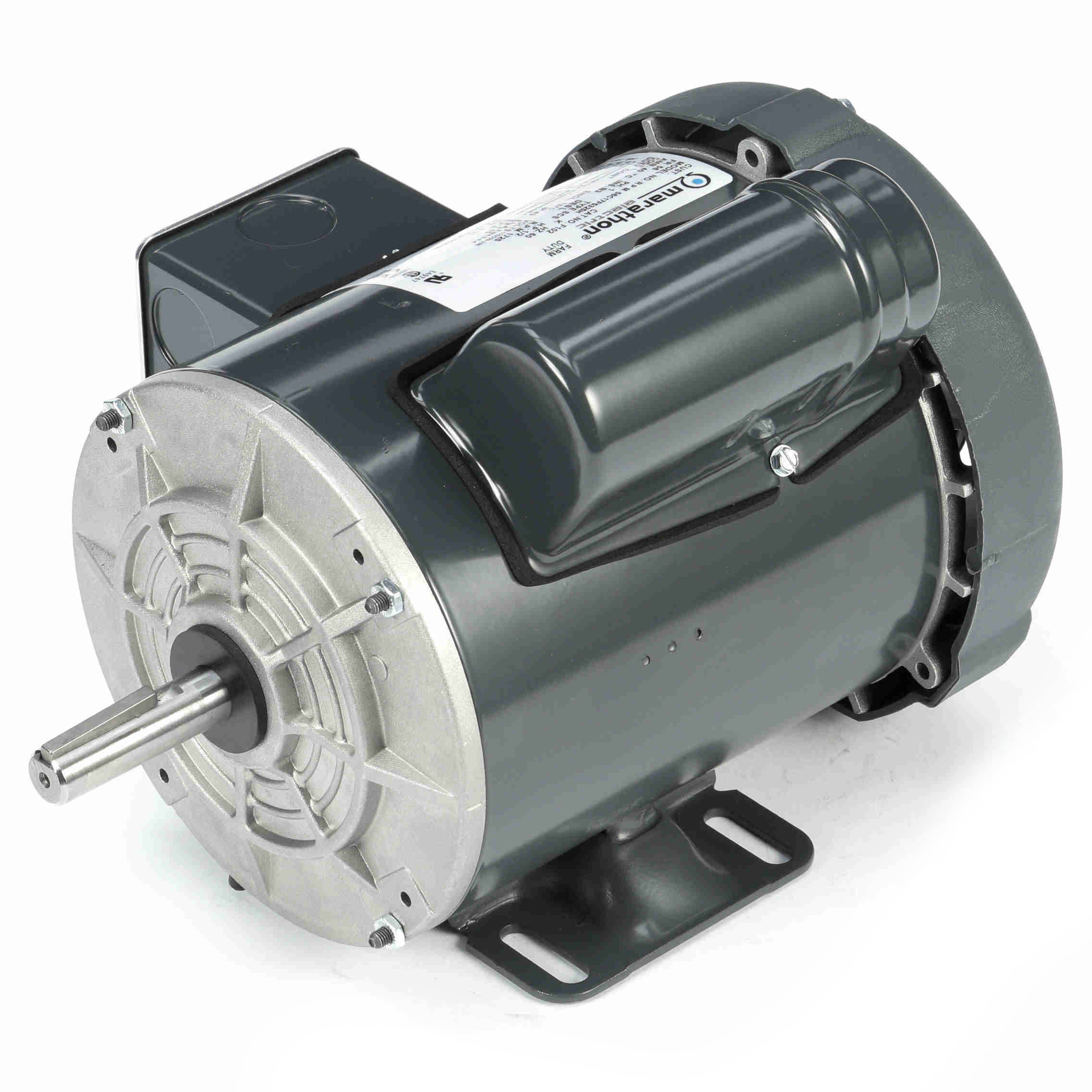

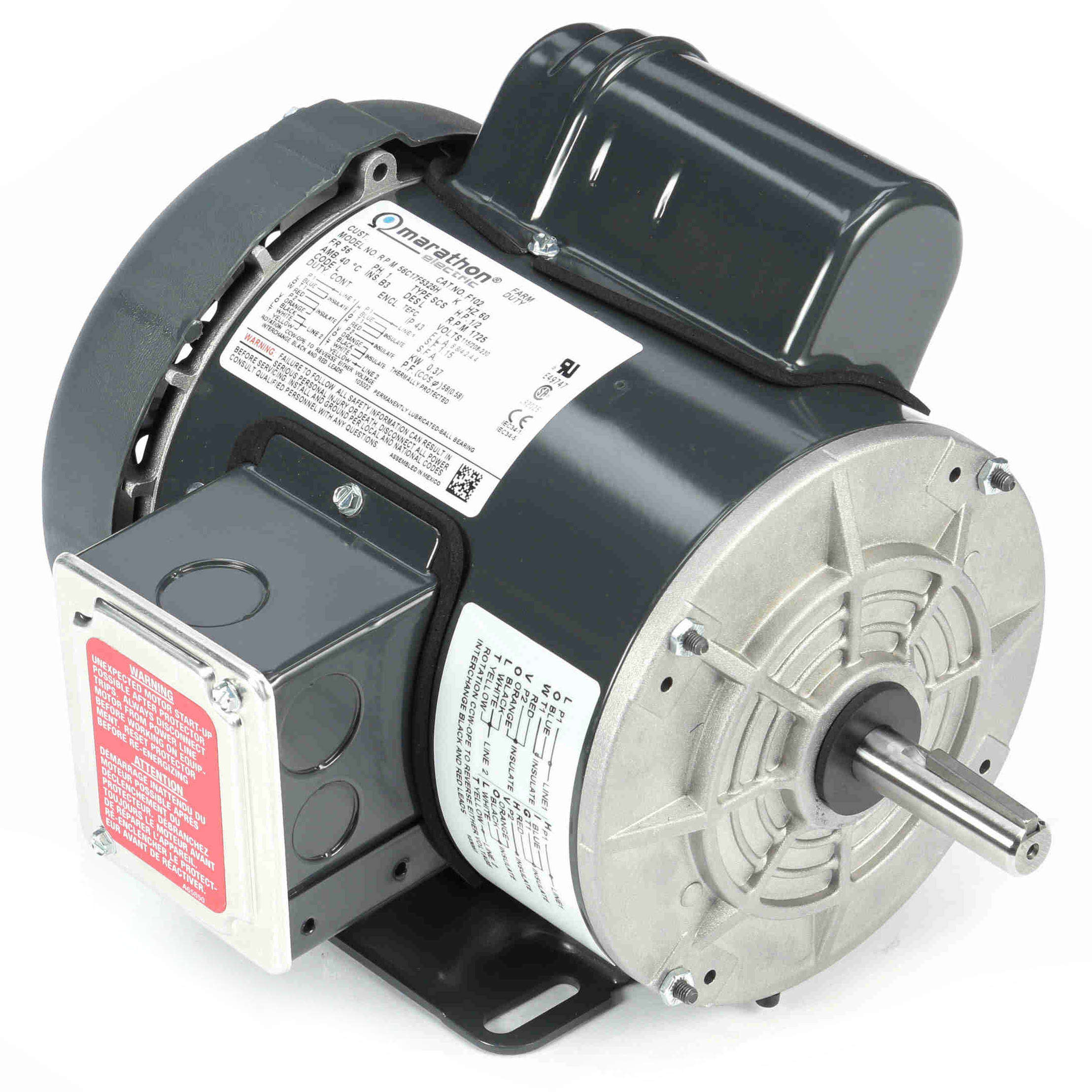

F102 Marathon 1/2HP Farm Duty Electric Motor, 1800RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: F102

Selected accessories will also be added to cart
$529.97 / Each
Quantity:
TEFC, 56 Frame, 115/208-230V Single Phase 60Hz, Rigid Base, 056C17F5325

Features

Features
  • Shaft end mechanically locked on C-face models
  • Capacitor start design for high starting torque
  • Shaft slinger
  • Low temperature manual reset thermal protector
  • Totally enclosed and fully gasketed construction for dirty environments
  • Condensate drains

General Specifications

General Specifications
Model :056C17F5325 Catalog No :F102
Part Description :1/2,1800,TEFC,56,1/60/115/208-230 Category :Single Phase
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :0.50 Hp Output KW :0.37 kW
Frequency :60 Hz Voltage :115/208-230 V
Current :8.8/4.2-4.4 A Speed :1725 rpm
Service Factor :1.15 Phase :1
Efficiency :66 % Duty :Continous
Insulation Class :B Design Code :L
KVA Code :L Frame :56
Enclosure :Totally Enclosed Fan Cooled Overload Protector :Manual
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :Y
IP Code :43

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Induction Run Starting Method :Across The Line
Poles :4 Rotation :Selective Counterclockwise
Mounting :Rigid Base Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :T
Overall Length :11.82 in Frame Length :6.56 in
Shaft Diameter :0.625 in Shaft Extension :2.32 in
Assembly/Box Mounting :F1 Only UPC :722856027764
Weight :25.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Break-Down11.8072.301,4862.200.50
Pull-Up14.4061.201,2212.600.50
Locked-Rotor21.3083.8004.500.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 3.50
  • 0.150
  • 0.0
  • 18.6
  • 1,800
  • 0.0
  • 0.00
  • 25 %
  • 3.60
  • 0.245
  • 38.3
  • 29.6
  • 1,783
  • 0.0
  • 5.93
  • 50 %
  • 3.70
  • 0.345
  • 54.3
  • 40.5
  • 1,772
  • 0.0
  • 11.90
  • 75 %
  • 4.14
  • 0.480
  • 58.3
  • 50.3
  • 1,760
  • 0.0
  • 18.00
  • 100 %
  • 4.40
  • 0.565
  • 66.0
  • 58.0
  • 1,746
  • 55.0
  • 24.10
  • 115 %
  • 4.60
  • 0.660
  • 66.5
  • 61.0
  • 1,735
  • 65.0
  • 28.10
  • 125 %
  • 4.80
  • 0.695
  • 67.2
  • 63.0
  • 1,730
  • 0.0
  • 30.40
  • 150 %
  • 5.20
  • 0.825
  • 68.0
  • 69.0
  • 1,712
  • 0.0
  • 36.90
  • 175 %
  • 5.85
  • 0.980
  • 66.7
  • 72.8
  • 1,692
  • 0.0
  • 43.50
  • 200 %
  • 6.60
  • 1.160
  • 64.5
  • 76.4
  • 1,665
  • 0.0
  • 50.60
