/Products/Surplus Industrial/Transformers/EX15T3HCU Square D Dry Type Transformer, 15kVA, 3-Phase
Click Image to Expand

Product ID: EX15T3HCU

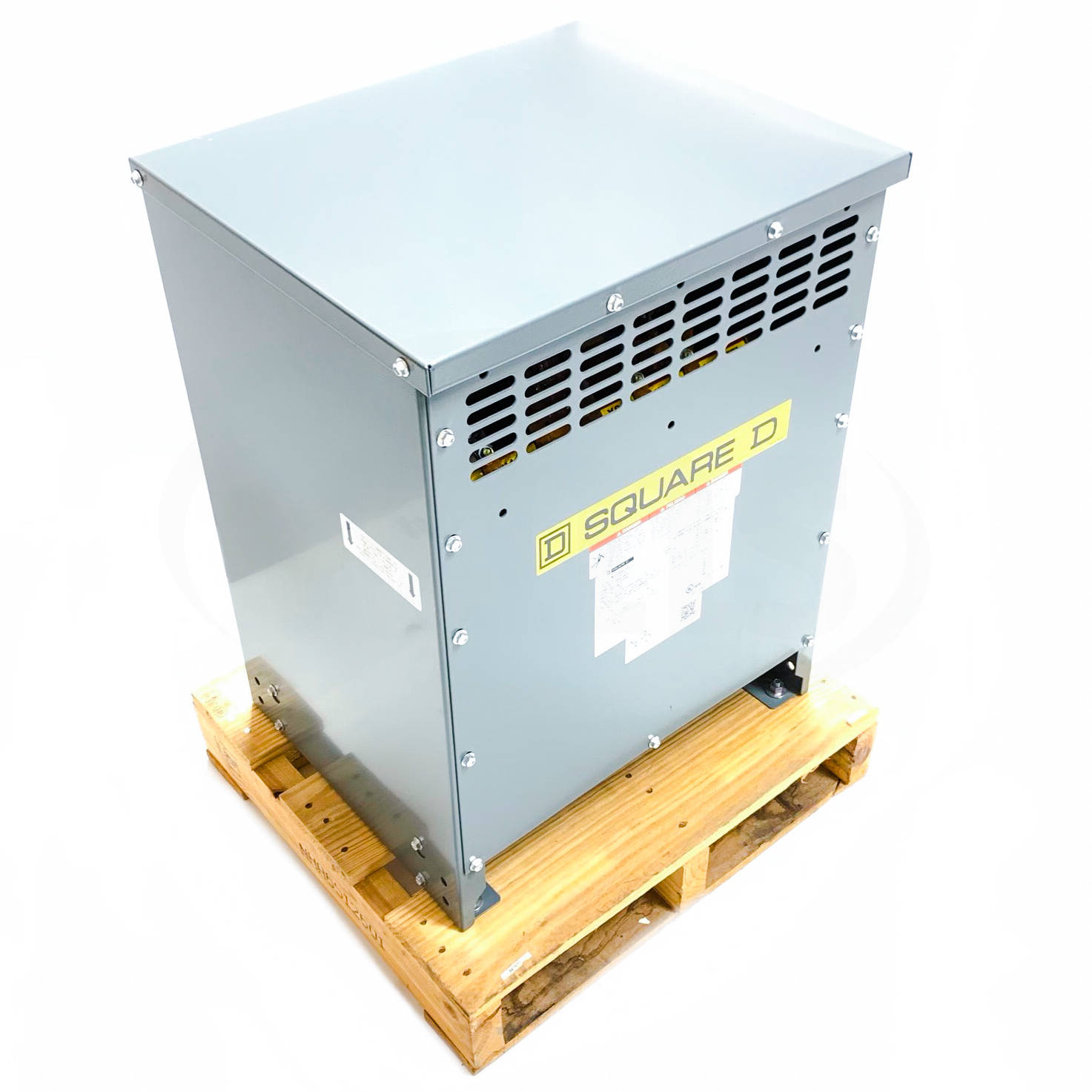

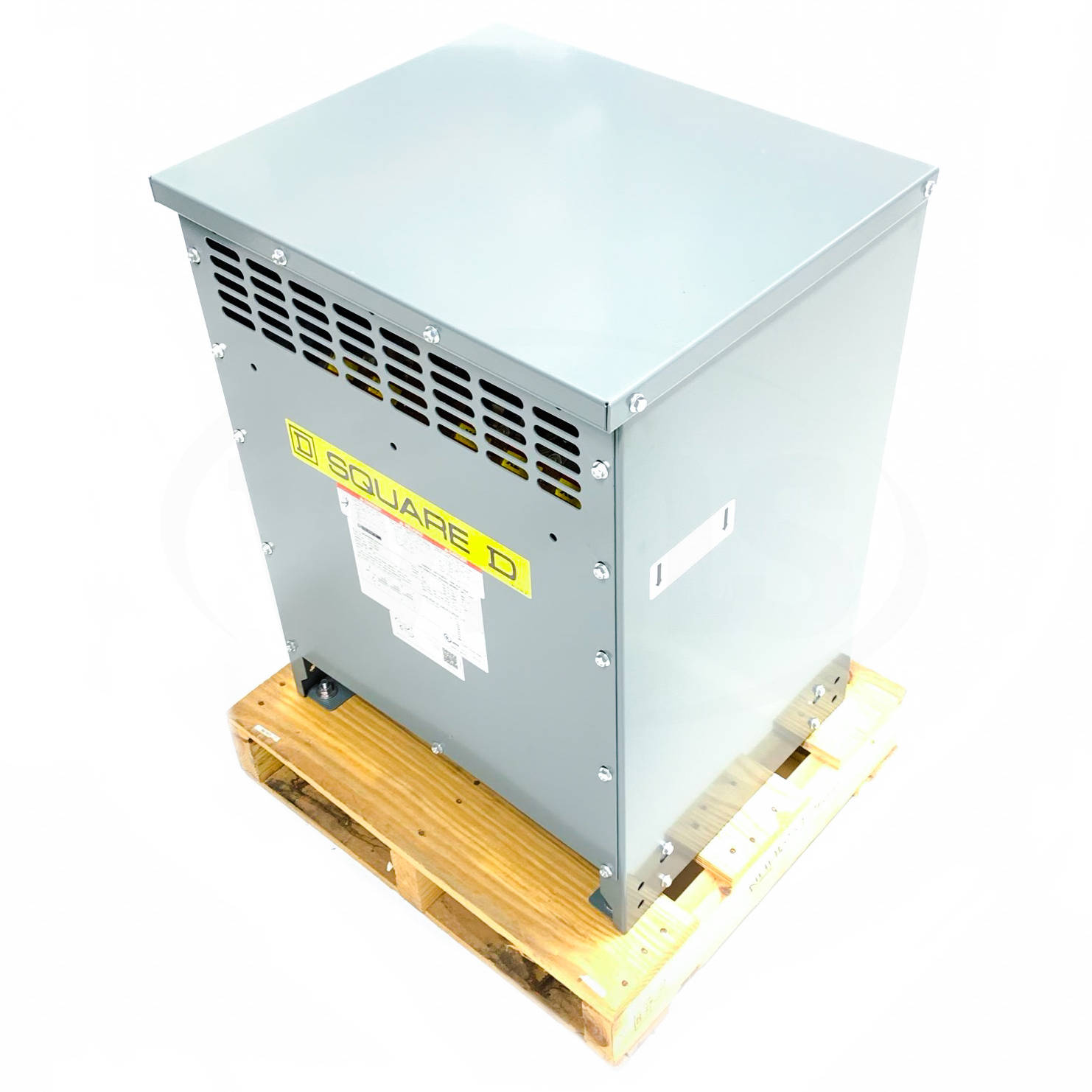

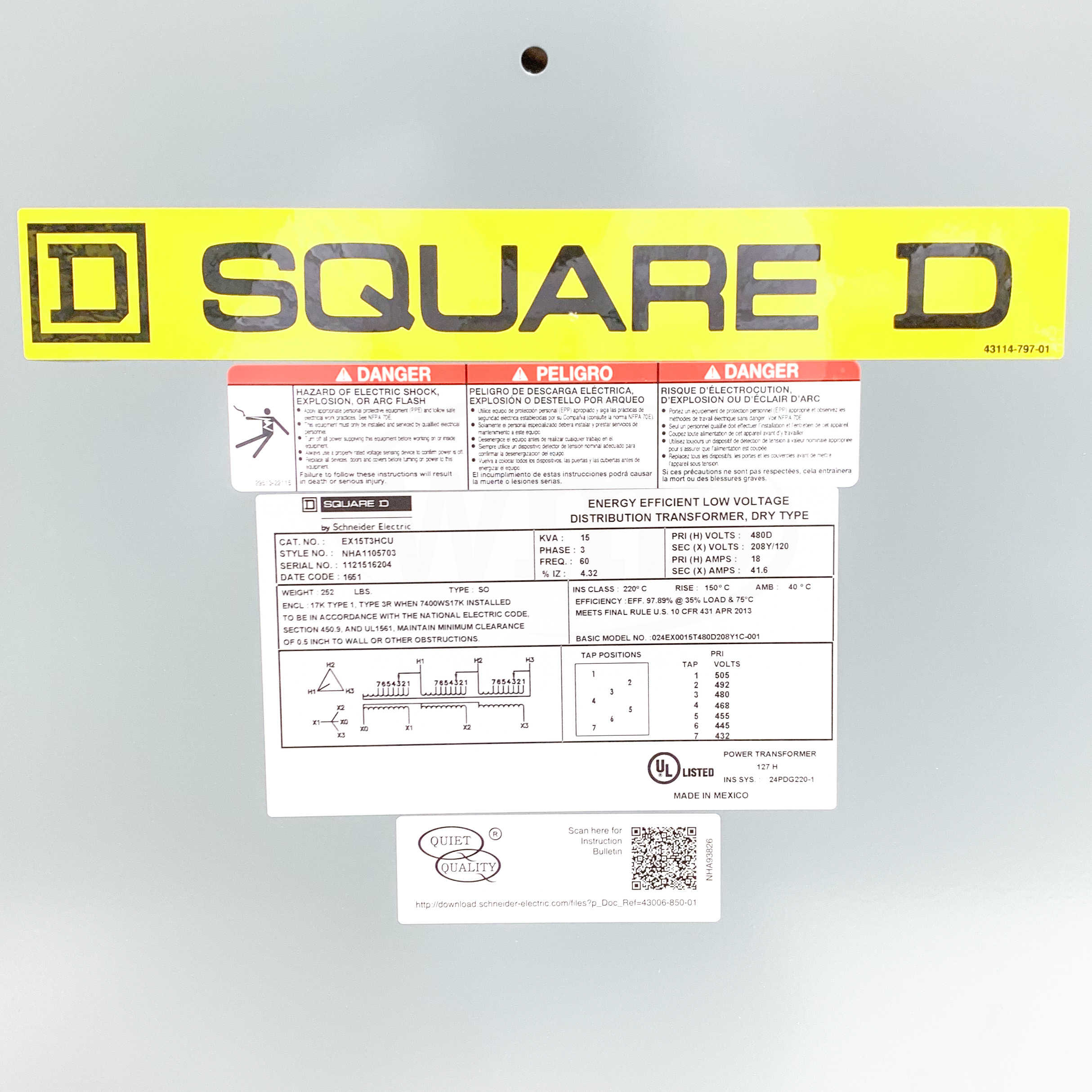

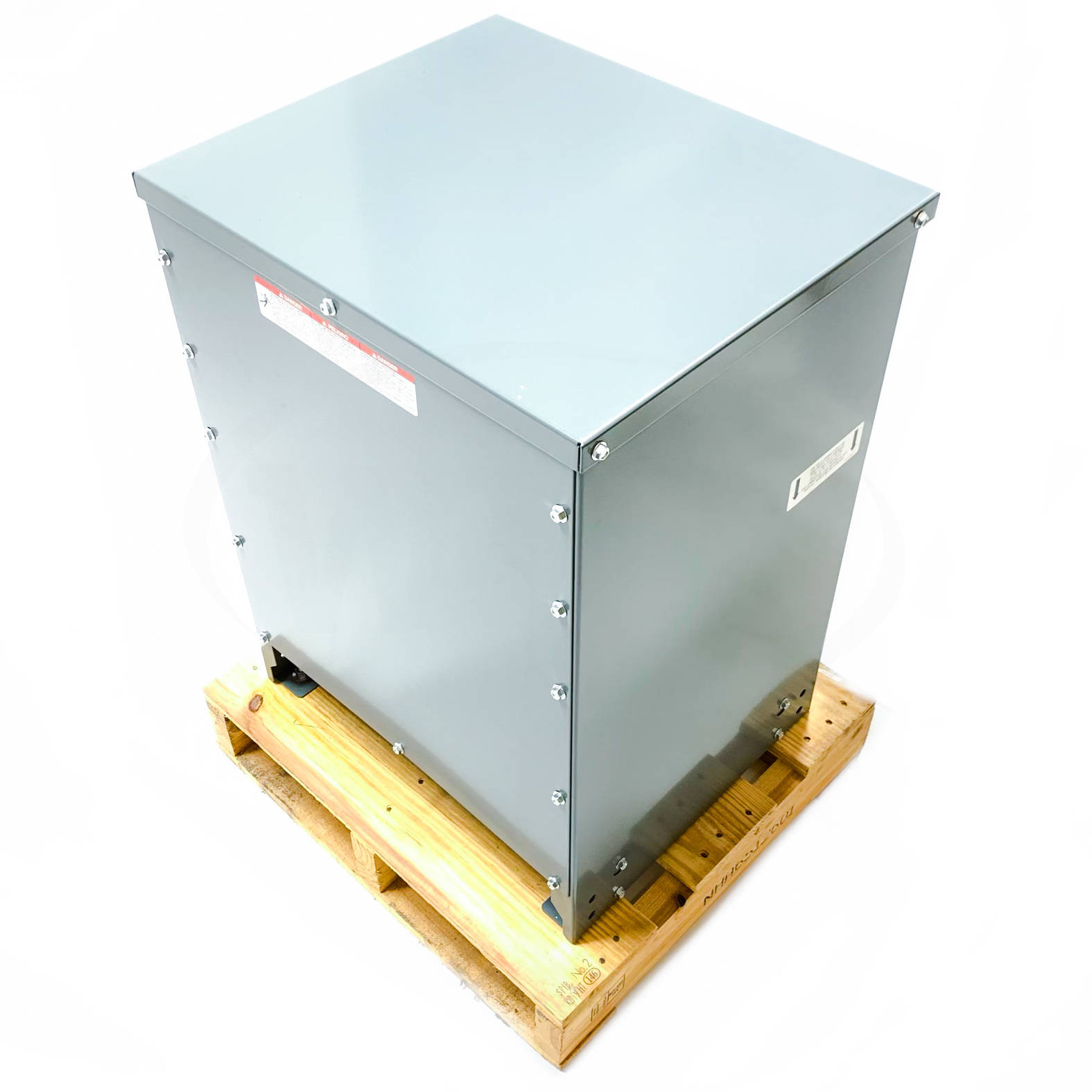

EX15T3HCU Square D Dry Type Transformer, 15kVA, 3-Phase

MFG: Schneider Electric (Square D)
MFG Part Number: EX15T3HCU

Available Stock: 1
Selected accessories will also be added to cart
$2,997.97 / Each
Quantity:
New, Surplus Stock. Pri: 480V, Sec 208Y/120V
Main
range of product
Square D
product or component type
DOE 2016 energy efficient transformer
device application
Low voltage electrical distribution
Complementary
Phase
3 phase
rated operational power in VA
15 kVA
network frequency
60 Hz
type of cooling
Natural convection
primary voltage
480 V delta
number of tap-offs
2 2.5 % FCAN
4 2.5 % FCBN
secondary voltage
208Y/120 V
Coil Material
Copper
Basic IMP level (BIL)
10 kV
Temperature Rating
150 °C
220 °C insulated
DOE Efficiency
98.1 % at 35 % load factor , 167 °F (75.0 °C)
Sound Level
6 dB NEMA ST-20
39 dB
%IZ
0.044 %
%IX
0.0203 %
X/R Ratio
0.52
Let Through Current
1.0 kA
Transformer Losses
43.0 no load (core loss)
580.0 load loss (coil loss)
Transformer BTU/HR
201.25659727216 16.6 %
270.41225349999996 25 %
641.4826959999999 50 %
1259.9334334999999 75 %
2125.764466 1.0 %
height
26.97 in (685 mm)
depth
17.24 in (438 mm)
width
20.51 in (521 mm)
net weight
250.00 lb(US) (113.4 kg)
mounting support
Floor
Floor, with 7400FMB
Ceiling, with 7400CMB17K
Wall, with 7400WMB17K
degree of protection
UL type 1
UL type 2, with 7400DS17K
UL type 3R, with 7400WS17K
electrical connection
2 Hole Nema Pad primary 0.44 in (11.1 mm)
2 Hole Nema Pad secondary 0.44 in (11.1 mm)
4 Hole Nema Pad sec - XO 0.44 in (11.1 mm)
Environment
ambient air temperature for operation
104 °F (40 °C)
average ambient air temperature for operation
30 °C
standards
UL 1561
CSA C22.2 No 47
NEMA ST-20
Ordering and shipping details
Category
16250 - 3PH EX/2016 15-150KVA LVGP XFMR
Discount Schedule
PE2X
GTIN
00785901691488
Returnability
No
Country of origin
MX
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Compliant
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation

Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental Disclosure
Circularity Profile
No need of specific recycling operations
