/Products/Electrical Components/WEG/Enclosed Motor Starters/Metallic Type 1, 1-Ph (ESWS/ESWS-B)/ESWS-65V24E-RM38 10HP WEG Enclosed Motor Starter, 65 Amp, Single Phase
Click Image to Expand

Product ID: ESWS-65V24E-RM38

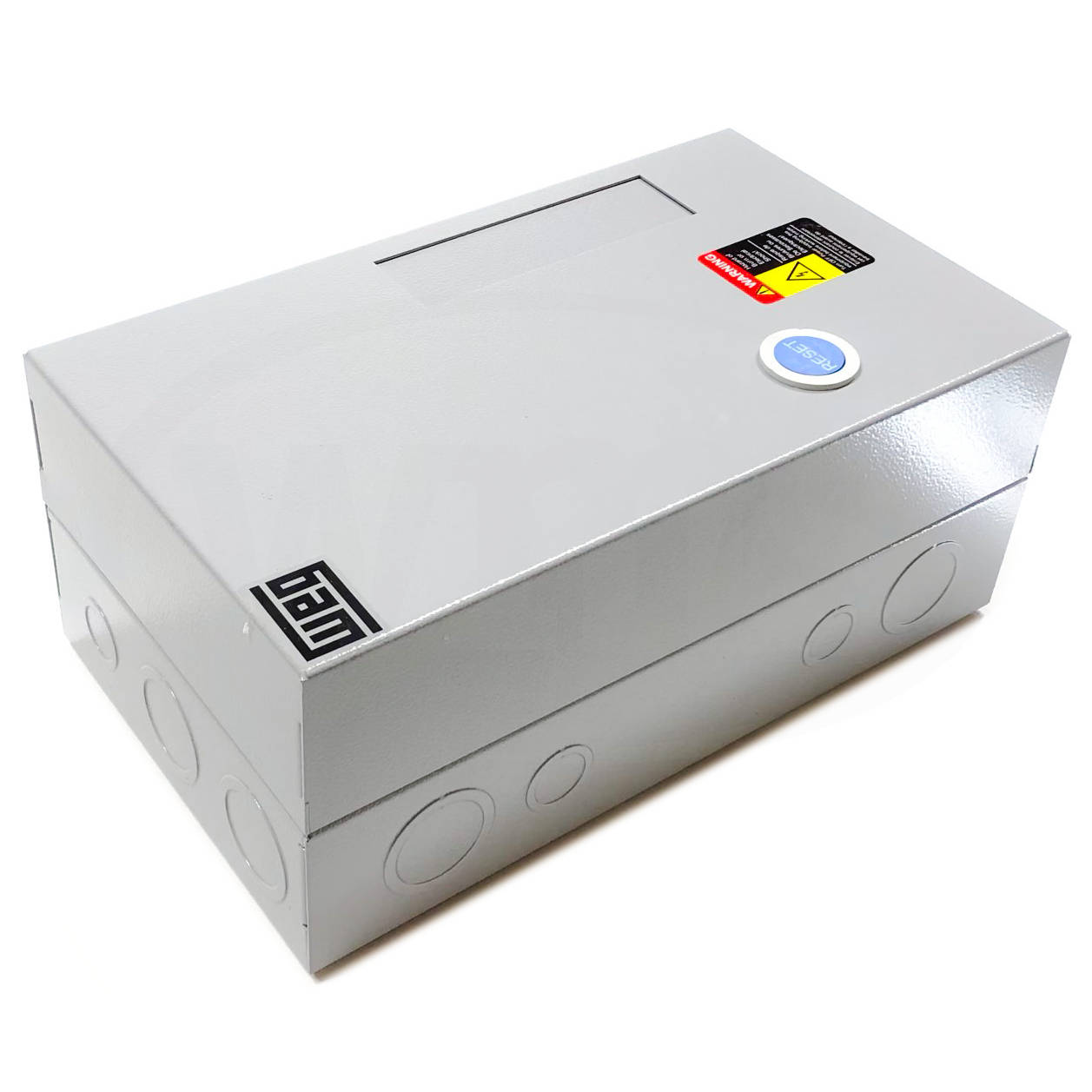

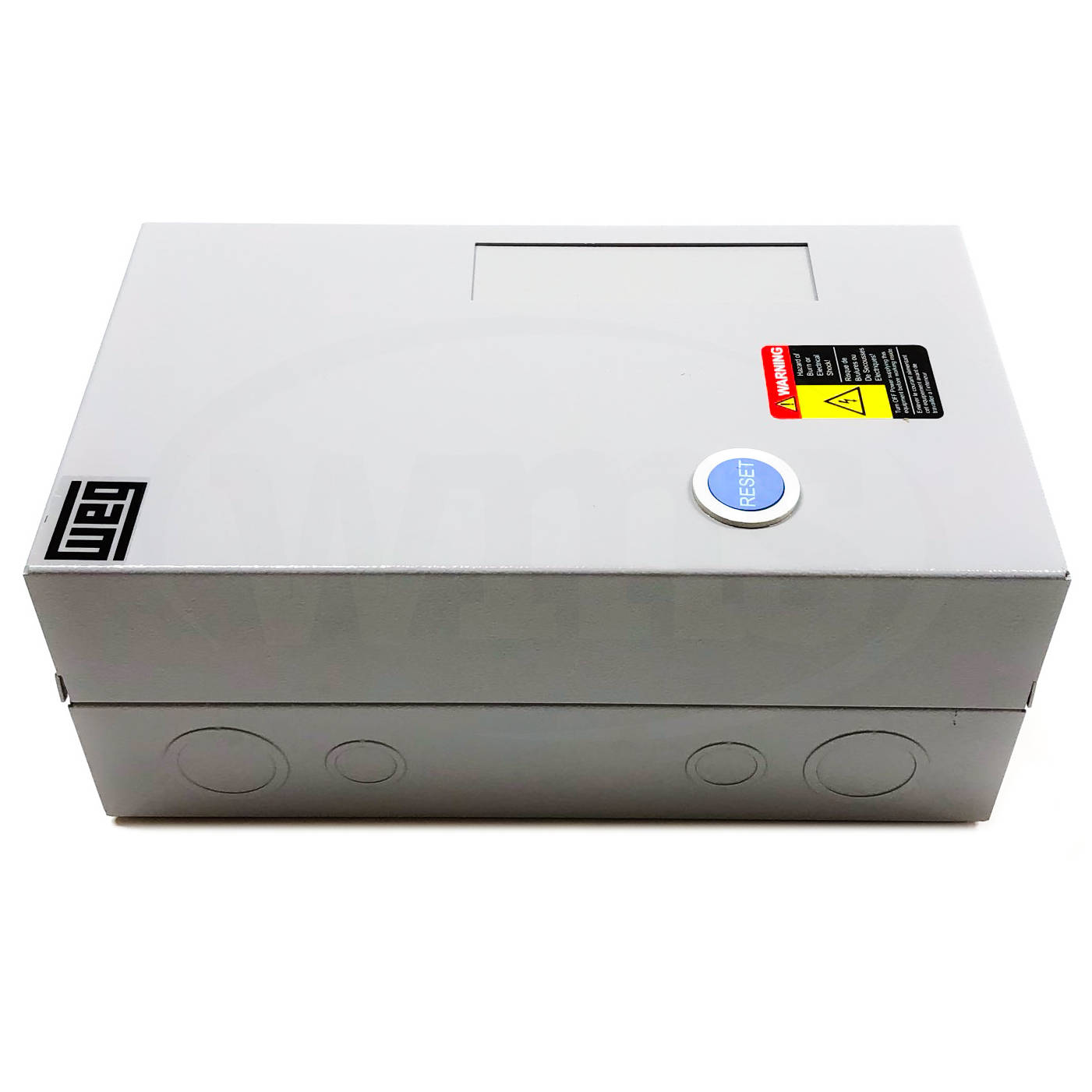

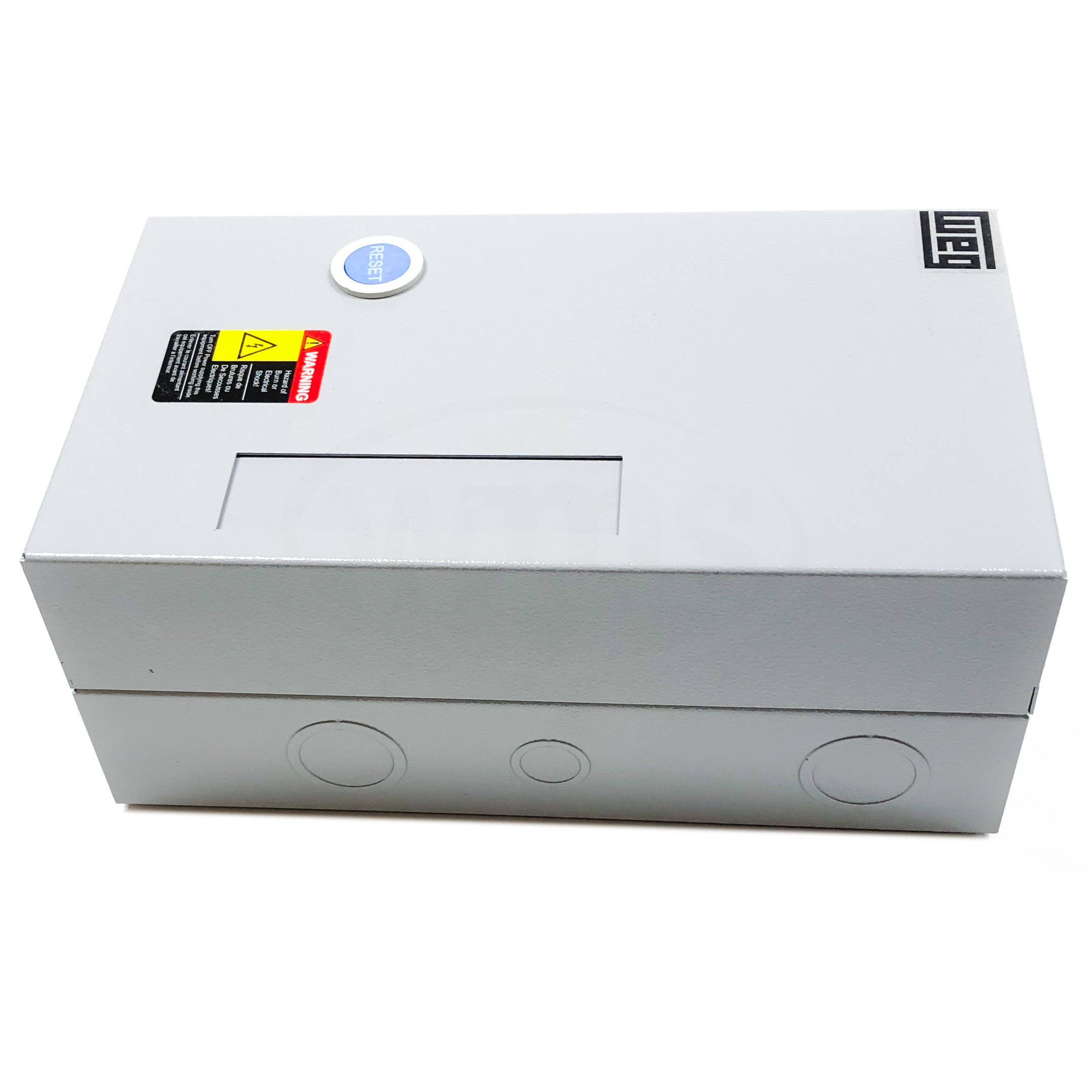

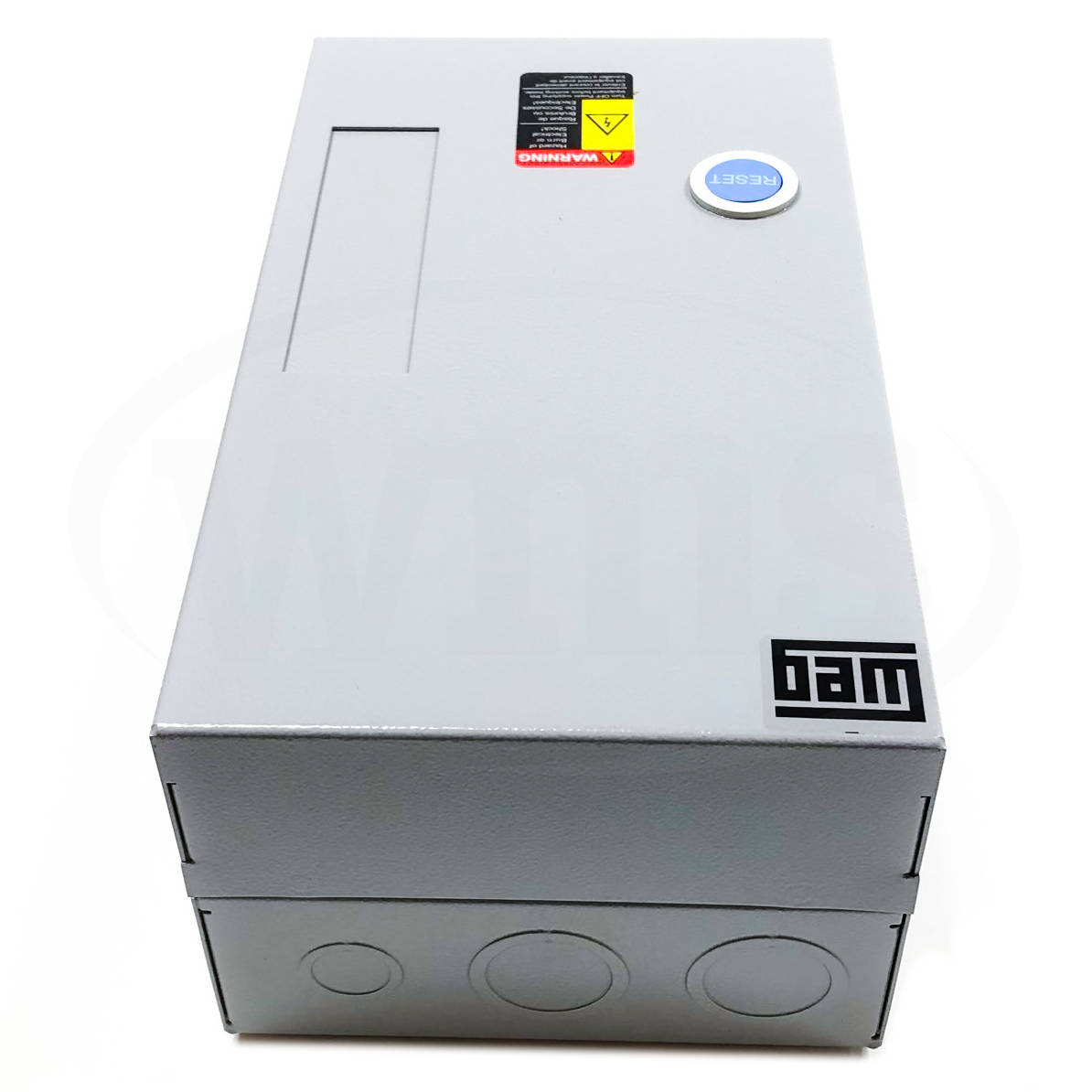

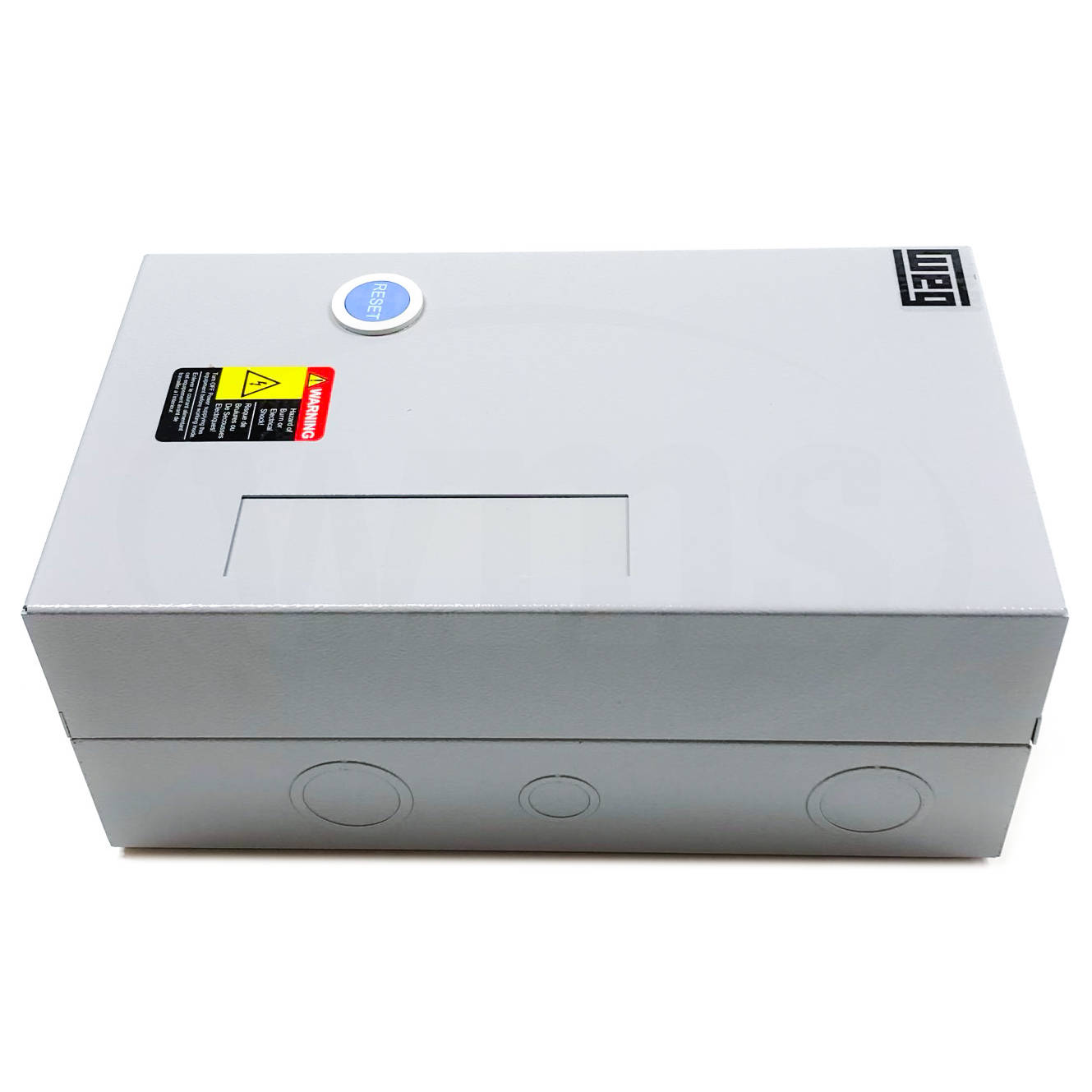

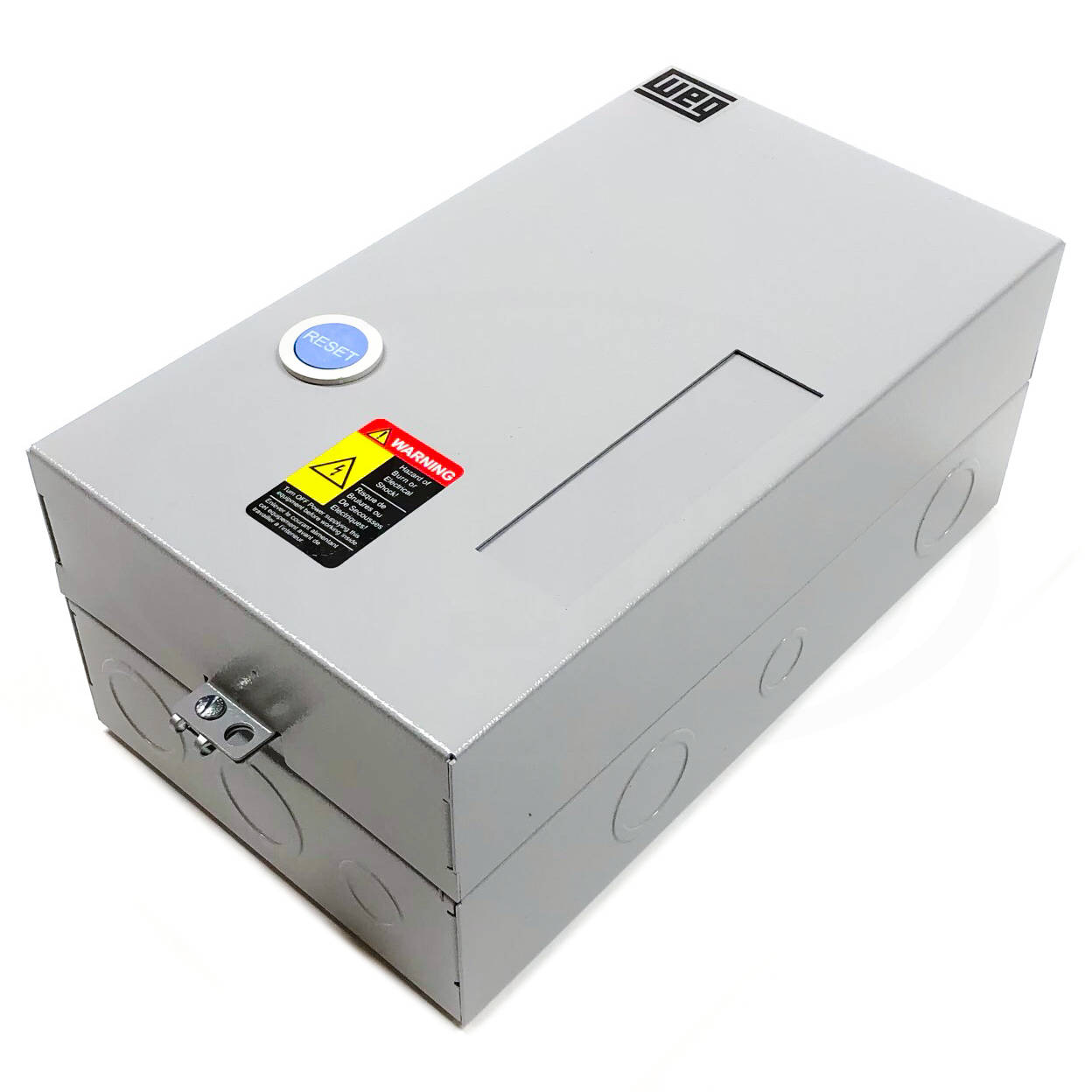

ESWS-65V24E-RM38 10HP WEG Enclosed Motor Starter, 65 Amp, Single Phase

MFG: WEG Electric Corporation
MFG Part Number: ESWS-65V24E-RM38

Selected accessories will also be added to cart
$189.00 / Each
Quantity:
Reset Button Only, Compressor Duty, 180-208VAC 50Hz 208-240VAC 60Hz Coil, 10726030

Description

WEG enclosed magnetic starters for Compressor applications

WEG non-combination magnetic starters use WEG CWB series UL listed, HP rated, IEC contactors and overloads factory installed in a Nema 1 or Nema 4X enclosure. These starters come pre-wired for automatic pressure switch operation and are also available with a selector switch for On/Auto use. Available from ¼ to 25 HP, they are designed for years of heavy duty operation

Specifications

Manufacturer WEG
Catalog Number 10726030
ESWS-65V24E-RM38
Enclosure NEMA 1
Metallic
Coil Voltage 180-208VAC 50Hz
208-240VAC 60Hz
Overload Setting Range 32-50 Amps
Max UL Horsepower HP @ 115VAC
HP @ 230VAC
Control Reset Button
Box M06
Poles 2-Pole (Single Phase)
Type Non-Reversing
Non-Combination
Across the Line
UPC 7894171770410

Dimensions

H 13.0"
W 7.5"
D 5.6"
Provision for Cable Gland Fitting Top: (1) 1/2" or 3/4", (2) 1" or 1-1/4"
Bottom: (1) 1/2" or 3/4", (2) 1" or 1-1/4"
Side: (3) 1/2" or 3/4", (4) 1" or 1-1/4"
Back: None
