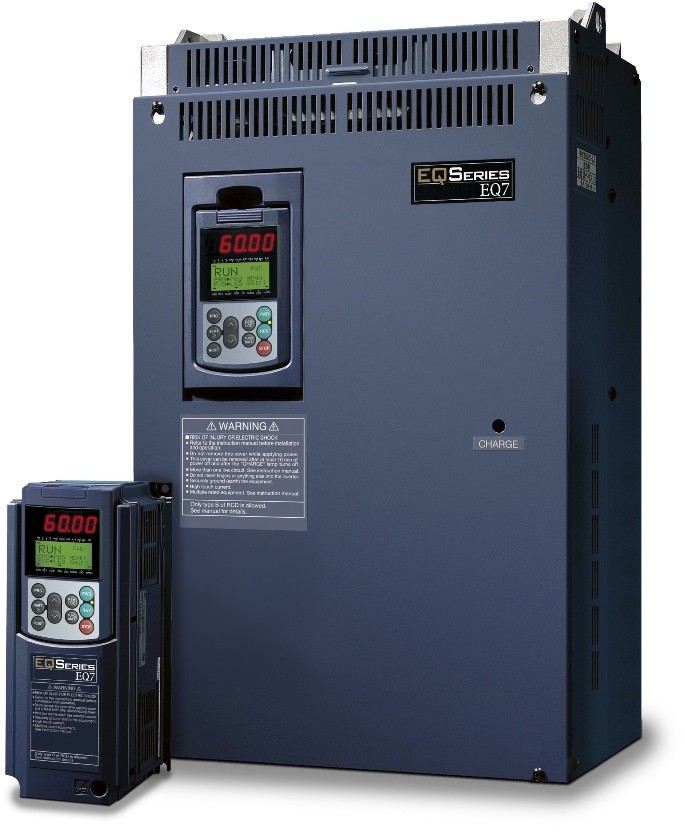

EQ7 MULTIPLE DUTY

A rugged and versatile drive with a wide range of ratings ideal for both simpler and more demanding applications.

APPLICATIONS:
• Crushers, Grinders
• Positive Displacement Pumps
• Compressors
• High Torque Mixing
• Reciprocating Machinery
• Material Handling
• Dynamometers
• Extruders
• Water / Wastewater Industries
• Chillers and Refrigeration
• Injection Molding
• Fans
• Centrifugal Pumps

FEATURES:
• Designed for Constant / Variable Torque Applications
• V/F, Dynamic Torque, Sensorless and Sensor (Encoder Feedback) Vector mode
• Backlit LCD / English Language with LED Monitor Display / Selections for 6 Languages
• Keypad May be Used as Copy Unit / Remote Mounting Options
• Extensive Diagnostic Information on LCD Display
• State-of-the-Art Torque Limit and Control Features
• PID Control with Sleep Mode Function
• Provided with low-noise control power supply
• 1 to 125 HP @ 230V (Constant Torque)
• 1 to 150 HP @ 230V (Variable Torque)
• Extensive I/O Capabilities
• Encoder Feedback Option for Applications Requiring Precise Speed Control
• Conformal Coating on PC Boards, Tin Plaing on DC Bus
• External Mounting of Heatsink When Installed in Control Panels (>40HP); Option Kit Available (<=40HP)
• All Units are IP20 at 40hp and below and IP00 at ratings >40HP (Nema 1 Option Kits Available)
• Built-in RS485 Protocol (Modbus)/ Options Profbus-DP,DeviceNet, EtherNet, BACNet, Metasys
• DC Link Chokes Included in 75HP and Above Units Shipped Loose as Chassis Item Inside Crate
• uL and CE Approved
