/Products/Pumps/Ashland Pump/Effluent Pumps/208 & 230VAC/EP75M2-20 Ashland 3/4HP Effluent Pump, 230VAC Single Phase

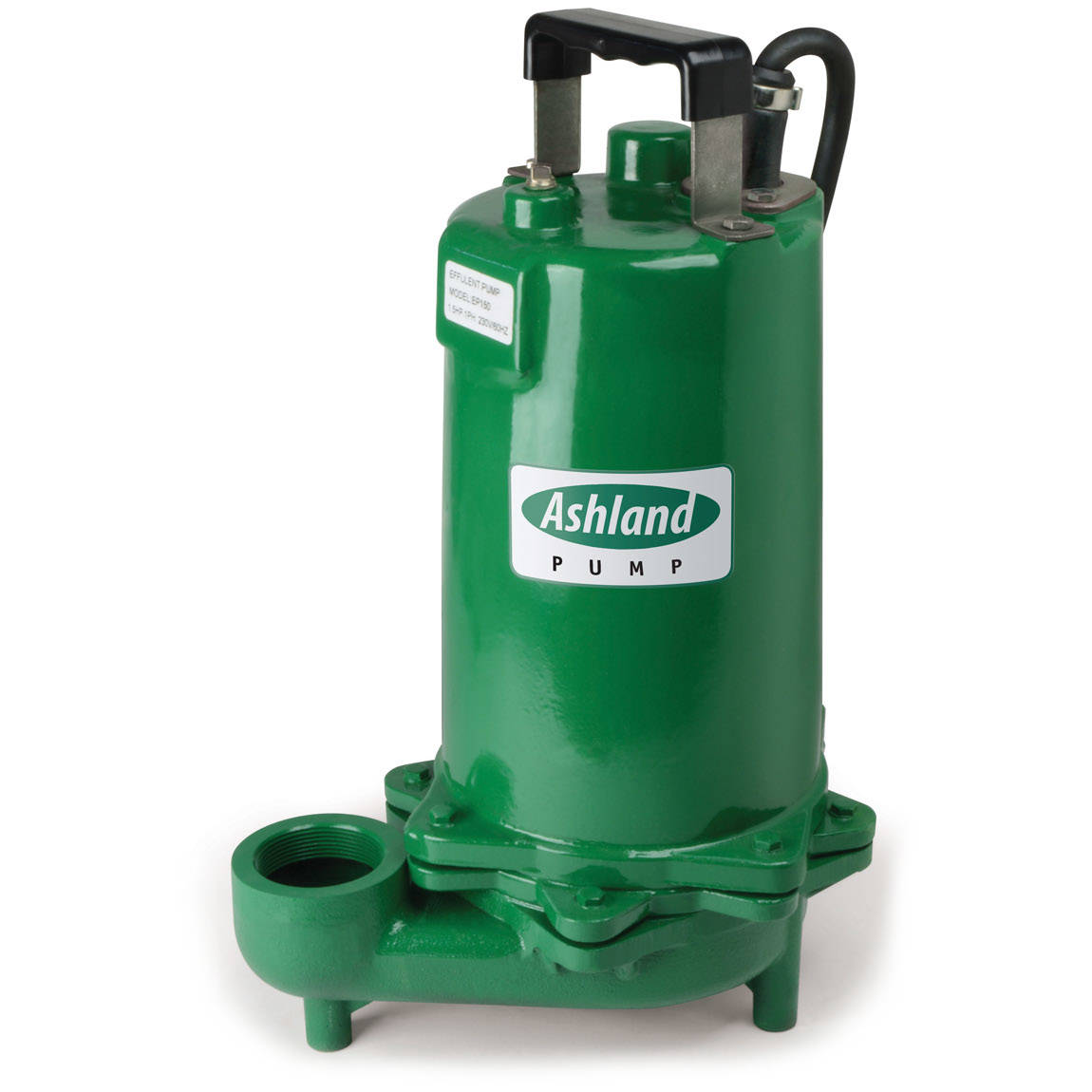

EP75M2-20 Ashland 3/4HP Effluent Pump, 230VAC Single Phase
Enlarge Photo

Product ID: EP75M2-20

EP75M2-20 Ashland 3/4HP Effluent Pump, 230VAC Single Phase

MFG: Ashland Pump
MFG Part Number: EP75M2-20

Selected accessories will also be added to cart
$1,168.00 / Each
Quantity:
Manual Switch, 2" NPT Discharge, Cast Iron Construction, 3450RPM

Features

  • Heavy duty cast iron construction
  • Oil-filled continuous duty rated PSC motor
  • Recessed vortex cast iron impeller
  • Upper and lower ball bearing design
  • 3/4” solids handling
  • 2” NPT discharge

Specifications

Brand Ashland Pump
Model EP75M2-20
Switch Type Manual
HP 3/4HP
Voltage 230VAC 60Hz Single Phase
RPM 3450 RPM
Full Load Amps 8.0 Amps
NEMA Start Code H
Cord Type SOW
Cord Power Size 16AWG/3C
Cord O.D. 0.385-0.430"
Breaker Size 10 Amps
Run Capacitor 450VAC 35MFD +/-5%
Discharge Size 2" NPT
Impeller Type 2-Vane Cast Iron Closed
Cable Length 20'
Maximum Liquid Temperature 104°F
Intermittent
Acceptable pH Range 6 - 8
Maximum Stator Temperature 130°C
Sensor Cord Type 16/3C
Motor Housing Cast Iron
Casing Cast Iron
Impeller Cast Iron
Motor Shaft Stainless Steel 430
Hardware SST
O-Rings NBR
Mechanical Seal Single Mechanical
Carbon Ceramic
Upper Bearing 6203
Lower Bearing 6203
