EP50M2-20 Ashland 1/2HP Effluent Pump, 230VAC Single Phase
Click Image to Expand
Previous
Next
Product ID: EP50M2-20

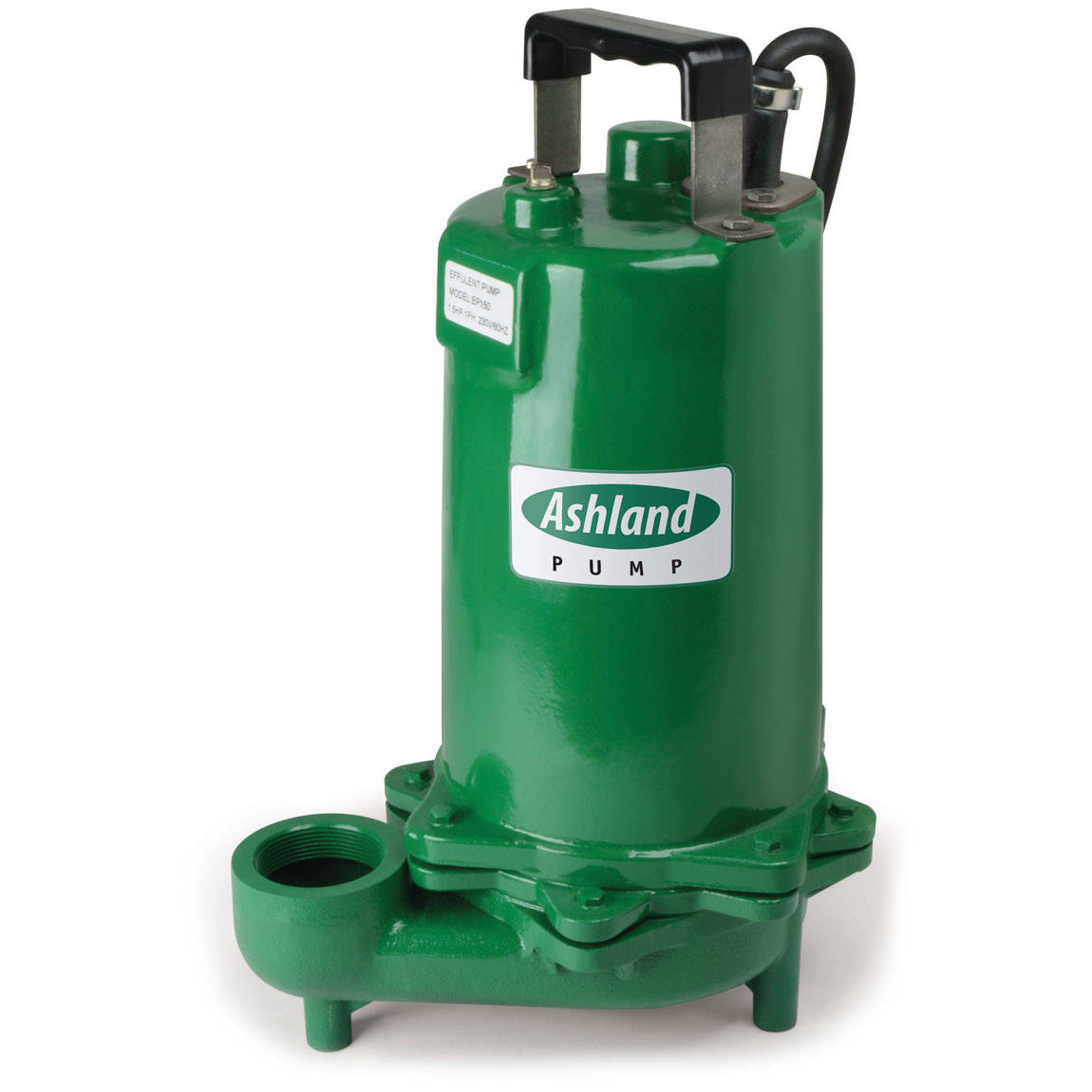

EP50M2-20 Ashland 1/2HP Effluent Pump, 230VAC Single Phase
MFG: Ashland Pump
MFG Part Number: EP50M2-20
Selected accessories will also be added to cart
$1,112.00 / Each
Quantity:
Manual Switch, 2" NPT Discharge, Cast Iron Construction, 3450RPM
Details

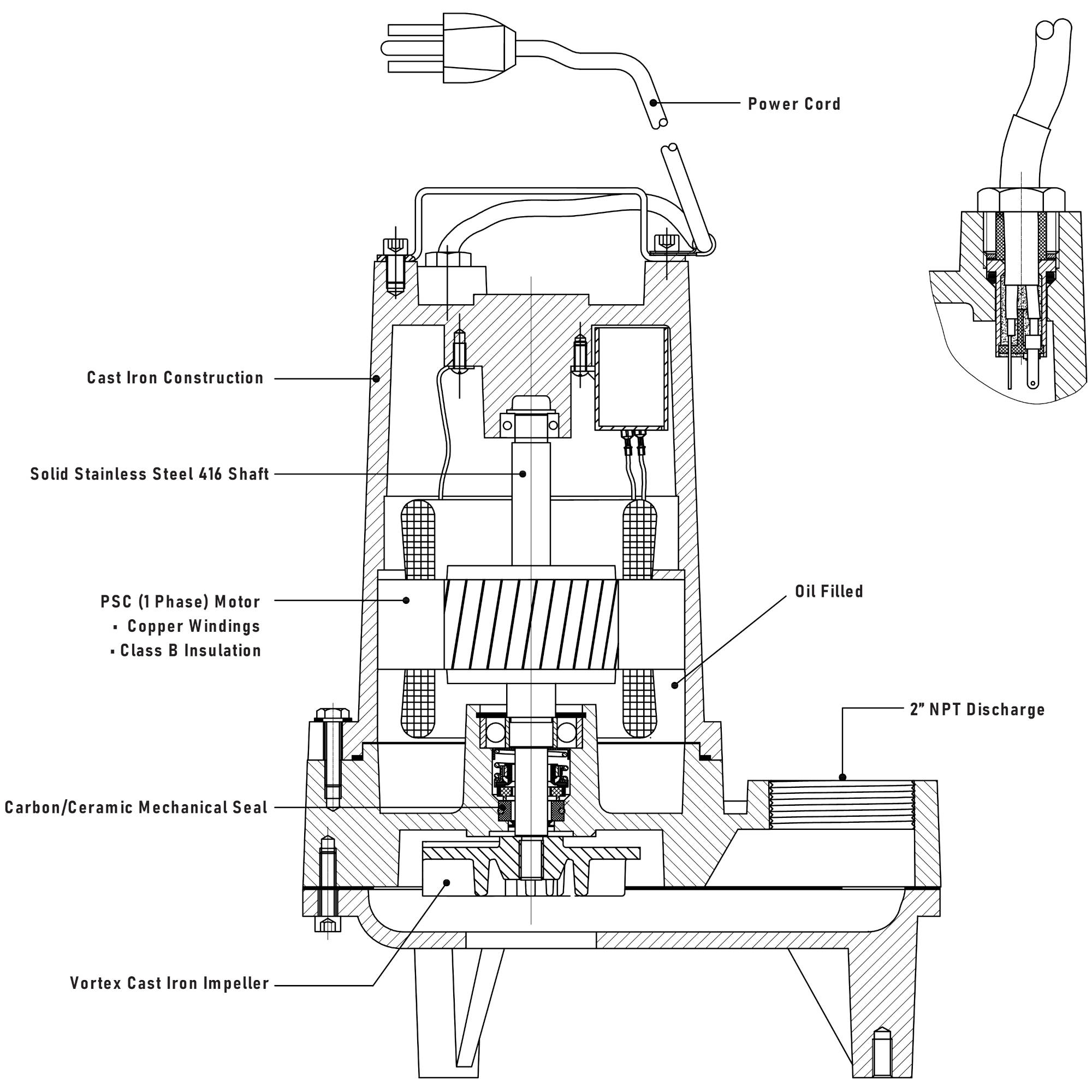

Features
Heavy duty cast iron construction
Oil-filled continuous duty rated PSC motor
Recessed vortex cast iron impeller
Upper and lower ball bearing design
3/4” solids handling
2” NPT discharge
Specifications
Brand
Ashland Pump
Model
EP50M2-20
Switch Type
Manual
HP
1/2HP
Voltage
230VAC 60Hz Single Phase
RPM
3450 RPM
Full Load Amps
6.0 Amps
NEMA Start Code
J
Cord Type
SOW
Cord Power Size
16AWG/3C
Cord O.D.
0.385-0.430"
Breaker Size
10 Amps
Run Capacitor
370VAC 35MFD +/-5%
Discharge Size
2" NPT
Impeller Type
2-Vane Cast Iron Closed
Cable Length
20'
Maximum Liquid Temperature
104°F
Intermittent
Acceptable pH Range
6 - 8
Maximum Stator Temperature
130°C
Sensor Cord Type
16/3C
Motor Housing
Cast Iron
Casing
Cast Iron
Impeller
Cast Iron
Motor Shaft
Stainless Steel 430
Hardware
SST
O-Rings
NBR
Mechanical Seal
Single Mechanical
Carbon Ceramic
Upper Bearing
6203
Lower Bearing
6203
Links
Ashland EP50 Electrical Data (PDF, 1 page, 43KB)
Ashland EP50 Features Data (PDF, 1 page, 92KB)
Ashland EP50 Performance Data (PDF, 1 page, 48KB)
Ashland EP50 Technical Data (PDF, 1 page, 49KB)
Ashland EP50, EP75, EP100 & EP150 Operation, Performance, Specifications and Parts Manual (PDF, 39 pages, 2.42MB)
Ashland EP50 Catalog Sheet (PDF, 2 pages, 323KB)
Ashland EP50 Dimensional Data (PDF, 1 page, 188KB)
