/Products/Pumps/Ashland Pump/Effluent Pumps/208 & 230VAC/EP40W2-20 Ashland 4/10HP Effluent Pump, 230VAC
Click Image to Expand

Product ID: EP40W2-20

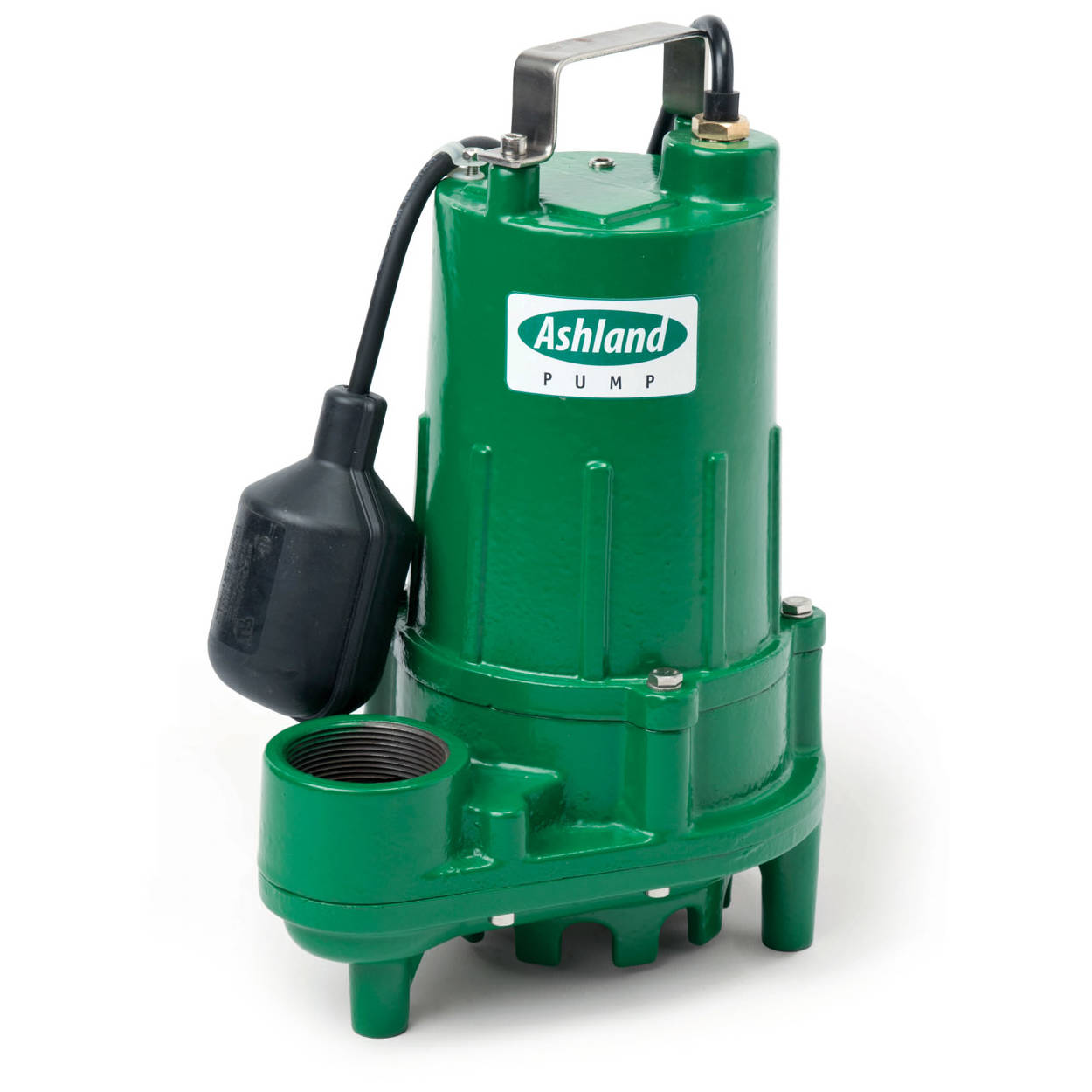

EP40W2-20 Ashland 4/10HP Effluent Pump, 230VAC

MFG: Ashland Pump
MFG Part Number: EP40W2-20

Selected accessories will also be added to cart
$492.00 / Each
Quantity:
Wide Angle Float Switch, 2" NPT Discharge, Cast Iron Construction, 3450RPM

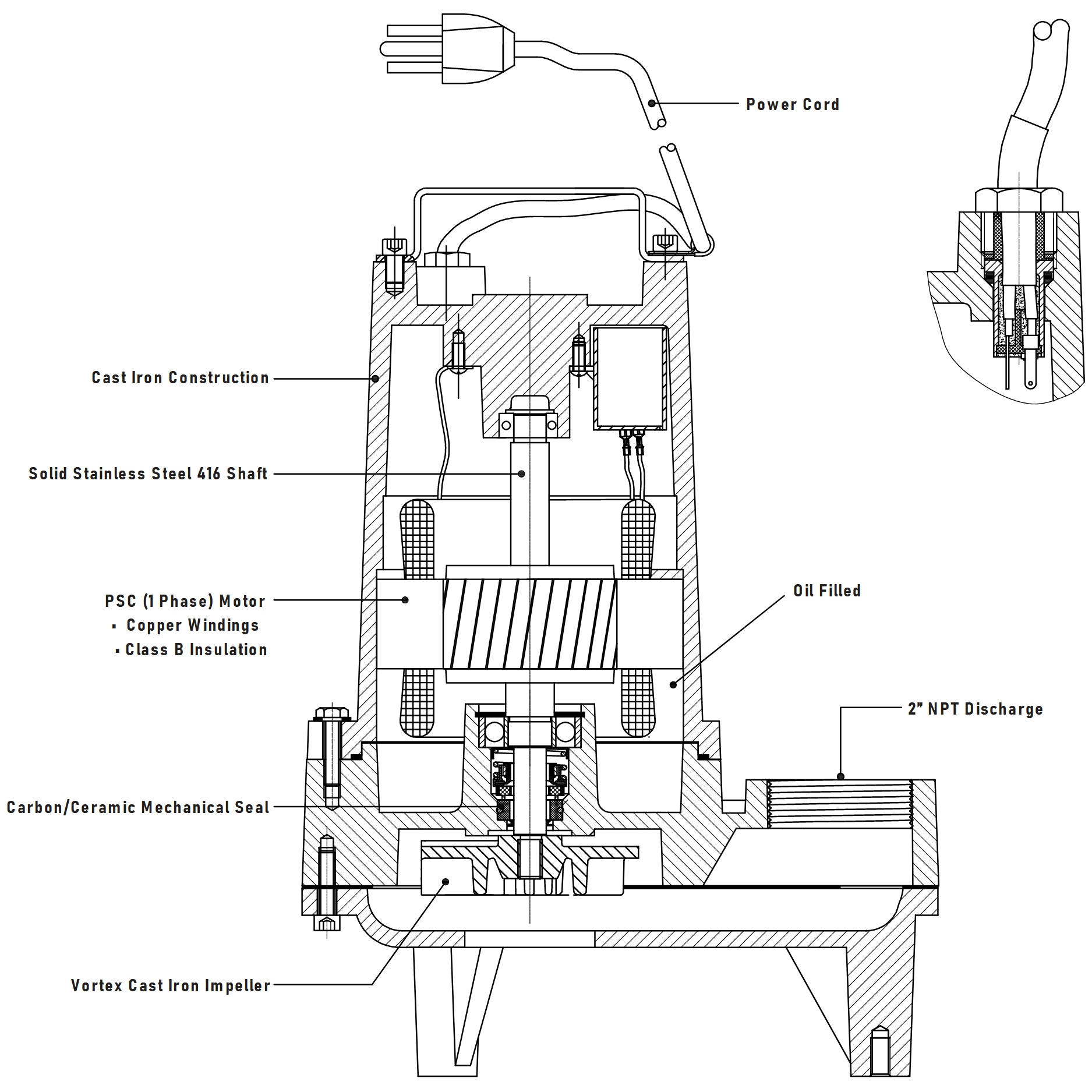

Features

  • Heavy duty cast iron construction
  • Oil-filled continuous duty rated PSC motor
  • Recessed vortex cast iron impeller
  • Upper and lower ball bearing design
  • 3/4” solids handling
  • 2” NPT discharge

Specifications

Brand Ashland Pump
Model EP40W2-20
HP 4/10HP
Voltage 230VAC 60Hz Single Phase
RPM 3450RPM
Full Load Amps 4.5 Amps
NEMA Start Code P
Cord Type SJTW 18/3C
Cord Power Size 16AWG/3C
Cord O.D. 0.34"
Discharge Size 2" NPT
Impeller Type Recessed Cast Iron Vortex
Cable Length 20'
Maximum Liquid Temperature 104°F
Intermittent
Acceptable pH Range 6 - 8
Maximum Stator Temperature 130°C
Sensor Cord Type 16/3C
Motor Housing Cast Iron
Casing Cast Iron
Impeller Cast Iron
Motor Shaft Stainless Steel 430
Hardware SST
O-Rings NBR
Mechanical Seal Single Mechanical
Carbon Ceramic
Upper Bearing 6000
Lower Bearing 6203
