/Products/Pumps/Ashland Pump/Effluent Pumps/208 & 230VAC/EP100M6-20 Ashland 1HP Effluent Pump, 208VAC 3 Phase

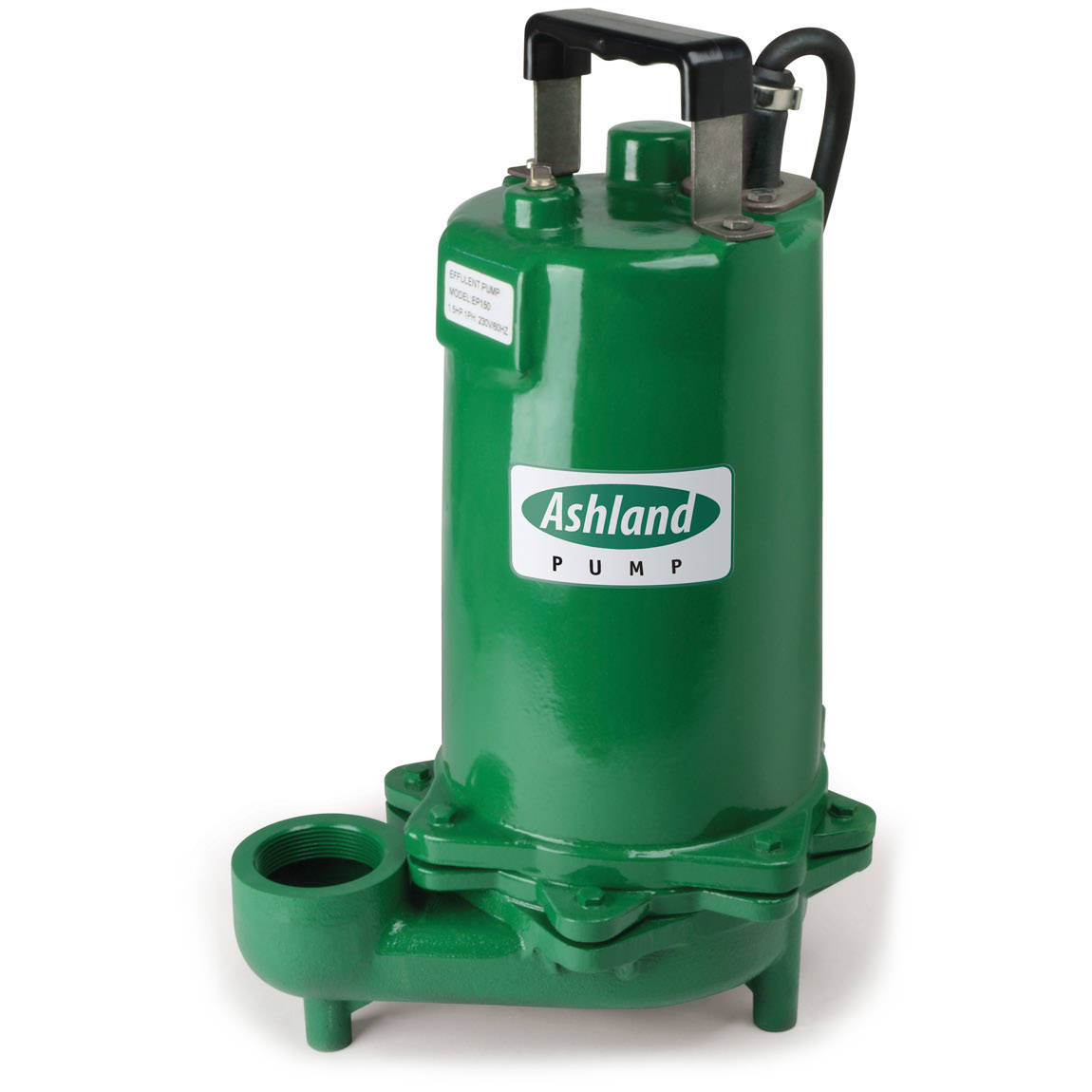

Click Image to Expand

Product ID: EP100M6-20

EP100M6-20 Ashland 1HP Effluent Pump, 208VAC 3 Phase

MFG: Ashland Pump
MFG Part Number: EP100M6-20

Selected accessories will also be added to cart
$1,245.00 / Each
Quantity:
Manual Switch, 2" NPT Discharge, Cast Iron Construction, 3450RPM

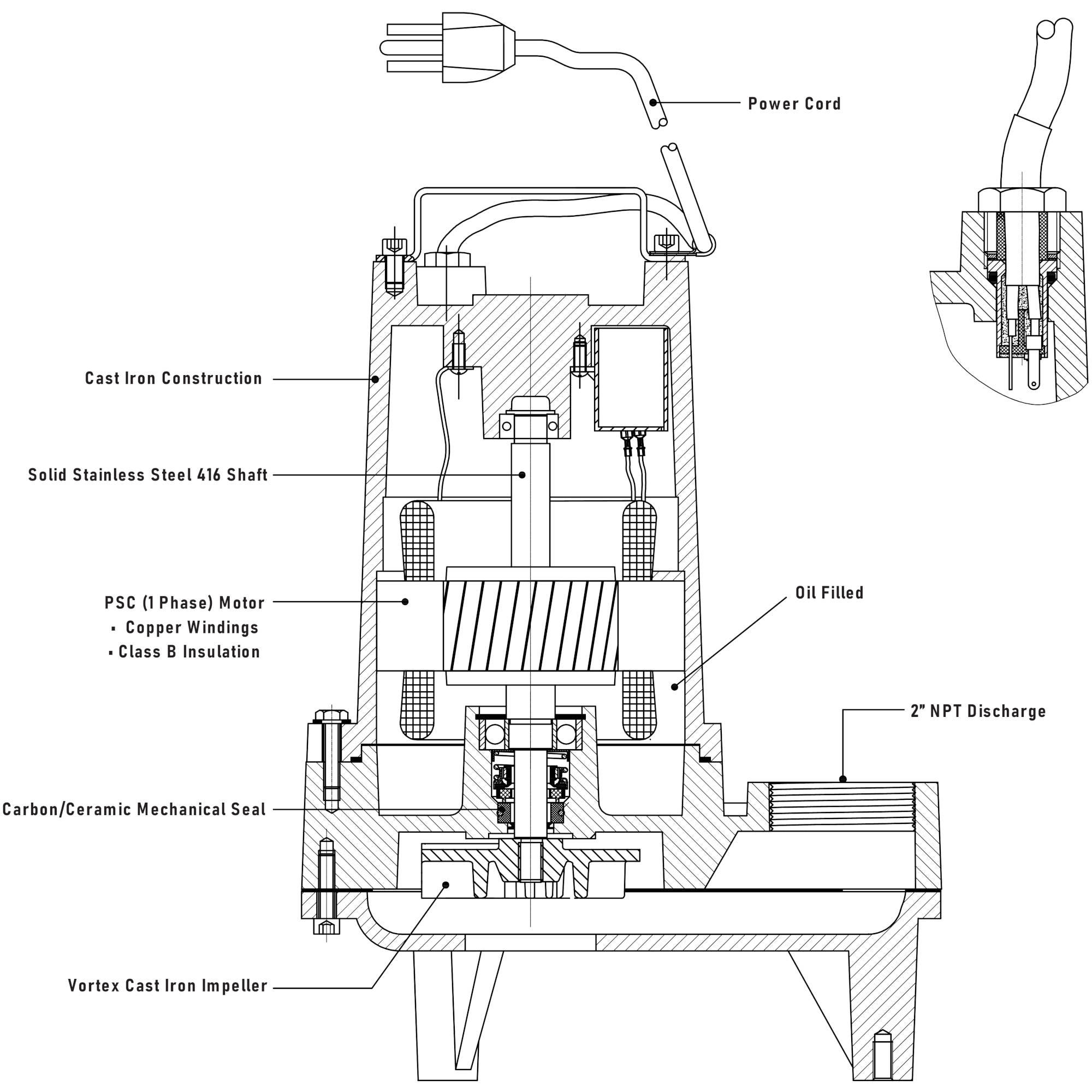

Features

  • Heavy duty cast iron construction
  • Oil-filled continuous duty rated PSC motor
  • Recessed vortex cast iron impeller
  • Upper and lower ball bearing design
  • 3/4” solids handling
  • 2” NPT discharge

Specifications

Brand Ashland Pump
Model EP100M6-20
Switch Type Manual
HP 1HP
Voltage 208VAC 60Hz 3 Phase
RPM 3450 RPM
Full Load Amps 6.2 Amps
NEMA Start Code H
Cord Type SOW
Cord Power Size 16AWG/4C
Cord O.D. 0.410-0.460"
Breaker Size 10 Amps
Discharge Size 2" NPT
Impeller Type 2-Vane Cast Iron Closed
Cable Length 20'
Maximum Liquid Temperature 104°F
Intermittent
Acceptable pH Range 6 - 8
Maximum Stator Temperature 130°C
Sensor Cord Type 16/3C
Motor Housing Cast Iron
Casing Cast Iron
Impeller Cast Iron
Motor Shaft Stainless Steel 430
Hardware SST
O-Rings NBR
Mechanical Seal Single Mechanical
Carbon Ceramic
Upper Bearing 6203
Lower Bearing 6203

Dimensions

EP100 Pump Dimensions

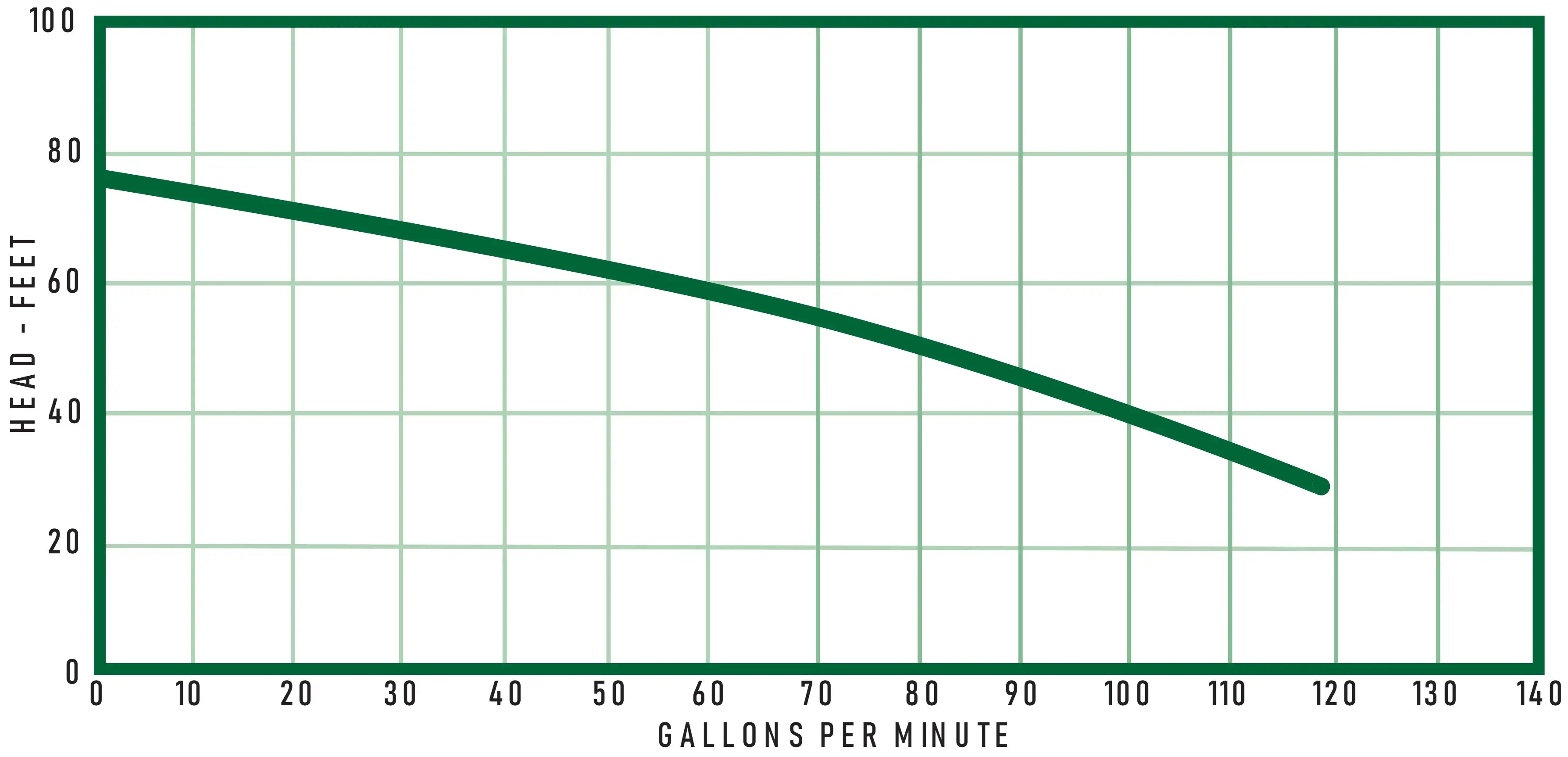

Performance Curve

EP100 Performance Curve Graph
