/Products/Electric Motors/3 Phase/Baldor/TE - Foot Mounted/EM4400T-12 Baldor 100HP Electric Motor, 1800RPM
Click Image to Expand

Product ID: EM4400T-12

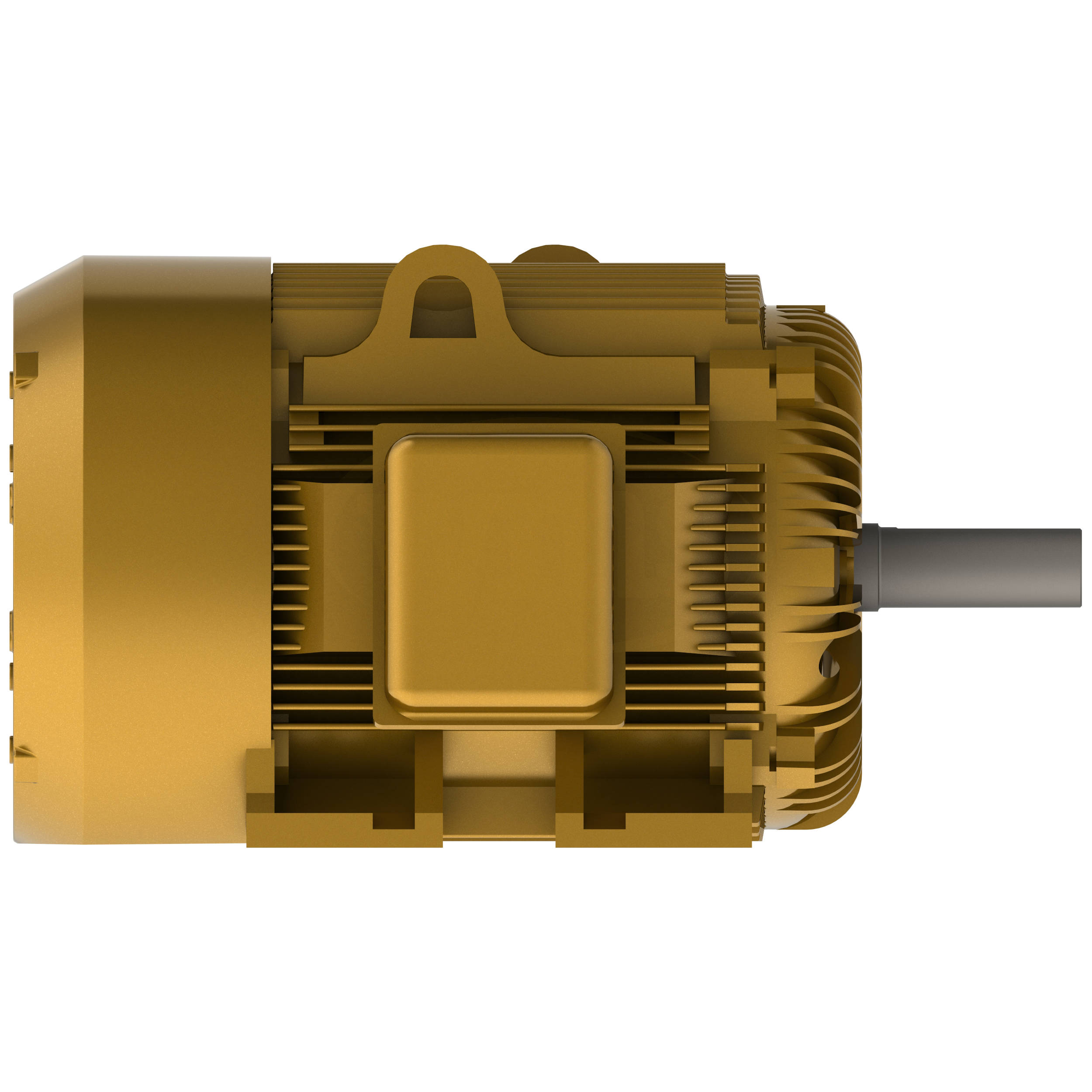

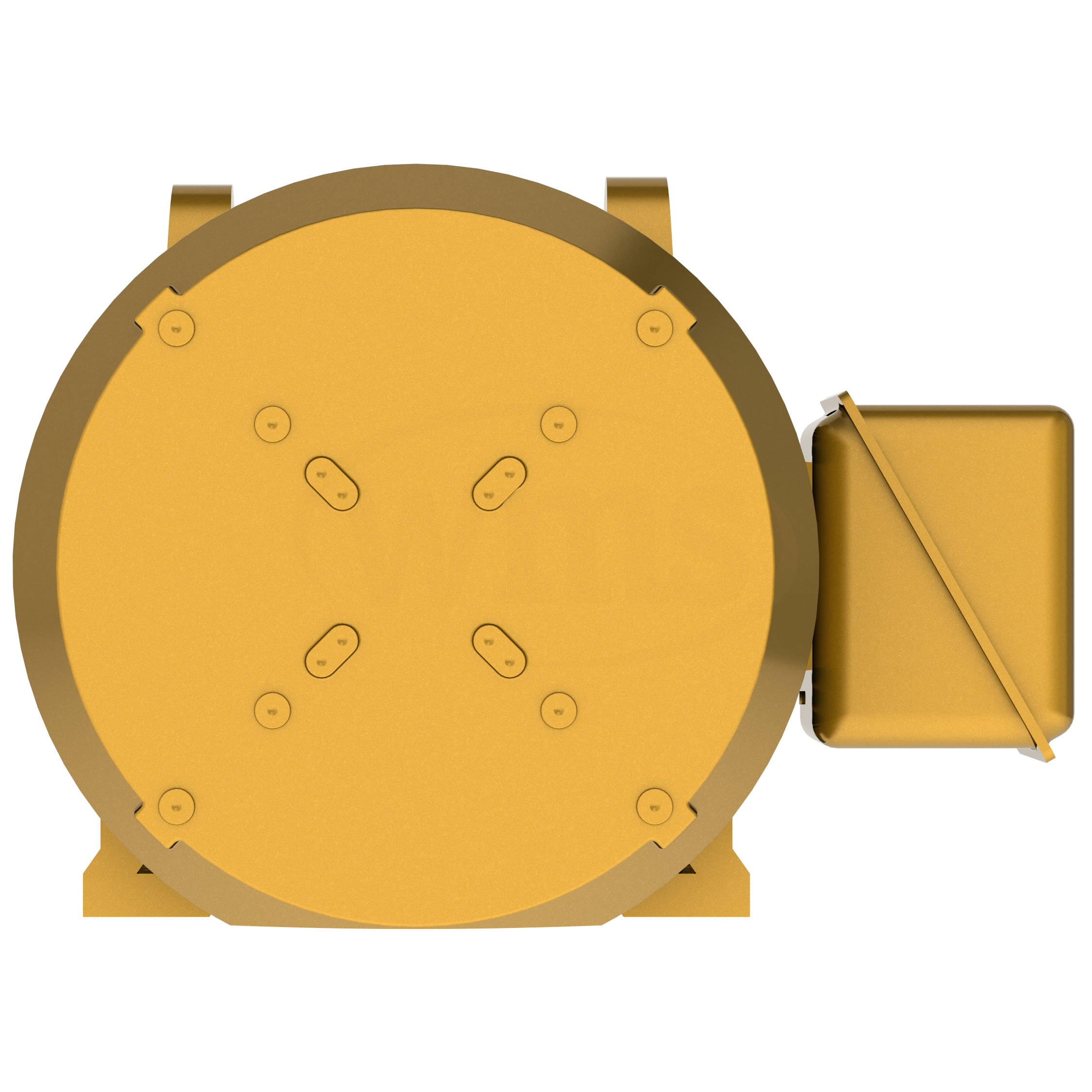

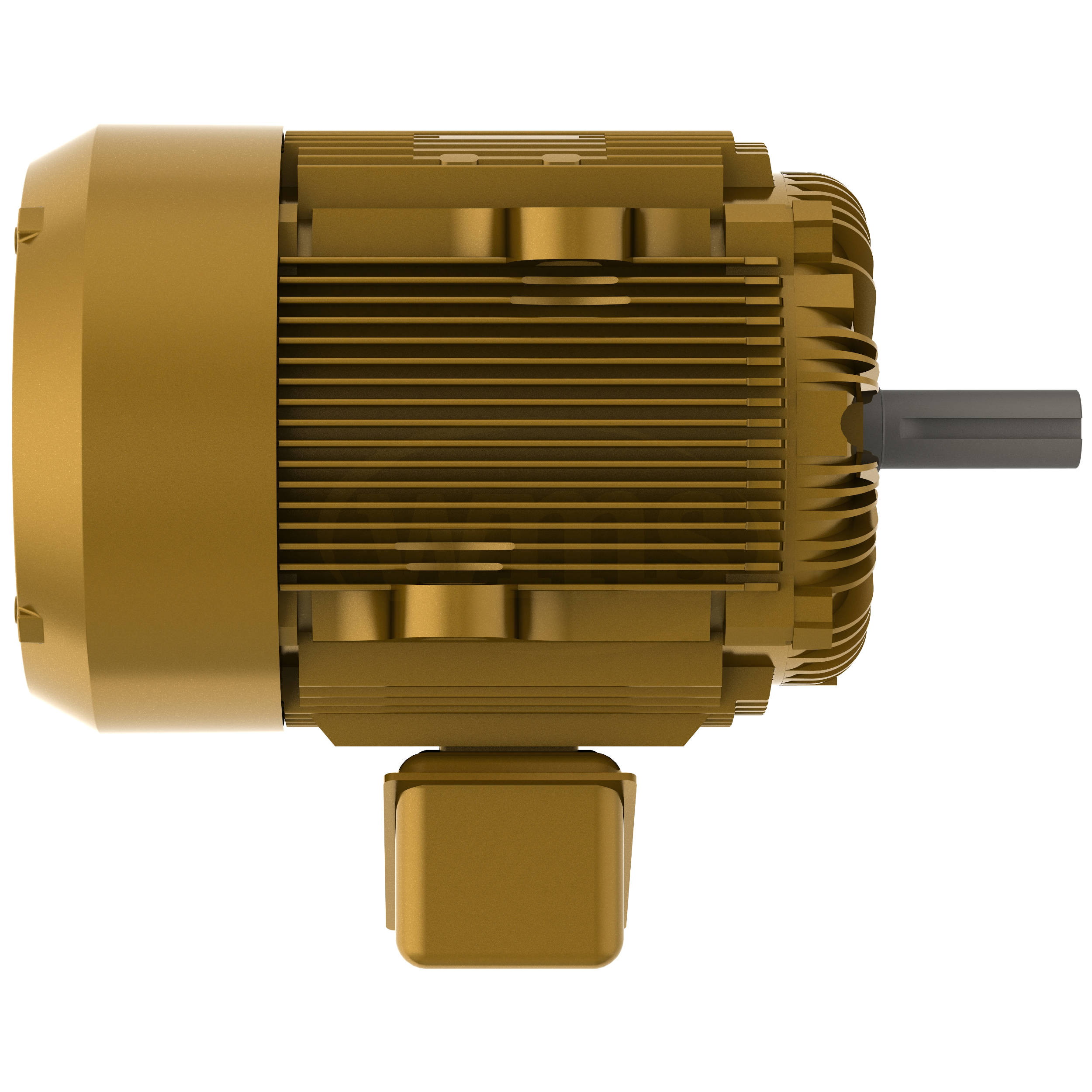

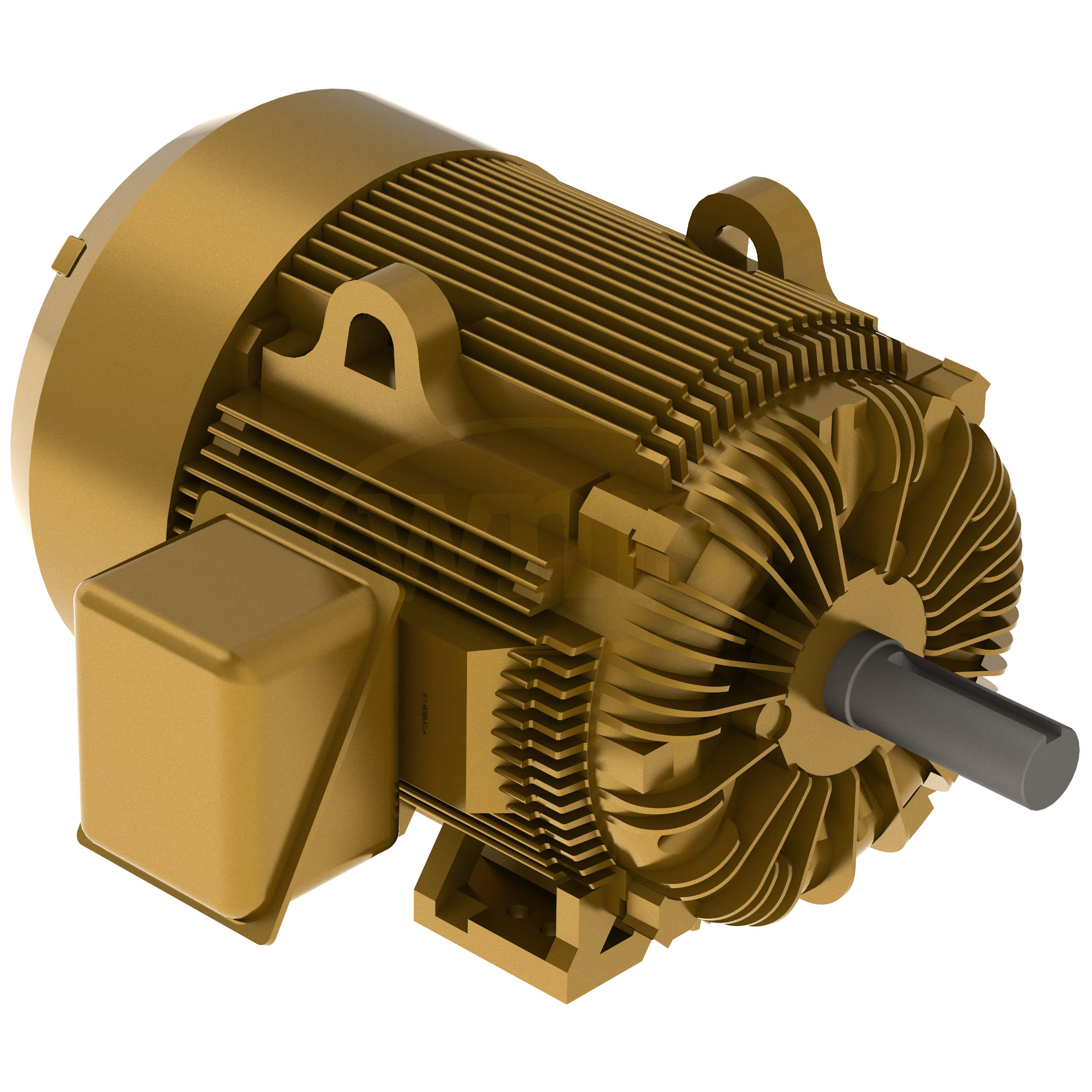

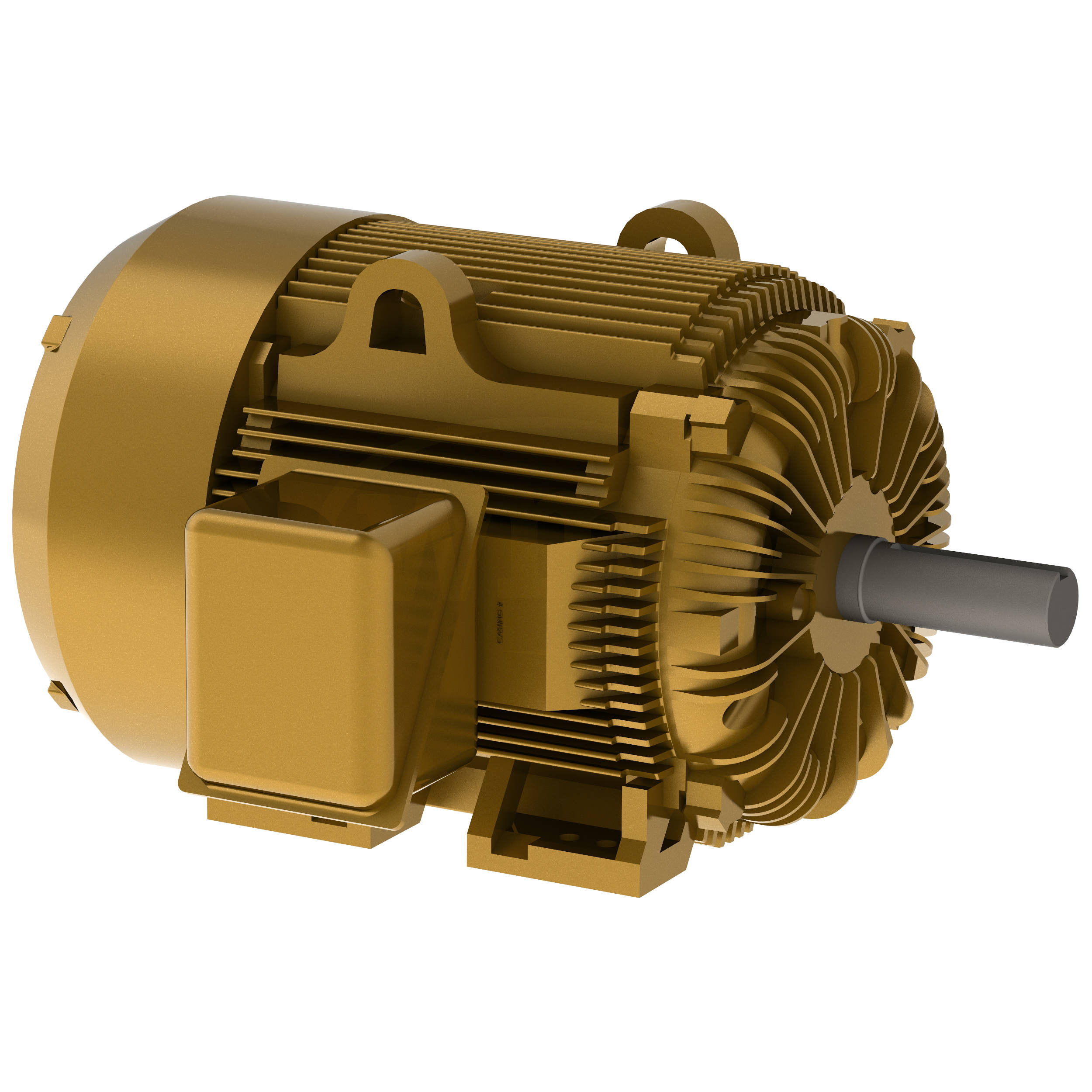

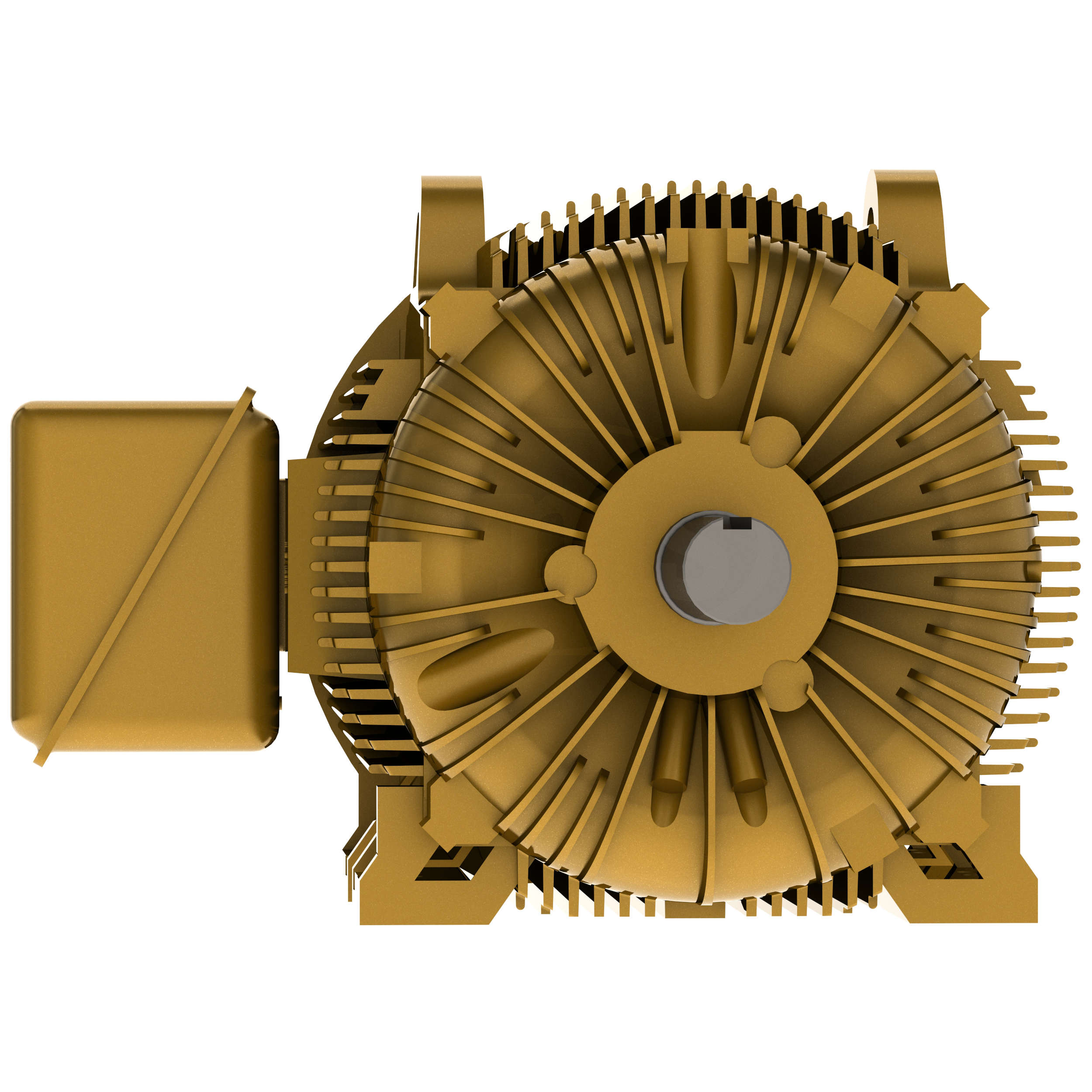

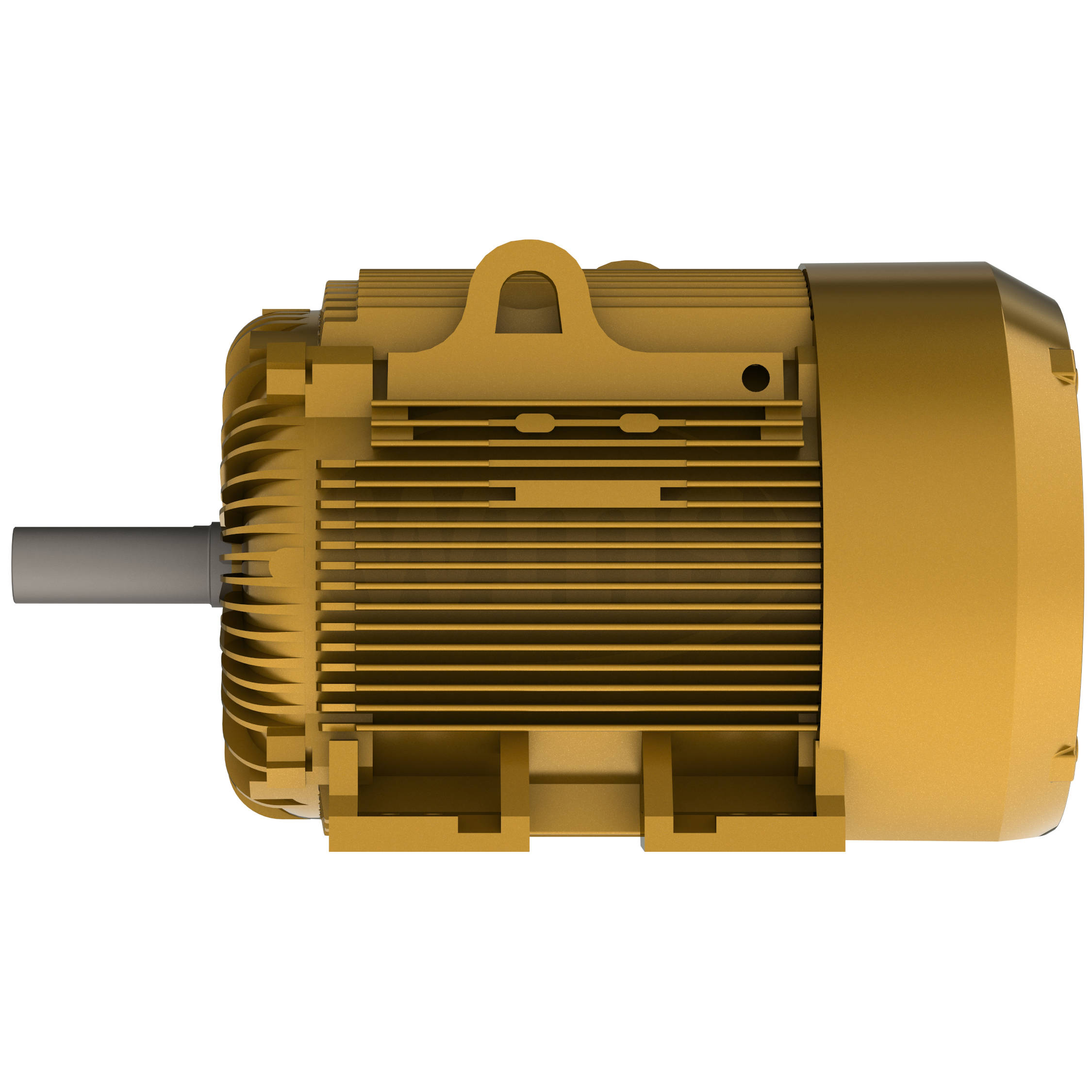

EM4400T-12 Baldor 100HP Electric Motor, 1800RPM

MFG: Baldor Electric Company
MFG Part Number: EM4400T-12

Selected accessories will also be added to cart
$16,812.97 / Each
Quantity:
TEFC, 405T Frame, 230/460VAC 60Hz 3-Phase, Foot Mounted, Cast Iron, P40G3925, 2-7/8" Keyed Shaft

Specifications

Specs

Catalog Number EM4400T-12
Enclosure TEFC
Frame 405T
Frame Material Iron
Frequency 60.00 Hz
Output @ Frequency 100.000 HP @ 60 HZ
Phase 3
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Voltage @ Frequency 460.0 V @ 60 HZ
230.0 V @ 60 HZ
XP Class and Group None
XP Division Not Applicable
Agency Approvals CSA EEV
CCSA US
Ambient Temperature 40 °C
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Current @ Voltage 112.000 A @ 460.0 V
224.000 A @ 230.0 V
Design Code B
Duty Rating CONT
Efficiency @ 100% Load 95.4 %
High Voltage Full Load Amps 112.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code G
Lifting Lugs Standard Lifting Lugs
Motor Lead Quantity/Wire Size 12 @ 4 AWG
Motor Type A40064M
Mounting Arrangement F1
Number of Poles 4
Overall Length 38.04 IN
Power Factor 87
Product Family Other
Pulley End Bearing Type Ball
Pulley Face Code Standard
Service Factor 1.15
Shaft Diameter 2.875 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Speed 1785 rpm
Speed Code Single Speed
Motor Standards NEMA
Starting Method Wye Start - Delta Run

Applications

Features

Nameplate

Nameplate

CAT.NO. EM4400T-12 SPEC NO. P40G3925
HP 100 AMPS 224/112 VOLTS 230/460 DESIGN B
FRAME 405T RPM 1785 HZ 60 AMB 40 SF 1.15
DRIVE END BEARING 80BC03J30X PHASE 3 DUTY CONT INSUL.CLASS F
OPP D.E. BEARING 80BC03J30X TYPE P ENCL TEFC CODE G
SER.NO. POWER FACTOR 87 NEMA-NOM-EFFICIENCY 95.4
MAX CORR KVAR 18 GUARANTEED EFFICIENCY 94.5
NEMA NOM/CSA QUOTED EFF
MOTOR WEIGHT
NP2383L
