/Products/Electric Motors/3 Phase/Baldor/Close-Coupled Pump - ODP/EJMM3212T Baldor 5HP Close-Coupled Pump Electric Motor, 3600RPM

Product ID: EJMM3212T

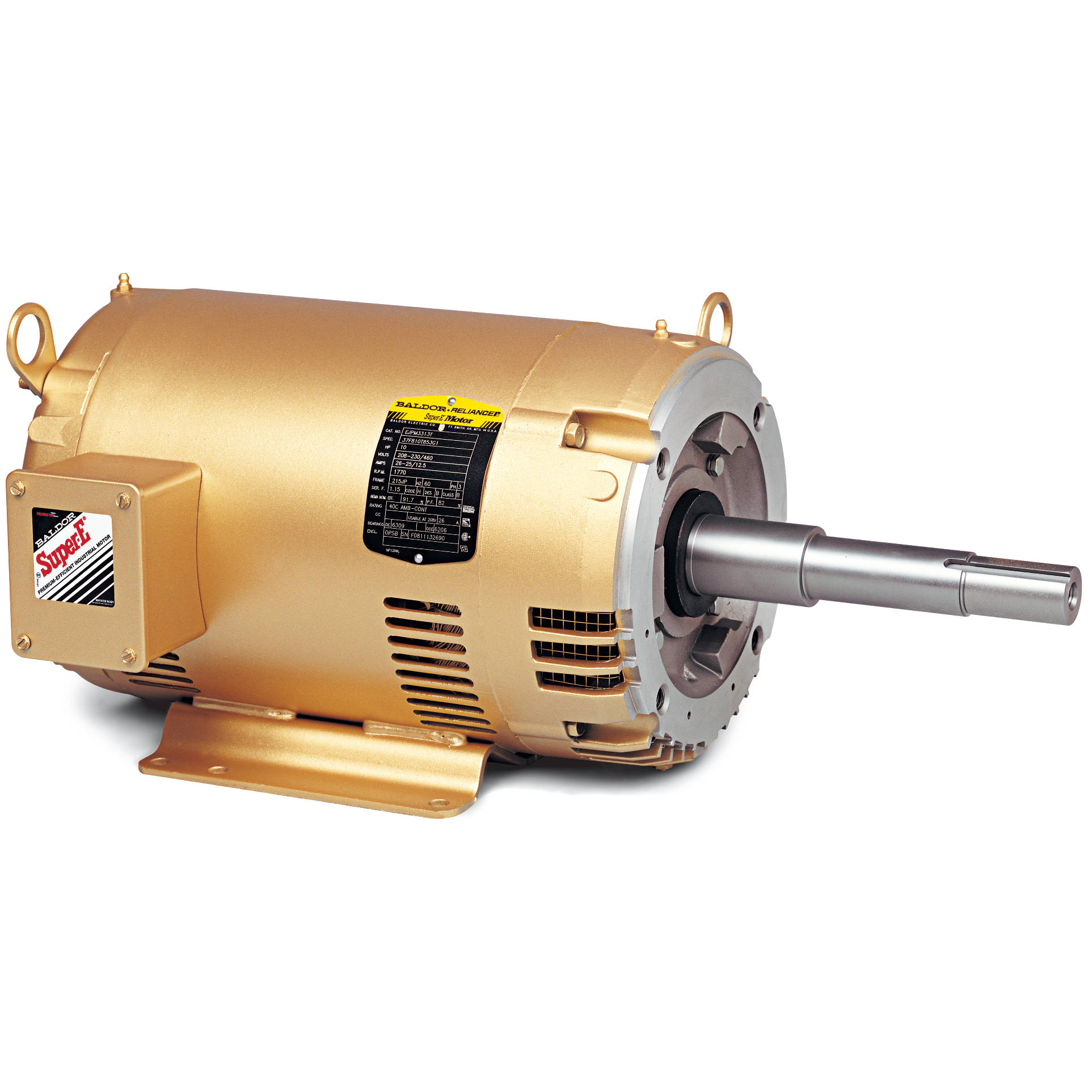

EJMM3212T Baldor 5HP Close-Coupled Pump Electric Motor, 3600RPM

MFG: Baldor Electric Company
MFG Part Number: EJMM3212T

Selected accessories will also be added to cart
$1,358.97 / Each
Quantity:
OPSB, 182JM Frame, 230/460V 3-Phase 60Hz, Foot Mount

Specifications

Specs

Output 5.000 hp
Phase 3
Synchronous Speed 3,600 rpm
Frequency 60.00 Hz
Voltage 230 V
460 V
Frame Material Steel
Frame 182JM
XP Class and Group NONE
XP Division Not Applicable
Brand Baldor-Reliance
Agency Approvals CSA
CSA EEV
UR
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type POLYREX EM (-20F +300F)
Blower None
Current 12.8 A @ 208 V
12.0 A @ 230 V
6.0 A @ 460 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 86.5%
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device No feedback
Front Face Code Standard
Front Shaft Indicator None
Heater Indicator No heater
High Voltage Full Load Amps 6.0 A
Insulation Class F
Inverter Code Inverter ready
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit KO Box
Motor Lead Quantity/Wire Size 9 @ 16 AWG
Motor Lead Termination Flying Leads
Motor Standards NEMA
Motor Type 3622M
Number of Poles 2
Overall Length 15.12 in
Power Factor 91
Product Family General Purpose
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Tapped & Key
Rodent Screen Included
RoHS Status RoHS Compliant
Service Factor 1.15
Shaft Diameter 0.875 in
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 3,450 rpm
Speed Code Single Speed
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 None
Winding Thermal 2 None

Applications

Features

Nameplate

Nameplate

CAT.NO. EJMM3212T
SPEC. 36G687S040G1
HP 5
VOLTS 230/460
AMPS 12/6
RPM 3450
FRAME 182JM HZ 60 PH 3
SF 1.15 CODE K DES A CLASS F
NEMA NOM. EFF 86.5 PF 91
RATING 40C AMB-CONT
CC 010A USABLE AT 208V 12.8
DE 6207 ODE 6205
ENCL OPSB SN
VPWM INVERTER READY
CT30-60(2:1) VT3-60(20:1)
USABLE AT 50Hz 5HP 190/380V 14.6/7.3A SF1.0
NP3553LUA

Performance

Performance

Performance at 460 V, 60 Hz, 5 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque 0 LB-FT
No-Load Current 0 A
Line-Line Res. @ 25° C 3.07 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load 34° C
Temp. Rise @ S.F. Load 42° C
Start Configuration DOL
Break-Down Torque 29.99 LB-FT
Pull-Up Torque 17.89 LB-FT
Locked-Rotor Torque 22.24 LB-FT
Starting Current 49.63 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 13.0 61.0 79.0 87.0 90.0 92.0 93.0 92.0
Efficiency 0.0 81.4 86.5 87.6 86.6 85.3 83.5 86.1
Speed (RPM) 3,593 3,566 3,535 3,503 3,465 3,423 3,379 3,445
Line Amps 1.99 2.50 3.49 4.68 6.06 7.56 9.15 6.91

Performance Curves
