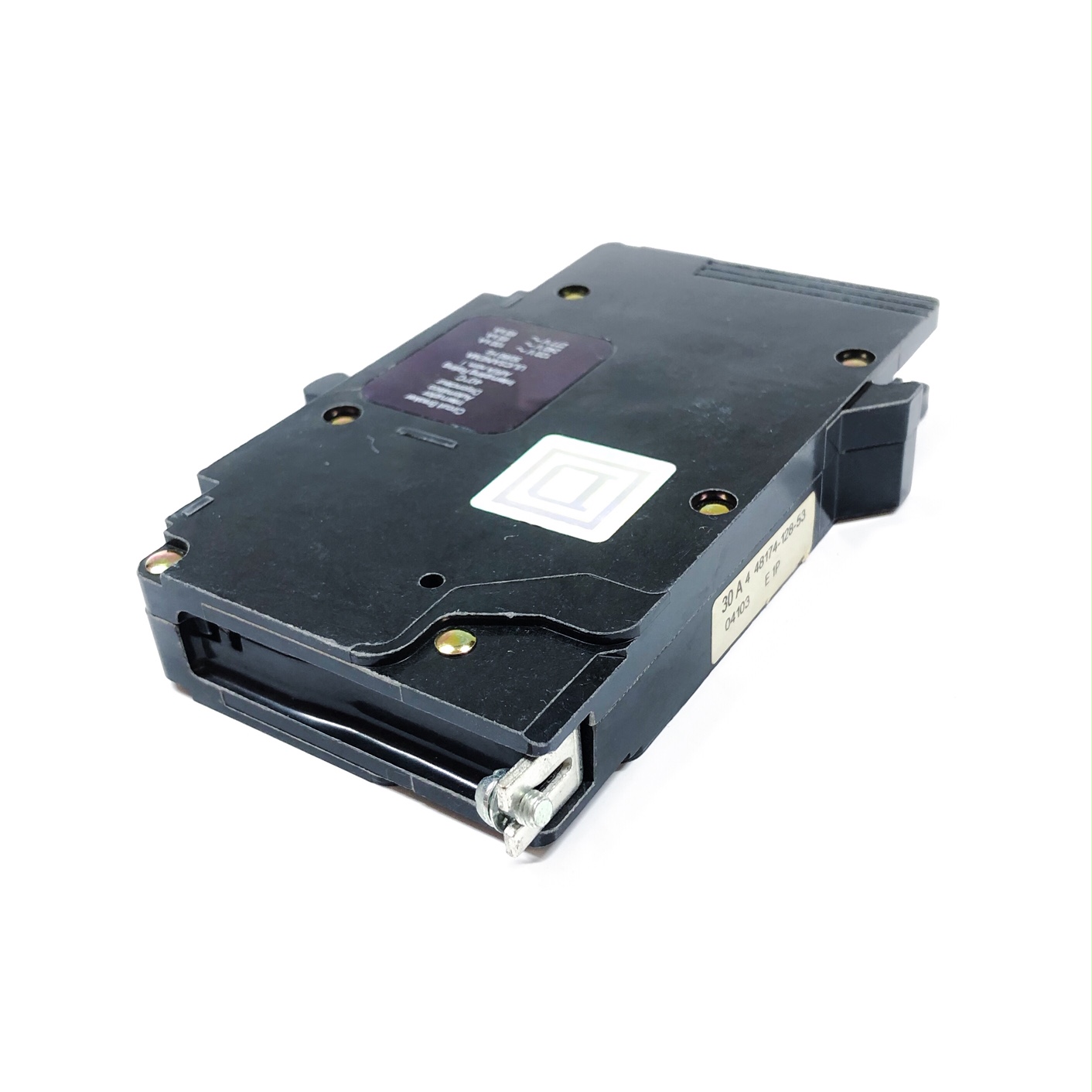

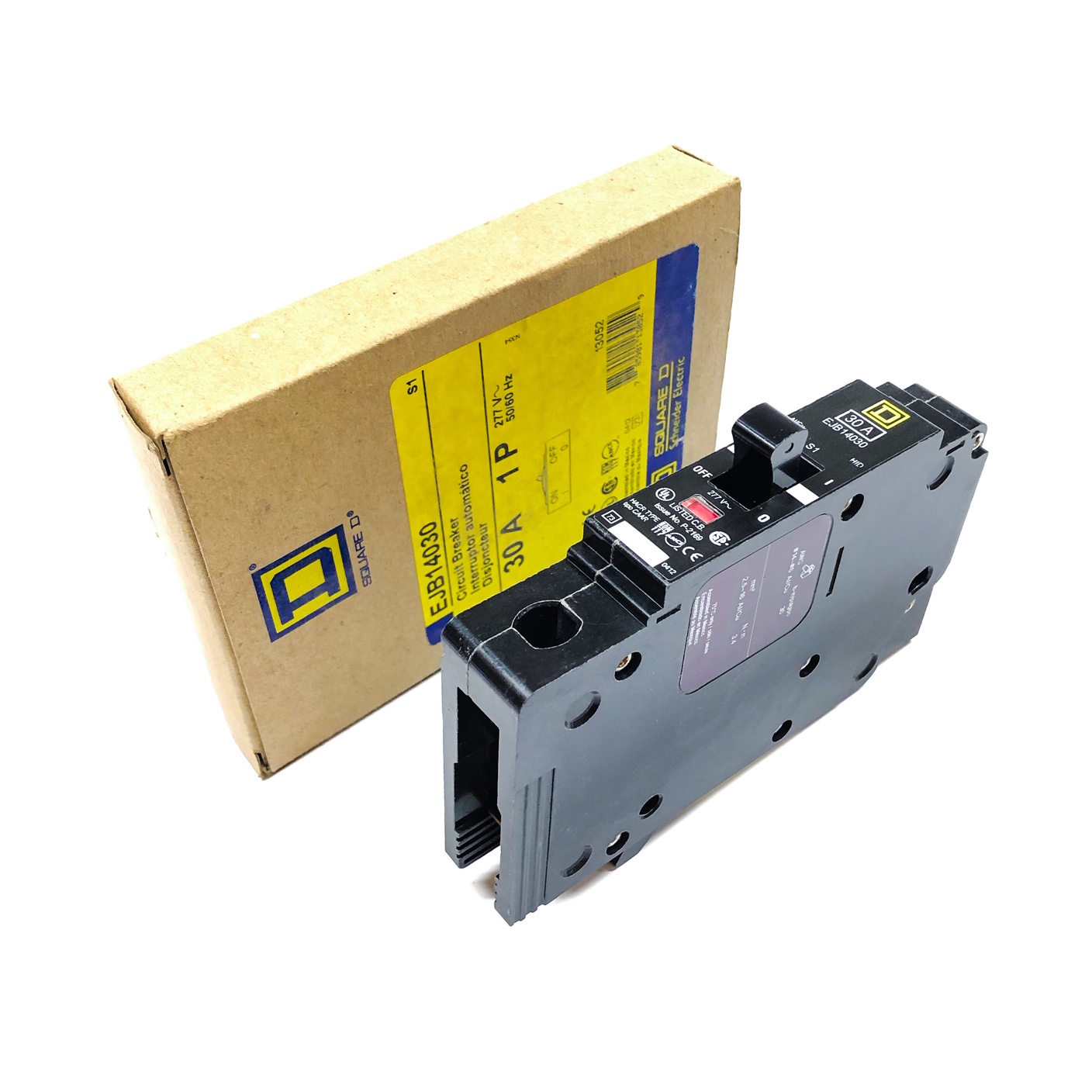

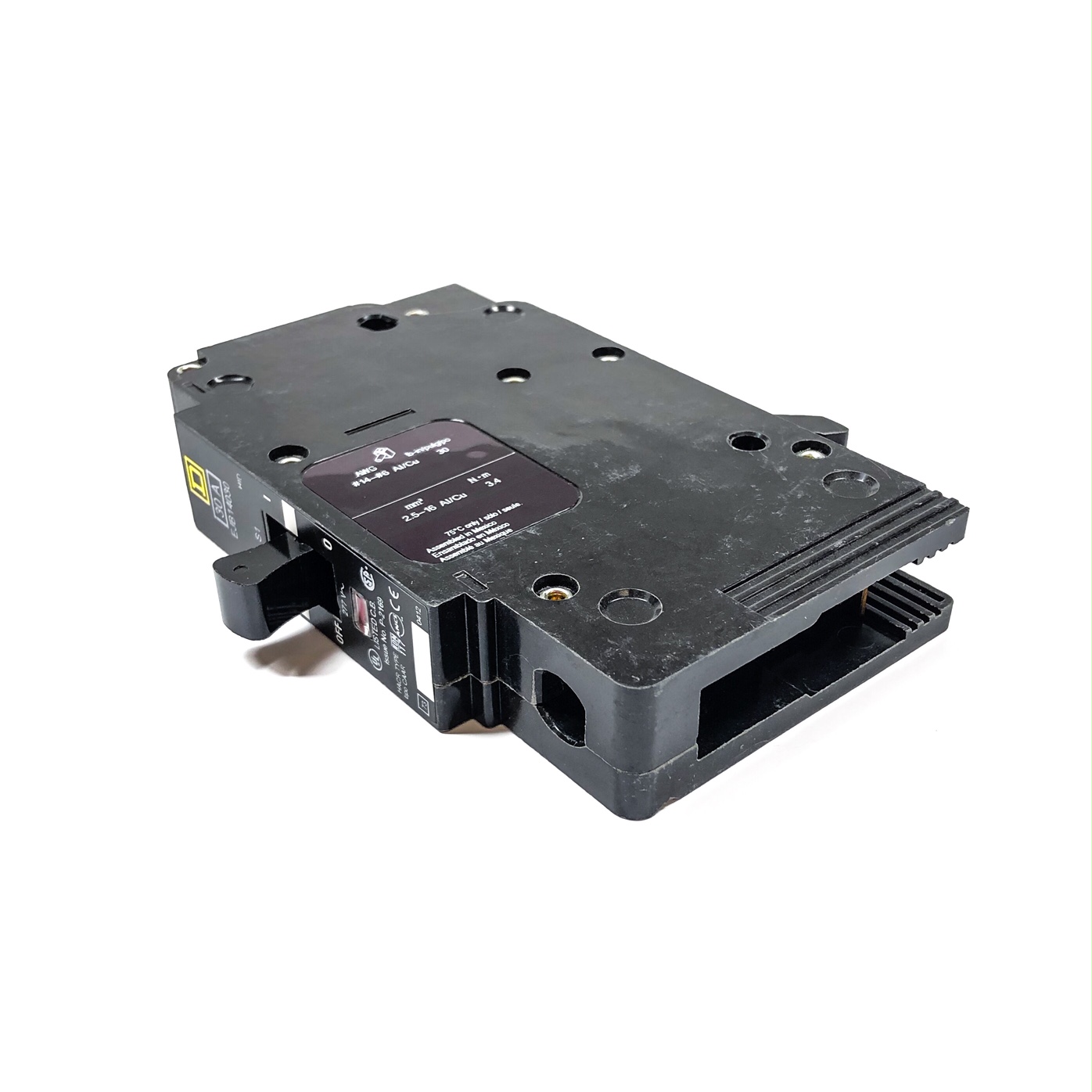

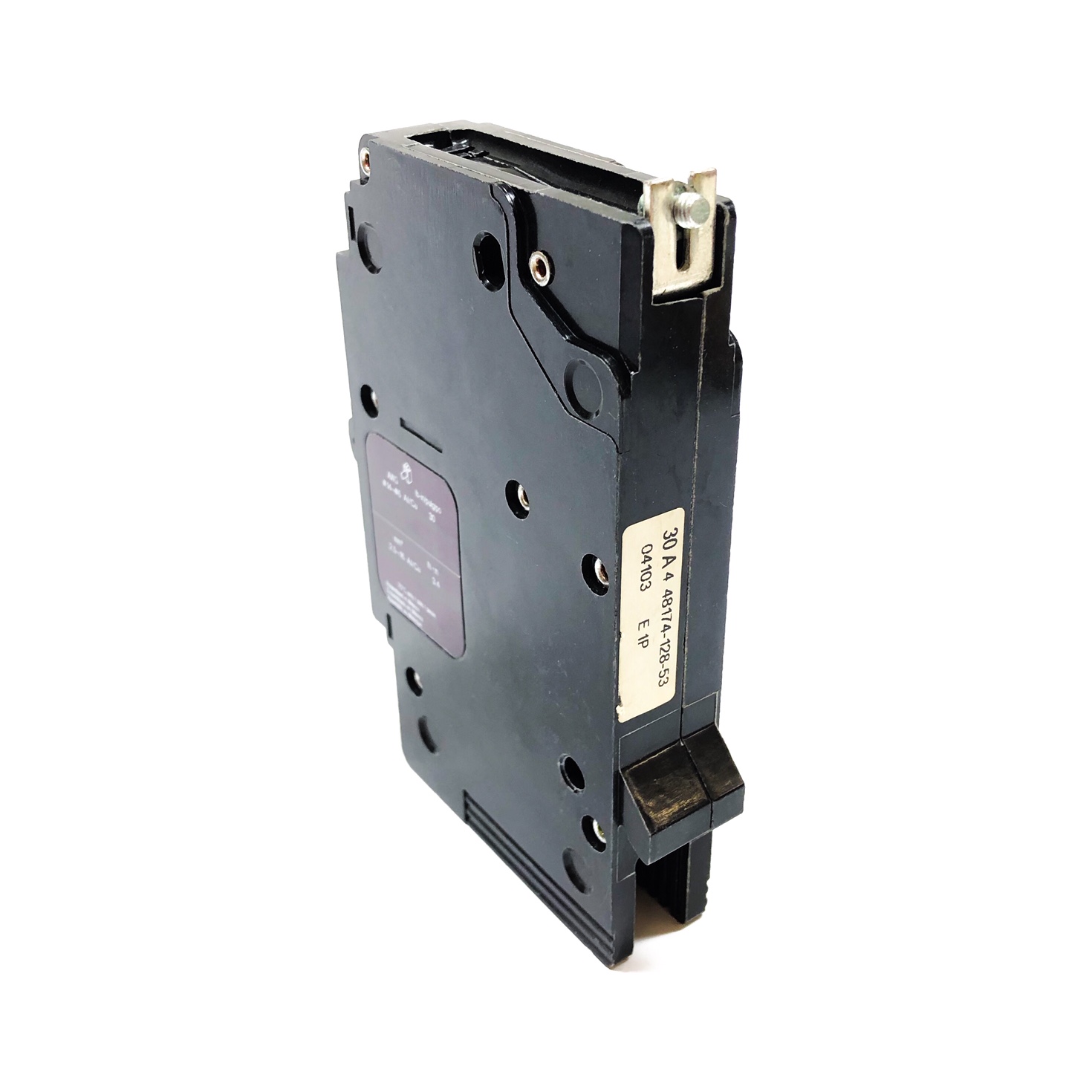

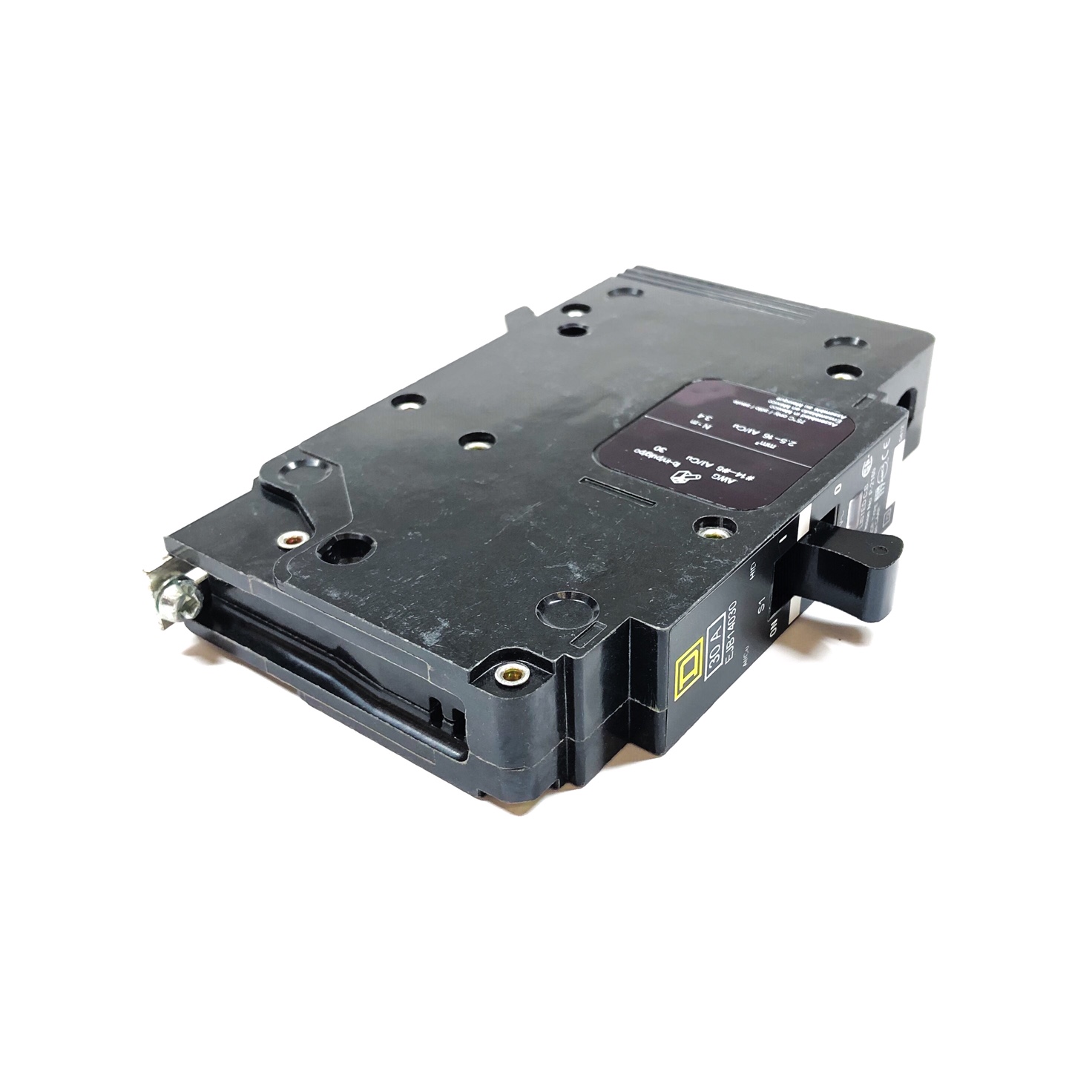

Schneider Electric · Circuit Breaker
It provides thermal magnetic protection that is used for NF series panelboard and has bolt on type connection. It measures 1.960 Inch x 4.050 Inch x 5.500 Inch. It provides protection from overload and short circuit. It has a current rating of 30 Amps and voltage rating of 277 VAC at 50/60 Hz. It has aluminum lug of size 12 - 6 AWG and copper lug of size 14 - 6 AWG for convenient connection. It can accommodate aluminum wires of size 12 - 6 AWG and copper wire of size 14 - 6 AWG. The 1-Phase circuit breaker has an interrupt rating of 65 kilo-Amps at 480Y/277 VAC. Circuit breaker is UL listed and CSA certified.
