/Products/Surplus Industrial/Circuit Breakers/Square D (Schneider Electric)/EGB14030 Square D E-Frame Circuit Breaker, 30 Amp
Click Image to Expand

Product ID: EGB14030

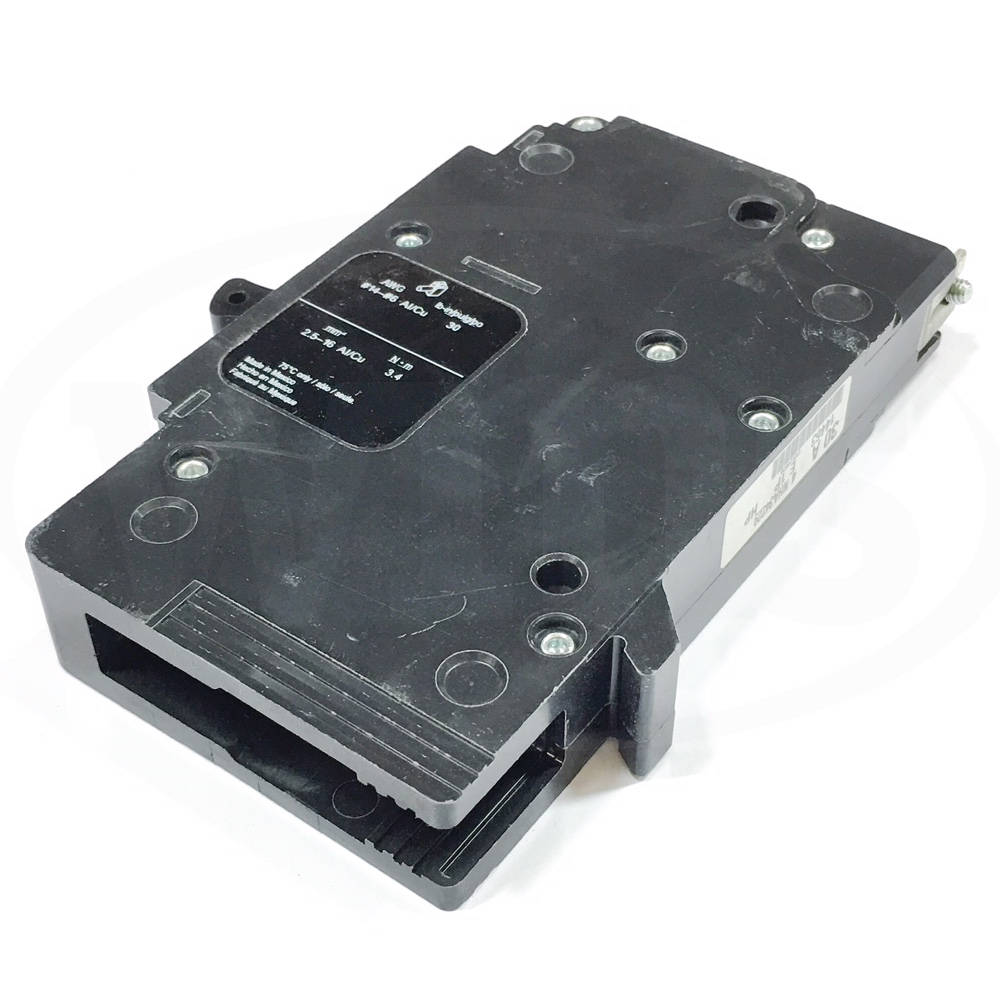

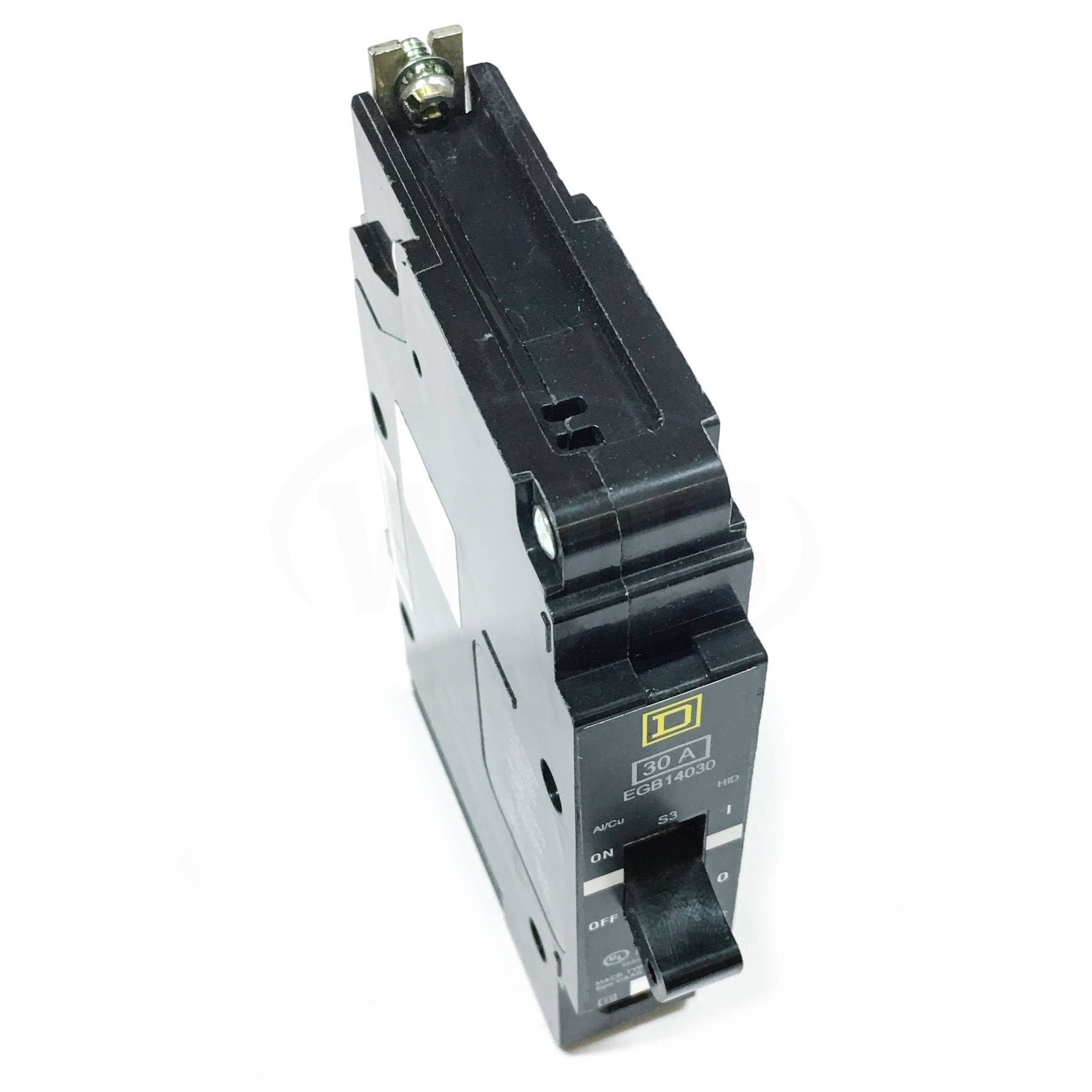

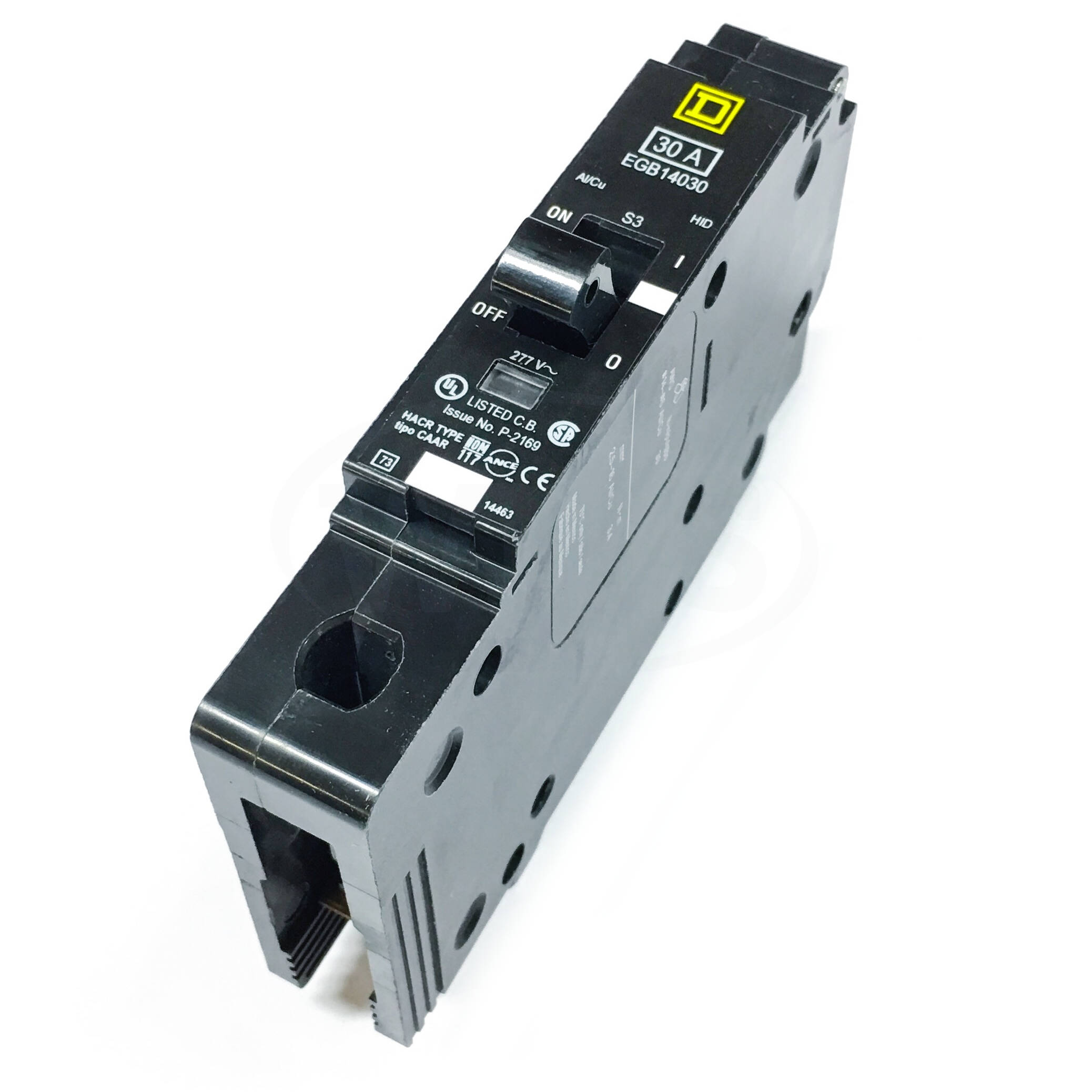

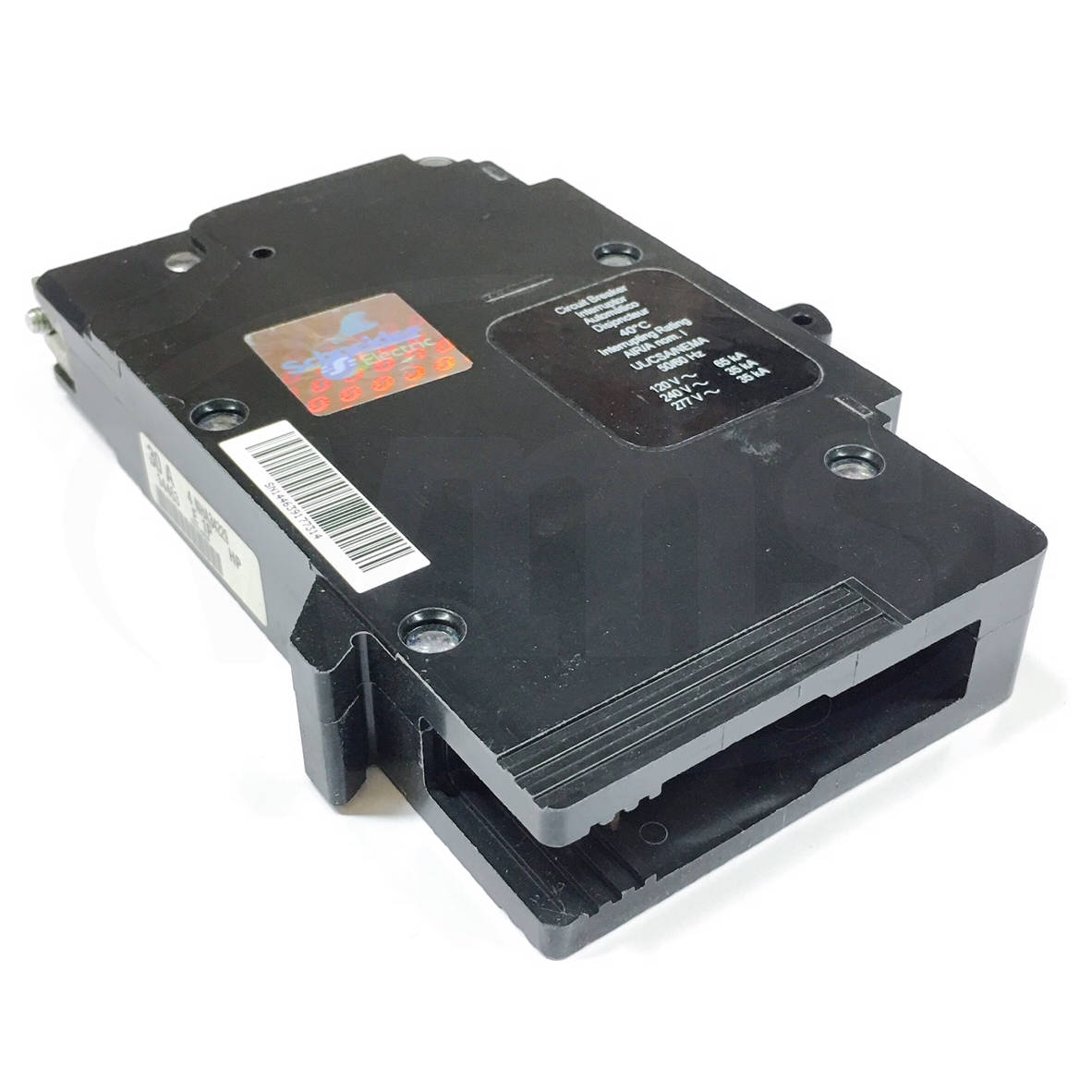

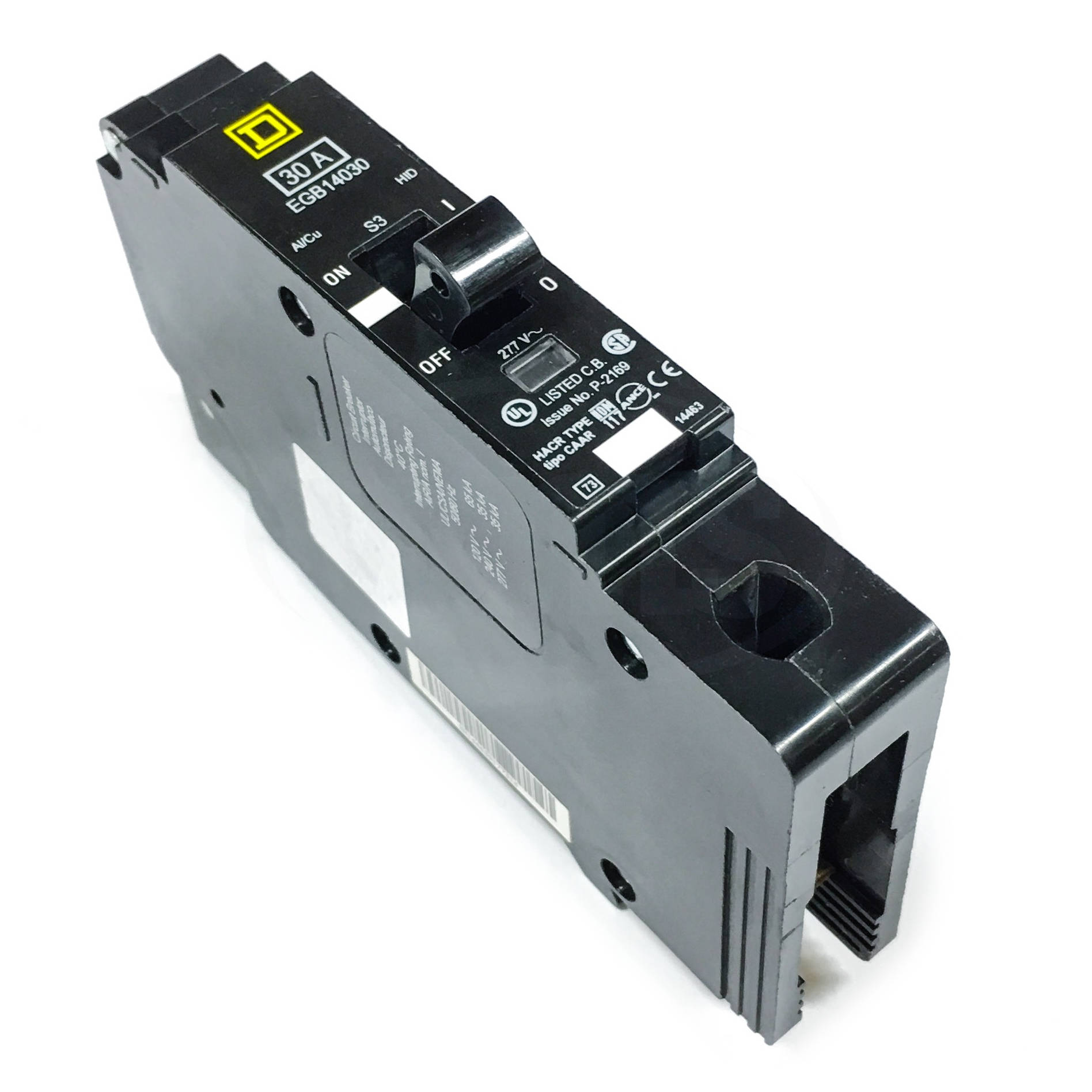

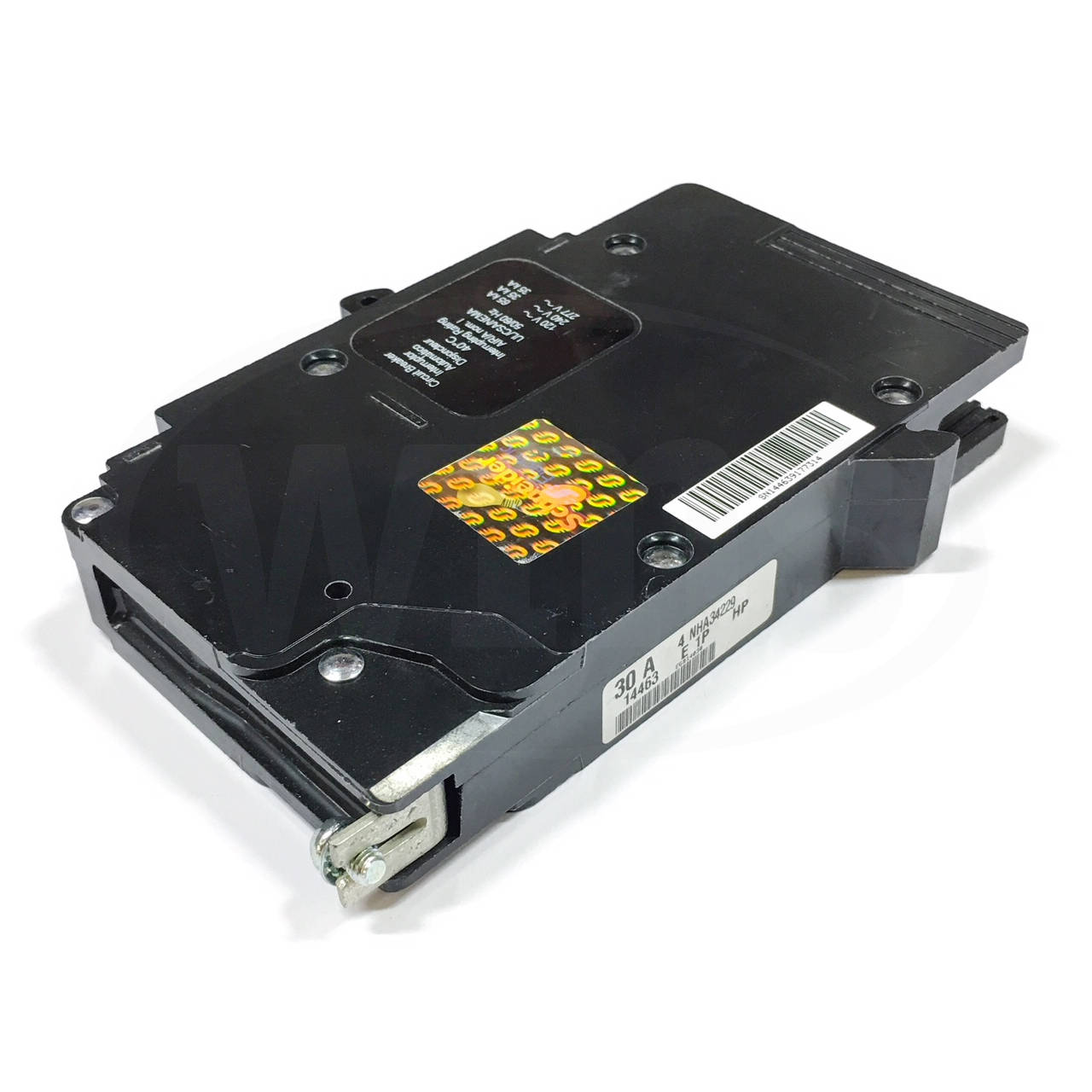

EGB14030 Square D E-Frame Circuit Breaker, 30 Amp

MFG: Schneider Electric (Square D)
MFG Part Number: EGB14030

Available Stock: 2
Selected accessories will also be added to cart
$99.97 / Each
Quantity:
New, Surplus Stock. 1-Pole, 277VAC 50/60Hz
Main
range of product
125 A Frame EDB-EGB-EJB
product or component type
Miniature circuit-breaker
device short name
EGB
module type
E-Frame
trip unit rating
875 A
Complementary
Line Rated Current
30 A
System Voltage
277 V AC
AWG gauge
AWG 14...AWG 6 copper
AWG 12...AWG 6 aluminium
breaking capacity
35 kA 277 V AC
35 kA 240 V AC
65 kA 120 V AC
35 kA 120/240 V AC
circuit breaker application
HACR rated
HID rated
depth
4.05 in
electrical connection
Lugs
height
5.66 in
holding current
270 A
local signalling
Trip indicator
mounting mode
Bolt-on
number of poles
1
number of spaces
1
number of spaces required
1
product destination
Panelboard NF
product weight
2 lb(US)
protection type
Short-circuit
Overload
width
0.98 in
trip unit technology
Thermal-magnetic
breaking capacity code
G
Environment
product certifications
cULus
ambient air temperature for operation
104 °F (40 °C)
Ordering and shipping details
Category
00936 - EGB CIRCUIT BREAKERS
Discount Schedule
DE2
GTIN
00785901311096
Nbr. of units in pkg.
1
Package weight(Lbs)
1.3500000000000001
Returnability
Y
Country of origin
MX
