/Products/Surplus Industrial/Circuit Breakers/Square D (Schneider Electric)/EDB34025 Square D Circuit Breaker, 25 Amp, 3-Pole
Click Image to Expand

Product ID: EDB34025

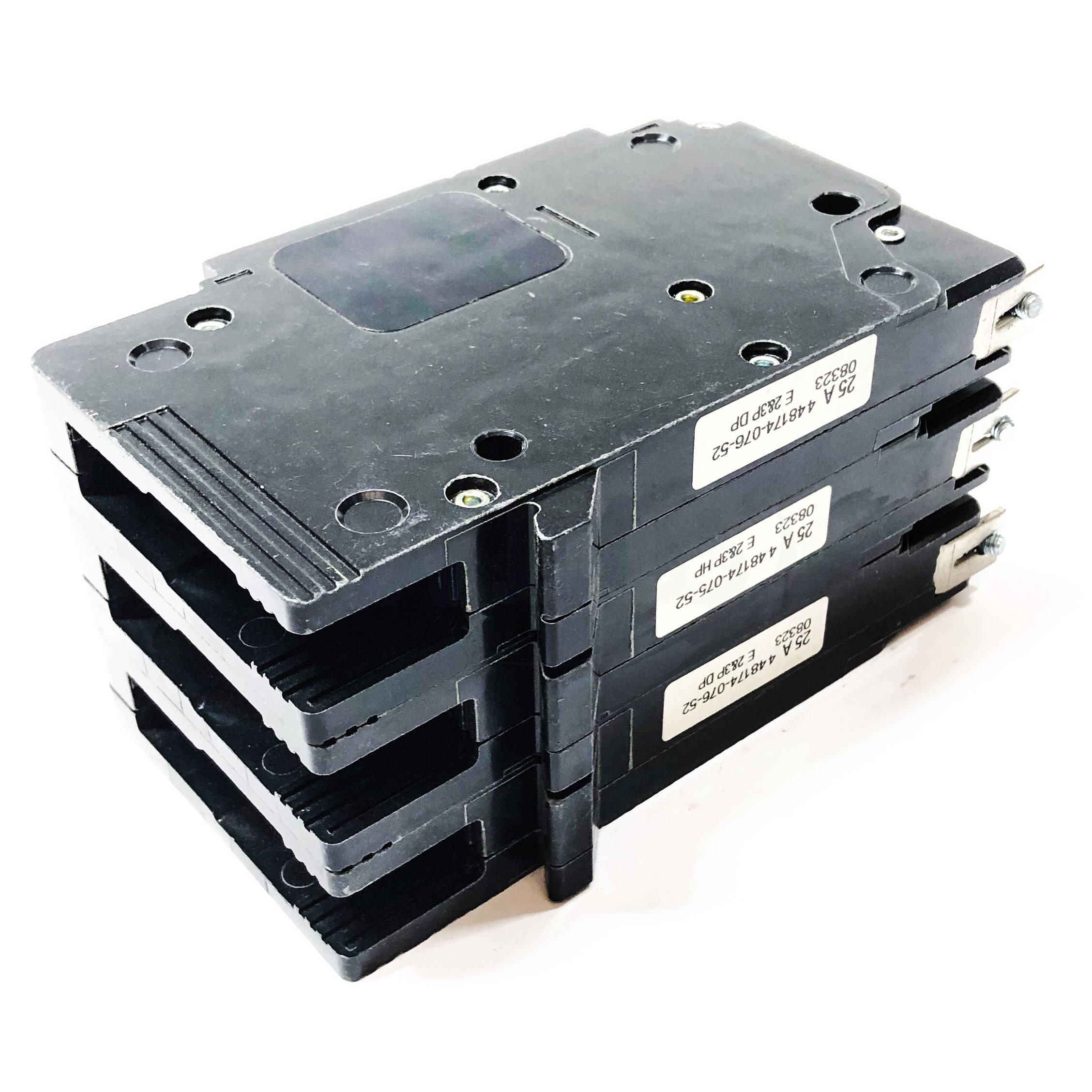

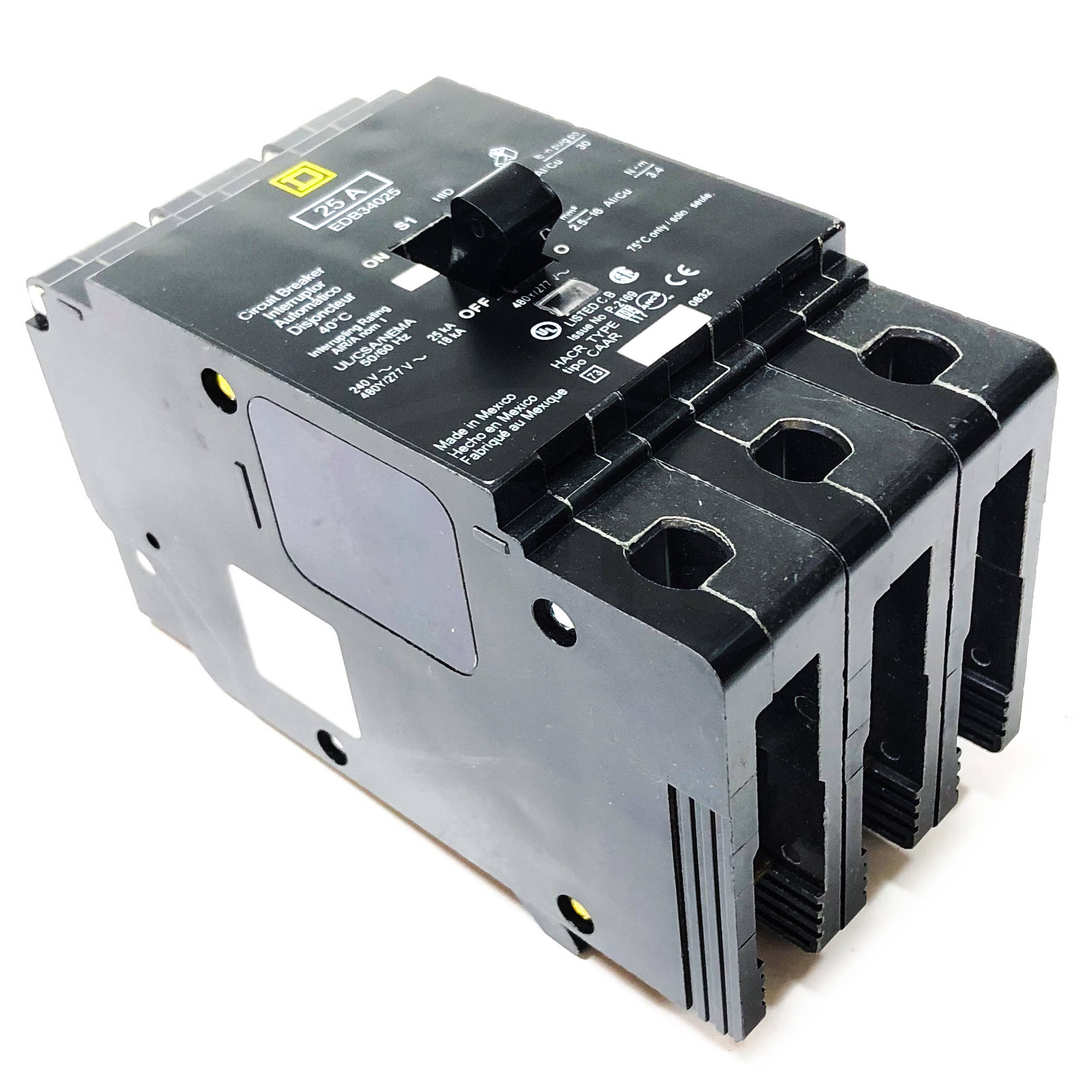

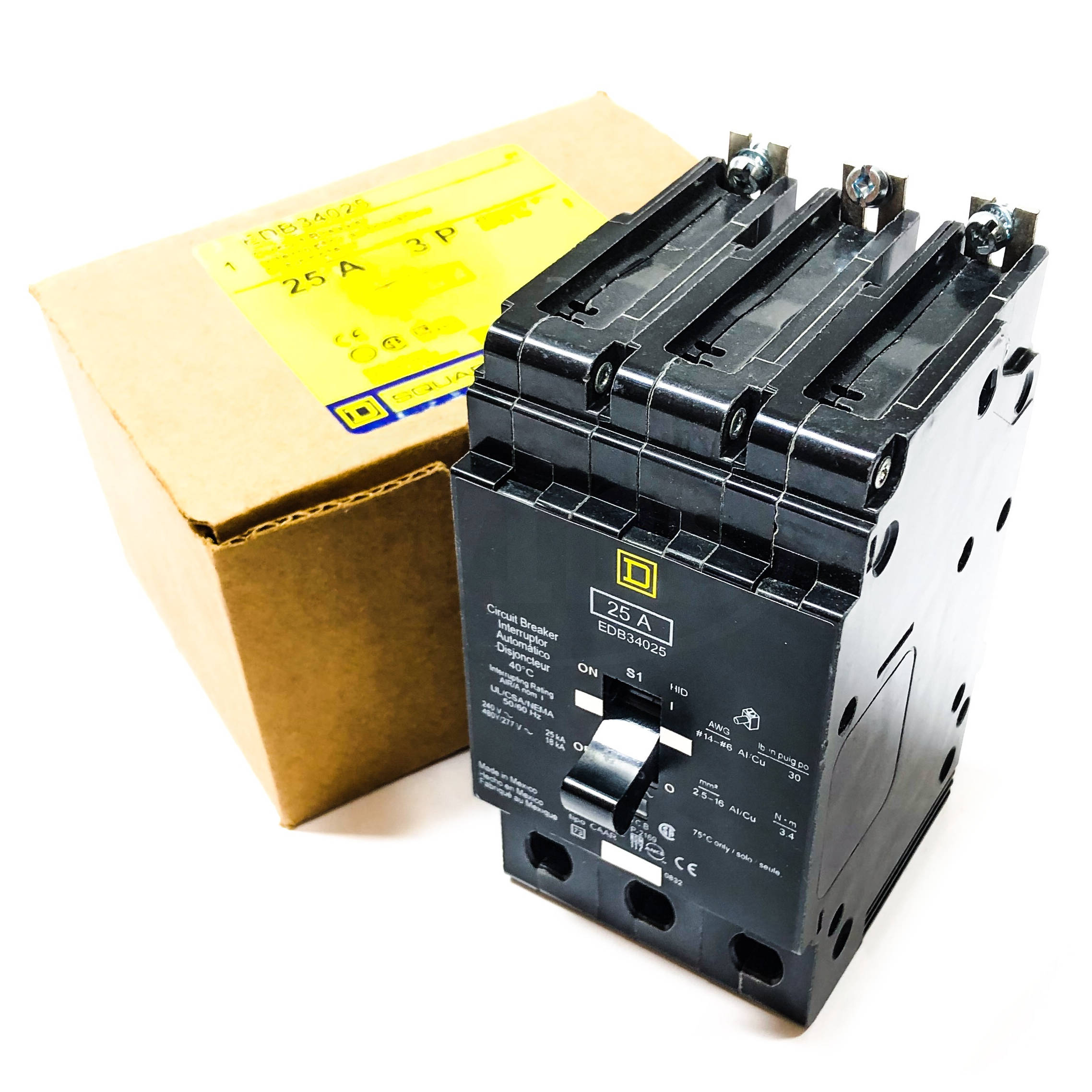

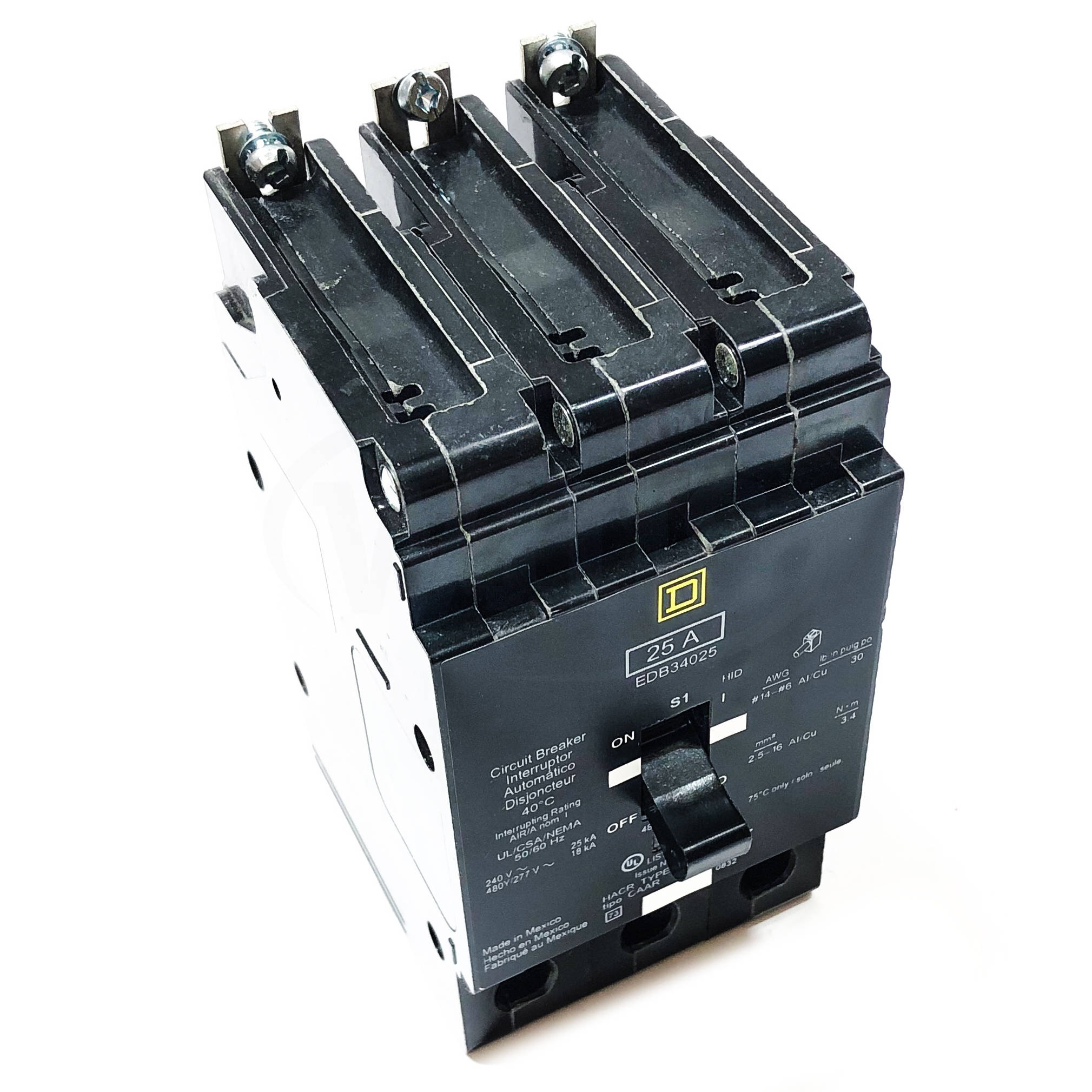

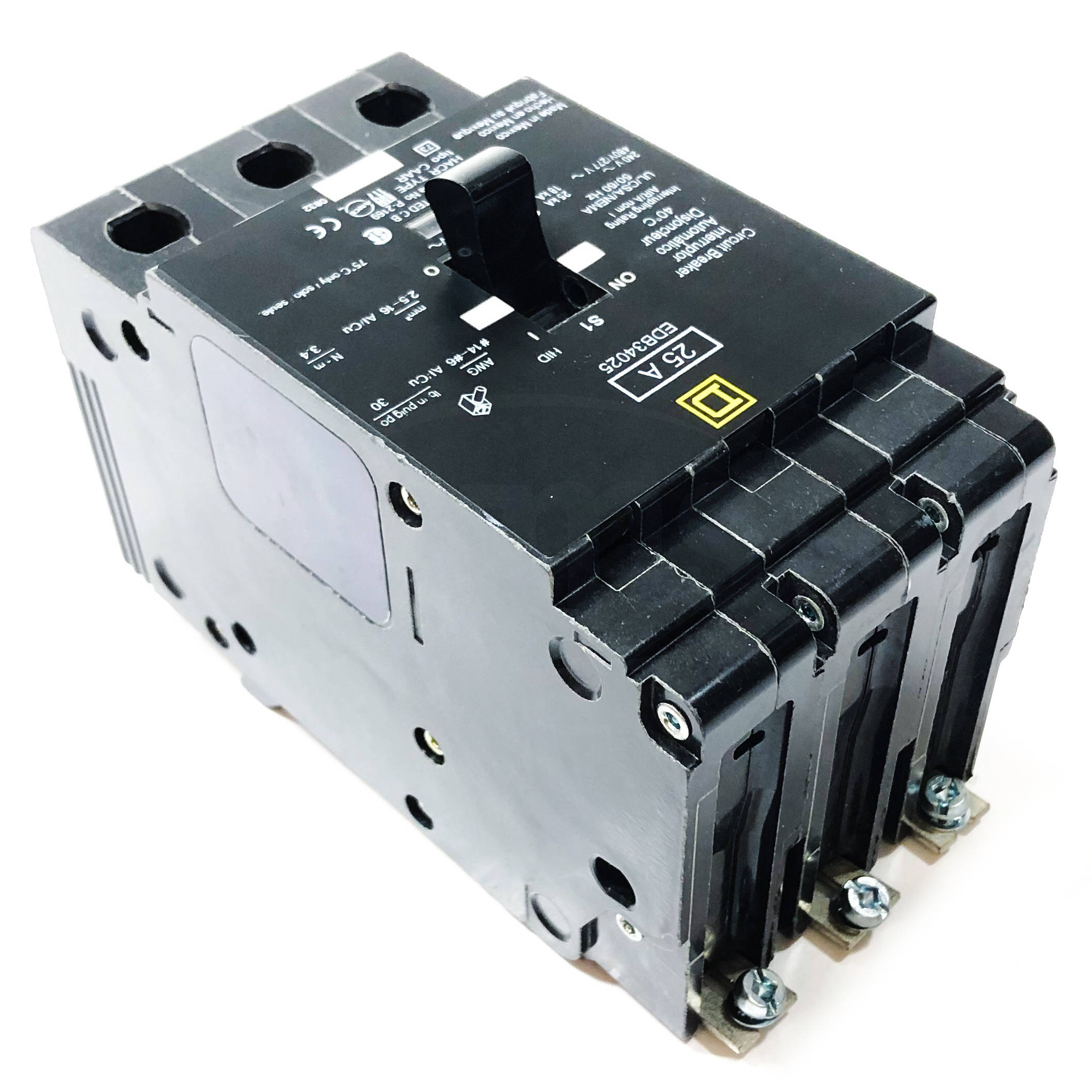

EDB34025 Square D Circuit Breaker, 25 Amp, 3-Pole

MFG: Schneider Electric (Square D)
MFG Part Number: EDB34025

Available Stock: 2
Selected accessories will also be added to cart
$499.97 / Each
Quantity:
New, Surplus Stock. 277/480VAC 50/60Hz
Main
range of product
125 A Frame EDB-EGB-EJB
product or component type
Miniature circuit-breaker
device short name
EDB
module type
E-Frame
trip unit rating
875 A
Complementary
Line Rated Current
25 A
System Voltage
480Y/277 V AC
AWG gauge
AWG 14...AWG 6 copper
AWG 12...AWG 6 aluminium
breaking capacity
18 kA 277 V AC
18 kA 480Y/277 V AC
25 kA 120 V AC
25 kA 120/240 V AC
25 kA 240 V AC
circuit breaker application
HACR rated
HID rated
depth
4.05 in
electrical connection
Lugs aluminium
height
5.66 in
holding current
270 A
local signalling
Trip indicator
mounting mode
Bolt-on
number of poles
3
number of spaces
3
number of spaces required
3
product destination
Panelboard NF
product weight
4 lb(US)
protection type
Overload
Short-circuit
width
2.94 in
trip unit technology
Thermal-magnetic
breaking capacity code
D
tightening torque
3.4 N.m for 2.5...16 mm² (AWG 14...AWG 6)
Environment
product certifications
cULus
ambient air temperature for operation
104 °F (40 °C)
