/Products/Surplus Industrial/Circuit Breakers/Square D (Schneider Electric)/EDB14015 Square D E-Frame Circuit Breaker, 15 Amp 1-Pole
Click Image to Expand

Product ID: EDB14015

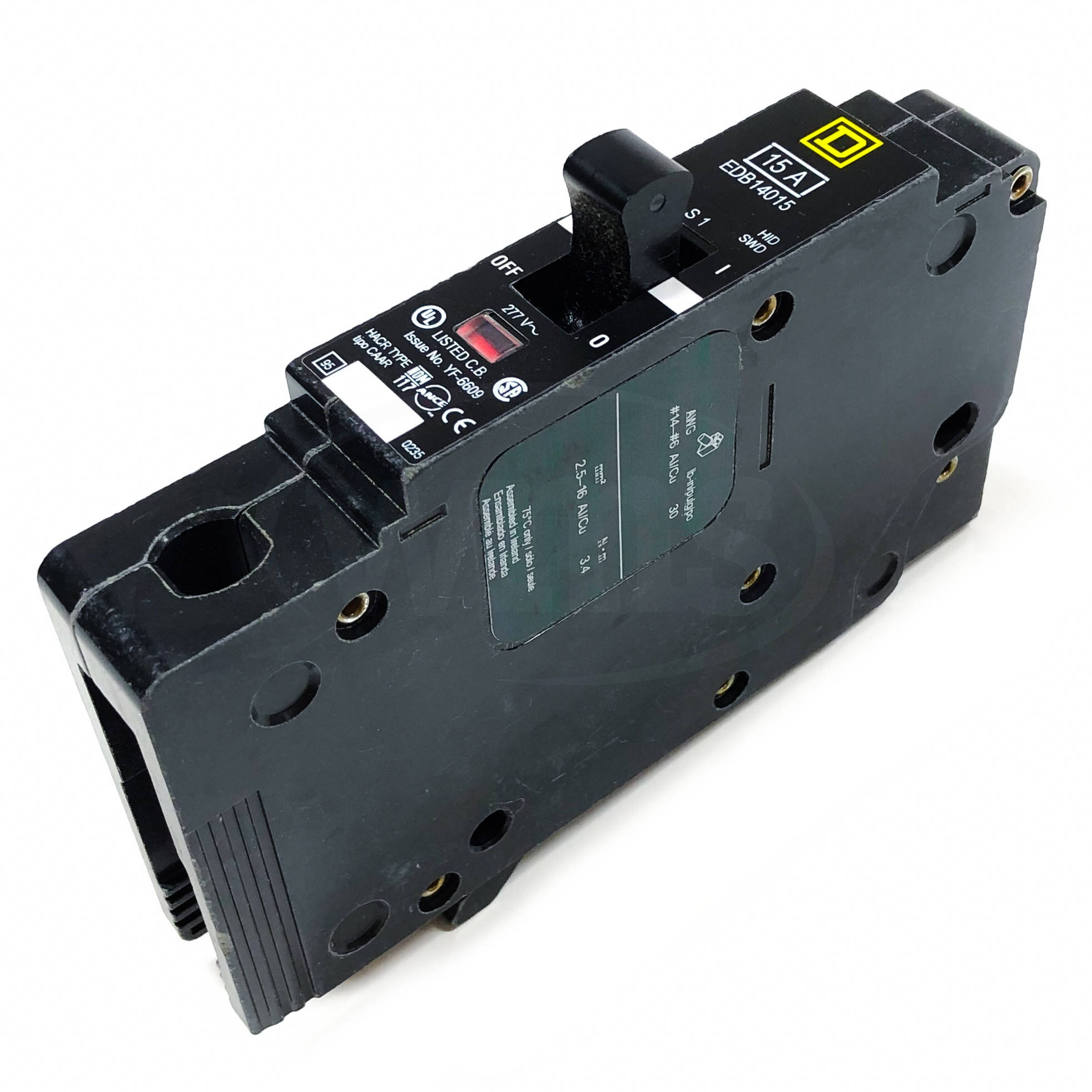

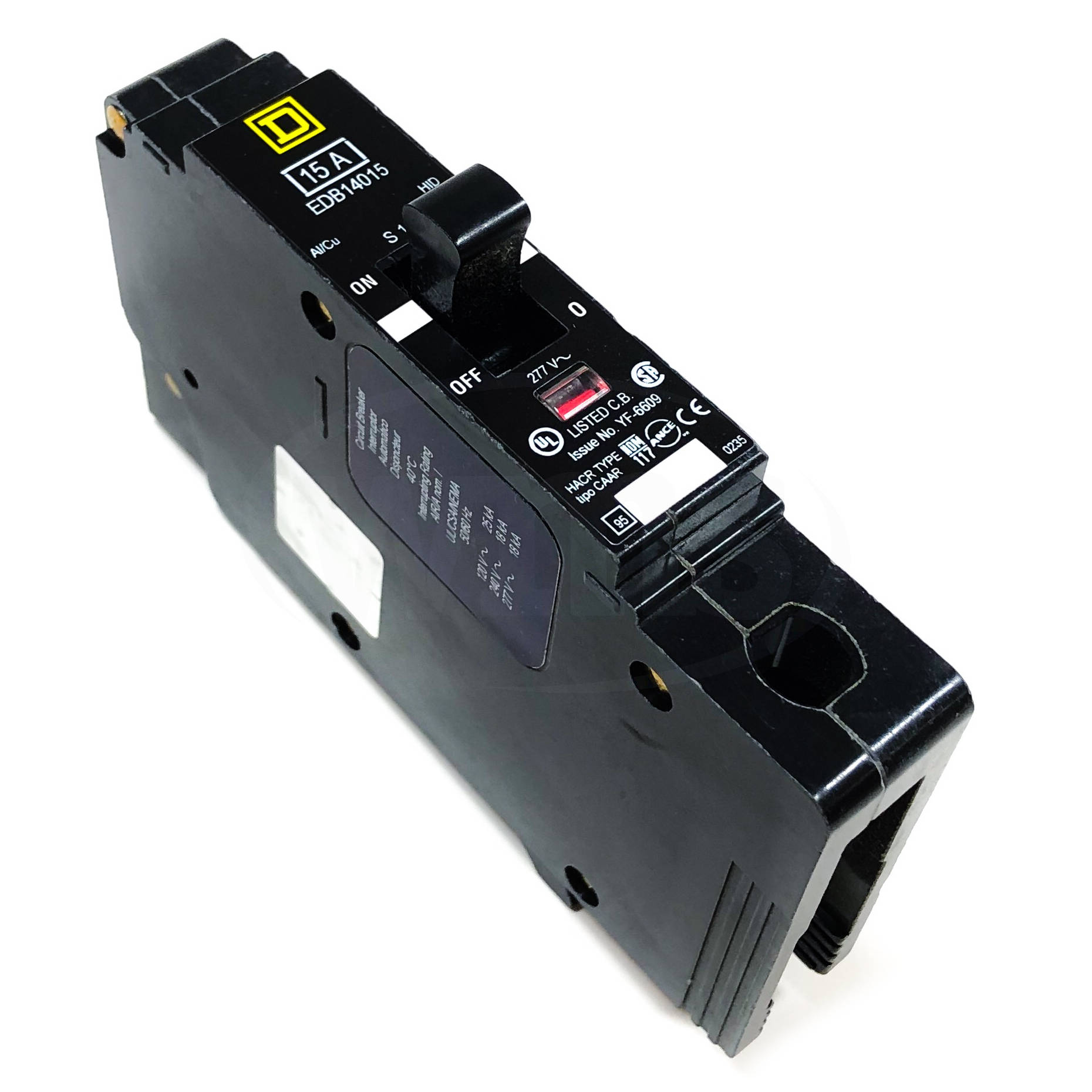

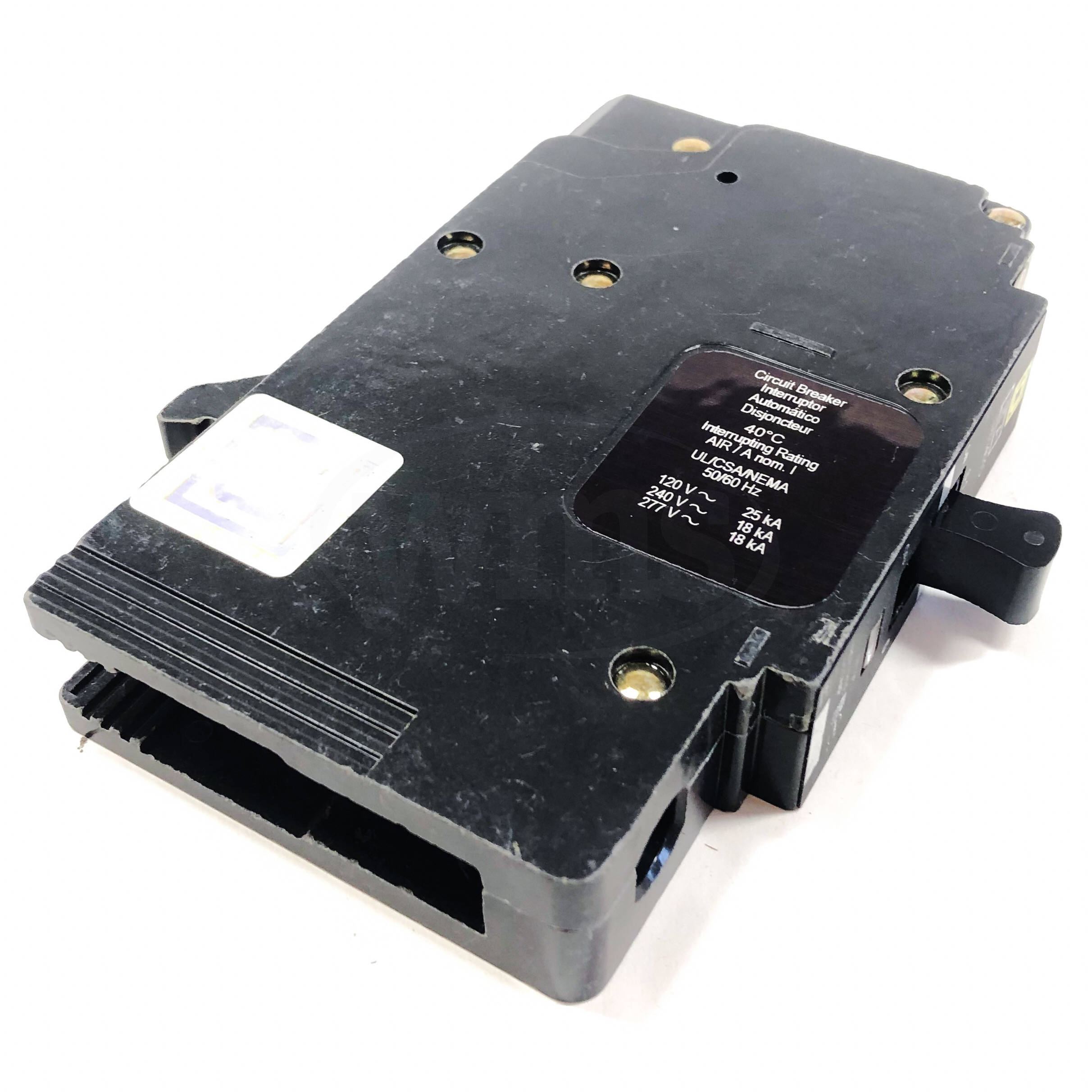

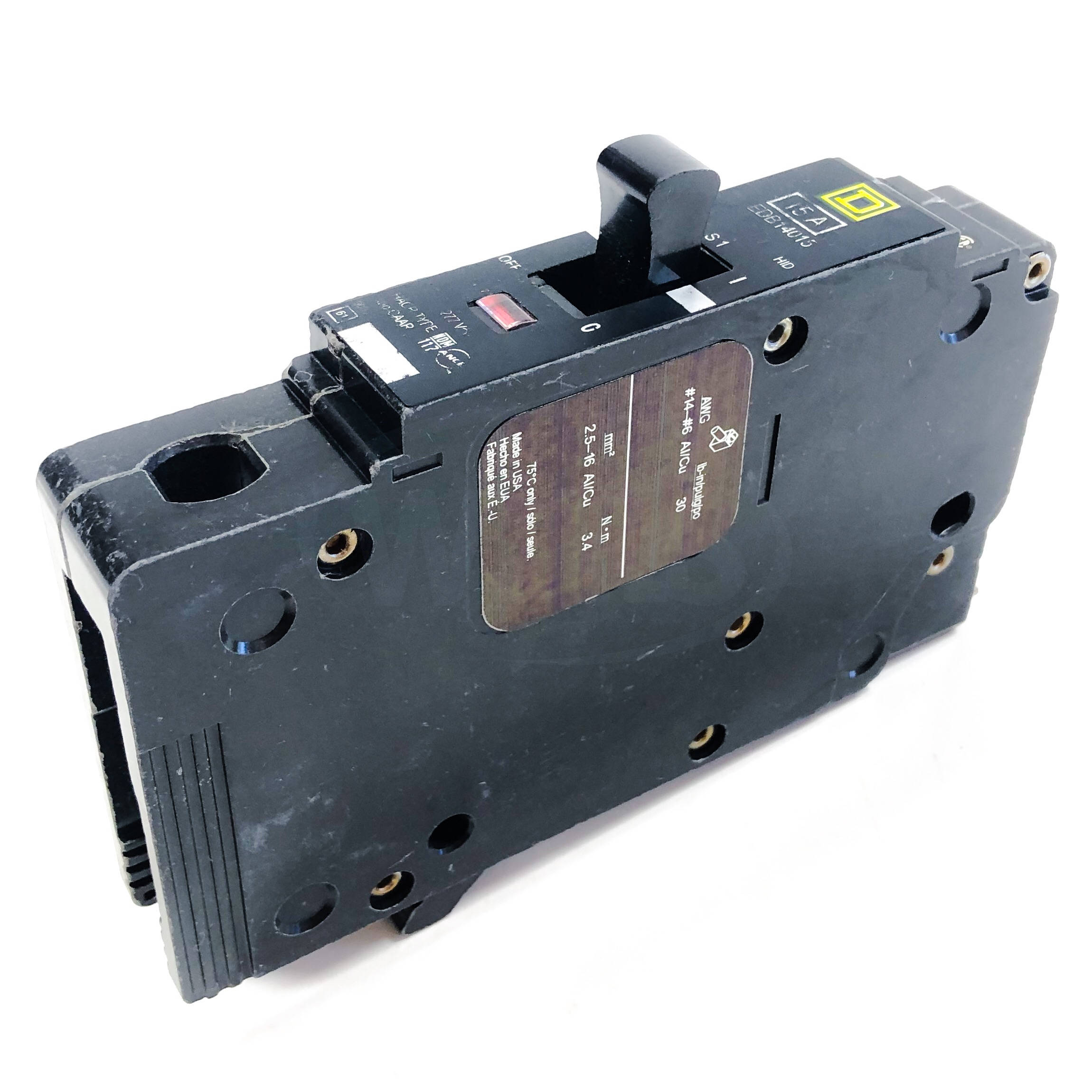

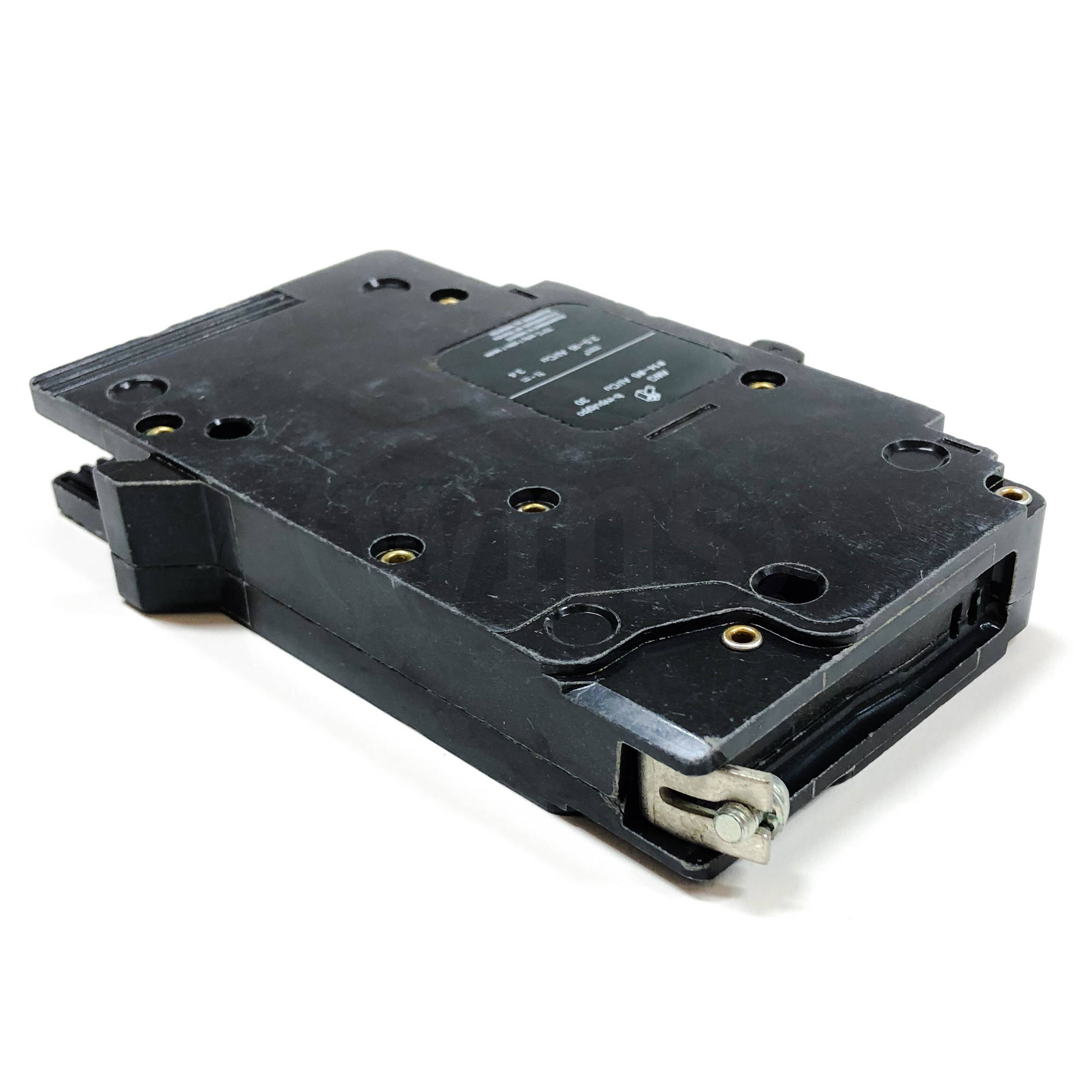

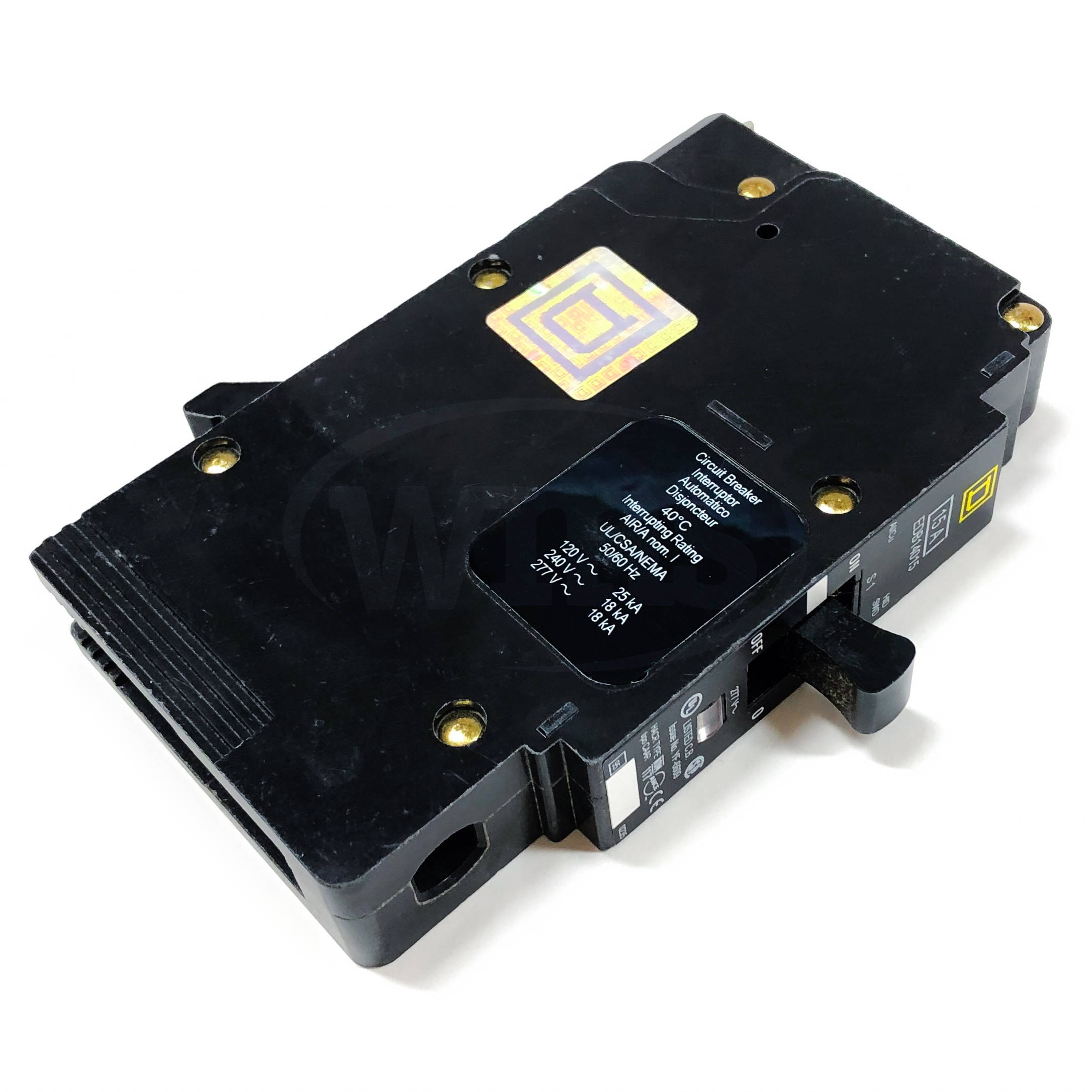

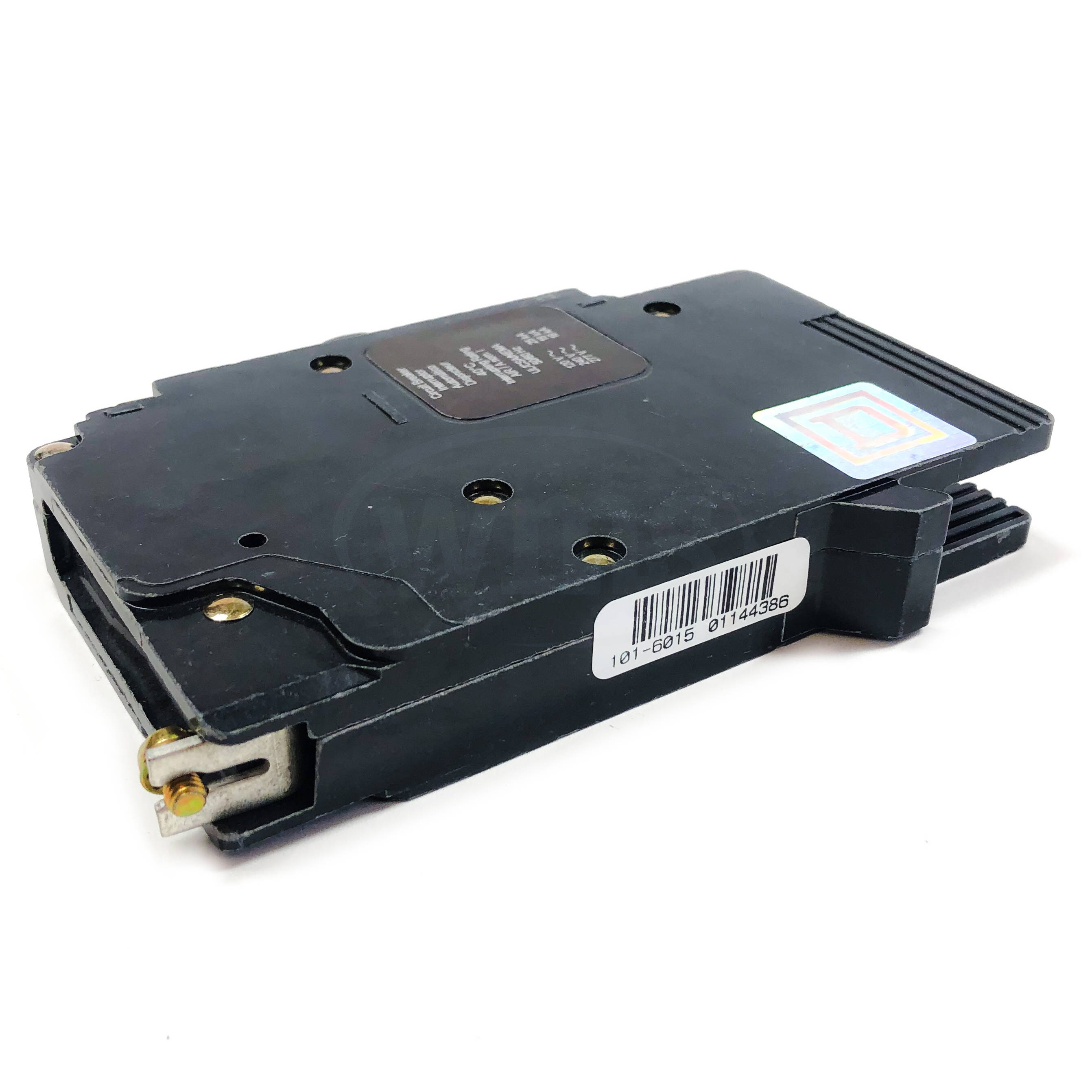

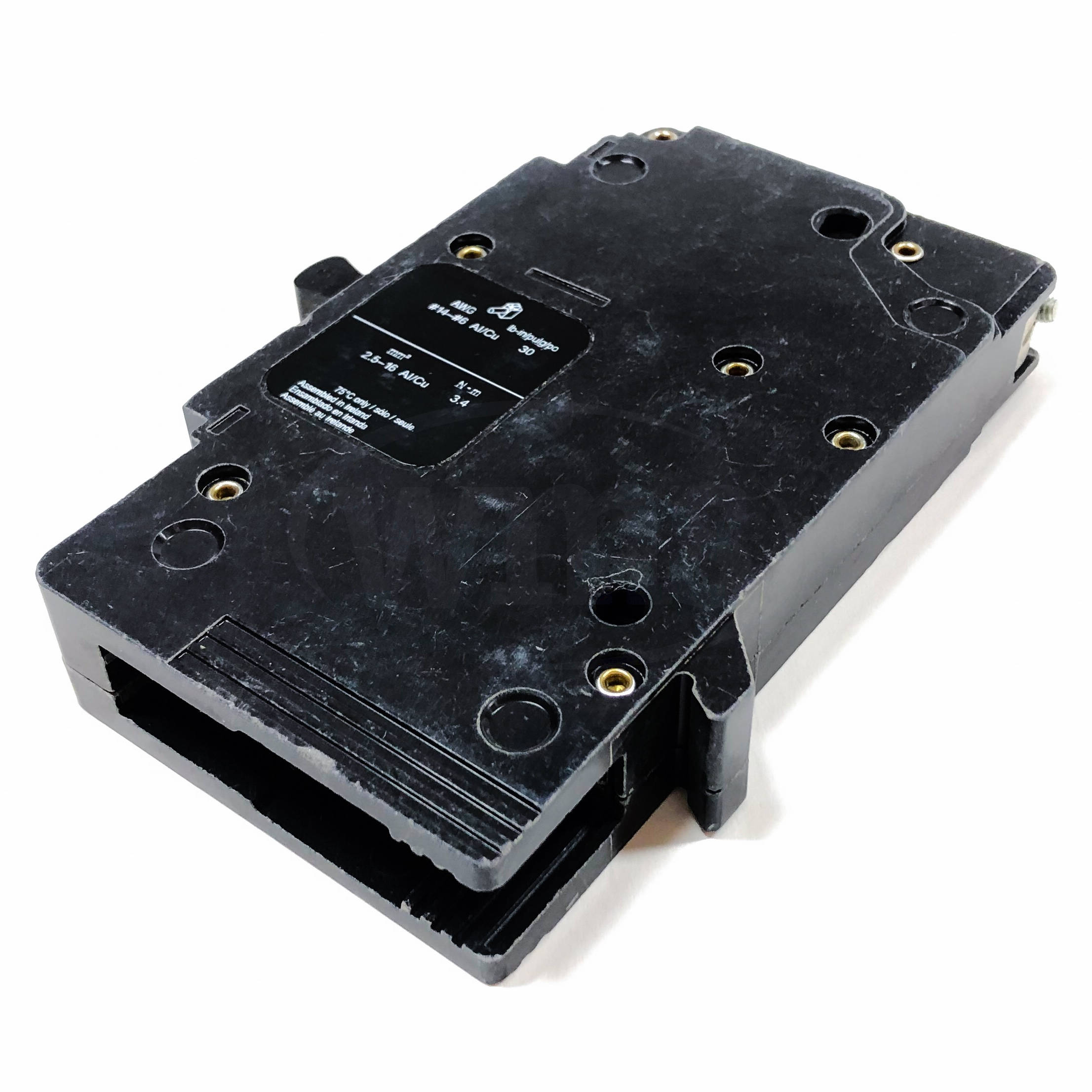

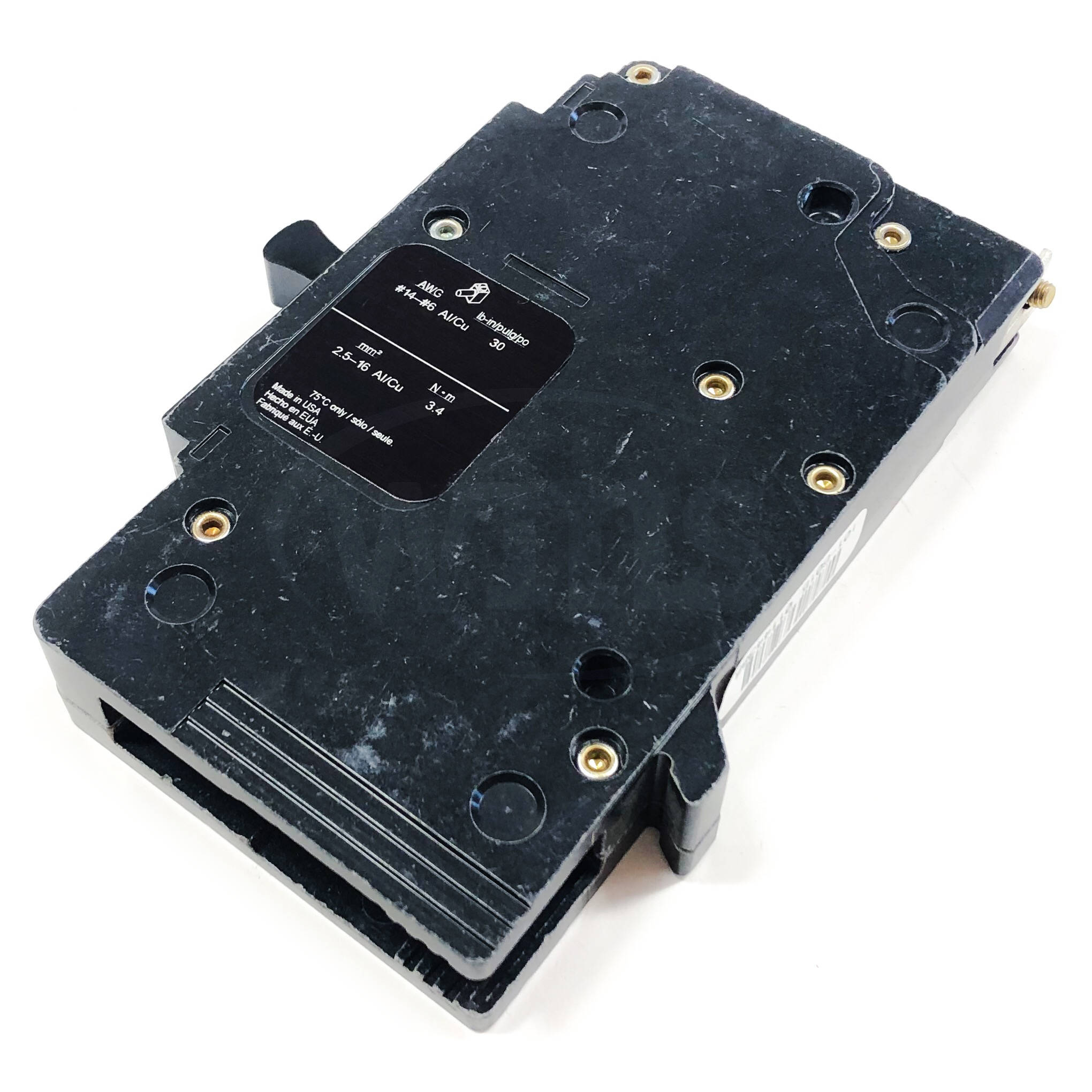

EDB14015 Square D E-Frame Circuit Breaker, 15 Amp 1-Pole

MFG: Schneider Electric (Square D)
MFG Part Number: EDB14015

Available Stock: 2
Selected accessories will also be added to cart
$109.97 / Each
Quantity:

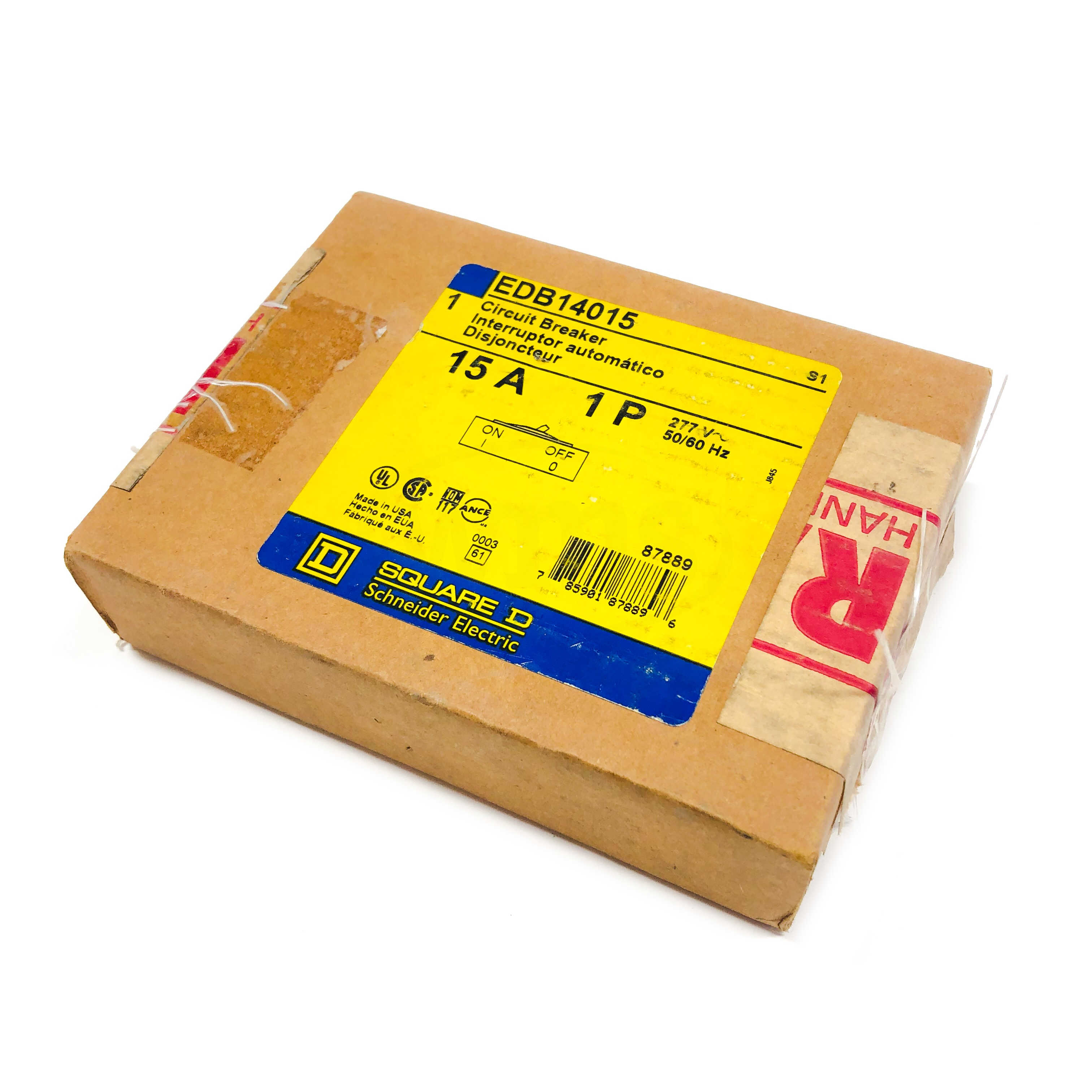

New, Surplus Stock. 277VAC 50/60Hz, 87889
Main
range of product
125 A Frame EDB-EGB-EJB
product or component type
Miniature circuit-breaker
device short name
EDB
module type
E-Frame
trip unit rating
875 A
Complementary
Line Rated Current
15 A
maximum operating voltage
277 V AC
AWG gauge
AWG 12...AWG 6 aluminium
AWG 14...AWG 6 copper
breaking capacity
18 kA 277 V AC
18 kA 240 V AC
25 kA 120 V AC
18 kA 120/240 V AC
circuit breaker application
Switching Duty rated
HACR rated
HID rated
depth
102.87 mm (4.05 in)
electrical connection
Lugs aluminium
height
143.76 mm (5.66 in)
holding current
270 A
local signalling
Trip indicator
mounting mode
Bolt-on
number of poles
1
number of spaces
1
number of spaces required
1
product destination
NF panelboard
net weight
0.91 kg (2 lb(US))
protection type
Short-circuit
Overload
width
24.89 mm (0.98 in)
trip unit technology
Thermal-magnetic
breaking capacity code
D
tightening torque
30.09 lbf.in (3.4 N.m) 0.00…0.02 in² (2.5…16 mm²) AWG 14...AWG 6)
Environment
product certifications
CULus
IEC
ambient air temperature for operation
104 °F (40 °C)
Ordering and shipping details
Category
00931 - EDB CIRCUIT BREAKERS
Discount Schedule
DE2
GTIN
00785901878896
Package weight(Lbs)
0.60 kg (1.32 lb(US))
Returnability
Country of origin
