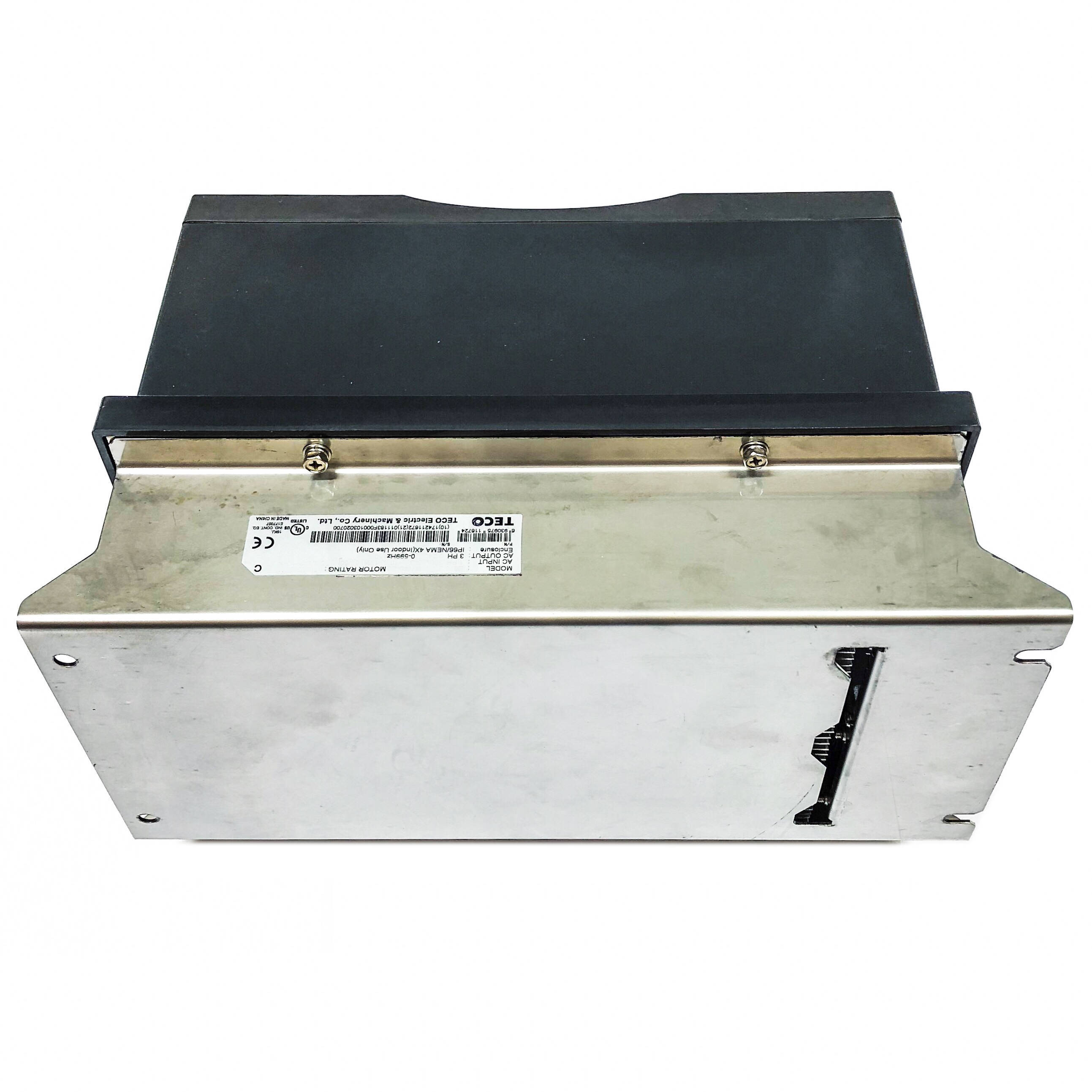

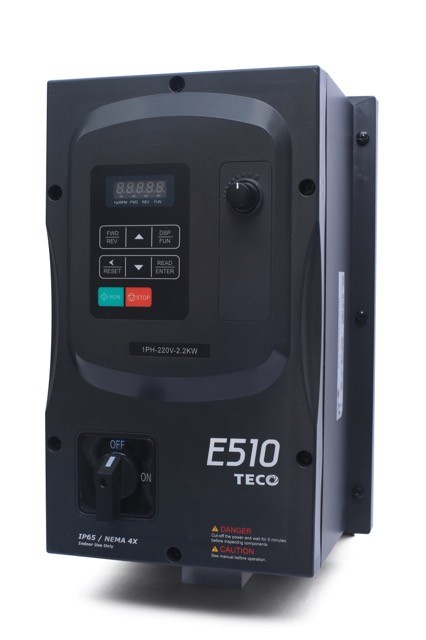

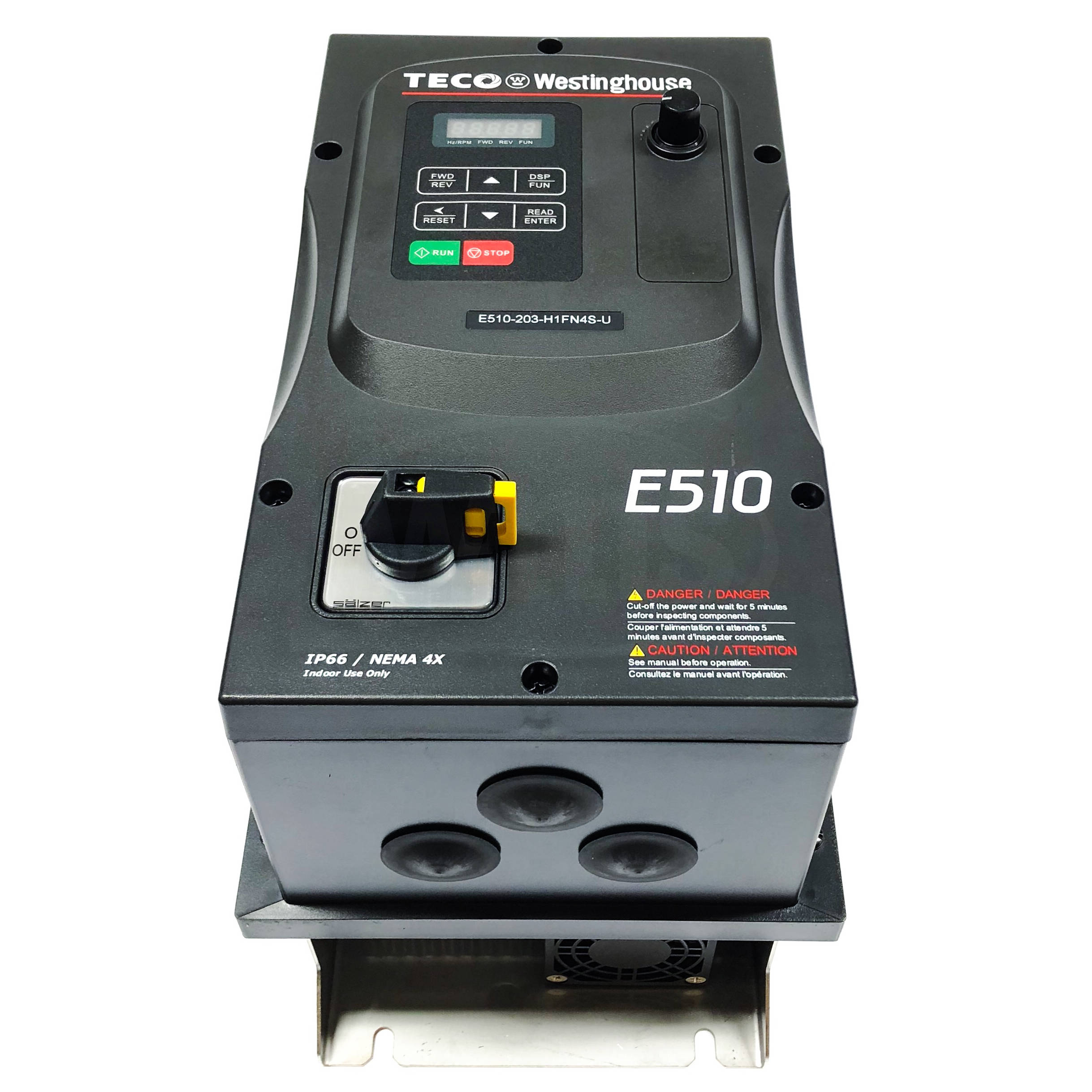

E510 NEMA 4, 4X/12 INDOOR/MEDIUM DUTY
A versatile AC Drive that can control todays demanding motor driven applications, this highly flexible drive has multiple control modes and built-in PLC functionality.
APPLICATIONS:
• Mixers • Pumps(Centrifugal, Positive Displacement, Metering, etc.)
• Conveyors • Extrusion and Injection Molding
• Packaging Machines • Crushers/Grinders
• Machine Tools • Compressors
• Fans
FEATURES:
• Control Modes for V/F, and Sensorless Vector
• Simple PLC Function Built-in
• Advanced Regenerative Load Handling Capability
• 1 to 20 HP (CT), 230V, 50/ 60Hz, 3-Phase
• 1 to 25 HP (CT), 460V, 50/ 60Hz, 3-Phase
• Conformal Coating on PC Boards
• LED Keypad with 5 Digits
• Flexible Input/ Output Configurations that Accept Normally Open or Normally Closed Signals
• 0 to 599 Hz Speed Range
• PID Control
• Diagnostics Registers for Troubleshooting
• Built-in Modbus Protocol via (RJ45 Interface)
• Dedicated Pulse Follower Signa
• UL, cUL, and CE Approved
