Product ID: E15S08P80

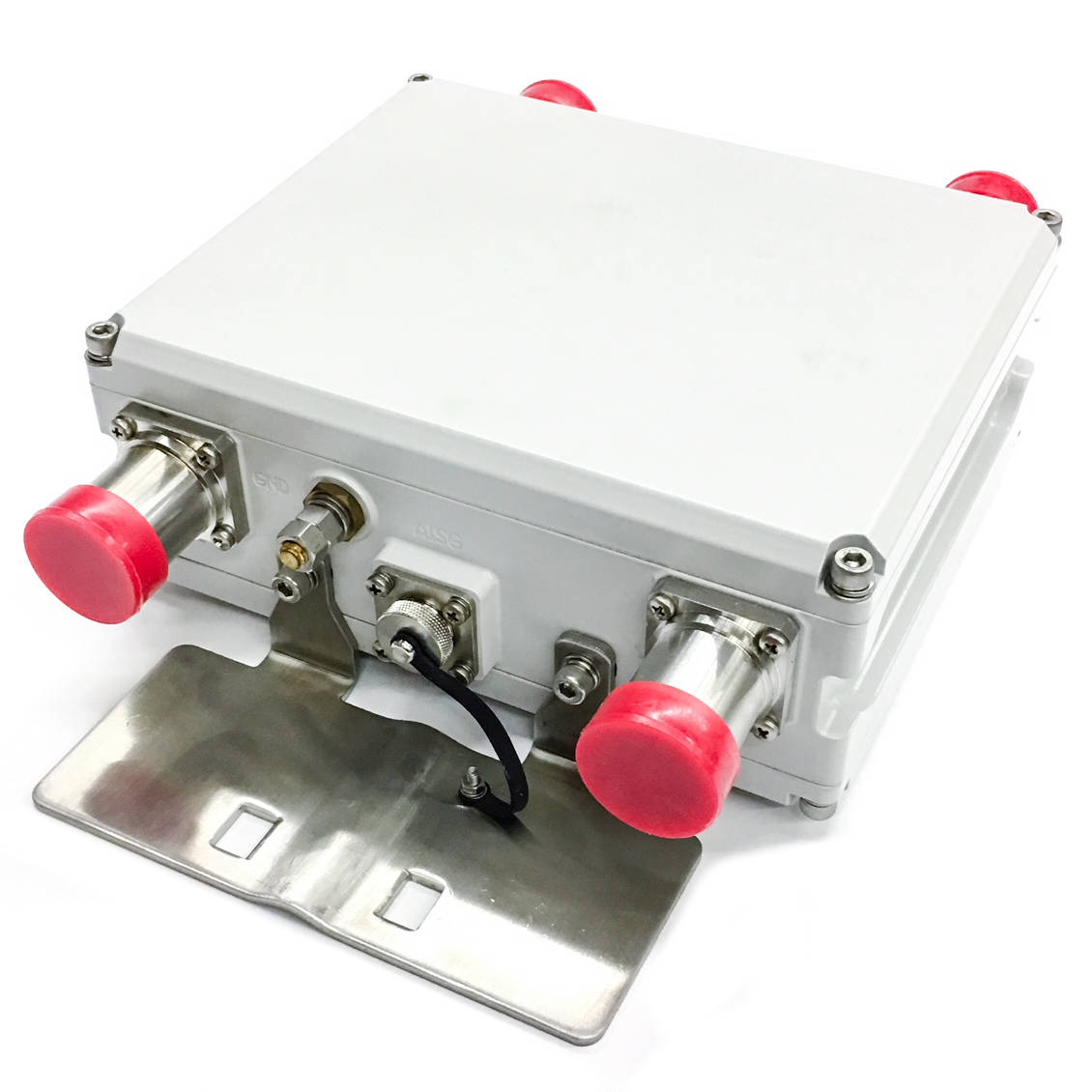

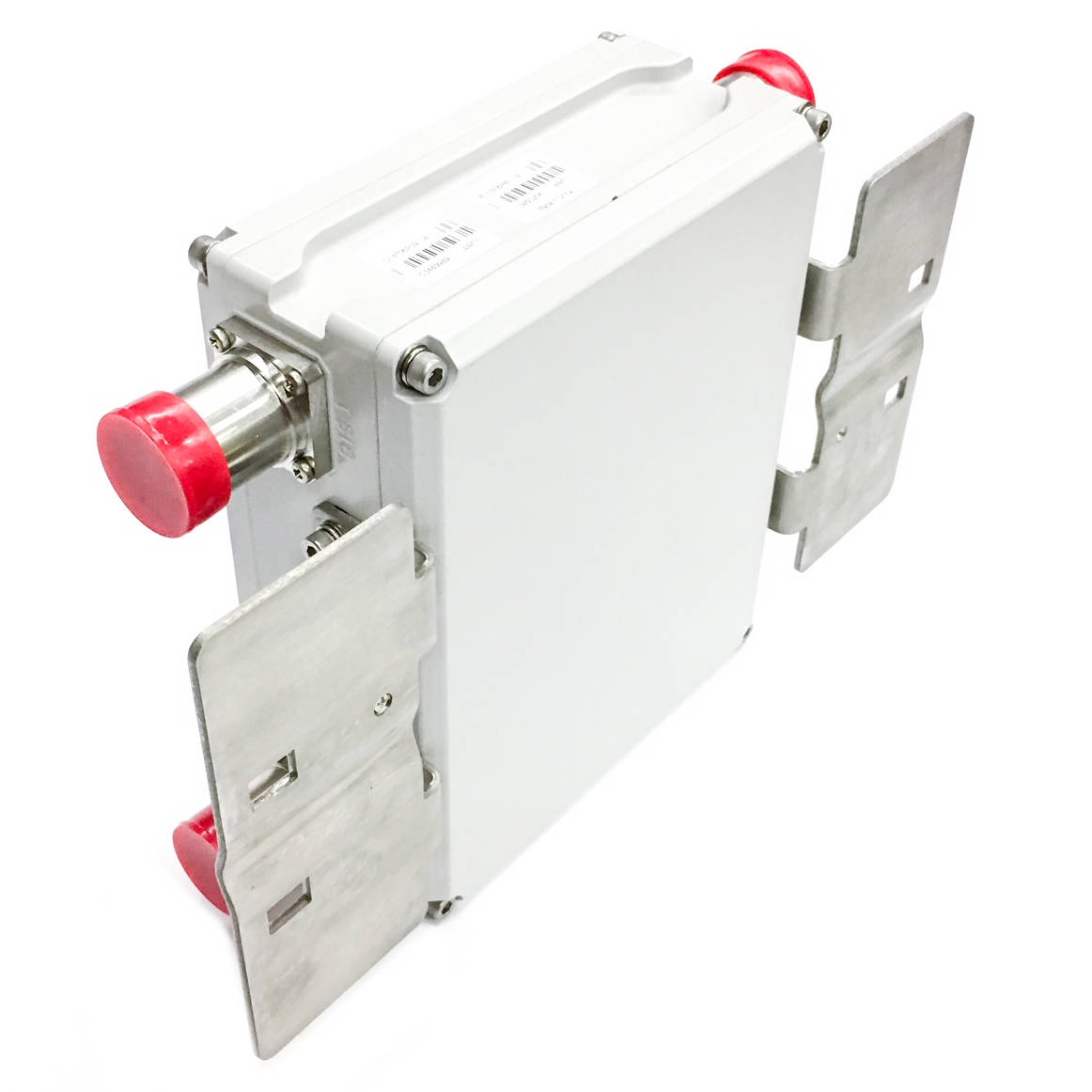

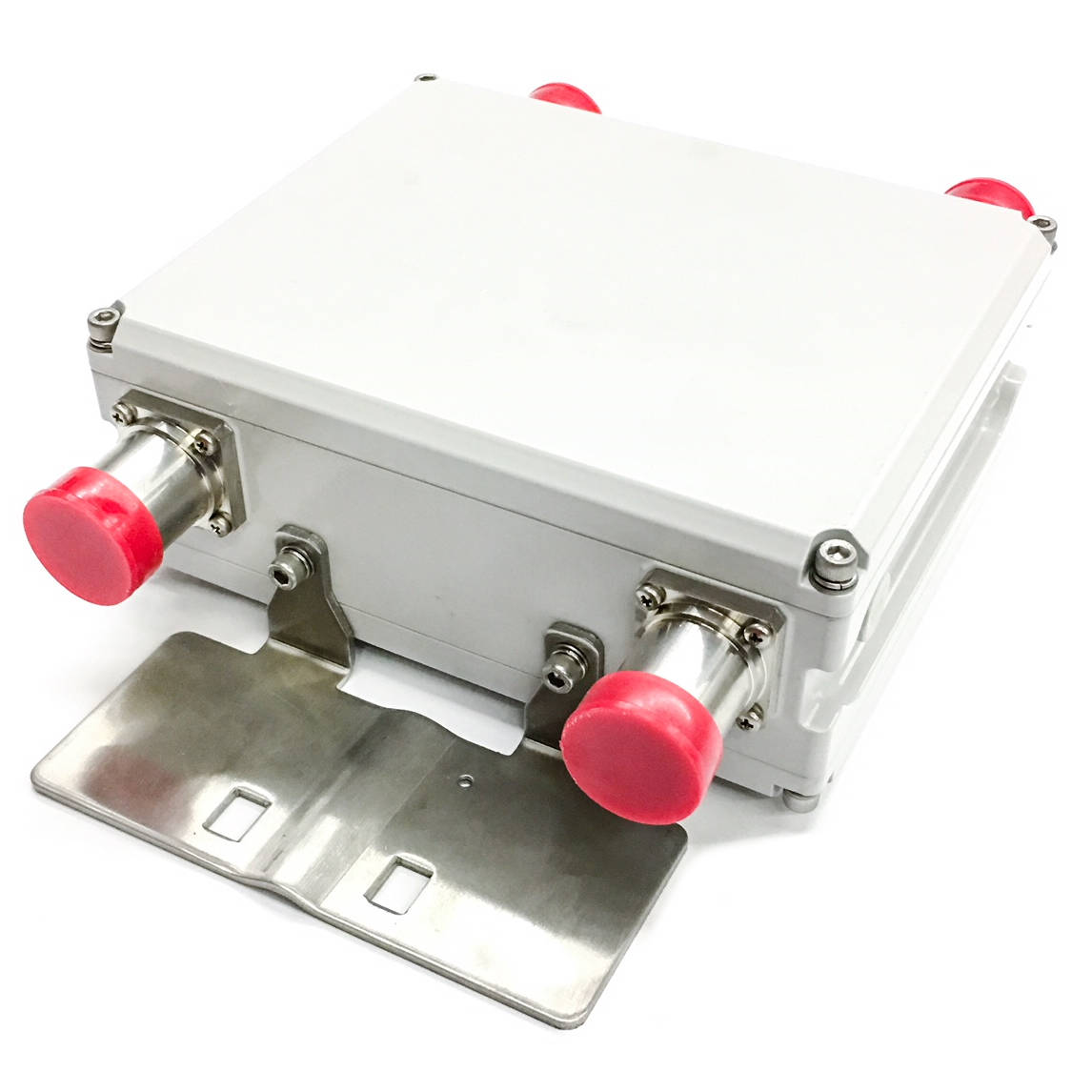

E15S08P80 Andrew Tower Mounted Amplifier

Available Stock: 3
Selected accessories will also be added to cart
$399.97 / Each
Quantity:
New, Surplus Stock. ETW200VS12UB

General Specifications
Product Type   1-BTS:1-ANT (Uniplex)
Modularity   2-Twin
Includes   Mounting hardware
Electrical Specifications
Sub-module1 | 2
Branch1
Port DesignationANT
AISG 2.0 Device SubunitE15S08P80 1/2
License BandAWS 1700, LNA
Electrical Specifications Rx (Uplink)
Frequency Range1710–1755 MHz
Bandwidth45.00 MHz
Gain, nominal12.0 dB
Gain Tolerance±1
Noise Figure, maximum1.3 dB
Noise Figure, typical1.1 dB
Total Group Delay, maximum40 ns
Output IP3, minimum22 dBm
Return Loss, typical20 dB
Insertion Loss - Bypass Mode, typical1.5 dB
Return Loss - Bypass Mode, typical18 dB
Electrical Specifications Tx (Downlink)
Frequency Range2110–2155 MHz
Bandwidth45.00 MHz
Insertion Loss, maximum0.30 dB
Total Group Delay, maximum10 ns
Return Loss, typical20 dB
Input Power, RMS, maximum200 W
Higher Order PIM, typical-153 dBc
Higher Order PIM Test Method1 x 20 W AWS CW tone
1 x 20 W PCS CW tone
VSWR Alarm Threshold9.54 dB
VSWR Alarm Threshold Tolerance±2 dB
Product Classification
Product Type   Tower mounted amplifier

AISG Electrical Specifications
Voltage, AISG Mode   10–30 Vdc
Protocol   AISG 2.0
AISG Connector   8-pin DIN Female
AISG Connector Standard   IEC 60130-9

dc Power/Alarm Electrical Specifications
Voltage   7–30 Vdc
Voltage, CWA Mode   10–18 Vdc
dc Switching/Redundancy   Yes
Operating Current at Voltage   100 mA @ 12 V
Operating Current Tolerance   ±20 mA
Alarm Current, CWA Mode   190 mA ±10 mA
Lightning Surge Current   20 kA
Lightning Surge Current Waveform   8/20 waveform

Block Diagram

Mechanical Specifications
RF Connector Interface   7-16 DIN Female
RF Connector Interface Body Style   Long neck
Ground Screw Diameter   6.00 mm
Color   Gray
Finish   Painted
Mount Type   Pole   |   Wall
Mounting Pipe Diameter   40–160 mm
Mounting Pipe Hardware   Band clamps (2)
Wind Speed, maximum   200 km/h   |   124 mph

Dimensions
Height   160.0 mm   |   6.3 in
Width   196.0 mm   |   7.7 in
Depth   78.0 mm   |   3.1 in
Weight   3.0 kg   |   6.6 lb

Environmental Specifications
Operating Temperature   -40 °C to +65 °C (-40 °F to +149 °F)
Relative Humidity   Up to 100%
Ingress Protection Test Method   IEC 60529:2001, IP67

Outline Drawing

Regulatory Compliance/Certifications
AgencyClassification
ISO 9001:2008Designed, manufactured and/or distributed under this quality management system
