/Products/Electric Motors/Single Phase/Leeson/ecoSaver/Drip Proof, C-Face less Base/E119349.00 Leeson 3/4HP General Purpose ecoSaver Electric Motor, 1800RPM
Click Image to Expand

Product ID: E119349.00

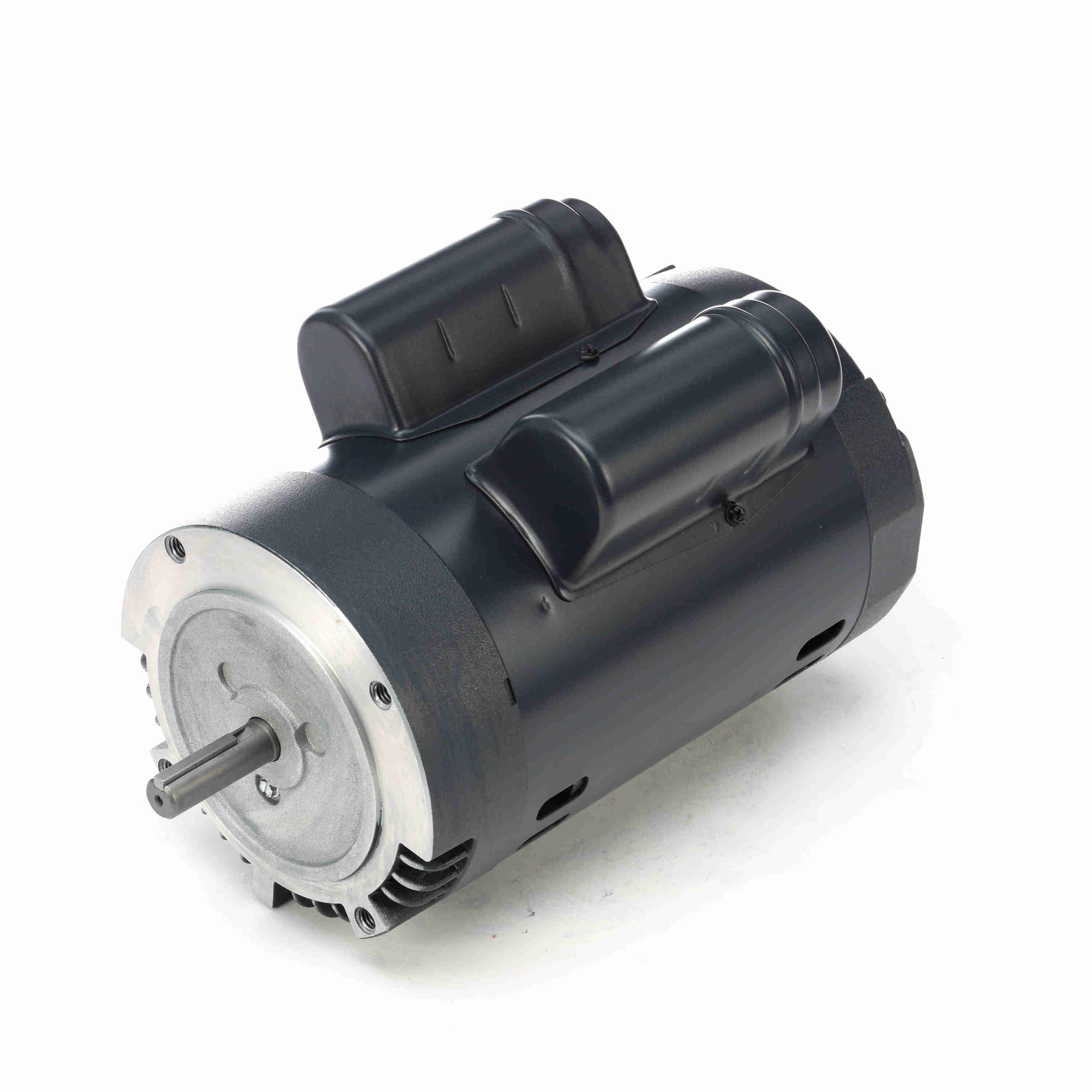

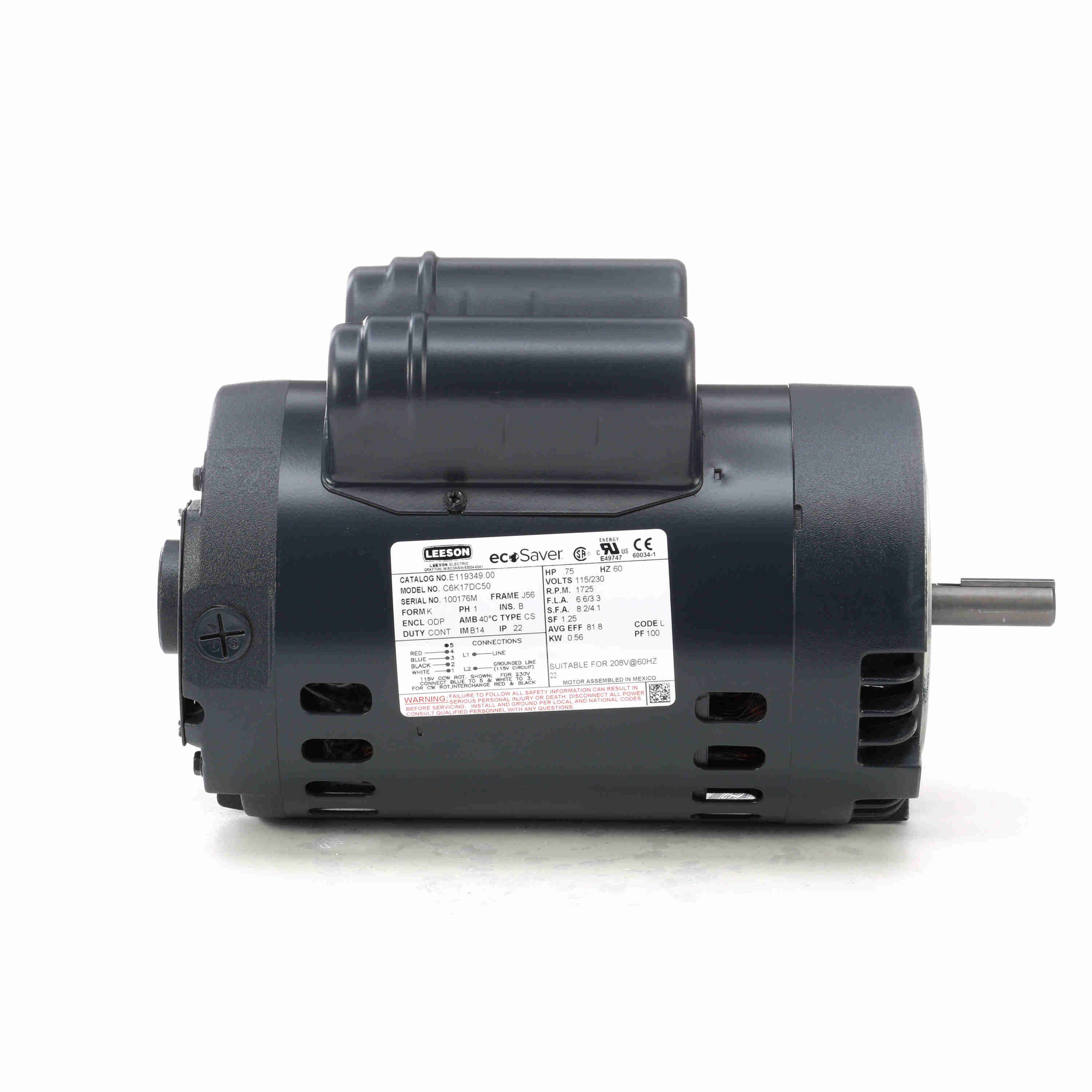

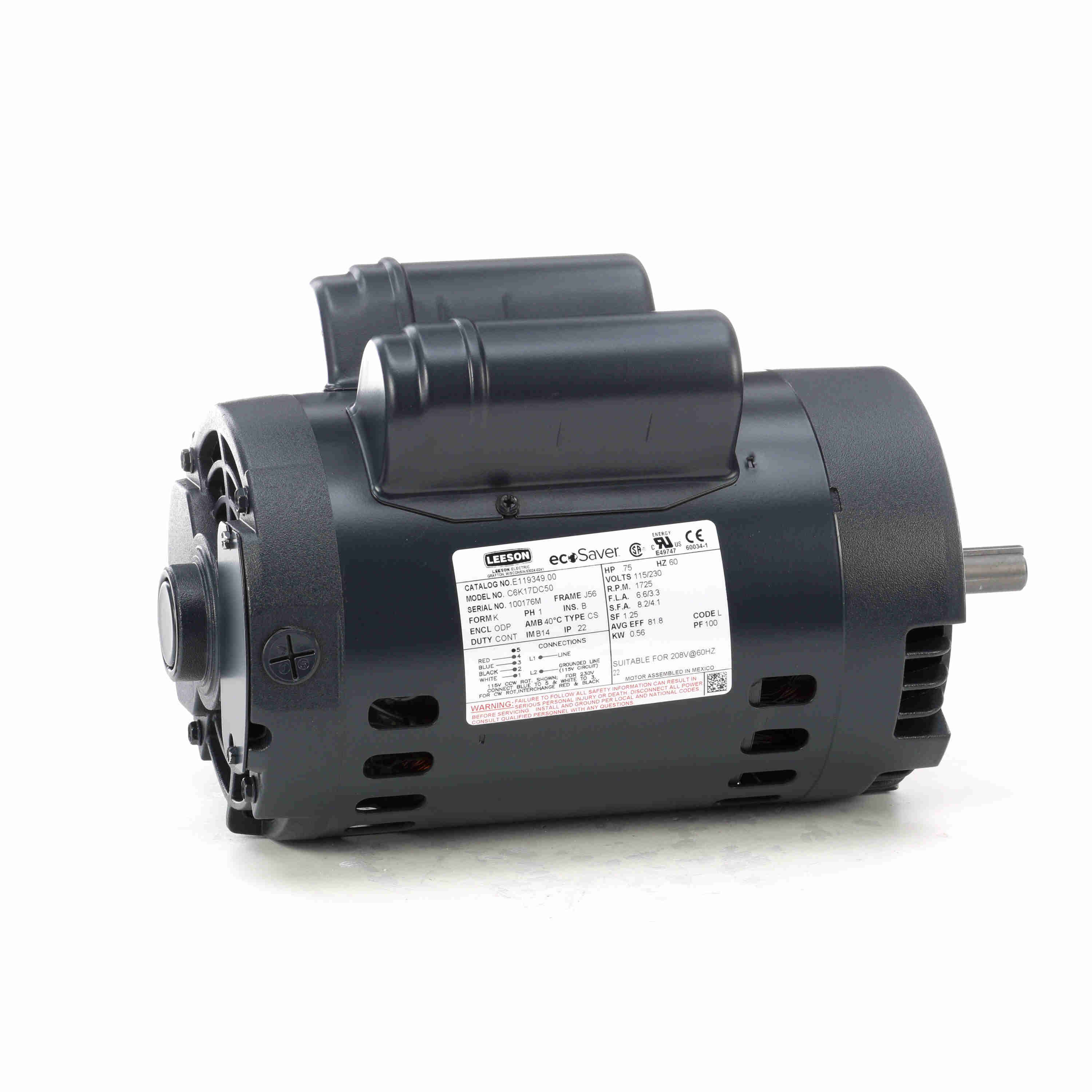

E119349.00 Leeson 3/4HP General Purpose ecoSaver Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: E119349.00

Available Stock: 1
Selected accessories will also be added to cart
$449.97 / Each
Quantity:
ODP, 56C Frame, 115/230VAC Single Phase 60Hz, C-Face, Footless, Rolled Steel, 5/8" Keyed Shaft

Features

  • Durable rolled steel construction
  • NEMA design B performance
  • Meets or exceeds NEMA service factors
  • Double shielded ball bearings
  • Continuous duty
  • Thermally protected ratings
  • UL recognized component listing and CSA certified

General Specifications

UPC: 691720041376 Weight: 30.00 LB
Packaged Length: 15.81 IN Packaged Width: 7.87 IN
Packaged Height: 10.81 IN

Nameplate Specifications

Output HP: 0.75 Hp Output KW: 0.56 kW
Frequency: 60 Hz Voltage: 115/230 V
Current: 6.6/3.3 A Speed: 1725 rpm
Service Factor: 1.25 Phase: 1
Efficiency: 81.8 % Power Factor: 97
Duty: Continuous Insulation Class: B
Design Code: L KVA Code: L
Frame: 56C Enclosure: Drip Proof
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 22

Technical Specifications

Electrical Type: Capacitor Start Capacitor Run Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Resistance Main: 1.9 Ohms Mounting: Round
Motor Orientation: HORIZONTAL Drive End Bearing: BALL
Opp Drive End Bearing: BALL Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 13.15 in
Frame Length: 7.63 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in Assembly/Box Mounting: F1 Only

Speed & Load Characteristics

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 30.60 0.0 152.00 0.0 0 0.00 0.0 0.75
Break-Down 0.00 0.0 132.30 0.0 1,555 0.00 0.0 0.75
Pull-Up 0.00 0.0 152.00 0.0 0 0.00 0.0 0.75

Load Characteristics

% of Rated Load 100 % 115 % 125 %
Current (Amps) 3.30 4.75 5.10
Rated Output (KW) 0.94 1.06 1.15
Efficiency (%) 81.8 80.5 81.0
Power Factor (%) 97.0 97.3 97.0
Speed (RPM) 1,760 1,750 1,745
Temp. Rise @ FL 0.0 0.0 0.0
Torque (ft-lbs) 48.00 55.20 60.00
