/Products/Electric Motors/Single Phase/Century/DL1076 Century 3/4HP Fan and Blower Electric Motor, 1075 RPM

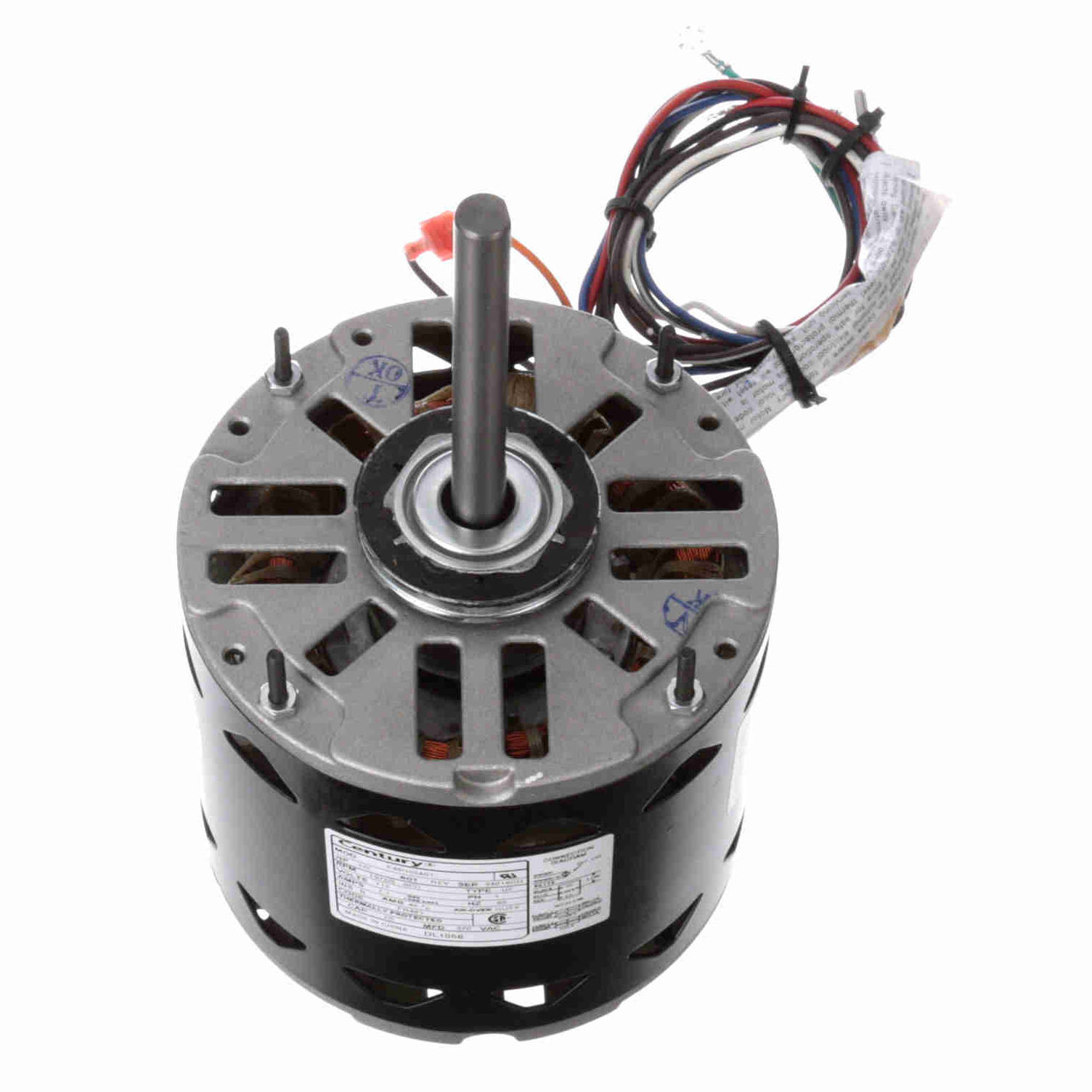

Click Image to Expand

Product ID: DL1076

DL1076 Century 3/4HP Fan and Blower Electric Motor, 1075 RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: DL1076

Selected accessories will also be added to cart
$172.97 / Each
Quantity:
Open Enclosed, 48 Frame, 115VAC 60Hz Single Phase, Resilient Rings, Sleeve Bearings, 1/2" Shaft, Reversible

Features

Features
  • Fan Coils - Dual Wheel Blower Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • 26" Leads

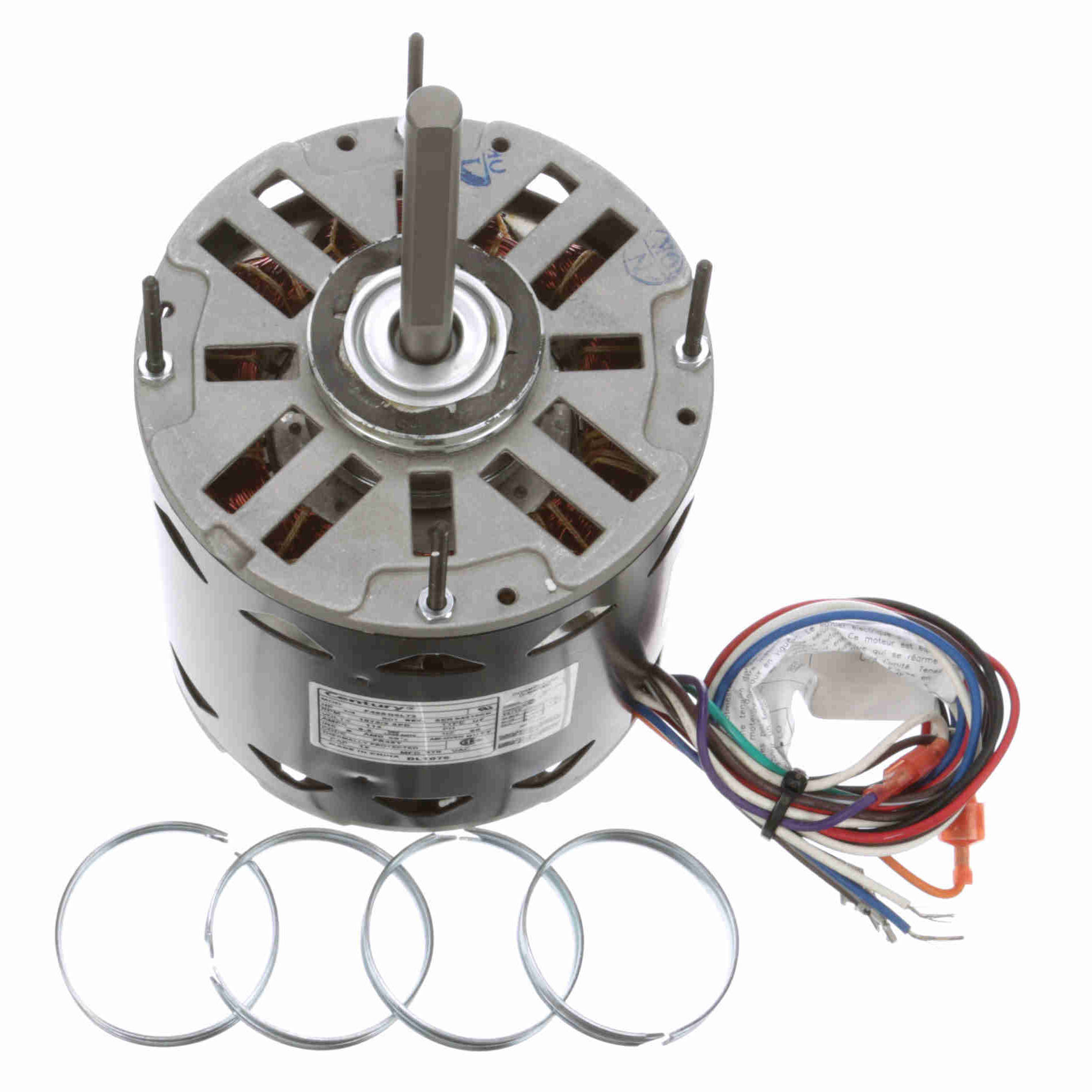

  • Extended Studs Shaft End, Resilient Ring Mounting, Belly Band Mount

General Specifications

General Specifications
Model : Catalog No :DL1076
Part Description :MODEL-RFHP-48FR Category :Direct Drive
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :3/4 Hp Output KW :0.56 kW
Frequency :60 Hz Voltage :115 V
Current :9.5 A Speed :1075 rpm
Service Factor :1 Phase :1
Duty :Air Over Insulation Class :B
Frame :48 Enclosure :Open Enclosed
Overload Protector :Automatic Ambient Temperature :50 °C
UL :Recognized CSA :Y
CE :N

Technical Specifications

Technical Specifications
Electrical Type :Permanent Split Capacitor Starting Method :Induction Run
Poles :6 Rotation :Reversible
Mounting :Resilient Rings Motor Orientation :Any
Drive End Bearing :Sleeve Opp Drive End Bearing :Sleeve
Frame Material :Rolled Steel Shaft Type :Flat
Overall Length :10.61 in Frame Length :5.00 in
Shaft Diameter :0.500 in Shaft Extension :4.5 in
UPC :786674018571 Weight :19.00 LB
